Vertical Heat Insert Press (3030 Profile & Rubber Band Tension)

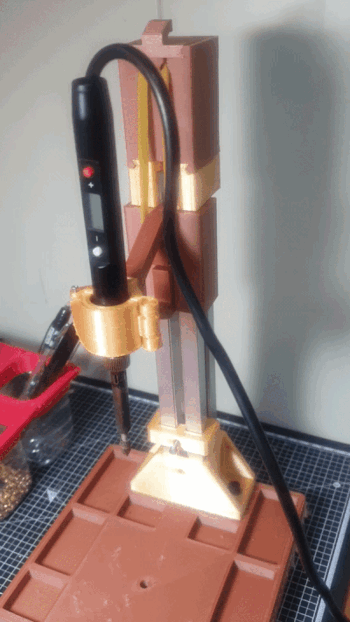

Installing heat-set inserts perfectly vertical can be a challenge. This Vertical Heat Insert Press is designed to provide a high-precision, low-cost solution using a 3030 aluminum profile and the elasticity of standard rubber bands.

Key Features:

• Precision Vertical Guide:The sliding mechanism along the 3030 profile ensures that every insert is pressed perfectly straight without tilting.
• Rubber Band Return System: Instead of expensive metal springs, it uses common rubber bands (Length: 60mm) to automatically return the iron to the top position.
• Integrated Storage Solution: The baseplate includes dedicated storage spaces for M2-M6 insert nuts and soldering tips, keeping your workspace organized.
• Stable & Repeatable: The sturdy base and adjustable stopper allow for consistent insertion depth across multiple parts.

Bill of Materials:

1. Hardware

• 3030 Aluminum Profile: 240mm x 1ea (https://s.click.aliexpress.com/e/_c3Yo44Ov)
• Rubber Band: Length 60mm / Width 5mm
• Bolts: M3 Bolt x 6ea, M5 Bolt x 2ea (https://s.click.aliexpress.com/e/_c3TeZ7nB)
• Insert Nuts M3 (OD: 5mm, Height: 4mm) x 6ea (https://s.click.aliexpress.com/e/_c2Rpbtjr)
• Insert Nuts M5 (OD: 7mm, Height: 5mm) x 2ea (https://s.click.aliexpress.com/e/_c2Rpbtjr)

2. 3D Printed Parts (4 Layers)

• Base Group: Baseplate.stl, Base_holder.stl, Stopper.stl
• Carriage Group: Sled.stl, Arm.stl, Clamp.stl
• Top Group: Top_End.stl, Top_Storage.stl, Top_Cover.stl

Printing & Assembly Tips

• Printable Profile: If it is difficult to source an aluminum profile, you can print and use the included 3030_profile.stl.
• Tolerance Adjustment: If the fit between the printed profile and the sled is too tight or doesn't slide smoothly, it is recommended to set the Horizontal Expansion option to -0.2mm to -0.3mm in your slicer settings.
• Smooth Operation: For the best performance, apply a small amount of lubricant to the sliding surfaces of the printed profile.

** Jun 4, 2026 : I added a few missing STL files.
