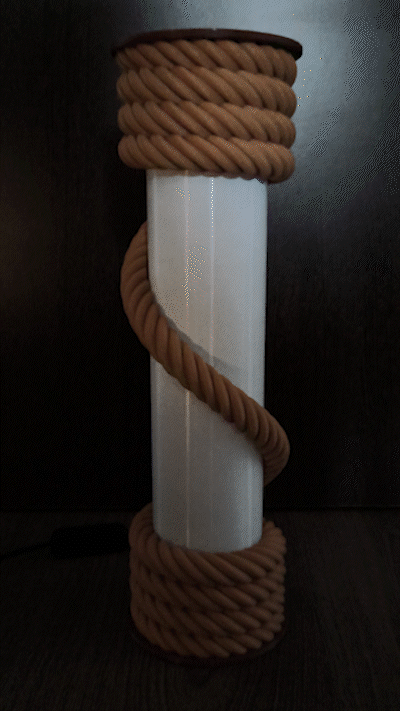

###🧵 Introduction This decorative lamp shaped like a spool wrapped with rope combines modern 3D printing with a rustic look. The model is designed to be easy to print, stable, and compatible with a standard E14 socket. I used a 200 lm LED bulb, but you can choose another light source – for example, an LED strip.

The model consists of five parts: + lampshade + upper spool + lower spool + middle rope section + bulb holder

All dimensions can be found in the drawing below.

###🖨 Printing the individual parts

1. Lampshade + This is a model of a solid cylinder (you adjust the wall thickness by printing). + Print as a vase mode. + Without top and bottom layers. + A thin wall creates a beautiful light diffusion.

2. Upper and lower spool + On the parts imitating rope, set fuzzy skin to give the surface a more realistic texture. + I recommend two-color printing – filament change at the layer works great. + Print with small support where the rope rises.

3. Middle rope section + Print with a wide brim for better adhesion. + Add support under the overhanging part to prevent print breakage.

4. Bulb holder + Regular print without special settings. + Holes are prepared for M3x10 screws.

###🔧 Assembly + Insert the power supply with the E14 socket into the bottom part. + Screw the holder onto the socket and secure it with an anti-rotation ring. + Screw the holder to the bottom part using M3x10 screws. + Insert the LED bulb. + Put on the lampshade. + Add the middle rope section – pins should fit freely. If you want a firmer connection, you can glue it (beware of bulb replacement possibility). + Finally, put on the upper spool, which fixes everything. + In my print, nothing is glued, and it holds firmly.

###🎥 Video YouTube
