Work In Progress I update the models quite often, introducing fixes and improvements, so before printing, please check for the latest version on Thingiverse again.

Overview ==================== This is unofficial set of decoration elements, armament and laser-cutting templates for Shipyard's paper model in 1:96 scale: HMS Victory https://model-shipyard.com/en/paper-models/412-hms-victory-1765-5902574600011.html

These models are designed for printing on a UV LED resin 3D printer. Some parts need to be slightly bent before gluing. To do this, place the part in hot water (up to 100°C) for a few minutes, then bend it, checking the fit against the mounting location.

To determine the quantity of parts, refer to the "BOM: Thing Elements" section. Some parts are symmetrical for the right and left sides of the model and need to be mirrored. For such parts, the "R+L" column in the "BOM: Thing Elements" table will show the value "R+L" - please take this into account when preparing the print.

Additional rigging elements are available separately and can be downloaded via the link in the "BOM: Rigging Elements" section.

You can also download vector files for laser-cutting the frame parts and deck elements. These files are located in the laser_cut.zip archive. For more details, please refer to the "Notes: Laser Cut" section.

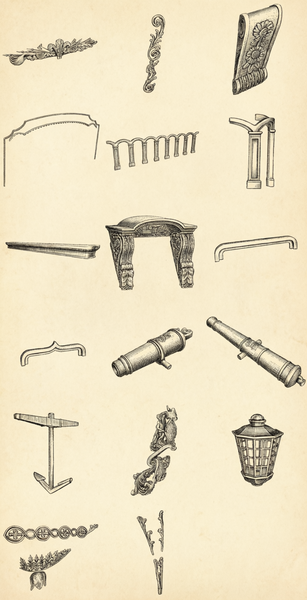

Engraving

BOM: Thing Elements ==================== Description of columns: Sym - symmetrical should be mirrored to get left or right parts R+L - number of mirrored groups of parts Total Count - total number of parts

Instruction

Part #	Sym	R+L Count	Total Count
figurehead	-	-	1
334	R+L	1	2
108_a	-	-	1
108_b	R+L	1	2
108_c	R+L	1	2
108_d	-	-	1
223	-	-	1
227	-	-	2
322	-	-	8
323	-	-	10
324	-	-	2
325	-	-	6
326	-	-	2
327	-	-	2
328	-	-	2
329	-	-	3
330	-	-	4
345	-	-	32
346	-	-	16
436	-	-	2
444	-	-	1
M1	R+L	1	1
M14	R+L	1	1
423	-	-	2
424	-	-	2
431	-	-	32
432	-	-	28
433	-	-	44
470	-	-	4
471	-	-	1

BOM: Rigging Elements ===================== Rigging elements are in the separate thing: https://www.thingiverse.com/thing:7297386 Number of sets and sizes you need for this model:

Part #	Count	Sets	Description
551	100	10	Deadeye 3.5mm
552	55	6	Deadeye 2.5mm
553	87	9	Deadeye 3.0mm
554	6	1	Heart block 5.0mm
555	6	1	Heart block 4.0mm
556	16	2	Heart block 3.0mm
583	91	10	Single block 3.5mm
584	164	17	Single block 2.5mm
585	10	1	Double block 5.0mm
586a	6	1	Long tackle block 5.5mm
586	7	1	Triple block 5.0mm
587	8	1	Single block 5.0mm

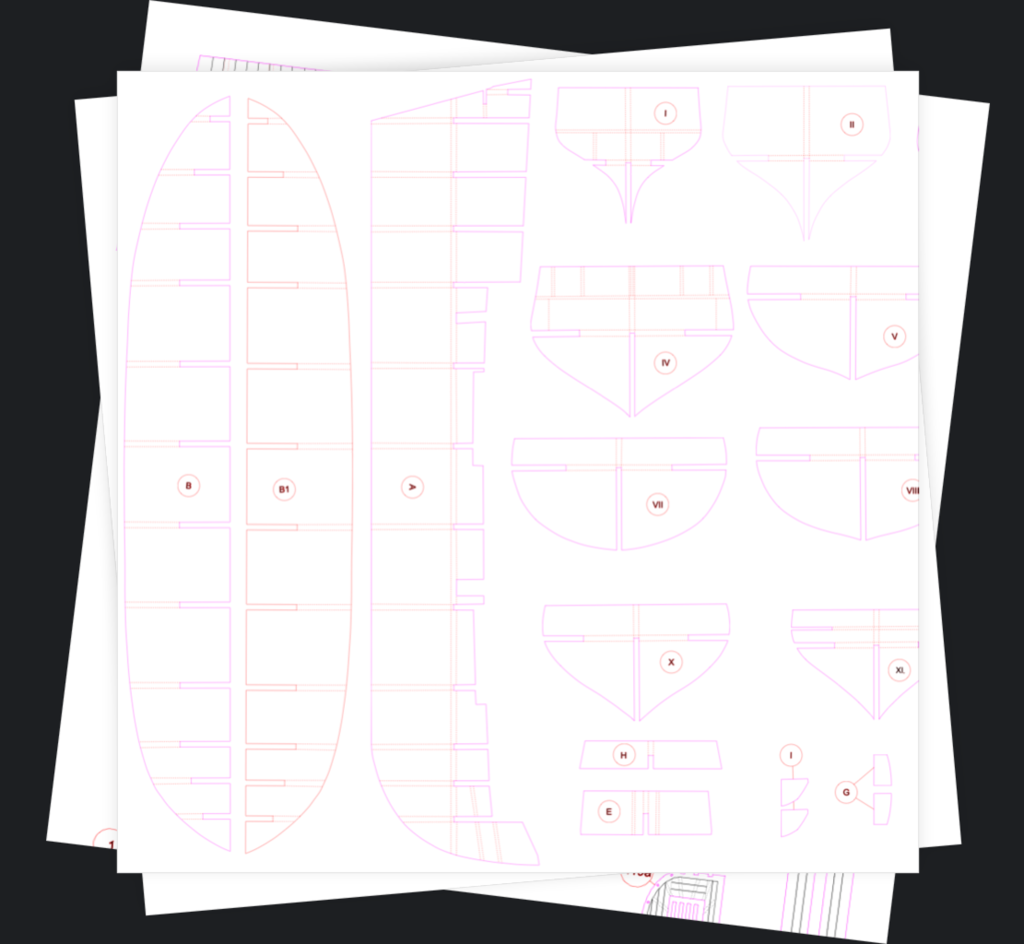

Notes: Laser Cut ==================== Files naming convention for laser_cut.zip package:

deck.svg - wooden veneer laser cut parts
thinckness_0_5.svg - 0.5 mm cardboard parts
thinckness_1_0.svg - 1.0 mm cardboard parts
thinckness_1_5.svg - 1.5 mm cardboard parts
thinckness_2_0.svg - 2.0 mm cardboard parts

Color convention:

black layer - Dark engraving of deck planks
blue layer - Nails on deck engraving (should be less dark than black layer)
purple layer - Cut-through lines
red layer - Labels and markdowns engraving layer
