I update the models quite often, introducing fixes and improvements, so before printing, please check for the latest version on Thingiverse again.

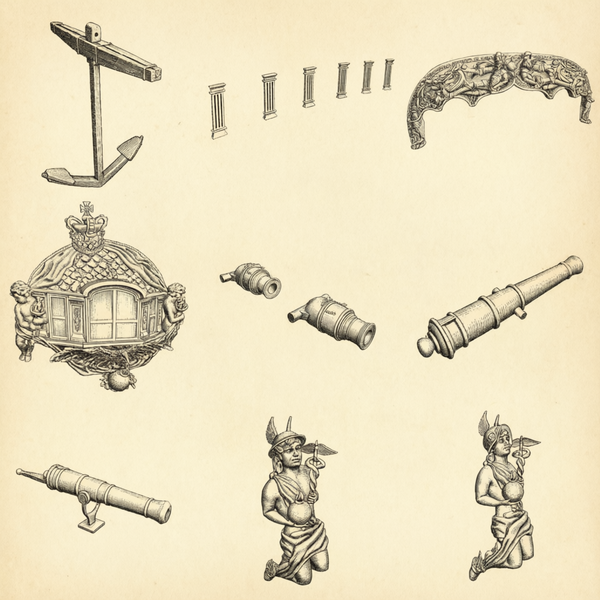

Overview ==================== This is unofficial set of decoration elements, armament and laser-cutting templates for Shipyard's paper model in 1:96 scale: HMS Granado

These models are designed for printing on a UV LED resin 3D printer. Some parts need to be slightly bent before gluing. To do this, place the part in hot water (up to 100°C) for a few minutes, then bend it, checking the fit against the mounting location.

To determine the quantity of parts, refer to the "BOM: Thing Elements" section. Some parts are symmetrical for the right and left sides of the model and need to be mirrored. For such parts, the "R+L" column in the "BOM: Thing Elements" table will show the value "R+L" - please take this into account when preparing the print.

Additional rigging elements are available separately and can be downloaded via the link in the "BOM: Rigging Elements" section.

You can also download vector files for laser-cutting the frame parts and deck elements. These files are located in the laser_cut.zip archive. For more details, please refer to the "Notes: Laser Cut" section.

BOM: Thing Elements ==================== Description of columns: Sym - symmetrical should be mirrored to get left or right parts R+L - number of mirrored groups of parts Total Count - total number of parts

BOM: Rigging Elements ===================== Rigging elements are in the separate thing: https://www.thingiverse.com/thing:7297386 Number of sets and sizes you need for this model:

Notes: Laser Cut ==================== Files naming convention for laser_cut.zip package:

• deck.svg - wooden veneer laser cut parts
• thinckness_0_5.svg - 0.5 mm cardboard parts
• thinckness_1_0.svg - 1.0 mm cardboard parts
• thinckness_1_5.svg - 1.5 mm cardboard parts
• thinckness_2_05.svg - 2.0 mm cardboard parts

Color convention:

• black layer - Dark engraving of deck planks
• blue layer - Nails on deck engraving (should be less dark than black layer)
• purple layer - Cut-through lines
• red layer - Labels and markdowns engraving layer
