mini hinge v1

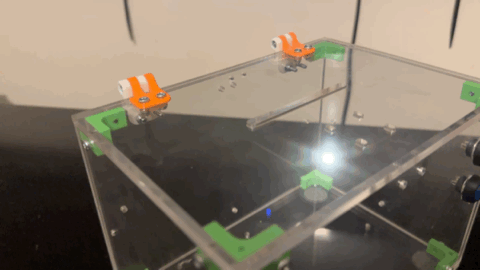

I designed it for a plexiglass box. I also designed a micro version.

It rotates 180 degrees in the closing direction and 90 degrees in the opening direction. I added a block that stops the closing angle at 180 degrees and I limited the opening angle to 90 degrees. total movement angle 270 degrees. v1a rotates 180 degrees-139 degrees, totaly 319 degrees. dimensions v1 35x20x10mm v1a 50x20x10mm v1b 50x20x10mm more thicknes v1c 50x30x11mm

I recommend you print with 100% fill. I did not use support.

you need m3x15mm bolt m3 nut

I used the v1a version in the video. v1a was a bit underpowered, but later I designed v1b, it was supposed to be more powerful. https://youtu.be/ev5iPRGsJ3c?si=UeCbDwR3ahKeFQmA
