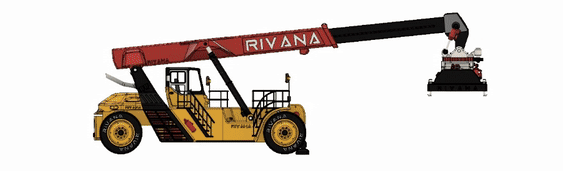

#Yellow Reach Stacker (Basic) - Fully Functional 3D Model(1:30 scale) > This is an assembly model which requires use of glue.

Reach stackers are the giants of the container yard—precise, powerful, and endlessly fascinating. Their ability to lift and position massive containers with agility and control makes them a cornerstone of modern logistics.

This 3D model brings that impressive functionality to life as a hands-on, printable experience. Designed for makers of all ages, it’s inspired by the same spirit of family, creativity, and discovery that shaped my own childhood projects with my grandfather. Whether you’re a parent, educator, or enthusiast, this model offers a rewarding way to explore the mechanics behind real-world machines—while building lasting memories, one piece at a time. ##The project comes in two versions:

> * ###Basic Version (Free):- Simplified with fewer parts for easier printing and assembly. A great starting point for beginners or those seeking a simpler, enjoyable build. >>Features include:

1. Front-wheel steering.
2. Stacker arm movements.
3. Combined Front wheels.

> * ###Premium Version:- A fully detailed and tested model replicating nearly all the functions of a real garbage truck. >>Features include:

1. Front-wheel steering.
2. Full Stacker movements.
3. Openable cabin doors.
4. Sliding Cabin with autolock.
5. Sliding Counterweight with autolock.
6. Openable Engine bay with Engine.
7. Functioning hydraulic lines made with TPU.
8. Various small external details, such as side mirrors and safety features.
9. Magnet locking for lifting the Containers.

> ##Please Click Here for Premium Version of this model with advanced Features

Designed for families seeking an immersive and challenging project, this version provides a deep dive into the mechanics of a reach stacker, making it both an engaging and educational experience.

Whether you choose the basic or premium version, this project is sure to provide hours of creative assembly and a memorable family experience. Bring the magic of engineering to life and make this model a centerpiece of your family’s building adventures! To assist with the assembly and showcase the functionalities, detailed Videos are provided, making the process smooth and enjoyable.

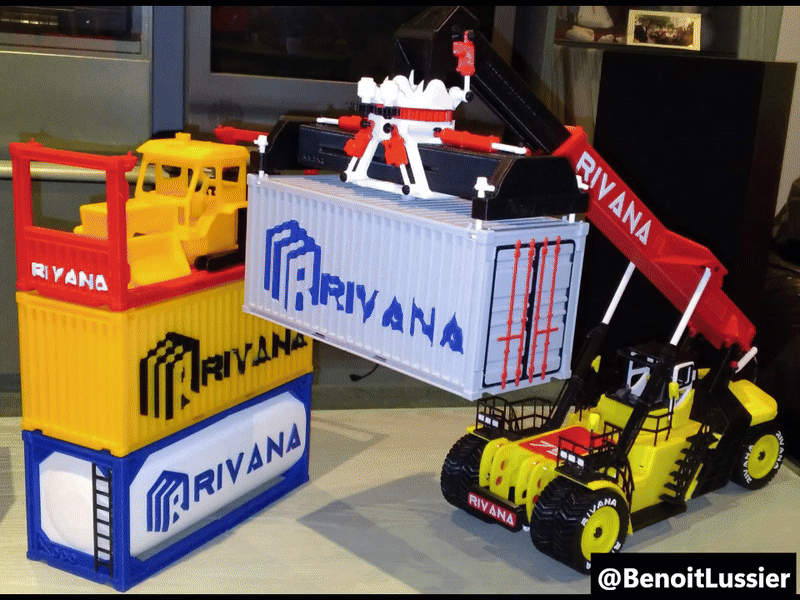

###I am very thankful to Mr Benoît Lussier for his feedbacks which has helped me refine the model further.

> ##There are three ways to print this.

1. As single piece:- Please download STL file but there wont be any movements.
2. Multiple Pieces :- Download 3mf file with Full_dismantled.3mf.BEST QUALITY OUTPUT. Please use the 3mf file for assembly also. CHECK EASE OF PRINTING TITLE BELOW
3. Combined:- You may use any 3D viewer software like 3D builder in windows to merge components according to your printer and filaments. The sky is the limit for this. You may find a sample file ending with combined.3mf.

> #EASE OF PRINTING

1. This model contains parts of 5 colors - YELLOW, BLACK, RED, GREY & WHITE. I have separated these into different plates according to color and in the optimum print position. Please download and extract the file “Print Plates According to Colour.zip” to make use of them. These plates can be opened in any slicer and printed according to your print profiles. Check the names of the files for the color to print with.
2. The 6th & 10th Plates can be printed with filament change for the brand names on the top, if you choose so.
3. You can also download the print profile for Orca Slicer/Bambu studio. File name :-Reach_Stacker_Basic_Profile.3mf

Movements Included

Please Click Here for Premium Version of this model with advanced Features

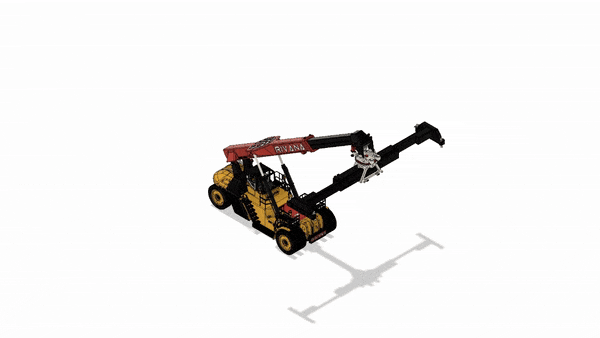

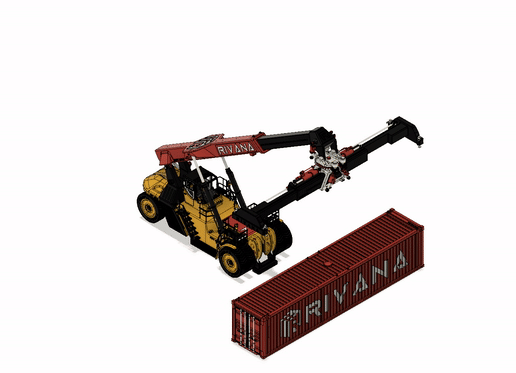

> ## 1. FULL OPERATIONS WITH CONTAINERS (Premium Feature)

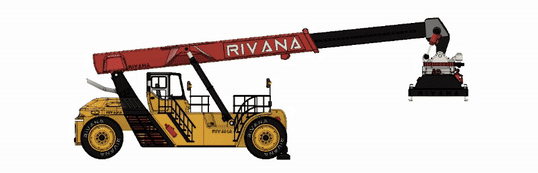

> ## 2. REAR STEERING
> ## 3. DOORS OPERATION (Premium Feature)

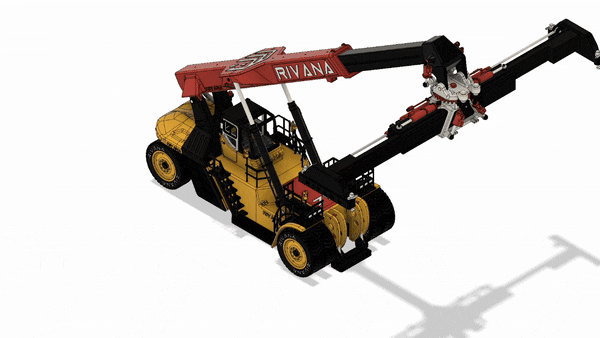

> ## 4. SLIDING CABIN AND COUNTERWEIGHT (Premium Feature)

ASSEMBLY OF MODEL

This is done in 3 steps. Please follow the steps. Please Click Here for Premium Version of this model with advanced Features

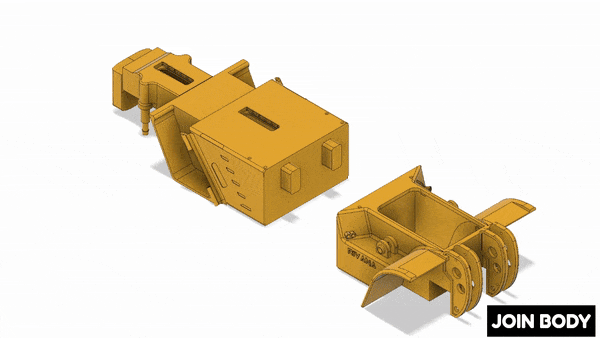

> ## 1. ASSEMBLY OF MAIN BODY

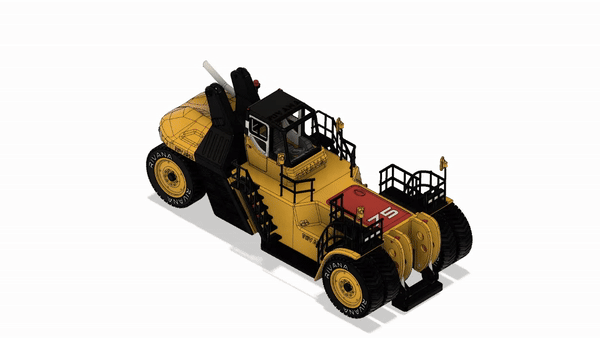

> ## 2. ASSEMBLY OF BOOM

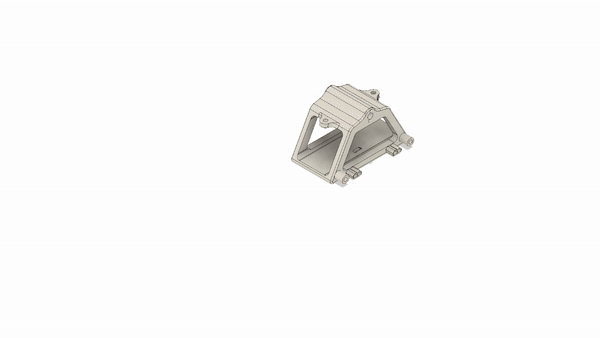

> ## 3. ASSEMBLY OF LIFTING ARM

Addons Available

Please Click Here for Premium Version of this model with advanced Features

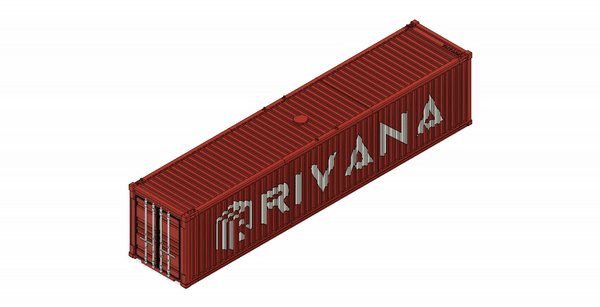

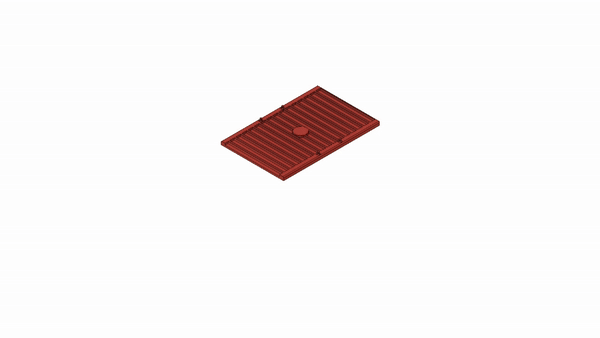

> ## 1. 40 FEET CONTAINER (Premium Feature)

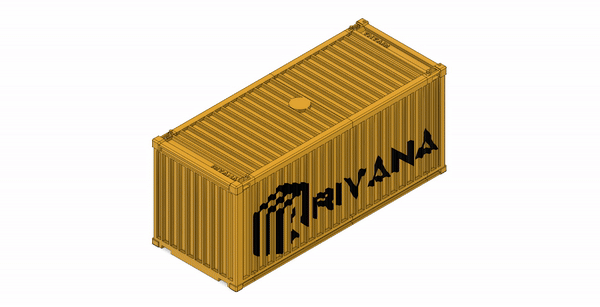

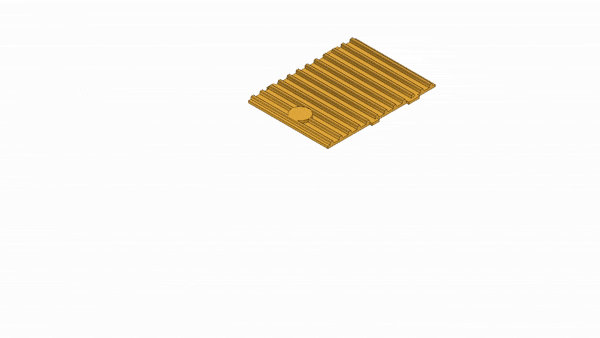

> ## 2. 20 FEET CONTAINER (Premium Feature)

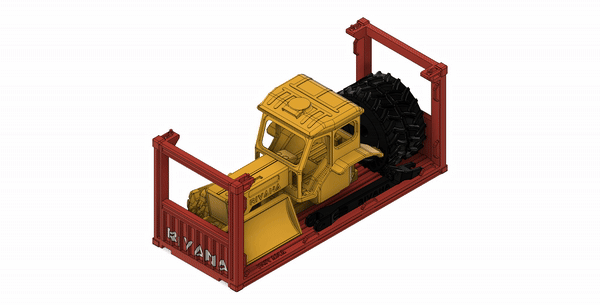

> ## 3. FLAT BED CONTAINER (Premium Feature)

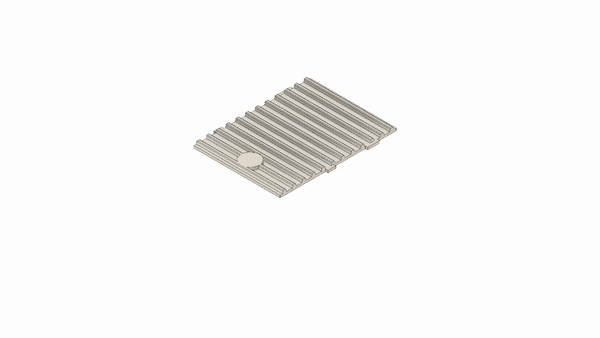

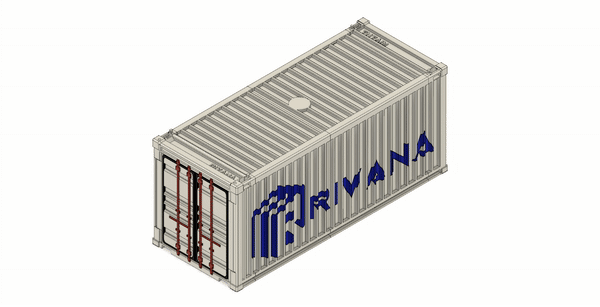

> ## 4. REEFER CONTAINER (Premium Feature)

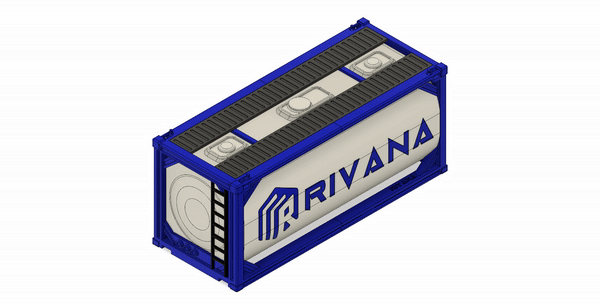

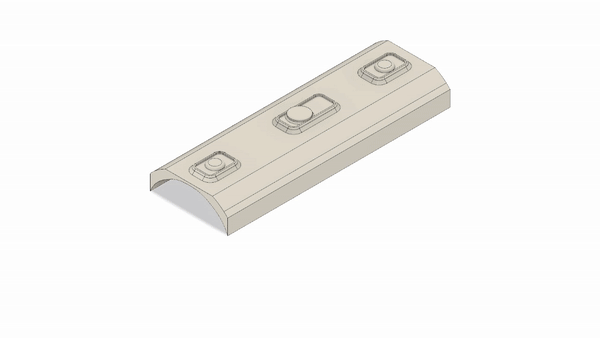

> ## 5. TANKER CONTAINER (Premium Feature)

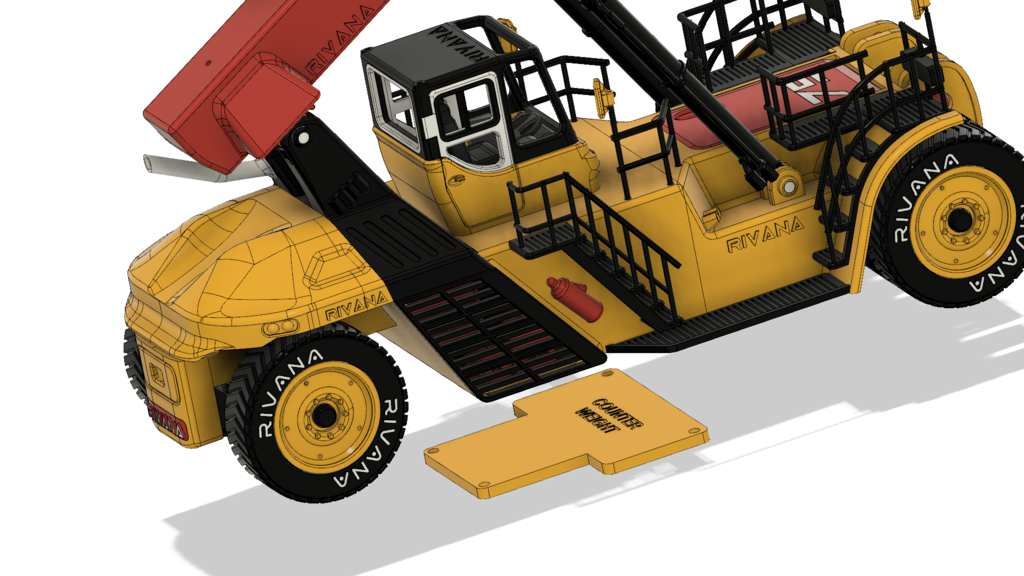

Internal Counterweight

As shown in the image below, there is an option for adding a real counterweight to the base plate of the model and then screwing it on. This would only be applicable if you are looking to use heavier payloads.

Hydraulic Lines (Premium)

The design allows use of TPU filament as hydraulic and fuel lines. Since it may be difficult to stick TPU filament to PLA, I recommend melting the ends of TPU filament and inserting into the holes. Please make sure there is adequate slack in the lines. (GIF coming soon)

#STATIC DISPLAY LOCKING The are specific mechanisms provided by which various links can be locked in different poses. Please use a small piece of filament to lock the links as shown in the instructions below(GIF coming soon)

###Appreciate the makes uploads. Open for suggestions.
