Work In Progress I update the models quite often, introducing fixes and improvements, so before printing, please check for the latest version on Thingiverse again.

Overview ==================== This is unofficial set of decoration elements, armament and laser-cutting templates for Shipyard's paper model in 1:96 scale: Schwarzer Rabe https://model-shipyard.com/en/paper-models/421-fleute-schwarzer-rabe-1627-5902574600097.html

These models are designed for printing on a UV LED resin 3D printer. Some parts need to be slightly bent before gluing. To do this, place the part in hot water (up to 100°C) for a few minutes, then bend it, checking the fit against the mounting location.

To determine the quantity of parts, refer to the "BOM: Thing Elements" section. Some parts are symmetrical for the right and left sides of the model and need to be mirrored. For such parts, the "R+L" column in the "BOM: Thing Elements" table will show the value "R+L" - please take this into account when preparing the print.

Additional rigging elements are available separately and can be downloaded via the link in the "BOM: Rigging Elements" section.

You can also download vector files for laser-cutting the frame parts and deck elements. These files are located in the laser_cut.zip archive. For more details, please refer to the "Notes: Laser Cut" section.

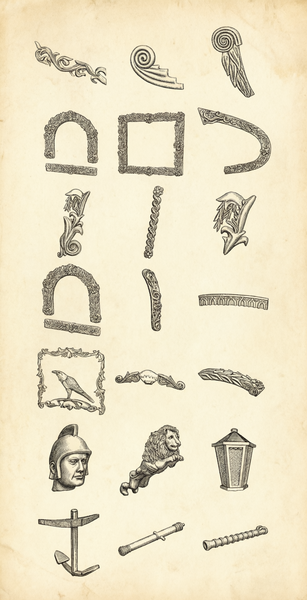

Engraving

BOM: Thing Elements ==================== Description of columns: Sym - symmetrical should be mirrored to get left or right parts R+L - number of mirrored groups of parts Total Count - total number of parts

Instruction

Part #	Sym	R+L Count	Total Count
121	R+L	1	2
126	R+L	1	2
139	R+L	1	2
149	R+L	2	4
151	R+L	1	2
152	R+L	1	2
153	R+L	1	2
154	R+L	1	2
155	R+L	1	2
156	R+L	2	4
163	R+L	2	4
175	-	-	1
176a	-	-	1
178	-	-	1
179	R+L	2	4
179a	R+L	2	4
180	R+L	1	1
222	-	-	1
233	-	-	2
234	-	-	2
L1	-	-	8
L2	-	-	2

BOM: Rigging Elements ===================== Rigging elements are in the separate thing: https://www.thingiverse.com/thing:7297386 Number of sets and sizes you need for this model:

Part #	Count	Sets	Description
B1	98	10	Single block 2.0mm
B2	40	4	Single block 2.5mm
B3	14	2	Single block 3.0mm
B4	4	1	Single block 3.5mm
B5	6	1	Single block 4.0mm
B6	4	1	Pear block 6.5mm
B7	2	1	Triple ramshead block 5.5mm
B8	4	1	Long tackle block 5.5mm
B9	10	1	Long tackle block 4.0mm
B10	10	1	Long tackle block 4.5mm
KN	15	2	Duck 4.0mm
J1	50	5	Deadeye 2.5mm
J2	50	5	Deadeye 2.0mm

Notes: Laser Cut ==================== Files naming convention for laser_cut.zip package:

deck.svg - wooden veneer laser cut parts
thinckness_0_5.svg - 0.5 mm cardboard parts
thinckness_1_0.svg - 1.0 mm cardboard parts
thinckness_1_5.svg - 1.5 mm cardboard parts
thinckness_2_0.svg - 2.0 mm cardboard parts

Color convention:

black layer - Dark engraving of deck planks
blue layer - Nails on deck engraving (should be less dark than black layer)
purple layer - Cut-through lines
red layer - Labels and markdowns engraving layer
