Work In Progress I update the models quite often, introducing fixes and improvements, so before printing, please check for the latest version on Thingiverse again.

Overview ==================== This is unofficial set of decoration elements, armament and laser-cutting templates for Shipyard's paper model in 1:96 scale: Papegojan

https://model-shipyard.com/en/paper-models/416-papegojan-1624-5902574600042.html

These models are designed for printing on a UV LED resin 3D printer. Some parts need to be slightly bent before gluing. To do this, place the part in hot water (up to 100°C) for a few minutes, then bend it, checking the fit against the mounting location.

To determine the quantity of parts, refer to the "BOM: Thing Elements" section. Some parts are symmetrical for the right and left sides of the model and need to be mirrored. For such parts, the "R+L" column in the "BOM: Thing Elements" table will show the value "R+L" - please take this into account when preparing the print.

Additional rigging elements are available separately and can be downloaded via the link in the "BOM: Rigging Elements" section.

You can also download vector files for laser-cutting the frame parts and deck elements. These files are located in the laser_cut.zip archive. For more details, please refer to the "Notes: Laser Cut" section.

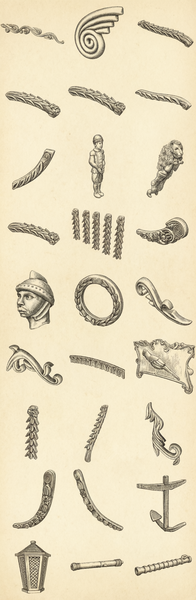

Engraving

BOM: Thing Elements ==================== Description of columns: Sym - symmetrical should be mirrored to get left or right parts R+L - number of mirrored groups of parts Total Count - total number of parts

Instruction

Part #	Sym	R+L Count	Total Count
144	R+L	1	2
170	R+L	2	4
171	R+L	2	4
172	R+L	1	2
173	R+L	1	2
174	R+L	1	2
176	R+L	1	2
177	-	-	1
178	R+L	1	2
178ad	R+L	1	2
179	R+L	1	2
180	R+L	1	2
181	-	-	2
182	R+L	1	2
183	R+L	1	2
184	-	-	1
185	R+L	1	1
186	-	-	4
187	R+L	1	2
188	R+L	1	2
211	R+L	1	2
212	R+L	1	2
249	-	-	2
250	-	-	1
L1	-	12	12
L2	-	2	2
L3	-	2	2

BOM: Rigging Elements ===================== Rigging elements are in the separate thing: https://www.thingiverse.com/thing:7297386 Number of sets and sizes you need for this model:

Part #	Count	Sets	Description
KN	15	2	Duck 2.0mm
J1	45	5	Deadeye 2.5mm
J2	45	5	Deadeye 2.0mm
B1	86	9	Single block 2.0mm
B2	40	4	Single block 2.5mm
B3	12	2	Single block 3.0mm
B4	4	1	Single block 3.5mm
B5	6	1	Single block 4.0mm
B6	4	1	Pear block 5.5mm
B7	2	1	Triple ramshead block 5.5mm
B8	4	1	Long tackle block 5.5mm
B9	10	1	Long tackle block 4.0mm
B10	6	1	Long tackle block 4.5mm

Notes: Laser Cut ==================== Files naming convention for laser_cut.zip package:

deck.svg - wooden veneer laser cut parts
thinckness_0_5.svg - 0.5 mm cardboard parts
thinckness_1_0.svg - 1.0 mm cardboard parts
thinckness_1_5.svg - 1.5 mm cardboard parts
thinckness_2_0.svg - 2.0 mm cardboard parts

Color convention:

black layer - Dark engraving of deck planks
blue layer - Nails on deck engraving (should be less dark than black layer)
purple layer - Cut-through lines
red layer - Labels and markdowns engraving layer
