Descrição

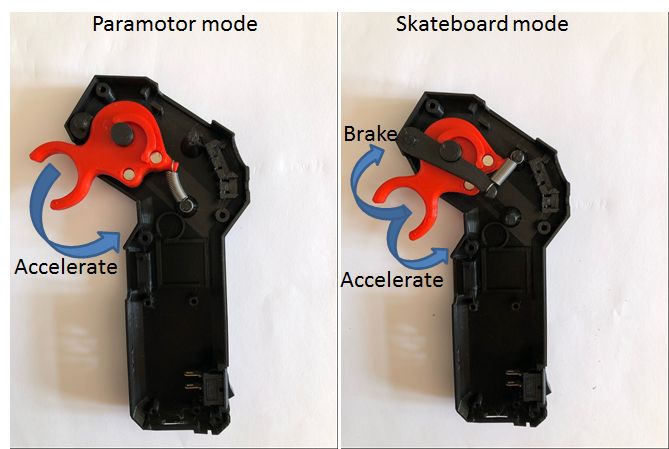

Remote control for paramotor. Designed for ESP32 Huzzah which has battery connection and charging circuit Communicate with base station through ESP-now not NRF Has larger 128x64 OLED but remote is overall still same size The hole for the OLED is slightly too big and i will correct this in future version This requires the OLED to be trimmed (yes not fun) Has place for DRV2605 haptic controller and buzzer motor Uses same hall effect system with magnets as original skateboard remote Uses normal LiPo battery 2000mAh retains: dead man switch, on off button and two control buttons Skateboard control has centre position of throttle and up is brake down is accelerate Paramotor has up as rest position and full movement is used for throttle Notch for paramotor spring needs to be corrected. Will be done next version The position of the spring decides which way it operates (see picture) Software is in development ![controls details][id] [id]:https://raw.githubusercontent.com/krulkip/Paramotor-ESP32/master/Controls-details.jpg NB: Not tested yet
