Stencil Printer

Stencil Printer(links updated 2023-08)

The stencil printer in the PCB manufacturing process is an important tool for applying solder paste to the board surface before installing surface mount (SMD) components. This method of paste application allows precise dispensing and distribution of solder paste on the boards, ensuring reliable and quality connection of components to the board conductors.

The use of a screen printer in this process allows for high precision and reliability in the application of solder paste, which is important for modern electronics that require small and tight connections. This method also increases productivity and reduces the likelihood of errors compared to manual paste application.

In the links below, not all components are needed, I have added the materials and tools I have used. When you decide to repeat the project - everything will be clear, if you thoughtfully approach the assembly.

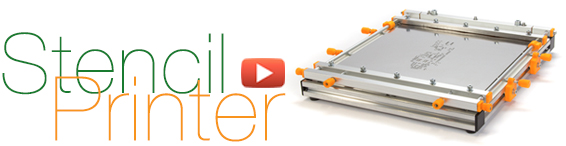

You can make a printer for any stencil format. I use 190x200 mm. Source files here [https://grabcad.com/library/stencil-printer-2](https://grabcad.com/library/stencil-printer-2)

All details of the manufacture and use - see the video. Unfortunately the video did not work short :)

See the video for details:

If you liked this thing - let me know by putting like!
