Jet_Engine_compressor_stadeg

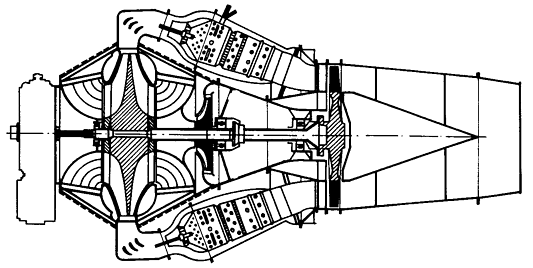

3 missing files added This is based on the Turbo-jet engine of MiG 15

MOTOR GT2820/6

The shaft of the compressor is dilled and tapped to felicitate the prop adaptor

The British IWM-CH14832A Gloster that flew on MAY 15 1941

This is a custom jet engine compressor stage. Tested to +60 000 rpm Out-runner motor + 100 Amp hobby-wing driver + 44 volts at 33 amps. Ran for 45 seconds at 50% throttle Had to stop because of motor heating up Vibration acceptable If you want to run 3D printed test jet engines at high speed Use a good shrapnel cadge as failures can kill !!!!!
2 pictures of the turbo fan blade arr not from this project they serve as a reminder off the dangers when testing protetypes fail was as a result of hub parting with blade and going 10 meters forward and clipping a brazing rod on the work bench parts were found up to 50 meters from contact zone

https://archive.org/details/thingiverse-https://www.thingiverse.com/thing:2757570
