#Machineree Paddle Switch

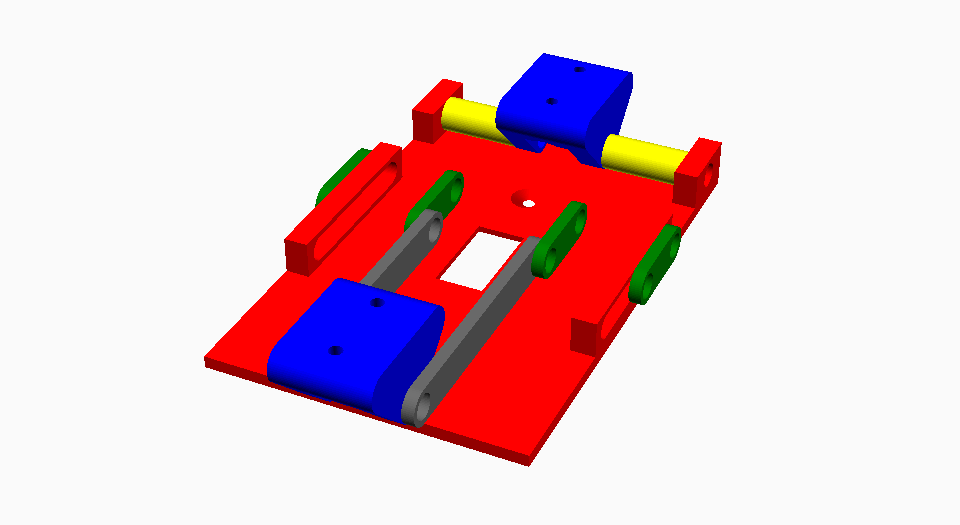

This paddle switch is a simple addition to any regular toggle light switch and provides mechanical advantage and easy access to otherwise small switches located on machines. Users can buy a common single or double pole switch at the hardware store for a few dollars along with some bolts and have a working paddle switch in minutes! The design allows the user to 3D print or CNC (or export to 2D for templates) linkages to fit their needs and have a simple paddle switch that turns the machine on and off. NOTE: the switch is installed upside down! Make note of this on the machine when installing and make sure all power is unplugged! Before testing, your switch should be in the "UP" position as off.

Required:

+ ¼ - 20 x 4" Bolts (3) + ¼ - 20 x 2" Bolts (1) + ¼ - 20 Nylon Lock Insert Nuts (4) + 6 x ¾" Screws (6) -- if building paddle + 6 - 32 x ½" Pan Head Machine Screws (2) + Light Switch [110v/220v] (1)

Print:

+ Switch Plate x1 + Hinge Bracket x2 + Short Linkage x4 + Long Linkage x2 + Spacer x2 + Paddle x1 (If not building out of stock--you can now print)

More Info: http://machineree.com/#paddle

Complete Build Instructions: http://machineree.com/paddleguide.html

Video: https://www.youtube.com/watch?v=eGOtbY8-jVY
