Modelo 3D Sliding Valve Air Engine por kmccon no Printables

Descrição

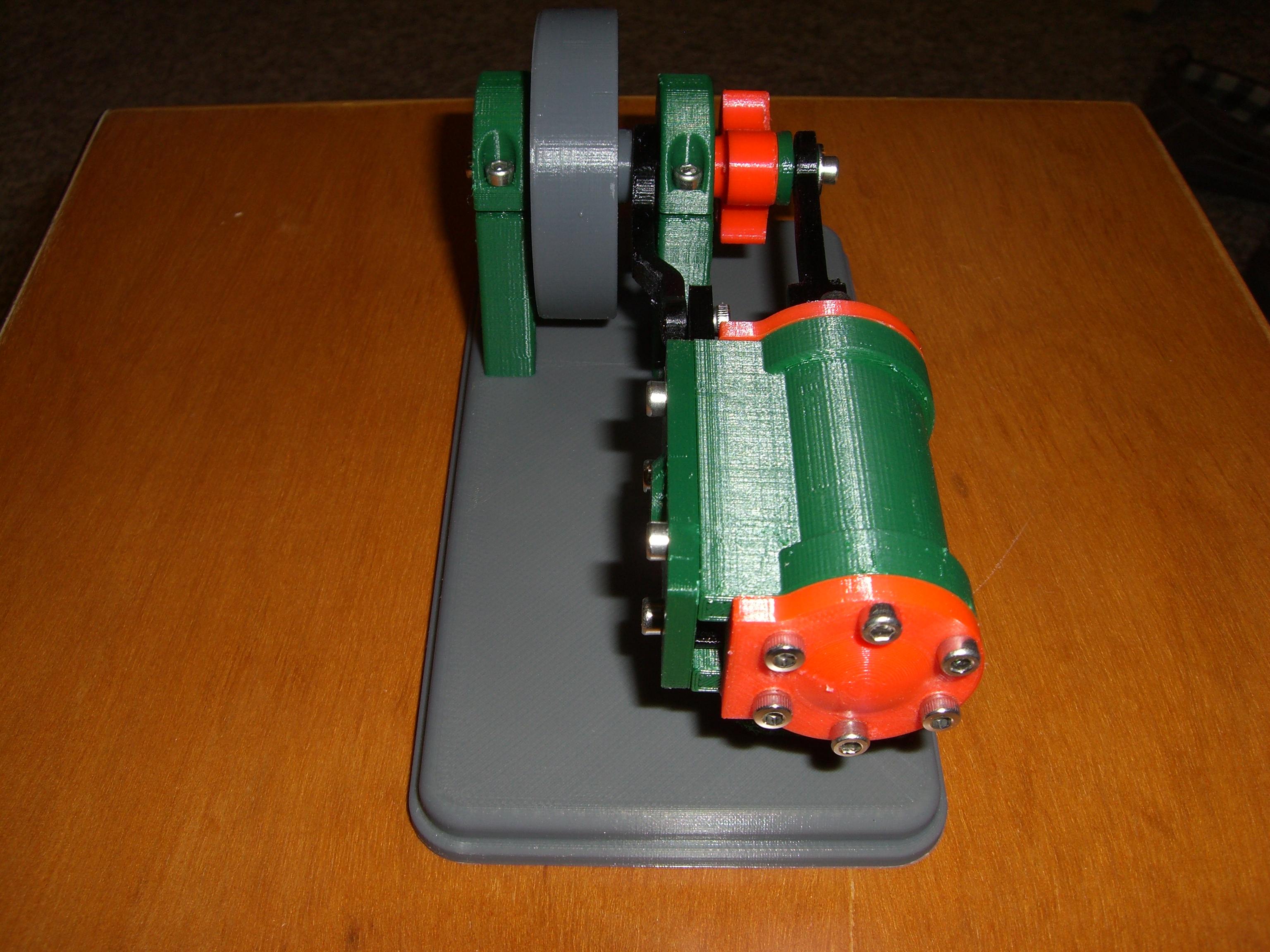

This is a sliding valve air/steam engine. It was inspired by [https://www.thingiverse.com/thing:34701](https://www.thingiverse.com/thing:34701) and built off of my Wobbler 2.0 components.

This engine uses 2 608ZZ Bearings. There is a detailed bill of materials in the engine.pdf file.

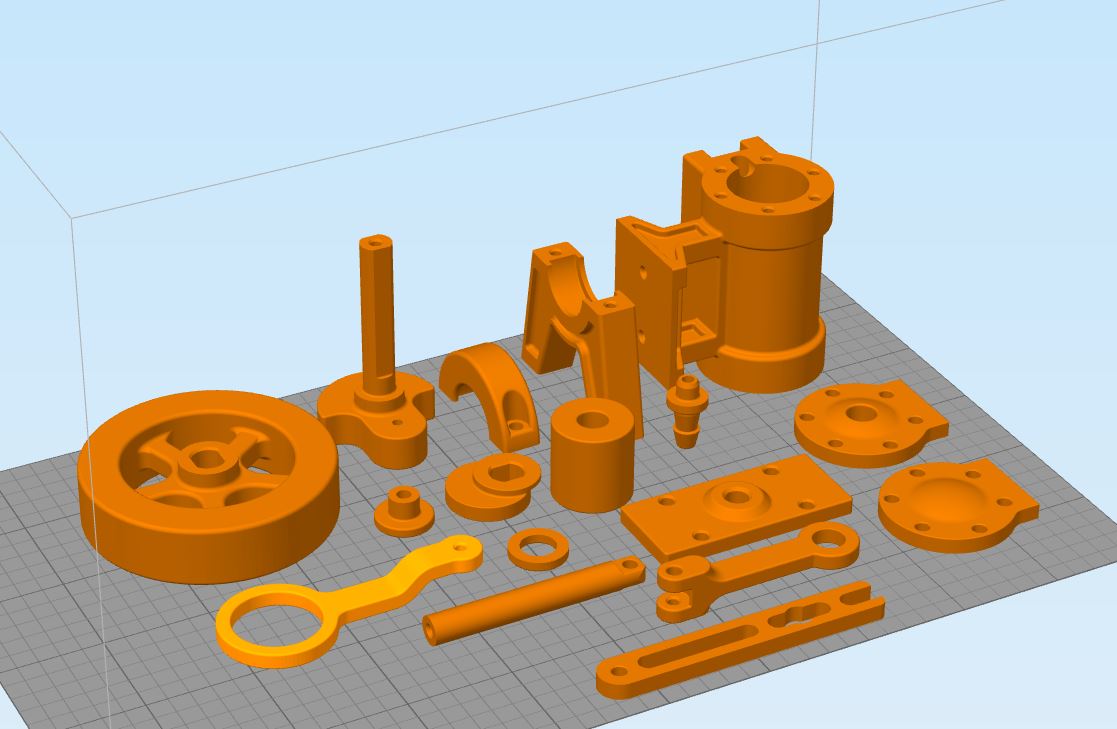

25 JAN 18 - Update: Added orientation picture. To my best recollection this is how i oriented the parts for printing. Note: I did not print them all in one shot like shown....

27 AUG 17 - Update: Slider_3 works very well. Achieved 2700 RPM.

26 AUG 17 - Update: Per a comment from +Holzmichel two other sliders have been added. Both of these are experimental as I have not tried them yet. However I believe they will increase performance. .step files are included if you would like to modify.

UPDATE: Added crank_asm.pdf to help clarify assembly of the eccentric.

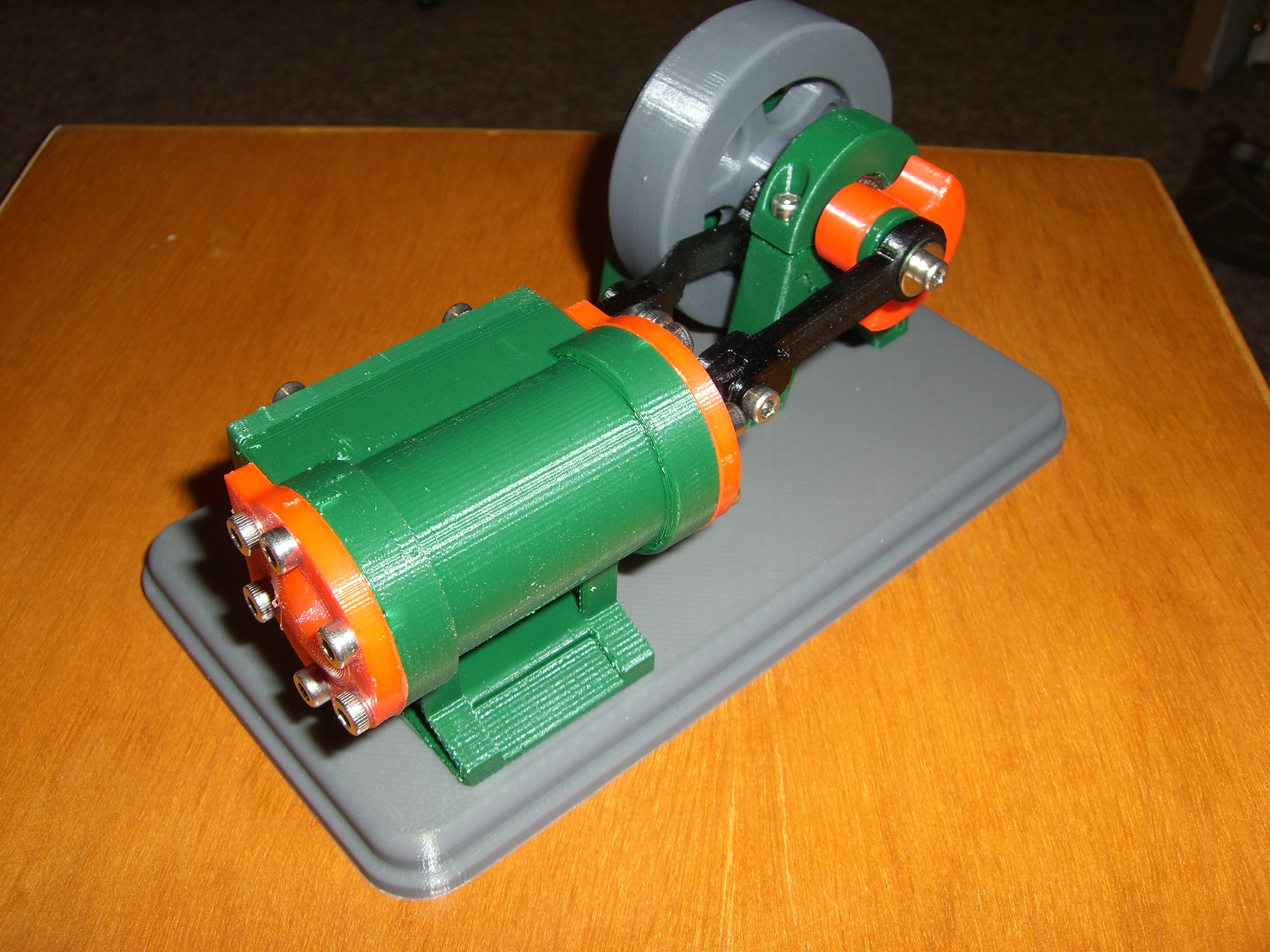

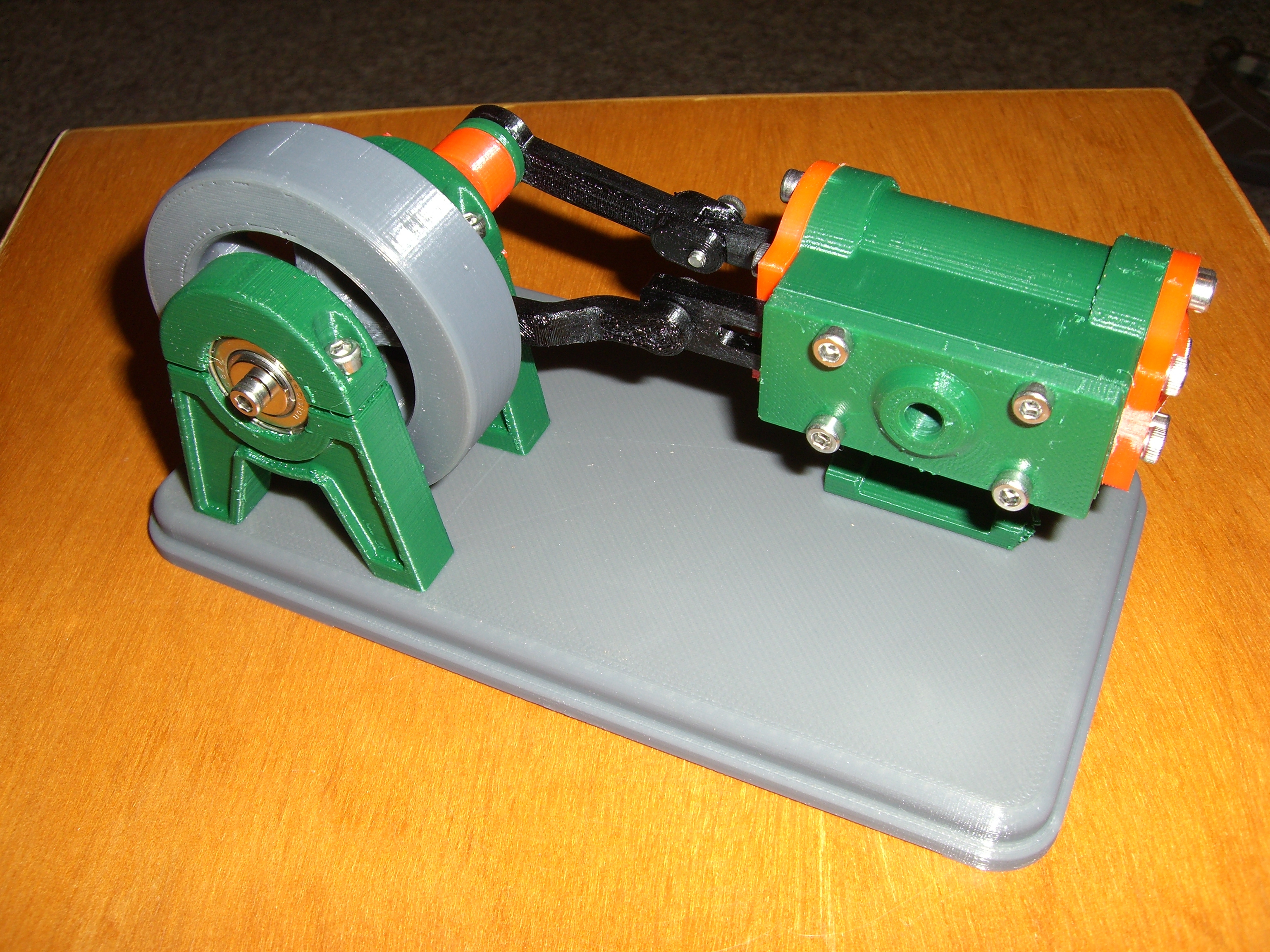

The engine in action.

I've attached a .step file of the assembly if you would like to remix or improve.

Please let me know if you have questions, suggestions or parts need fixed.

Thanks!

Print instructions

Unassociated tags: sliding valve
Category: Engineering

Printables

Sliding Valve Air Engine

kmccon

Publicado em 9 de nov de 2019

96

Curtidas

664

Downloads

6

Impressões

Categoria Mechanical Parts

Tags

engine thingiverse airpowered steamengine

Licença Creative Commons — Attribution

Arquivos (23)

slider.stl 76.3 KB

eccentric.stl 651.8 KB

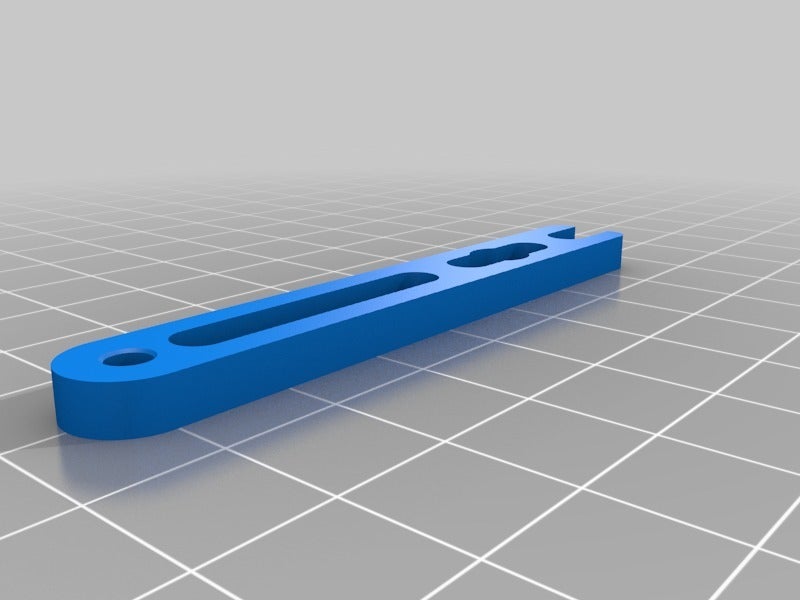

slider_rod.stl 610.5 KB

flange_bearing.stl 544 KB

end_2.stl 524.3 KB

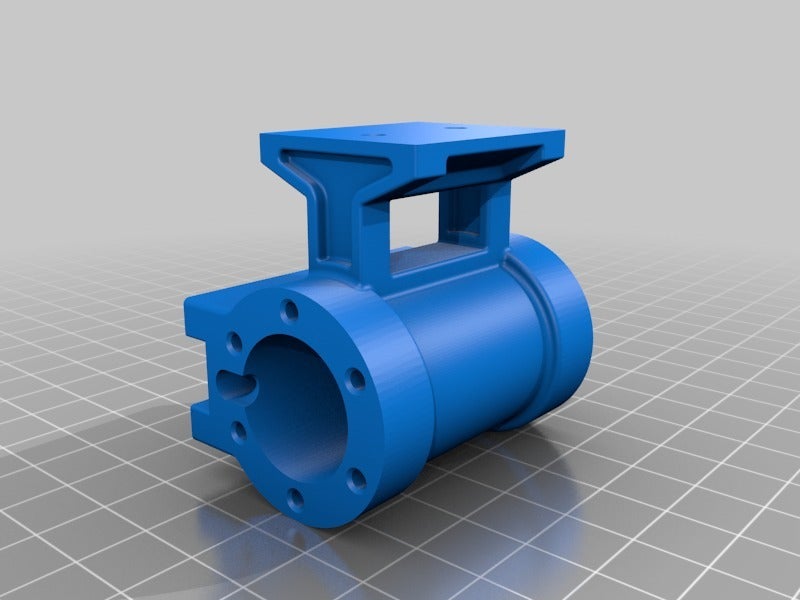

cylinder_center.stl 2.2 MB

slider_2.stl 76.3 KB

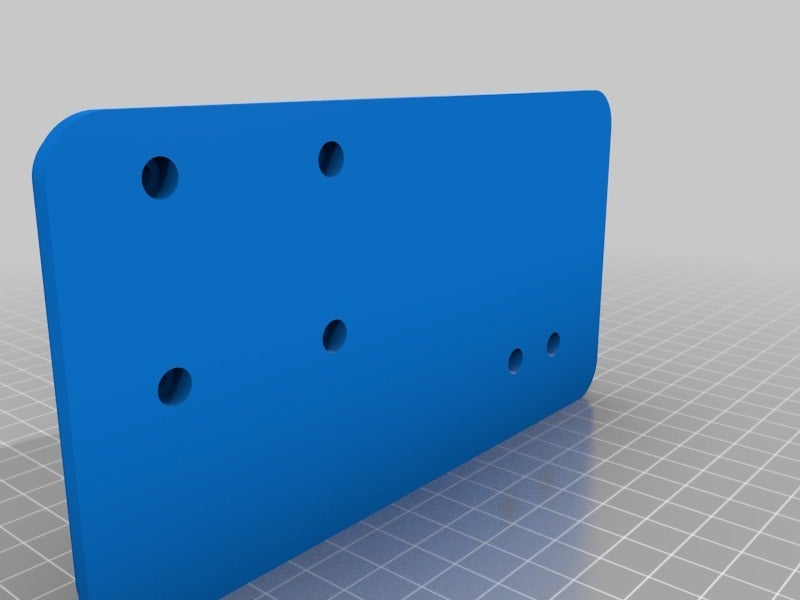

base_new.stl 326.4 KB

engine_asm_asm.stp 7.3 MB

slider_3.stp 39.5 KB

new_crank.stl 590.6 KB

piston_new.stl 682.5 KB

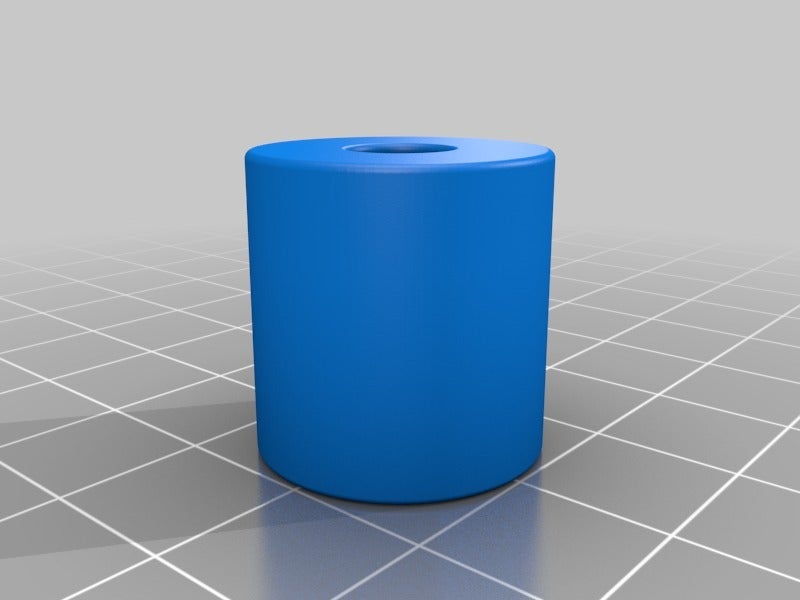

spacer_flywheel.stl 384.7 KB

fly_wheel.stl 2.8 MB

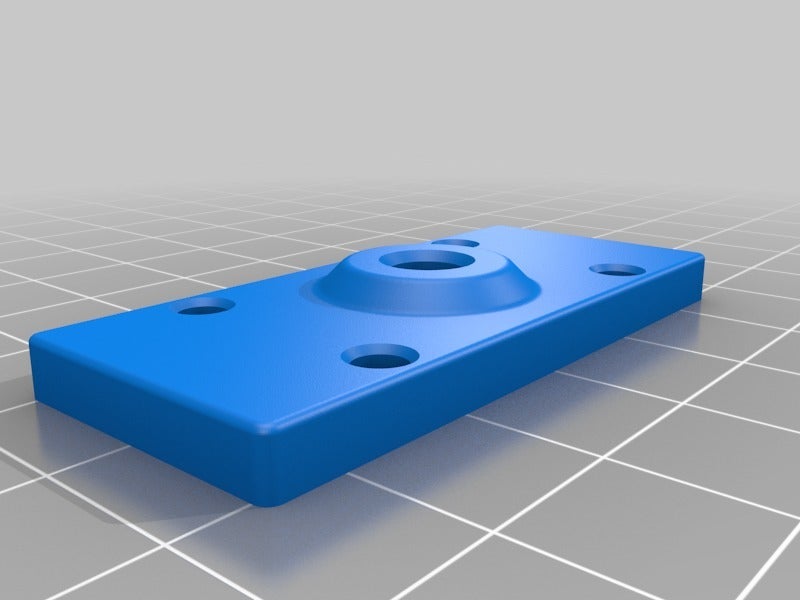

slider_cover.stl 329.8 KB

piston_rod_1.stl 301.6 KB

piston_rod.stl 958.1 KB

end_1.stl 380.7 KB

bearing_cover.stl 881.4 KB

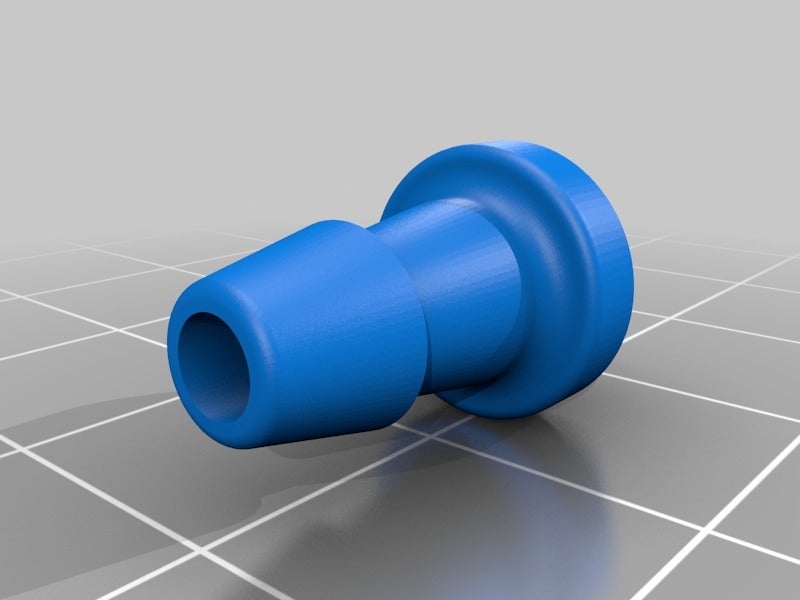

hose_barb.stl 690.3 KB

support_rear.stl 697.1 KB

slider_3.stl 76.3 KB

slider_2.stp 39.5 KB
