I was searching for a jig to help me fit cabinet handles neatly, but I couldn't find one with the right hole distances, so I made one.

This simple parametric jig will help you fit cabinet handles at a precise distance from the edge of a cabinet door, and ensure they are perfectly vertical.

There are five holes at 15mm spacing to determine the distance from the edge. There is a centred slot to align to a mark if you wish.

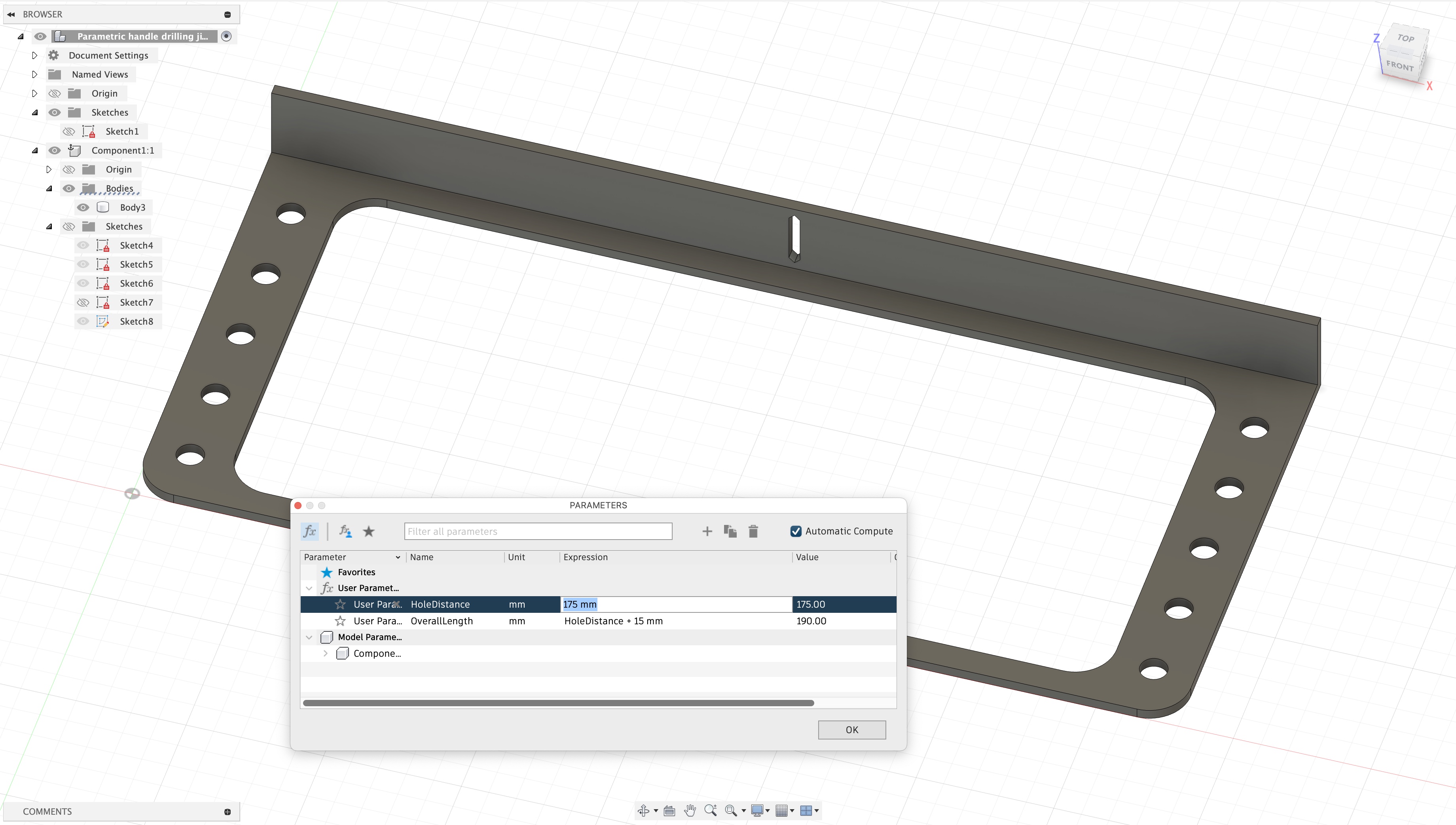

To set the distance between drill holes simply open the model in Fusion and adjust the HoleDistance parameter to the value required.

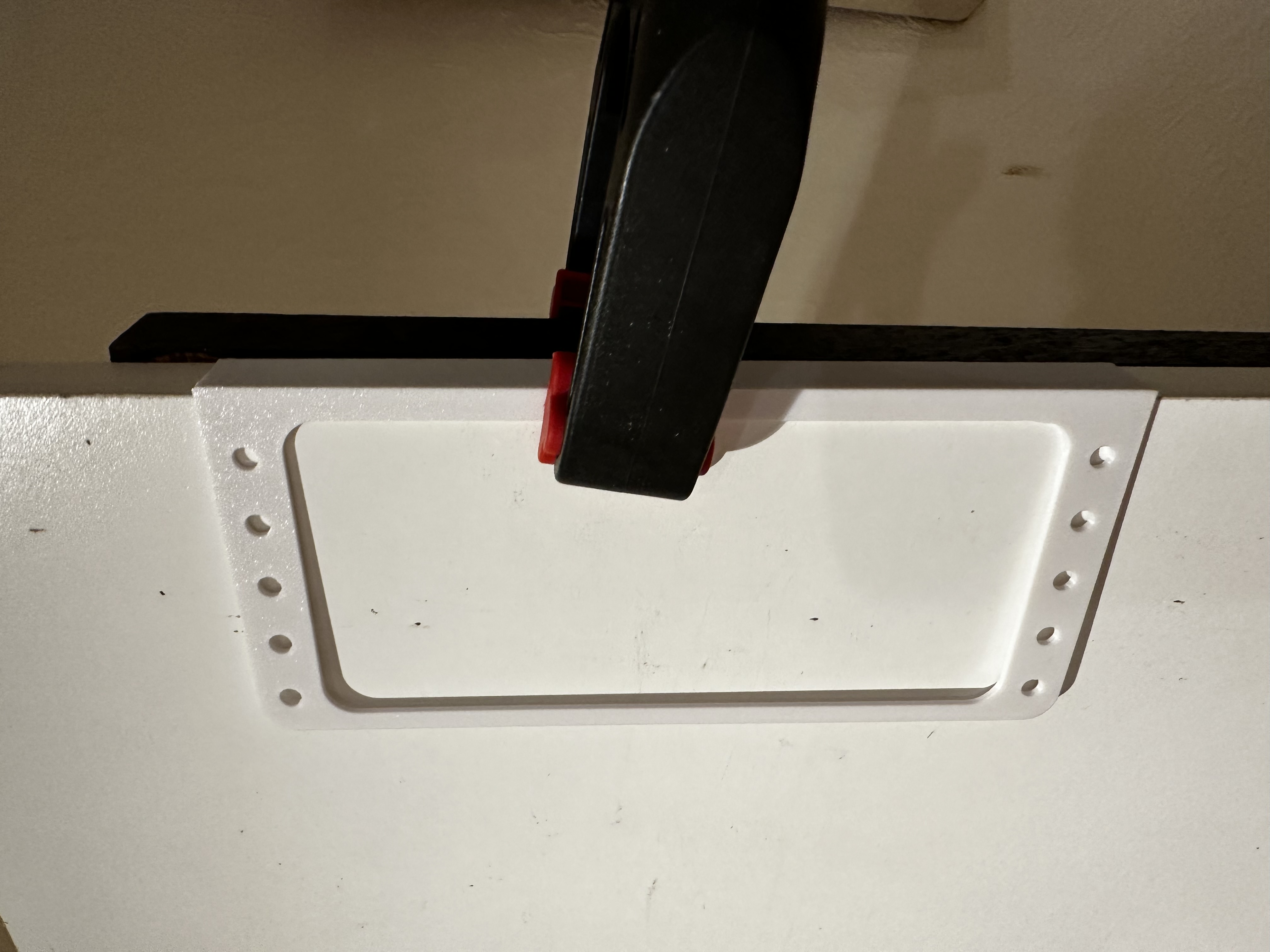

I recommend clamping the jig to the door with a piece of wood on the other side of the door to help prevent tearout.
