Descrição

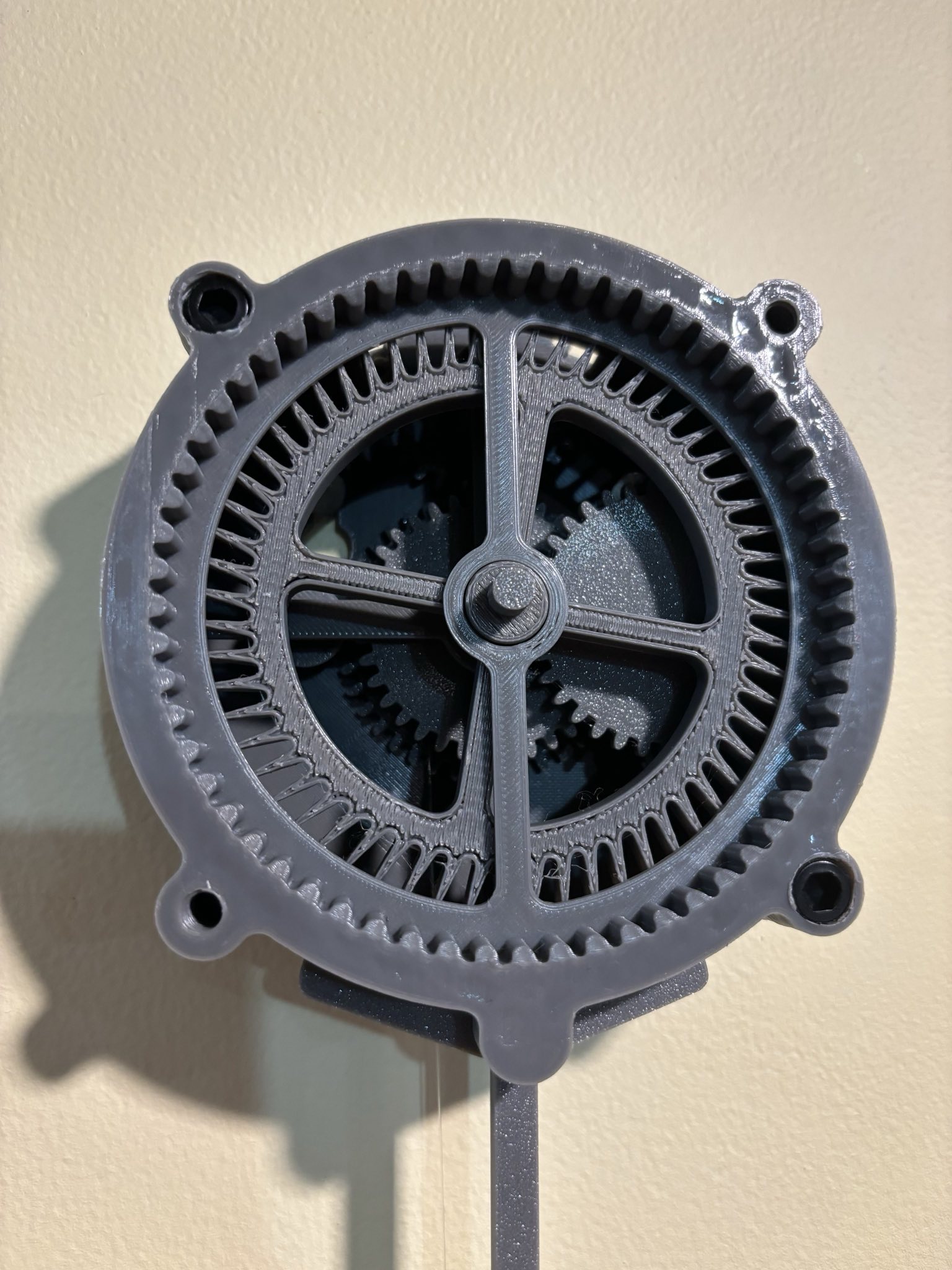

This is my second clock design, but it's my first working and fully printable design.
It uses a system of cycloidal drives to reduce the input from seconds to minutes and then to hours.
Assembling this is surprisingly simple,
Always start from the back of the clock and work toward the front.

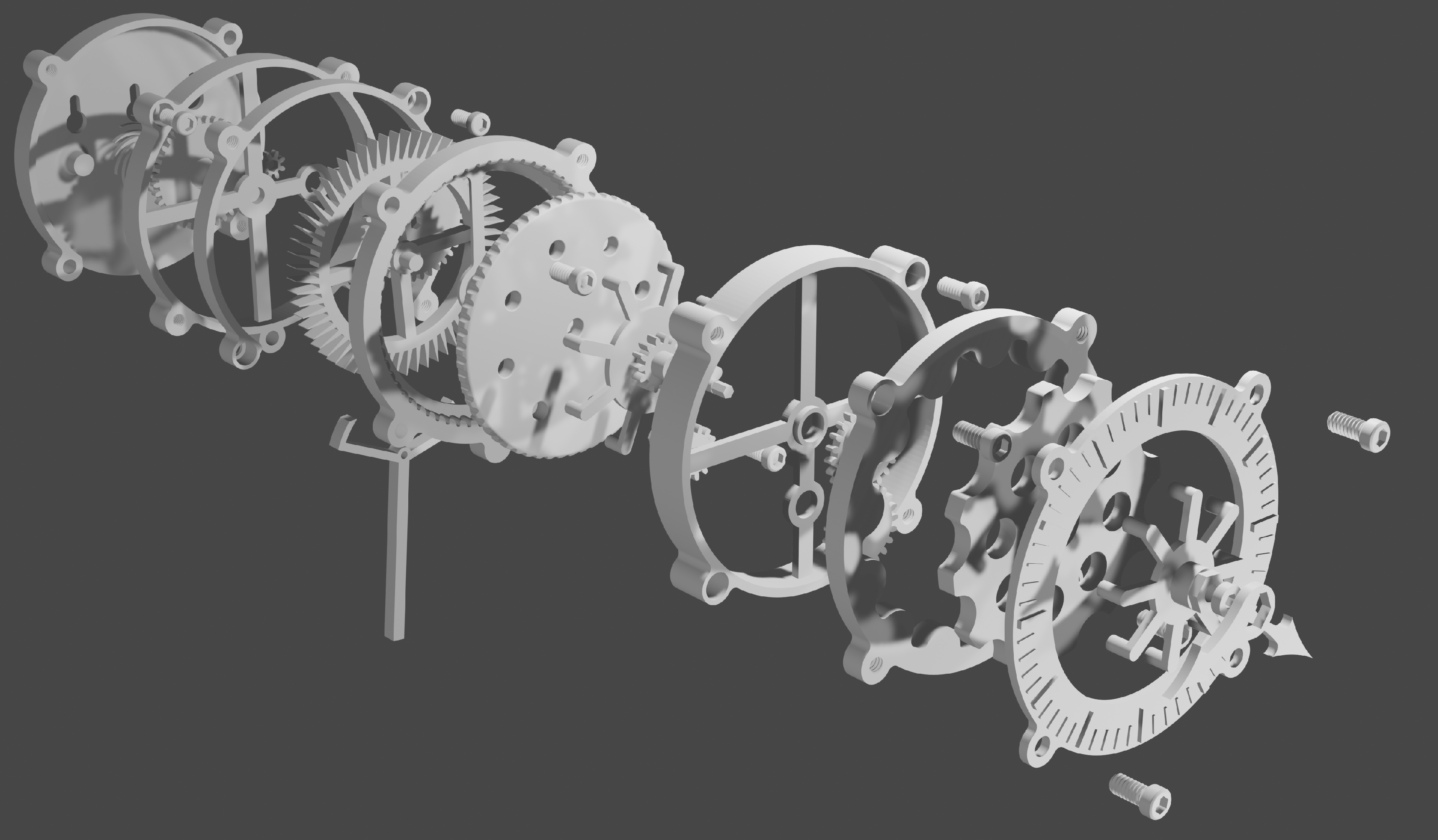

Follow the image for directions on assembly
All parts need to be printed on a high-quality printer as the tolerances are very tight to make it work well.
you will need to print one of each file but 2 small gears are needed, and 10 bolts or 10 purchased ¼-20 bolts
21
Curtidas
152
Downloads
Categoria
Wall-mounted
Tags
clock
steampunk
printable
pendulum
fullyprintable
Licença
Creative Commons — Attribution
Arquivos (27)
clock - 16 tooth gear-1.stl
113.4 KB
clock - rewinder_gear_2-1.stl
220 KB
clock - small gear 1-1.stl
84.1 KB
clock - output shaft-1.stl
243.1 KB
clock - string ratchet-1.stl
889.4 KB
clock - minute hand-1.stl
39.9 KB
clock - output shaft for hour-1.stl
163.2 KB
clock - ratchet-1.stl
105.6 KB
clock - small bolt-1.stl
2.6 MB
clock - Outer ring-1.stl
2.8 MB
clock - ratchet cover-1.stl
1.3 MB
clock - 20 tooth gear-1.stl
205.5 KB
clock - pendulum-1.stl
18.8 KB
clock - hour hand-1.stl
47.2 KB
clock - rewinder_gear_1-1.stl
910.2 KB
clock - 30 tooth inner gear-1.stl
289.7 KB
clock - 20 tooth gear 2-1.stl
184.8 KB
clock - 38 tooth gear 1-1.stl
208.9 KB

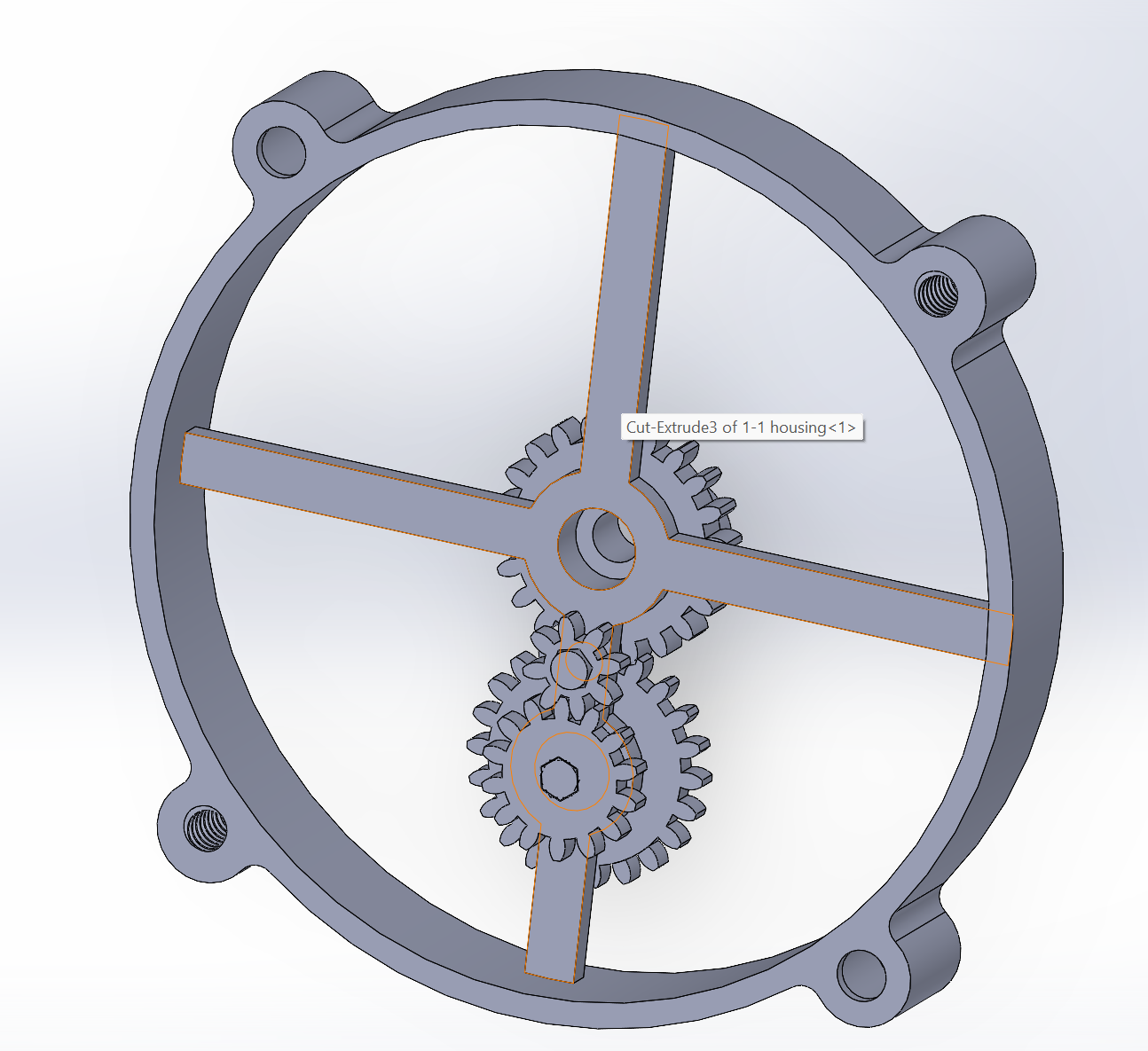

clock - 1-1 housing-1.stl
2.2 MB
clock - accel stage-1.stl
1.8 MB
clock - gear mounting thing-2.stl
34.7 KB
clock - face plate-1.stl
247.8 KB

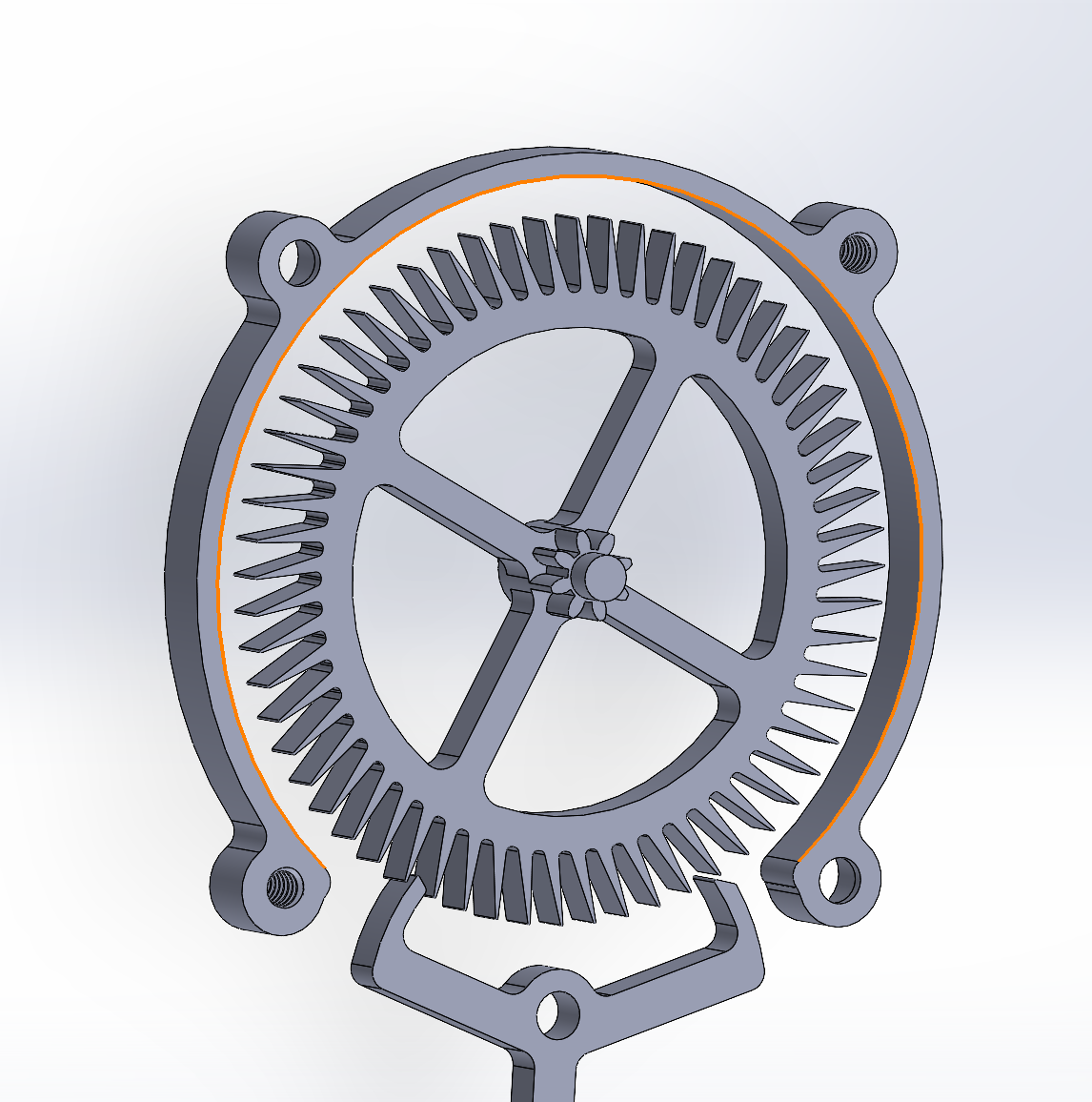

clock - escape wheel-1.stl
1002.6 KB
clock - 40 tooth outer shell-1.stl
1.2 MB
clock - 38 tooth gear 2-2.stl
281.3 KB
clock - inner ring-1.stl
4.4 MB
clock - clock backing-1.stl
2.4 MB
