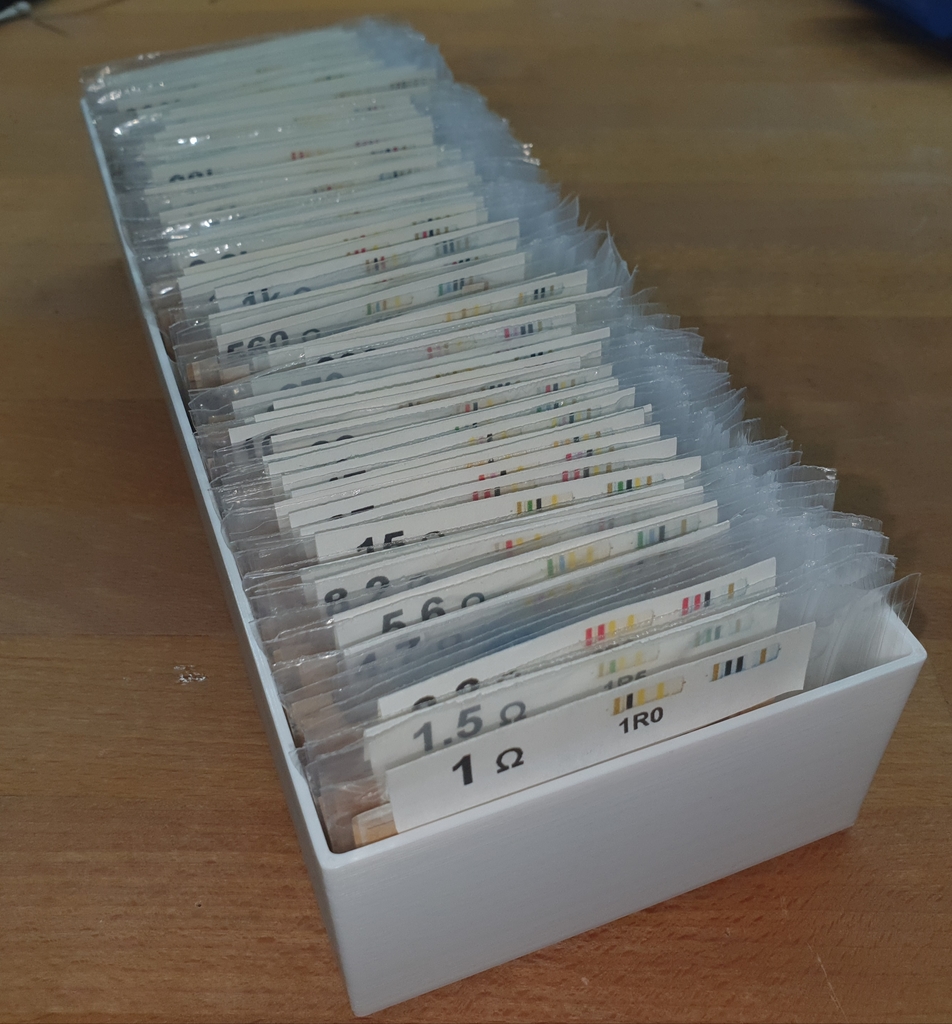

A quick organizer for resistors in ziploc bags that can be screwed to the underside of a shelf.

The initial Idea came from
here: [https://electronics.stackexchange.com/a/209307](https://electronics.stackexchange.com/a/209307) and
here: [https://www.zachpoff.com/resources/quick-easy-and-cheap-resistor-storage/](https://www.zachpoff.com/resources/quick-easy-and-cheap-resistor-storage/)

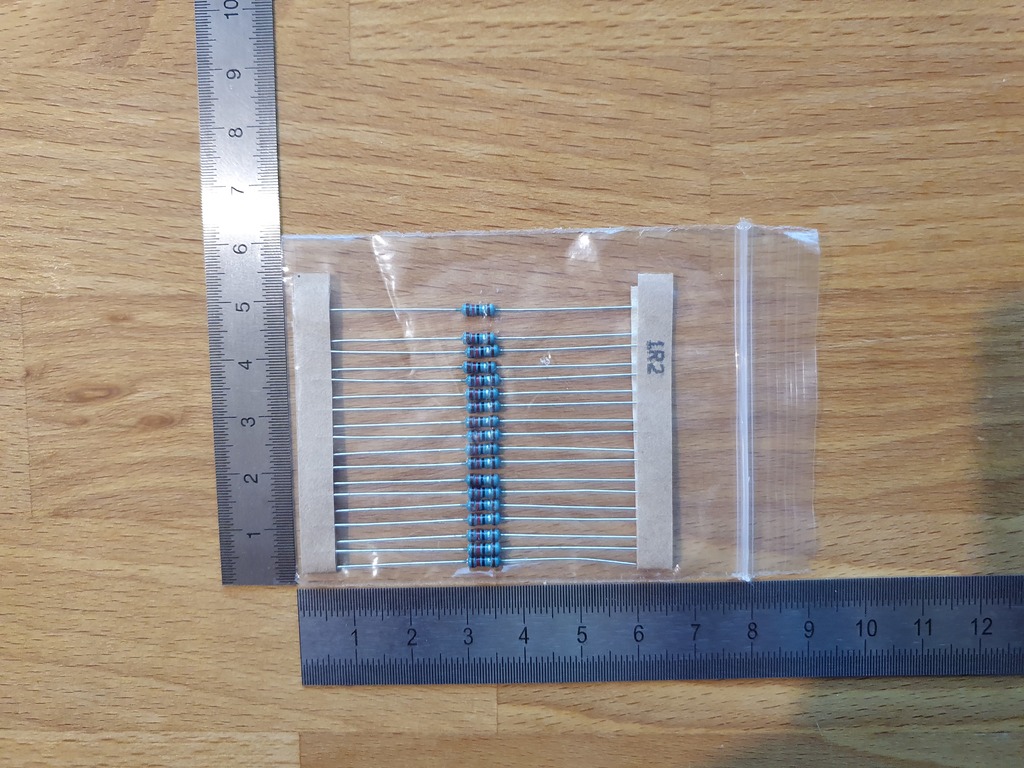

I bought a assortment from amazon [https://amzn.to/3EnaBMR](https://amzn.to/3EnaBMR) and it arrived with each resistor size already packed in a ziploc bag.

I also made labels for each ziploc bag for easier finding.

The labels (63,5mm x 29,6mm - brand PAGRO - P 4737) were made with gLabels.
Sources for the label generation can be found here: [https://drive.google.com/drive/folders/1qVkIrEJiac90qbKTcYLfnNTf2s2z7zmH?usp=sharing](https://drive.google.com/drive/folders/1qVkIrEJiac90qbKTcYLfnNTf2s2z7zmH?usp=sharing)

I give no guarantee for the correctness of the color ring calculation

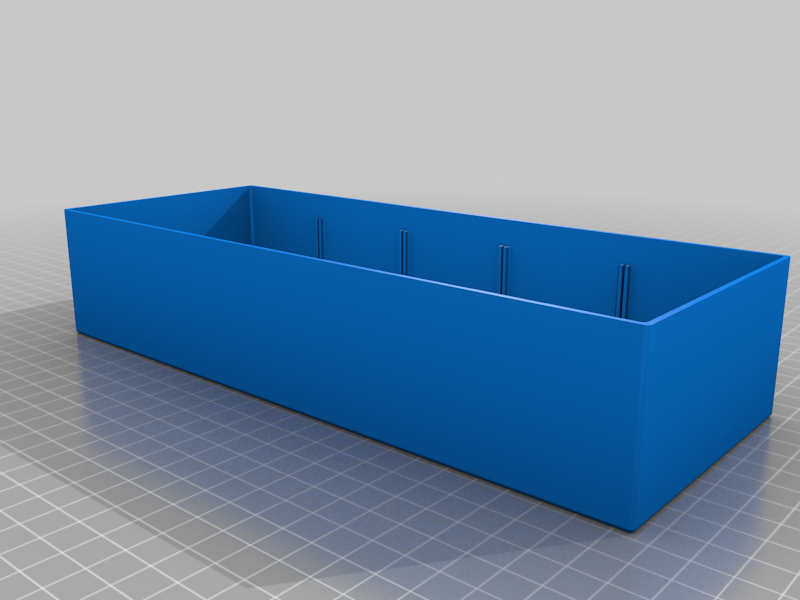

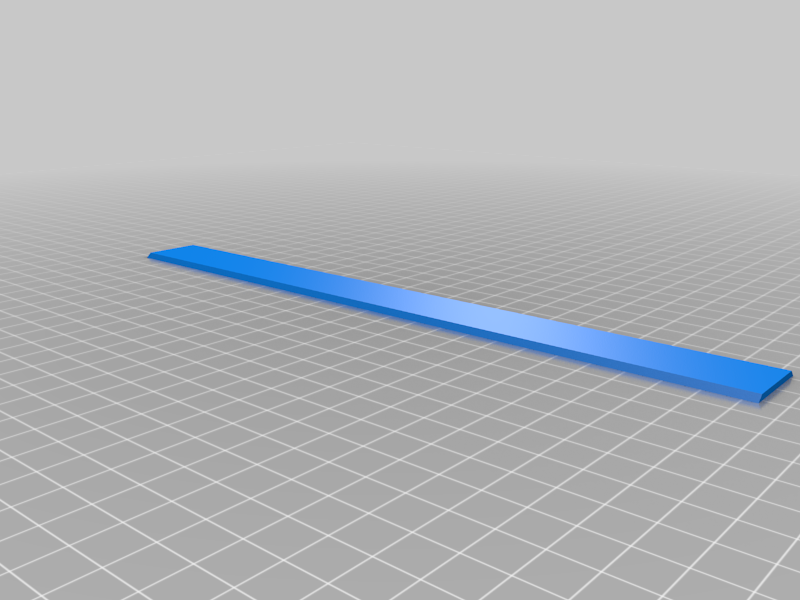

The box and mounting brackets were (quickly) designed in onshape, and can be found here:
[https://cad.onshape.com/documents/f33ab1fc989ef0e052f5f384/w/4de7df70fc60fc54dc0e967b/e/9aa21624234557265dce0284](https://cad.onshape.com/documents/f33ab1fc989ef0e052f5f384/w/4de7df70fc60fc54dc0e967b/e/9aa21624234557265dce0284)

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK2S

Rafts:

No

Supports:

No

Resolution:

0.35

Infill:

20%

Filament:

bq PLA
