Showcase your plants in style with the Modular Planter Tray, designed to elevate your green space with versatility and functionality. This system is a single modular tray that includes a Left End, Middle, and Right End, all printed together as one unit.

Features:

• Custom Fit: Designed to accommodate planter bases up to 69mm.
• Modular Design: Includes Left End, Middle, and Right End trays, printed together as a single piece.
  • Left End Tray: 34.5mm x 71mm x 5mm (Filament: 1.84m, 5.43g | Print Time: 12m)
  • Middle Tray: 138mm x 71mm x 5mm (Filament: 7.61m, 22.53g | Print Time: 34m)
  • Right End Tray: 34.5mm x 71mm x 5mm (Filament: 1.94m, 5.73g | Print Time: 13m)
  • All Three Trays Together: 194.28mm x 71.01mm x 5mm Filament: 11.39m, 33.69g | Print Time: 49m
• Scalable: Adjust the design to accommodate wider or narrower trays by scaling up or down.
• Quality STL Files: Includes detailed, high-resolution STL files for precise printing.
• Printing Note: All trays print together as a single unit. Separation after printing is challenging and may risk breaking the trays.

Print Settings:

• Mode: Draft @ KOBRA 3 with a 0.35mm layer height for optimal speed and texture.
• Layer Heights: 0.35mm overall, with a 0.3mm first layer.
• Shells: 2 perimeters for a total wall thickness of approximately 0.98mm.
• Horizontal Shells: 4 top layers for a solid finish, 3 bottom layers for durability.
• Infill: 0% infill to reduce filament usage, supported by solid bottom layers.
• Support: Use support enforcers as needed.

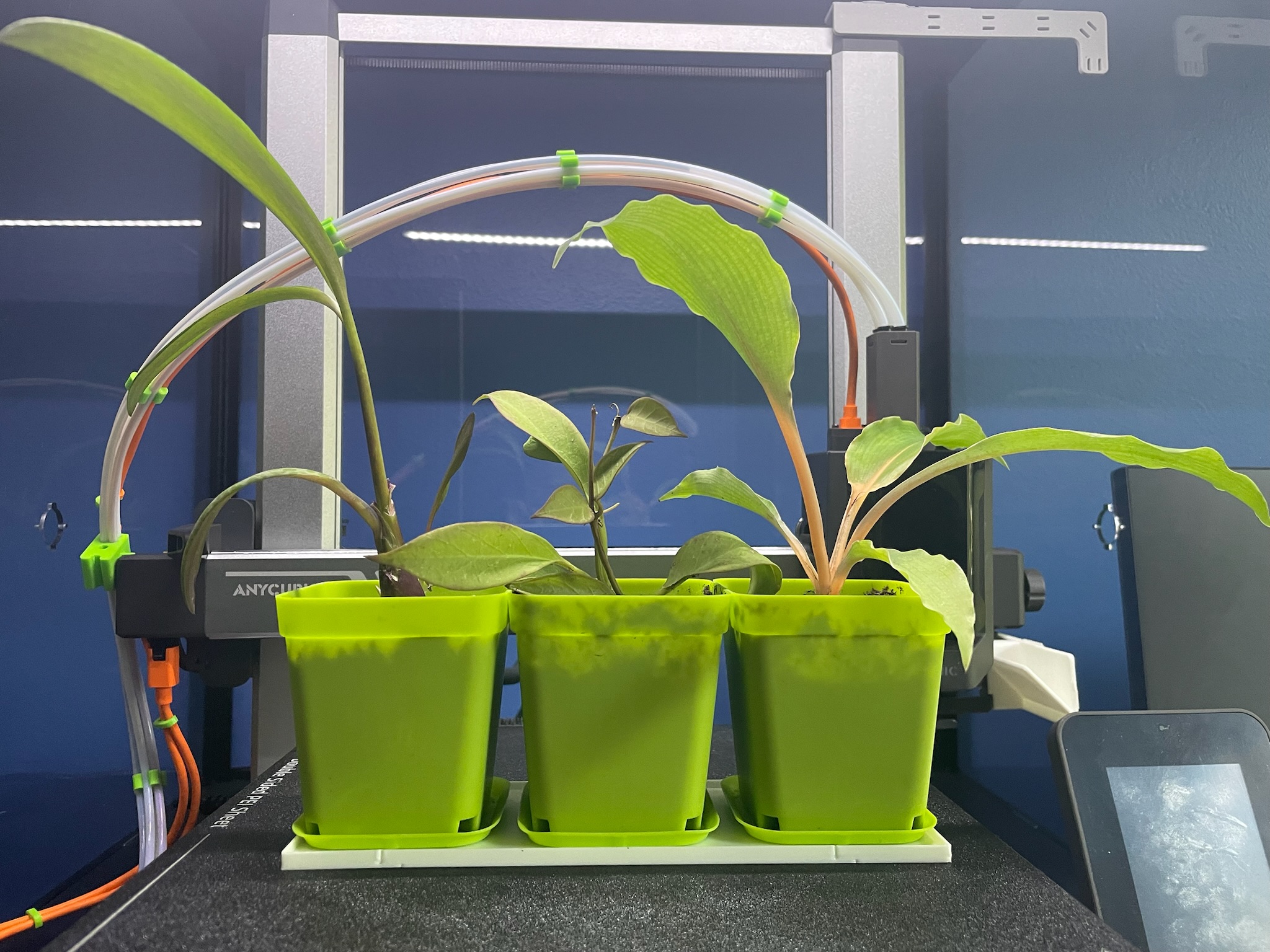

This system offers a customizable and scalable solution for your planting needs, making it a perfect addition to your garden or indoor plant setup.
