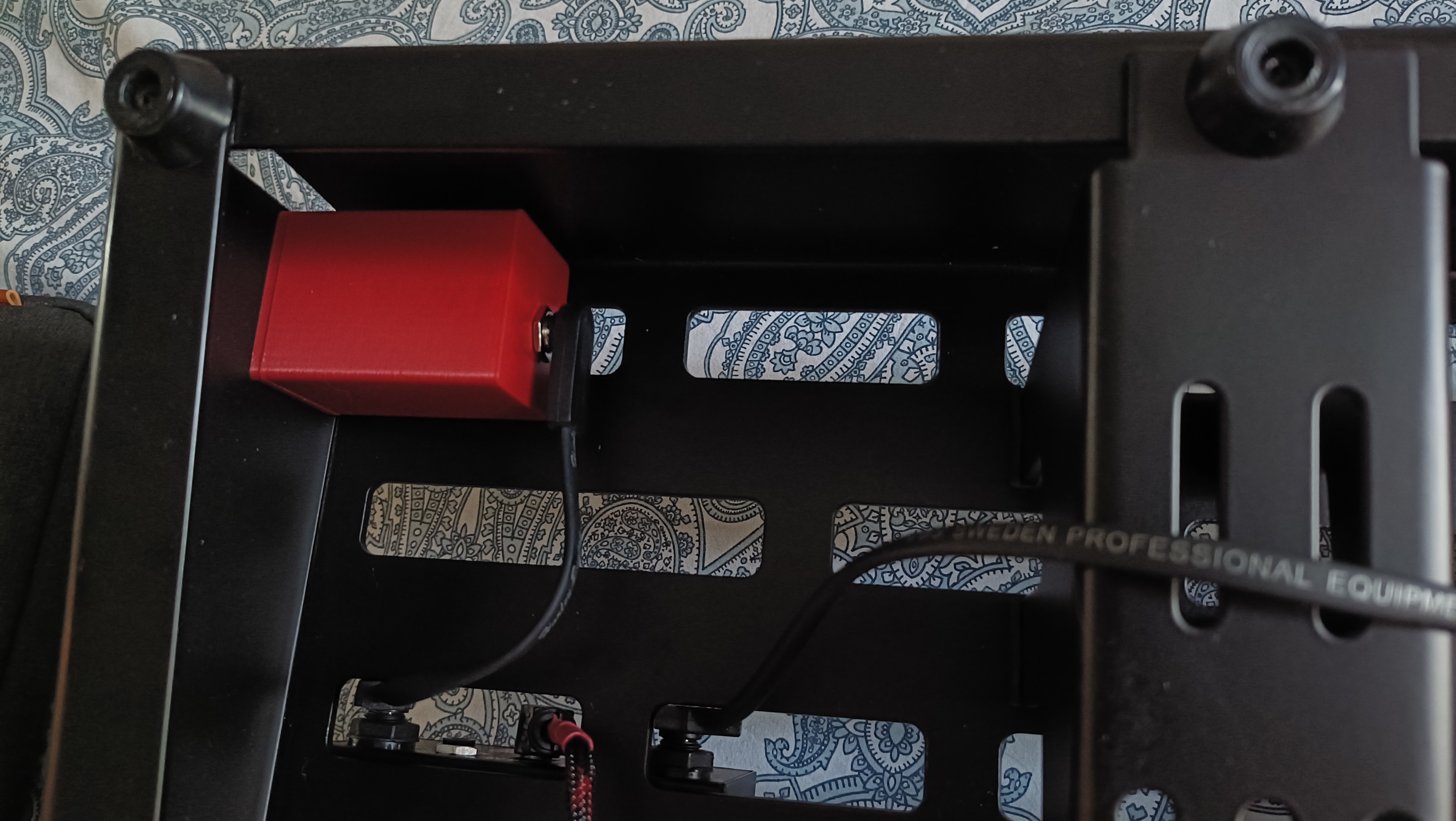

This small box is an input-output point to be mounted in the dedicated spot on the sides of a Rockboard series pedalboard where it is expected. Its function is similar to the official Rockboard MiniMountig Mod TRS (Mini Mounting MOD | RockBoard).

The principle is simple: you mount a couple of jacks, one on the lid and one on the bottom of the box, and you connect them together. The "external" jack is the one you use to connect your guitar cable to, making it the access point to your pedalboard; the "internal" jack is used to port the guitar signal everywhere is needed in the pedalboard. Of course the opposite is possible, making the "internal" jack the point to send your signal to, while the "external" jack may be used to send the signal to something external to the pedalboard (an amp, a cabinet, other fx).

I included a DX version of the box + lid which will be mounted on the right side of the pedalboard, while the SX version is for the left side.

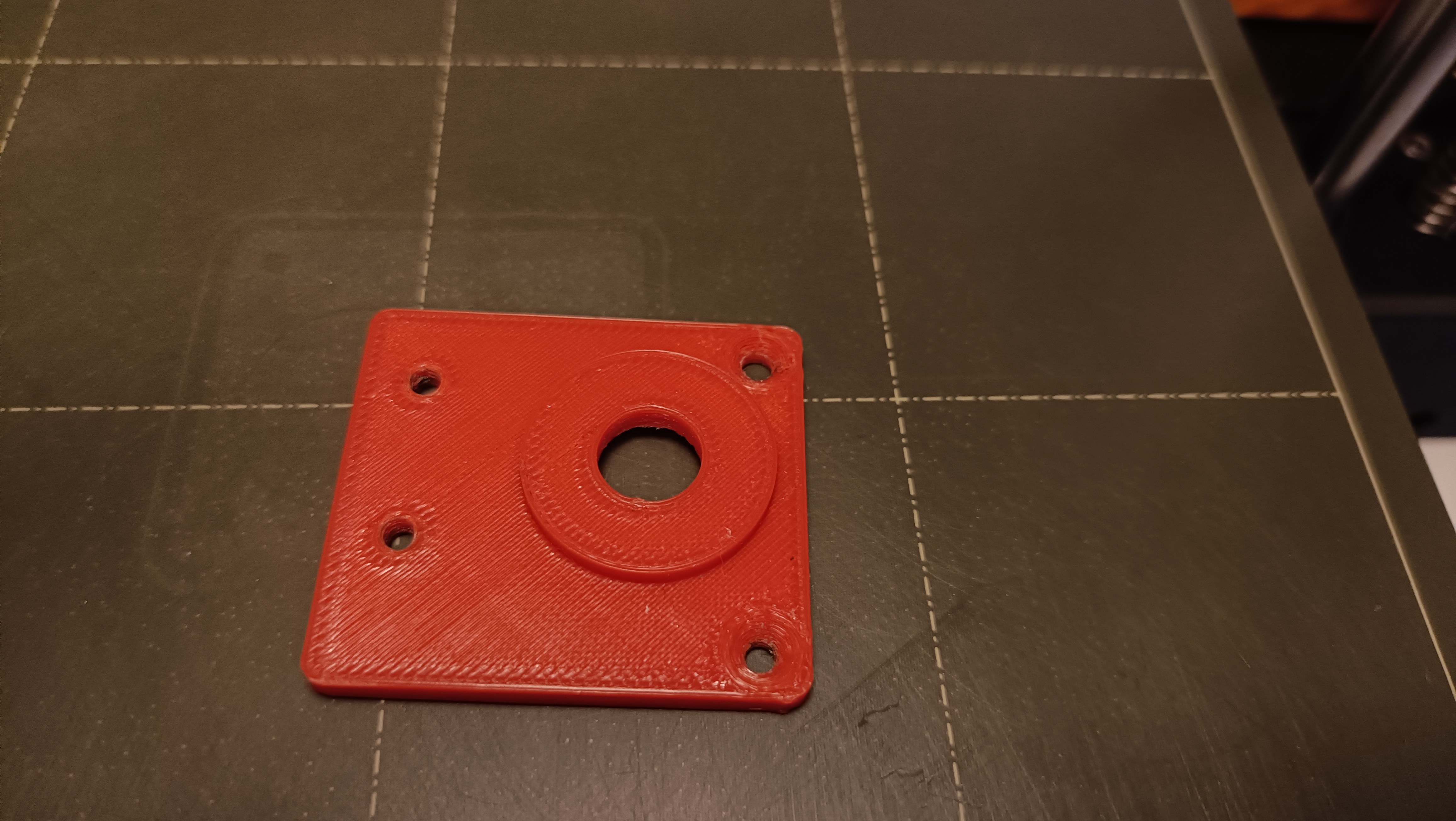

In the box you can find four pockets for the threaded inserts. The pockets are created for a 5mm diameter and 4 mm hight M3 threaded insert.

I used a couple of M3 8mm countersunk head screws to close the lid onto the box, while I ussed two M3 20mm flat head screws to attach the box to the pedalboard.

Printed in PLA with a 0,4 mm nozzle with 0,2 mm layer height. I suggest to pay attention to the support needed to print the lid: some settings may lead to impossible removal of the support material.
