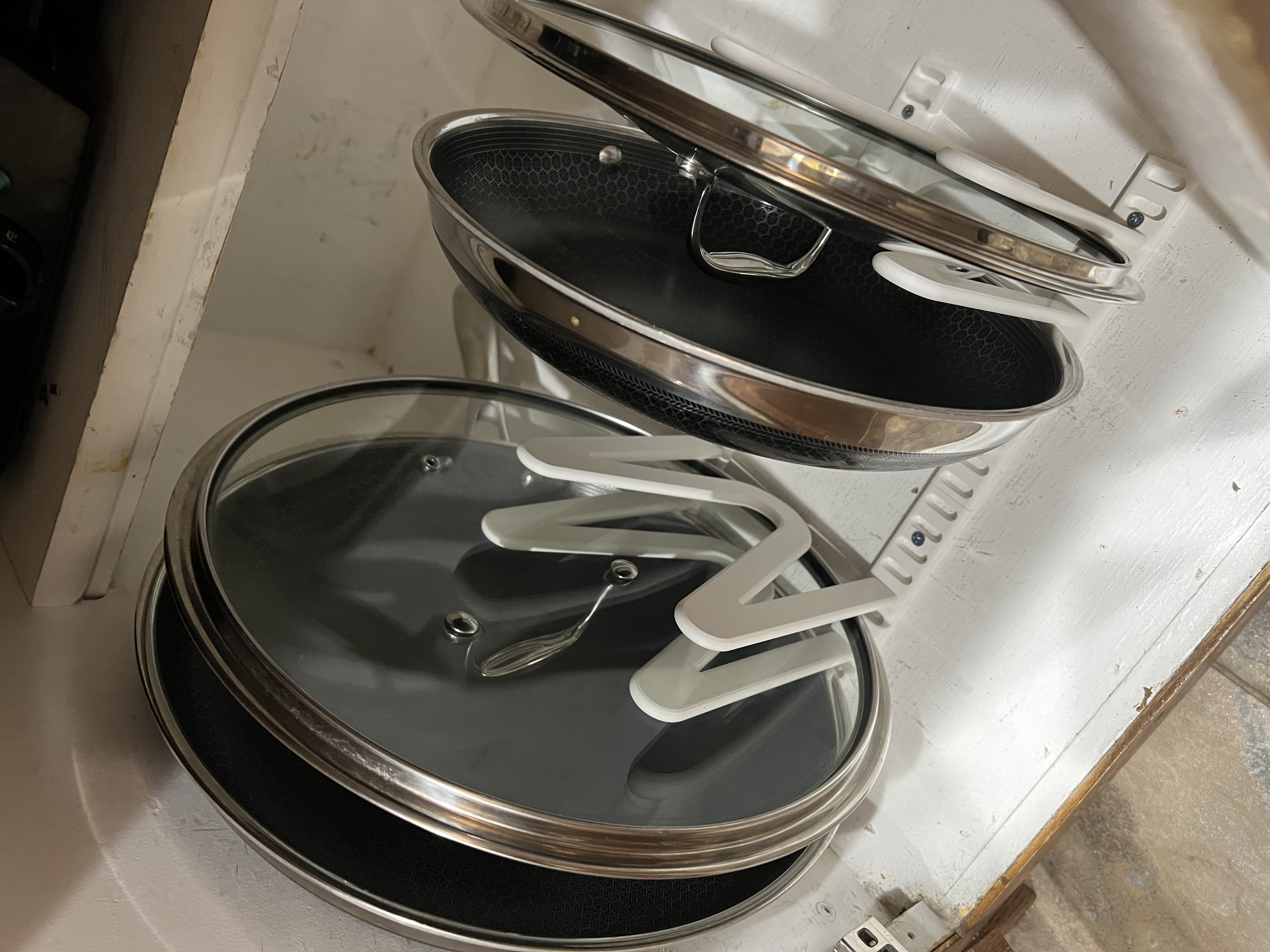

I created this modular rack system to save space in my tiny kitchen. I installed it in a bottom cabinet where my nice pans and lids were getting tossed on top of each other every time my S.O. would empty the dish washer.

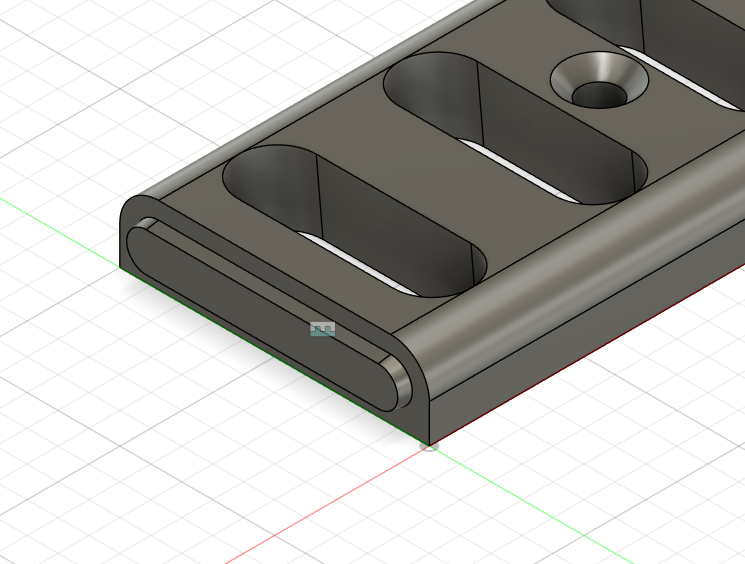

The “rack” as I called it, has a doweling mechanism to keep them in a straight line (pictured). I have a couple small holes on each rack that is clearance for a screw and head. I imagine 3M tape or similar would work fine also to mount it. The rack also holds the uprights at an 5° angle.

To get the spacing in-between racks correct, put 2 of the “upright” in two of the of the “rack” pieces and then screw it down.

The spacing is a little over ½" inch apart, so you can fit any pan size. The “upright” is an “M” shape to accept handles on the lids.

Printed with PLA, .4mm nozzle, 3 wall layers with 20% infill on a MK4.

Thanks for looking :)

Trent
