Small gear fidget spinner for fidgeting.

.stl & .3mf files available.

Print Notes:

Material: PLA.
Layer height: 0.16mm
Infill: 15% infill (Important: do not over tighten the threaded thumb screws if using a low infill.
Supports: none.

Post printing (important):

 - For smooth spinning sand off any seams or bumps on all running surfaces.
 - Check threads screw together before assembling. Sand and smooth thread as required.

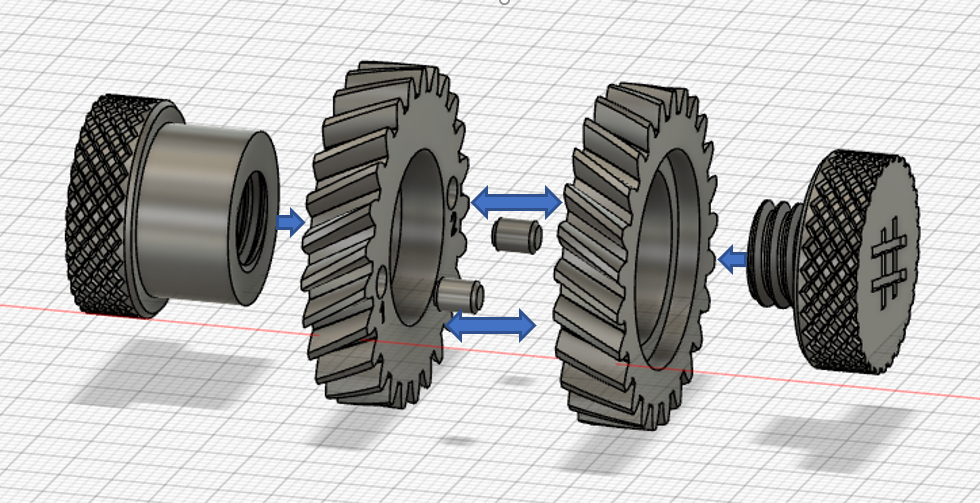

Assembly: see picture of the exploded diagram. Important: align the two halves of the gear (using the small pins) by matching the 1 to the 1 and the 2 to the 2 on each half. The pins are a tight fit, so you do not have to use glue.

Check out my other models here 👀
See my other fidget models here 👀

Hope you enjoy and happy printing 😎
