Modelo 3D Corner Radius Jig - Case por ChopperOriginals no Printables

Descrição

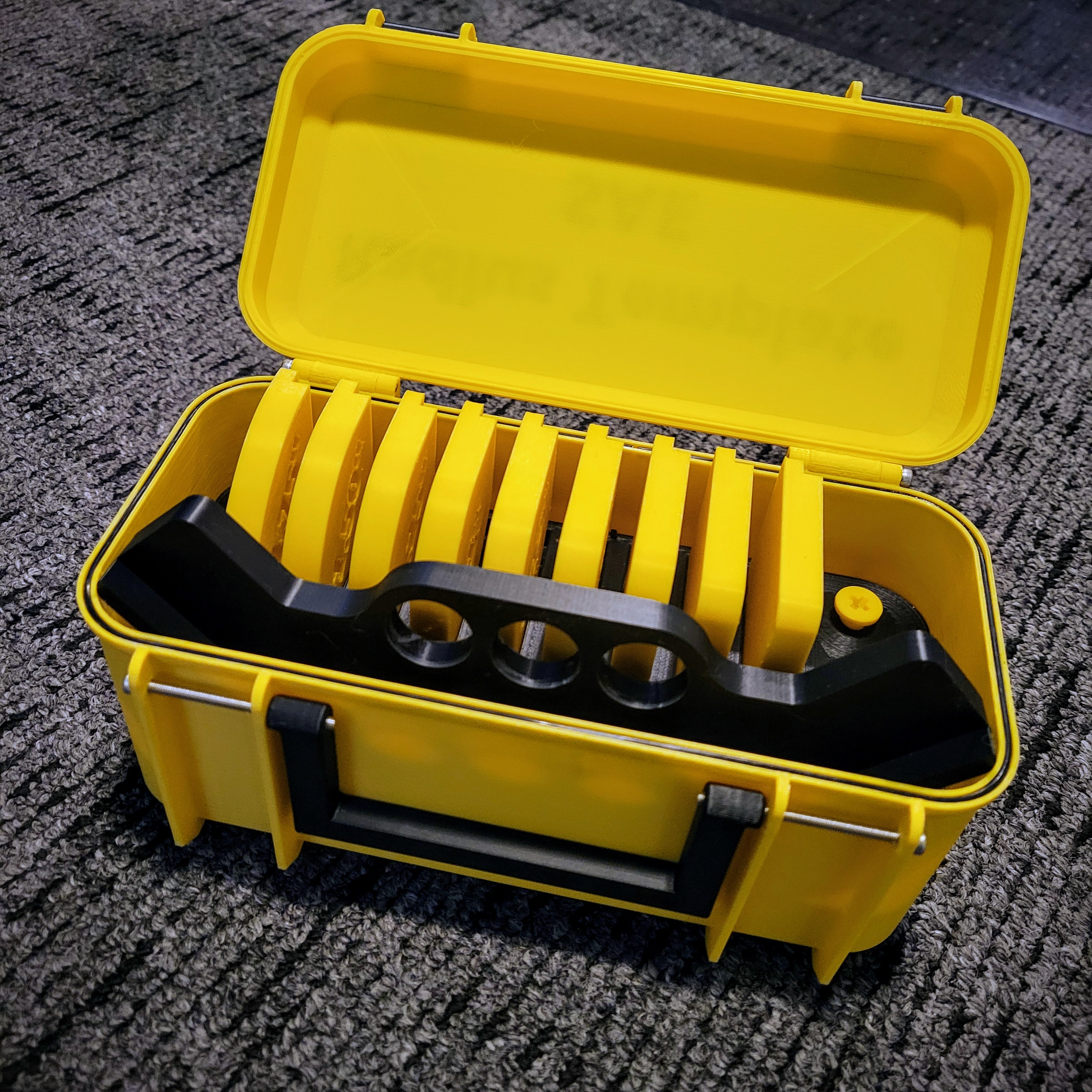

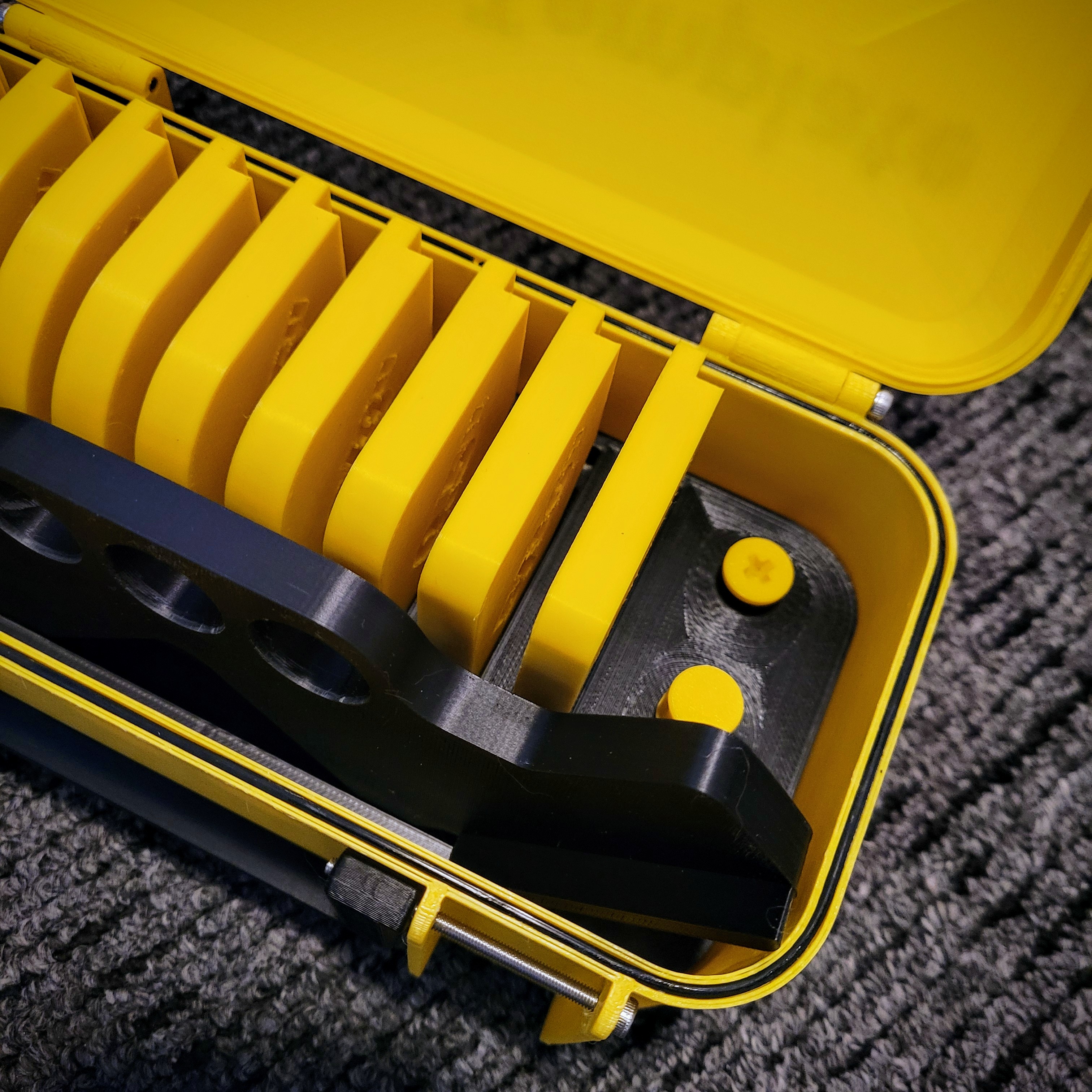

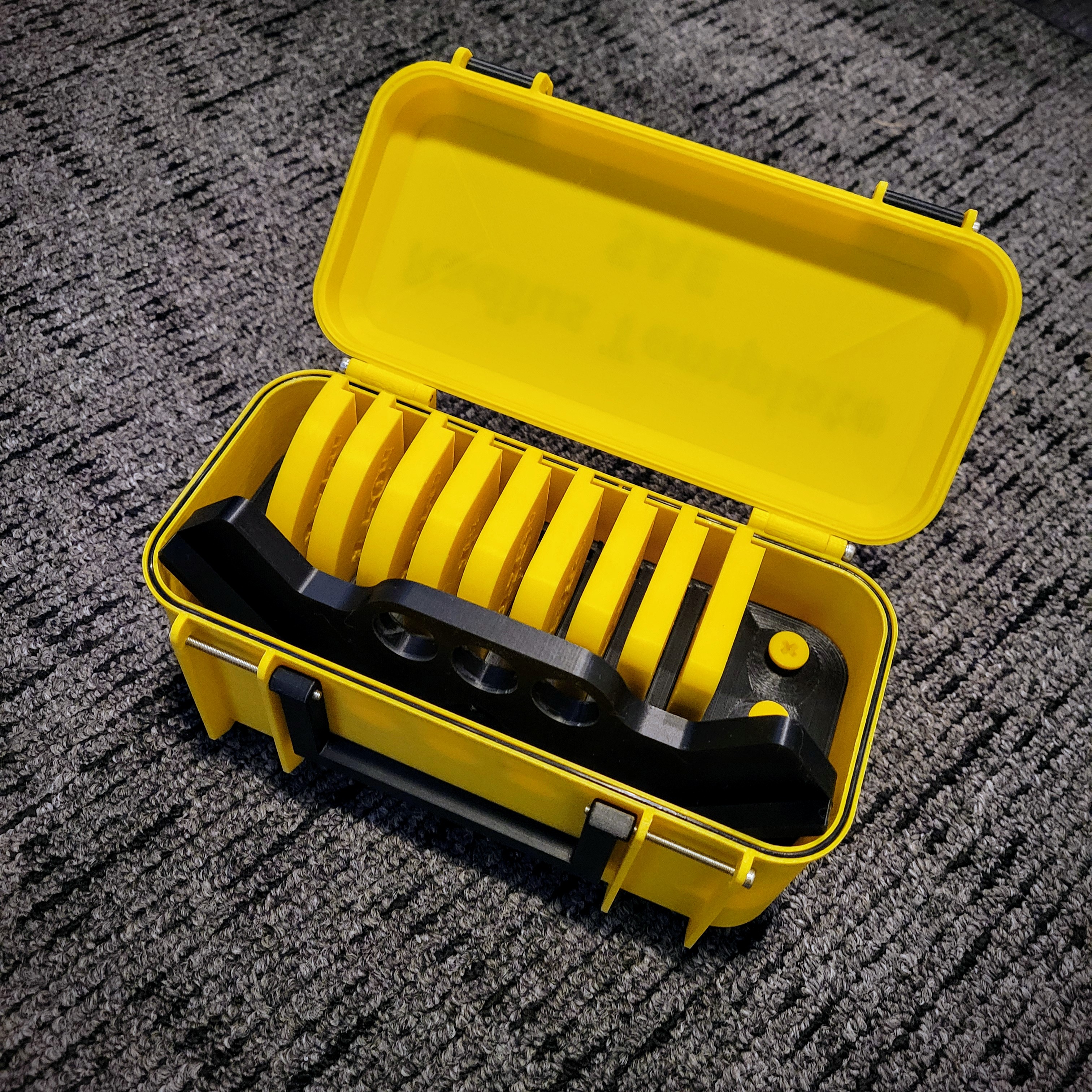

Using a readily available parametric latching box I was able to design an insert to hold everything and store it. Use a piece of 1.75 TPU filament as a seal. I did put a few drops of superglue to hold it in place.



Link to box files. [https://www.printables.com/model/577125-rugged-box-with-handle-1-file-and-all-parametric](https://www.printables.com/model/577125-rugged-box-with-handle-1-file-and-all-parametric)



***One file has all the box parts in 3mf file. You will need to duplicate 1 latch though.

***The inserts is upladed as an stl file. No need to resize anything.



To assemble the box, you will 4-M3x30 and 2-M3x45 screws.



Printer Settings:
Material: PLA+
Resolution: .20
3 Walls and 15% Gyroid Infill
Supports: No
Printables

Corner Radius Jig - Case

Publicado em 9 de set de 2024

49
Curtidas
210
Downloads
1
Impressões
Categoria Tools
Tags
organizer holder case storage router jig woodworking tray clean template radius protect
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (2)
Radius-Template--box-all-parts v2.3mf 271.1 KB
Radius Template Box Insert.stl 248.6 KB
