Description

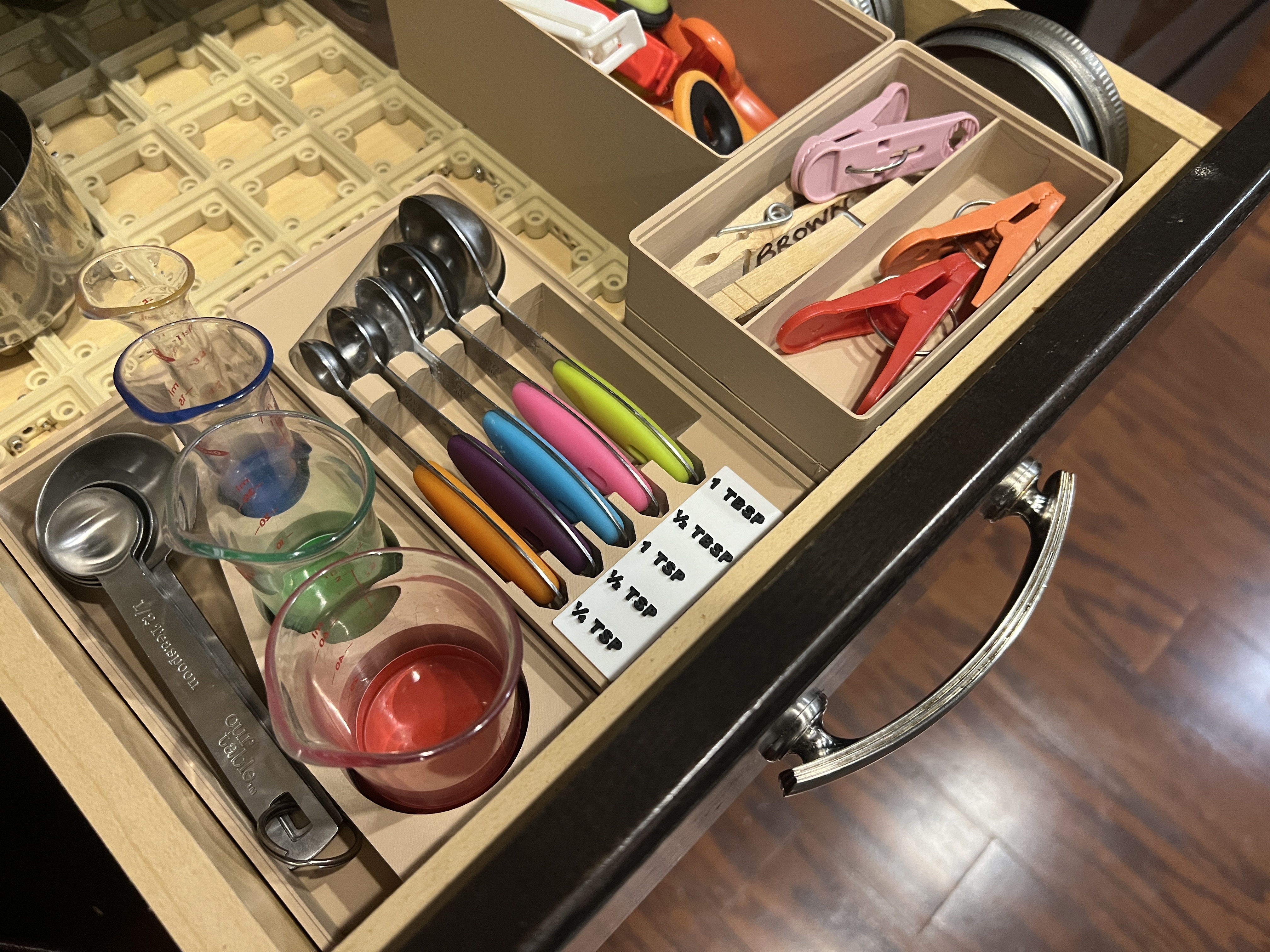

This is a 4x2x5 Gridfinity Bin for my measuring spoons so I can quickly find/access the one I need and put it back in the drawer in a specific location when I'm done using it.

It holds 5 measuring spoons

• 1 tbsp
• ½ tbsp
• 1 tsp
• ½ tsp
• ¼ tsp

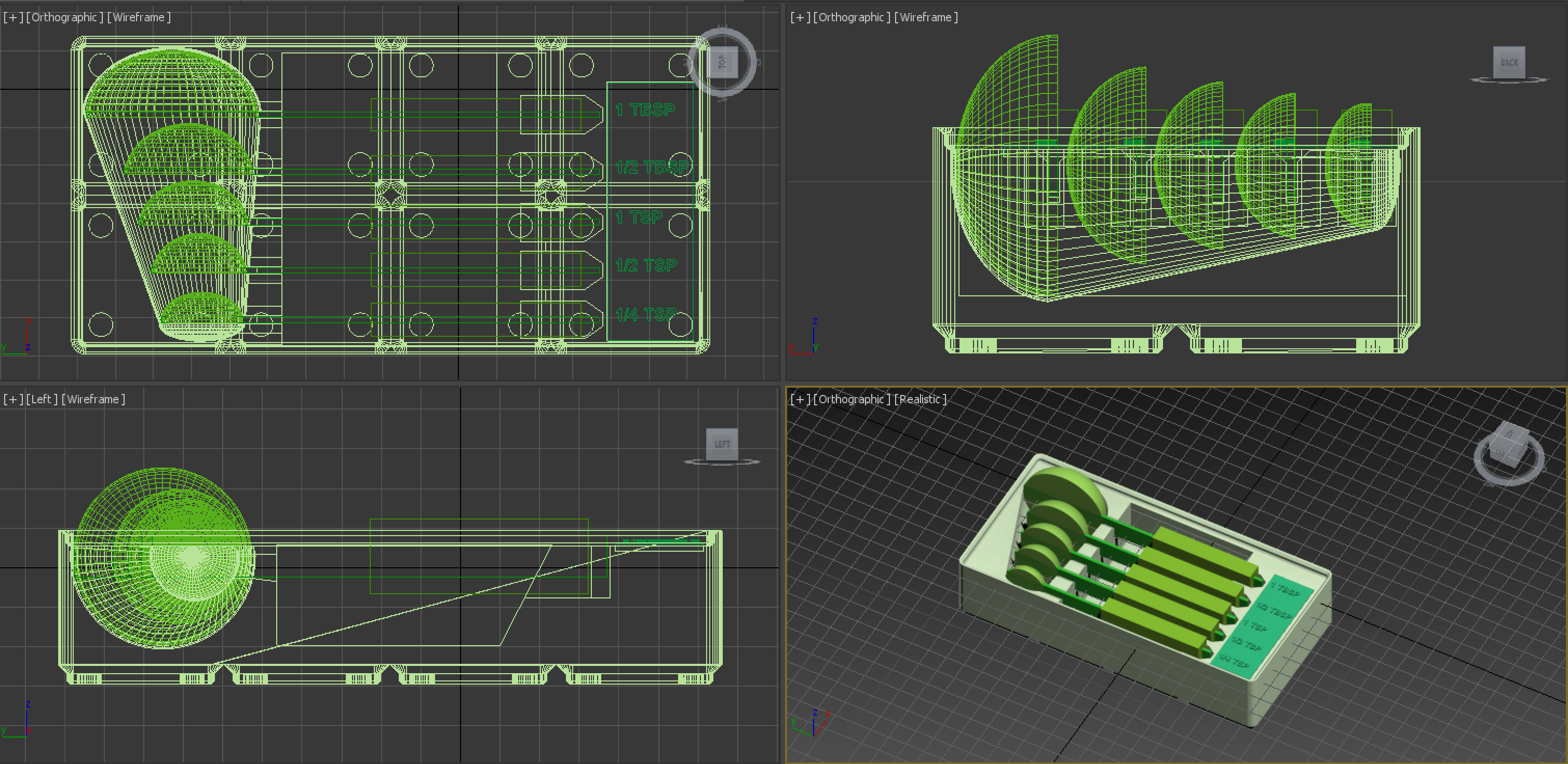

Design Info

I designed this specifically to fit the set I linked above & below, but it may fit for others.  I also shrank Zack's default magnet recess size so it's more of a snug fit. I included an optional label that will require a material swap.  Feel free to use the provided .3mf file that already has materials and painting done for this.  I recommend a 0.2 nozzle for extra clarity on the label text.

Print Info

• 0.4 nozzle
• Bambu Lab X1C
• 10% Infill (Gyroid)
• Bambu Lab PLA Matte - Latte Brown (11800)
• Bambu Lab PLA Matte - Ivory White (11100)
• Bambu Lab PLA Matte - Charcoal (11101)
• Slicer: Bambu Studio

Parts/Hardware

• Control Kitchen Measuring Spoons
• 6x2mm Neodymium Magnets

Credits

• Zack Freedman for creating Gridfinity
• Jamie for the base 4x2x5 openscad based cup generator
