Descrição
Printing Parameters:
- Resolution: 0.2 mm
- Perimeters: 2
- Infill: 15 %
- Supports: no
Clockwork:
- Dimensions: 56 x 56 x 20 mm
- Thread: M8 x 10 mm
- Clockwork on Amazon

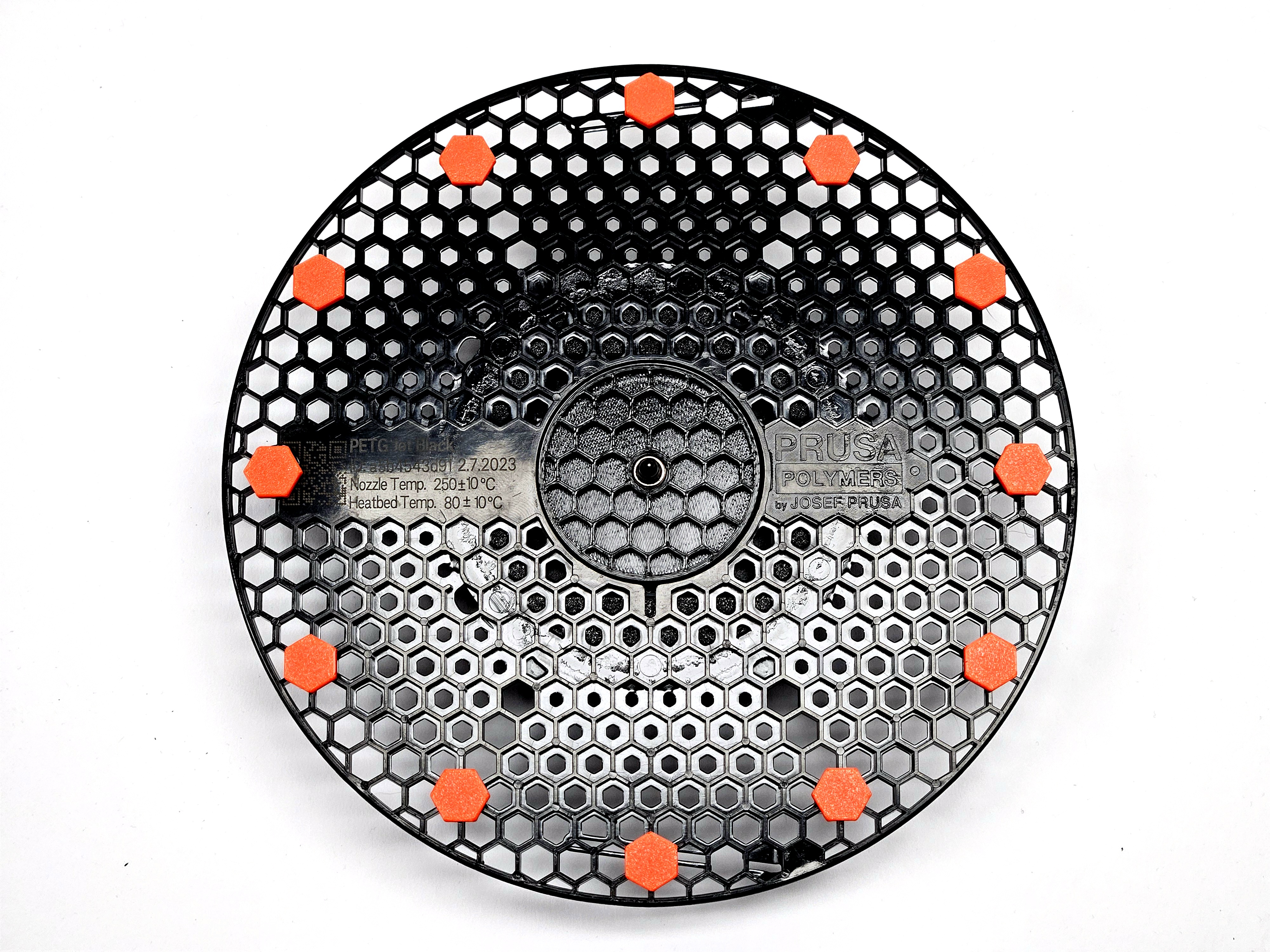

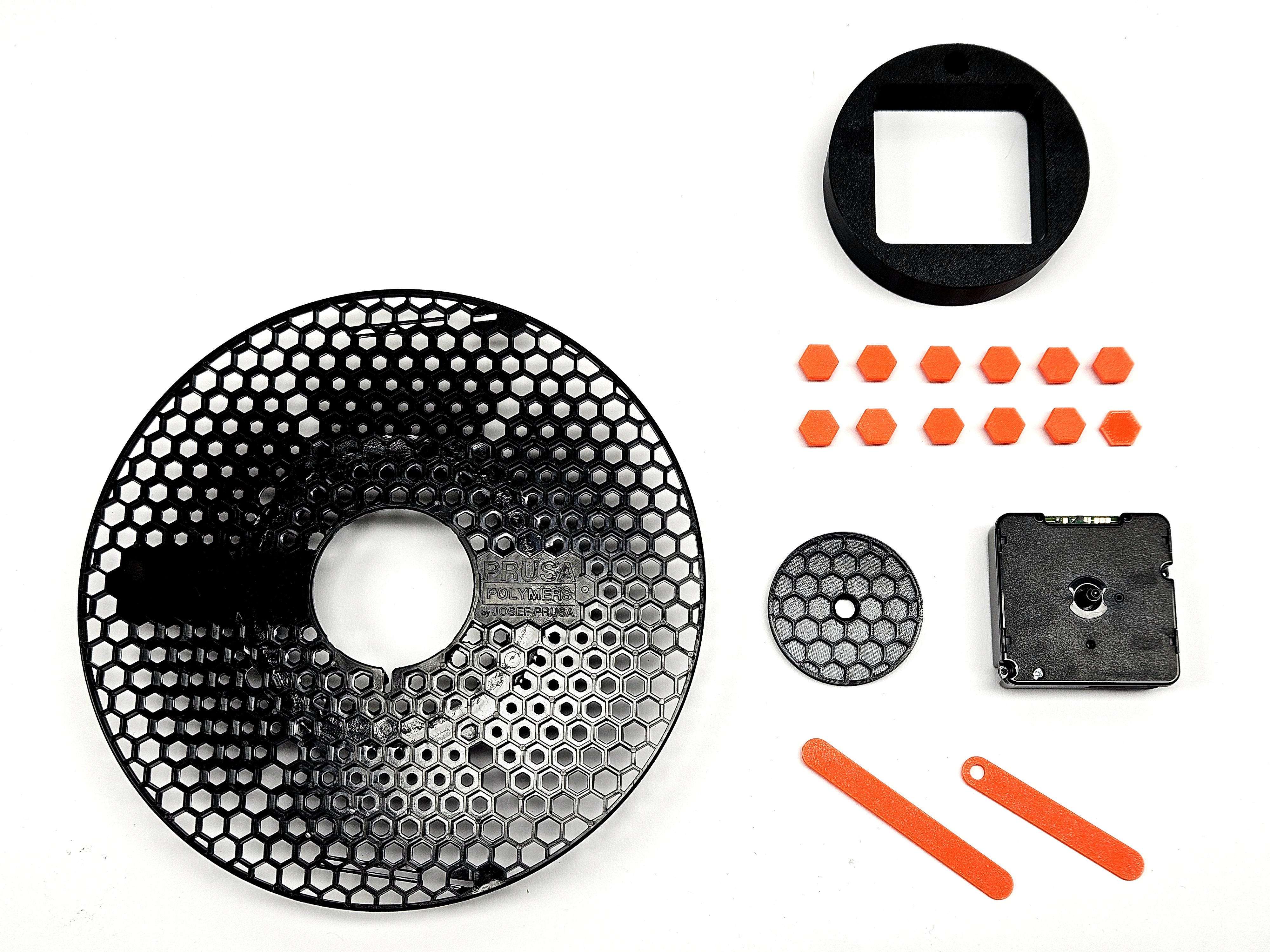

Assembly:
- Insert point 1 at 2, 4, 6, 8, 10 and 12 o' clock
- Insert point 2 at 1, 3, 5, 7 and 11 o' clock
- Glue point 3 at 9 o'clock (with hot glue or super glue)

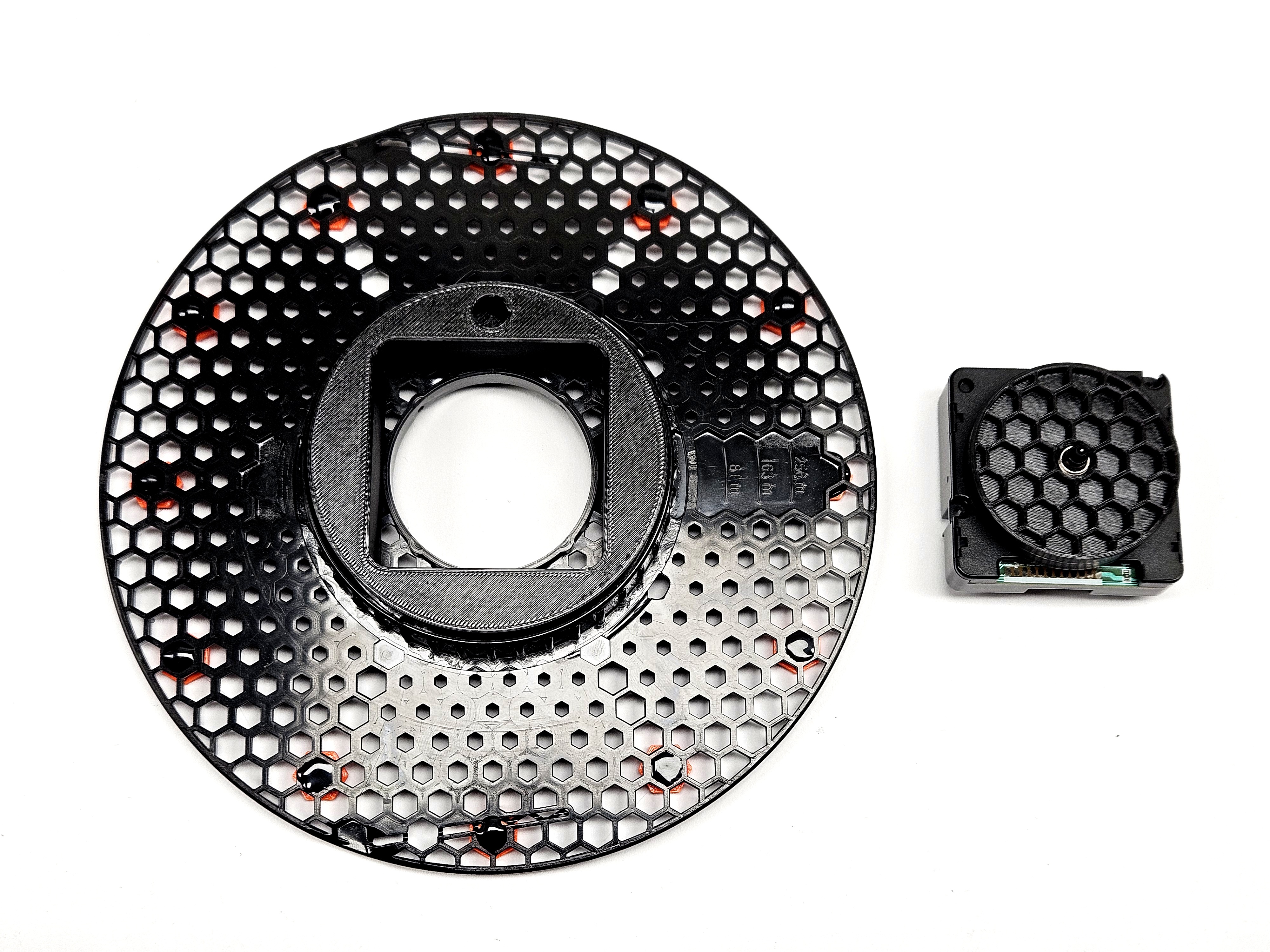

- Glue the frame into back of the spool. Attachment hole on top.
- Glue the cover to the front of the clockwork. Check horizontal alignment.
- Glue the clockwork into the frame
- Fix hour and minute hands at 12 o'clock position
- Insert AA battery
- Wait some minutes
- Meanwhile, hammer a nail into the wall
38
Curtidas
85
Downloads
5
Impressões
Categoria
Prusa Parts & Upgrades
Licença
Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (7)
Spool Clock Frame.stl
85.6 KB
Spool Clock Cover.stl
100.1 KB
Spool Clock Hour Hand.stl
42.5 KB
Spool Clock Minute Hand.stl
33.3 KB
Spool Clock Point 1.stl
2.8 KB
Spool Clock Point 2.stl
2.8 KB
Spool Clock Point 3.stl
1.6 KB
