Descrição

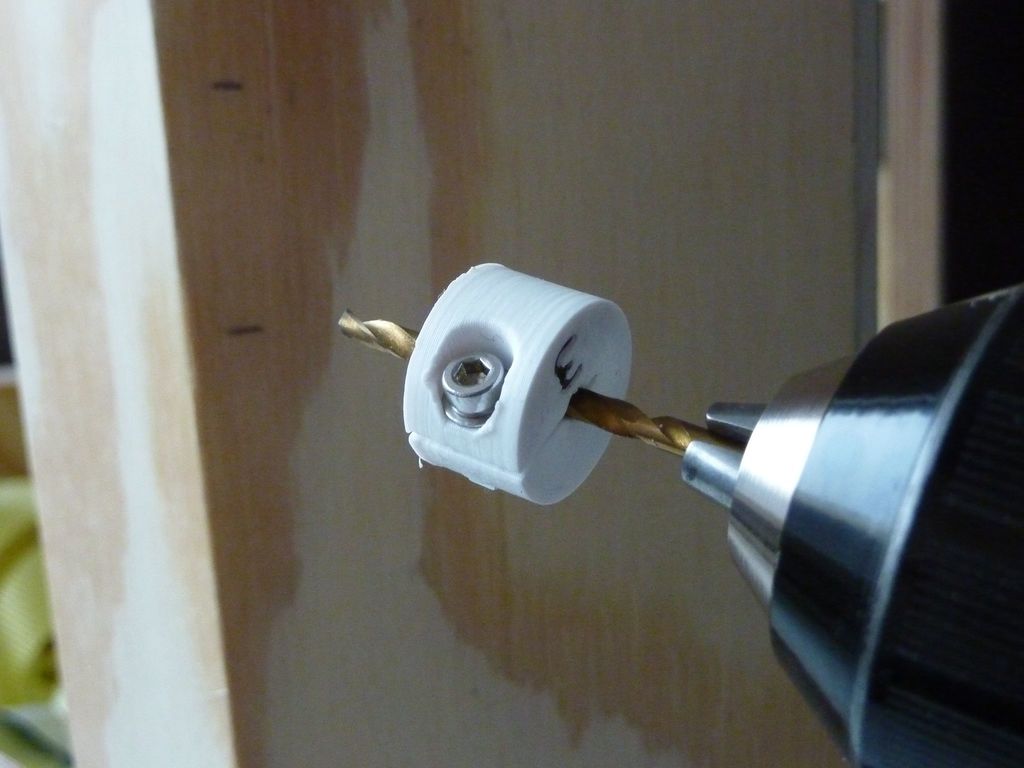

I don't like drill stop designs where a screw touches the drill bit, as they tend to skew on the drill bit, especially on drill bits with thin blades, like wood drill bits. With this design, the whole inner surface of the drill stop holds the drill bit.

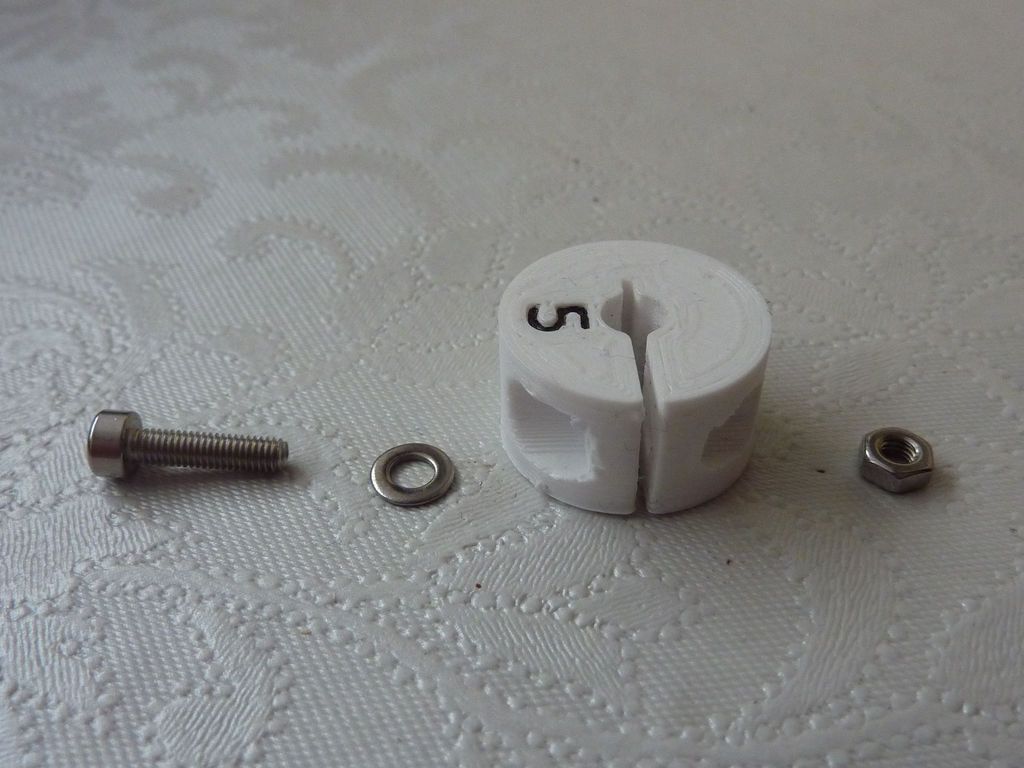

To assembly it, you need an M3 washer, M3 nut and M3 screw, 12mm length (it may be a little bit shorter for smaller drill diameters). The nut should be a very tight fit to prevent turning.
A tip for an easy insertion of the nut:
- insert a long M3 screw (at least 20mm) through the screw hole
- put the nut on this screw and screw it till the nut is in the position
- gently unscrew the long screw leaving the nut in the place
- put the washer and the final screw
Print Settings
Rafts:
No
Supports:
Yes
Resolution:
.2
Infill:
100%
114
Curtidas
901
Downloads
16
Impressões
Categoria
Tools
Tags
tool
drill
openscad
drilling
thingiverse
drillguide
drillstop
Licença
Creative Commons — Attribution
Arquivos (26)

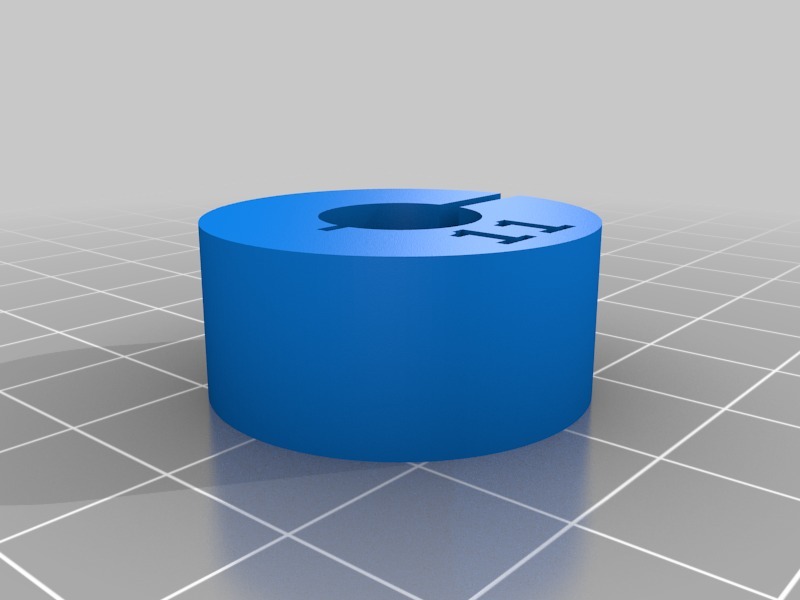

drill_stop_metric_11.stl
297.2 KB
drill_stop_metric_7.stl
262.7 KB
drill_stop_metric_8.stl
468.4 KB

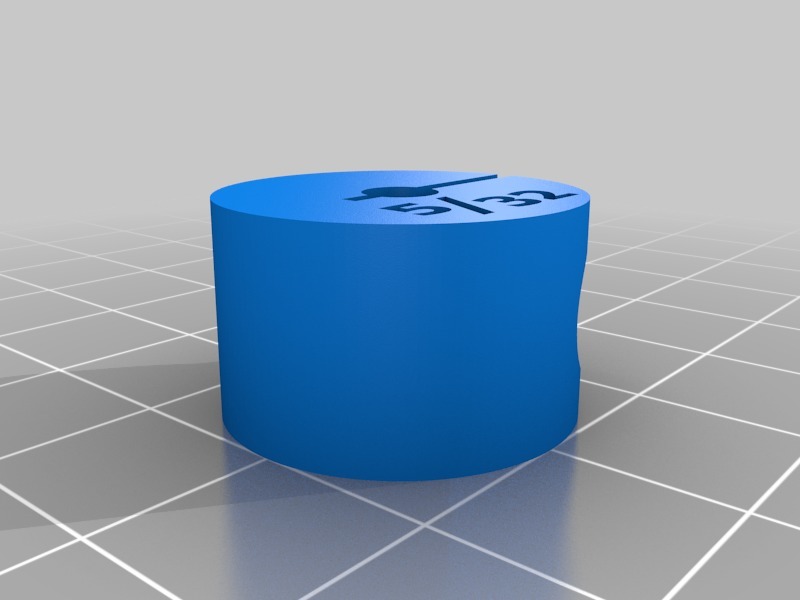

drill_stop_imperial_5_32.stl
497.3 KB
drill_stop_metric_9.stl
407.1 KB
drill_stop_metric_12.stl
357.8 KB
drill_stop_imperial_1_4.stl
282.3 KB
drill_stop_imperial_1_8.stl
424.7 KB
drill_stop_imperial_7_16.stl
435.3 KB
drill_stop_imperial_3_8.stl
566 KB

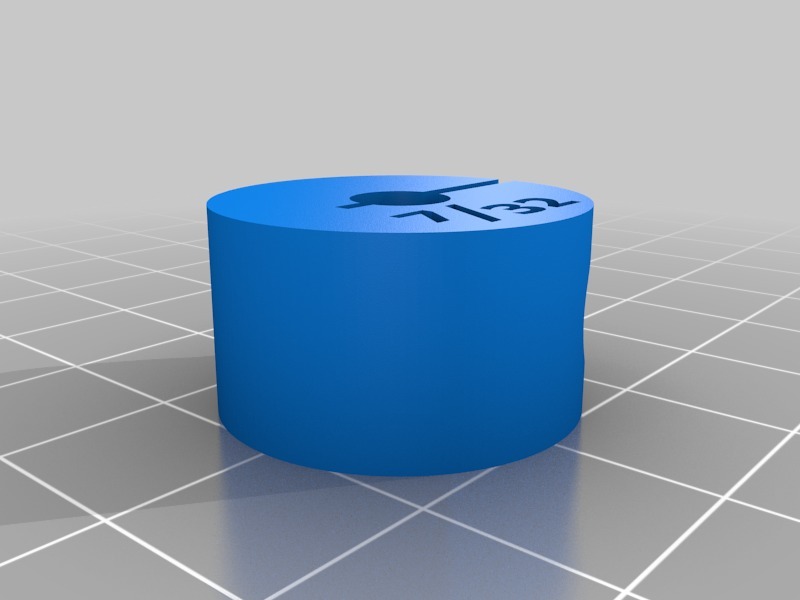

drill_stop_imperial_7_32.stl
433.9 KB
drill_stop_metric_3.5.stl
449.1 KB
drill_stop_imperial_5_16.stl
506.2 KB
drill_stop_metric_4.stl
245 KB
drill_stop_metric_3.stl
361.4 KB
drill_stop_metric_10.stl
435 KB

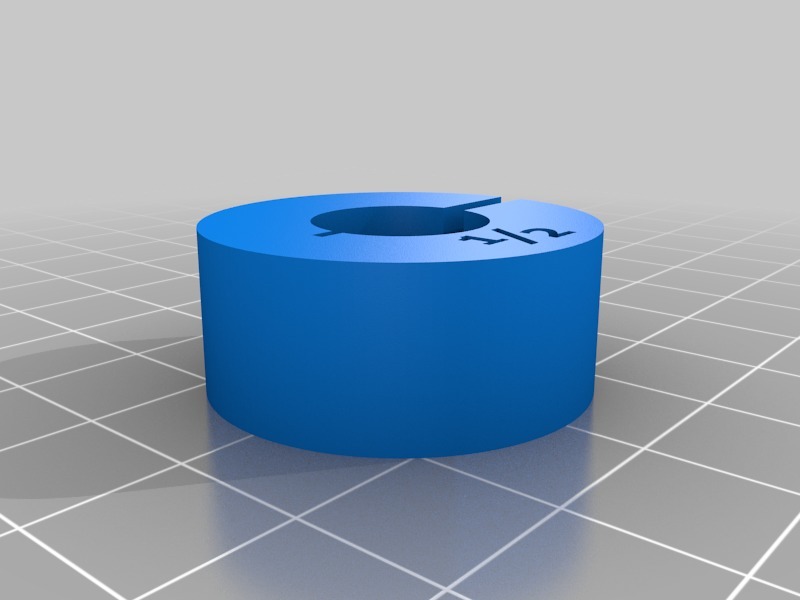

drill_stop_imperial_1_2.stl
345.8 KB
drill_stop_metric_5.stl
321.4 KB
drill_stop_metric_6.stl
399.1 KB
drill_stop_metric_set.stl
4.2 MB

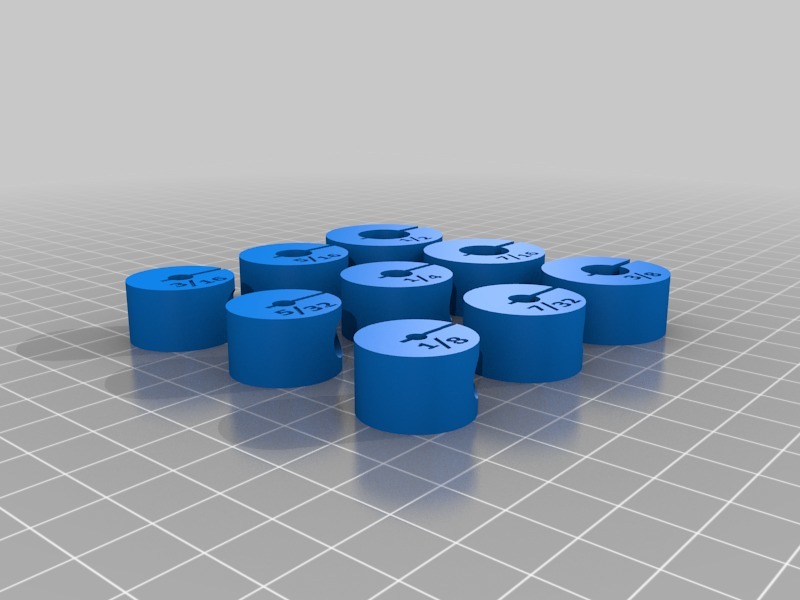

drill_stop_imperial_set.stl
3.9 MB

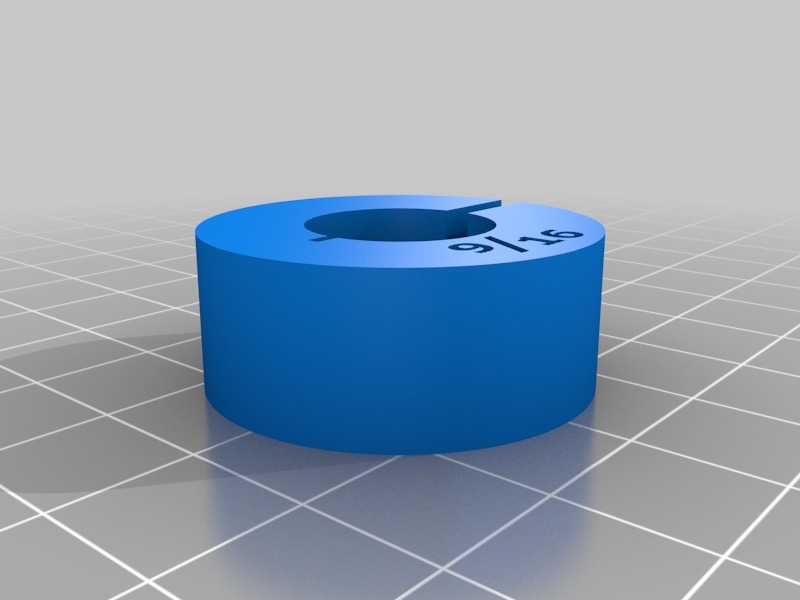

drill_stop_imperial_9_16.stl
161.8 KB

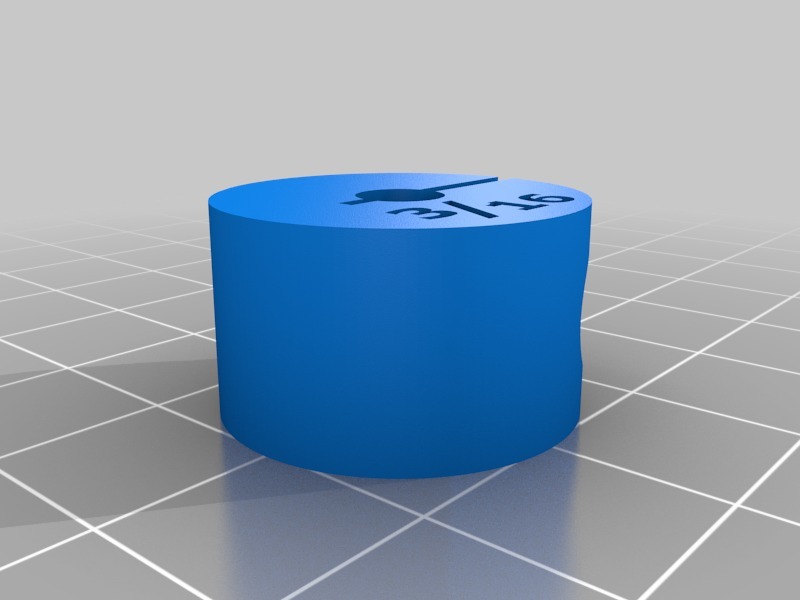

drill_stop_imperial_3_16.stl
523.9 KB
drill_stop_metric_4.5.stl
331 KB
drill_stop_no_customizer.scad
3.2 KB
drill_stop.scad
4.7 KB
