Modelo 3D Stackable Storage Boxes (Vase Mode) por qwerty no Printables

Descrição

My approach on a low filament storage box. Hence I looked into vase mode.

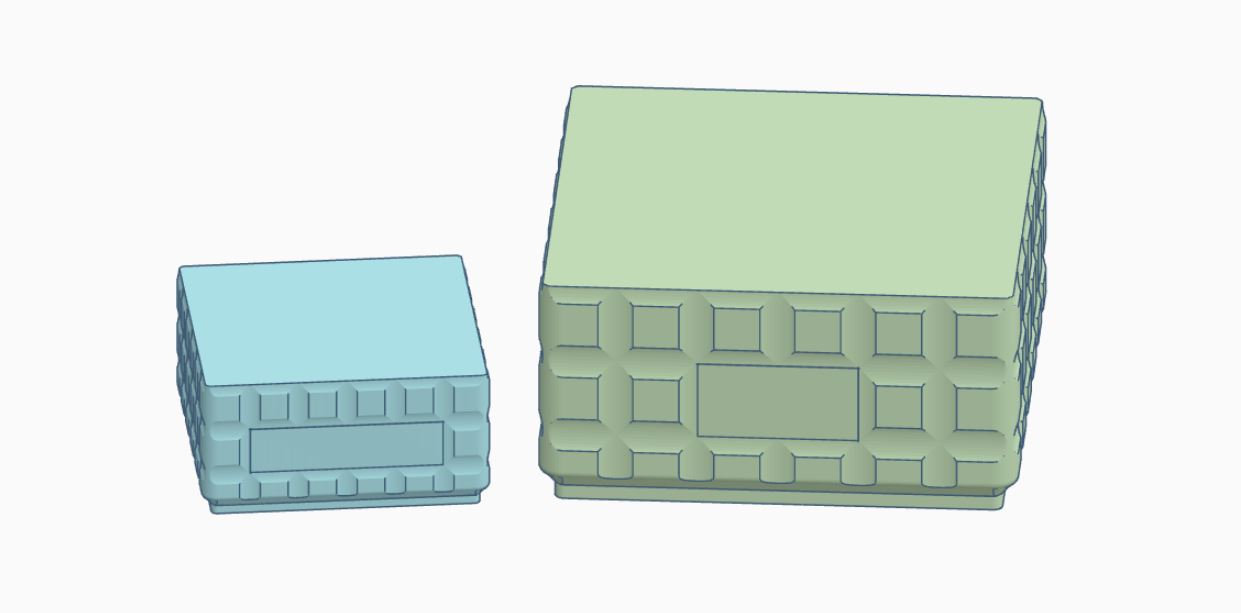

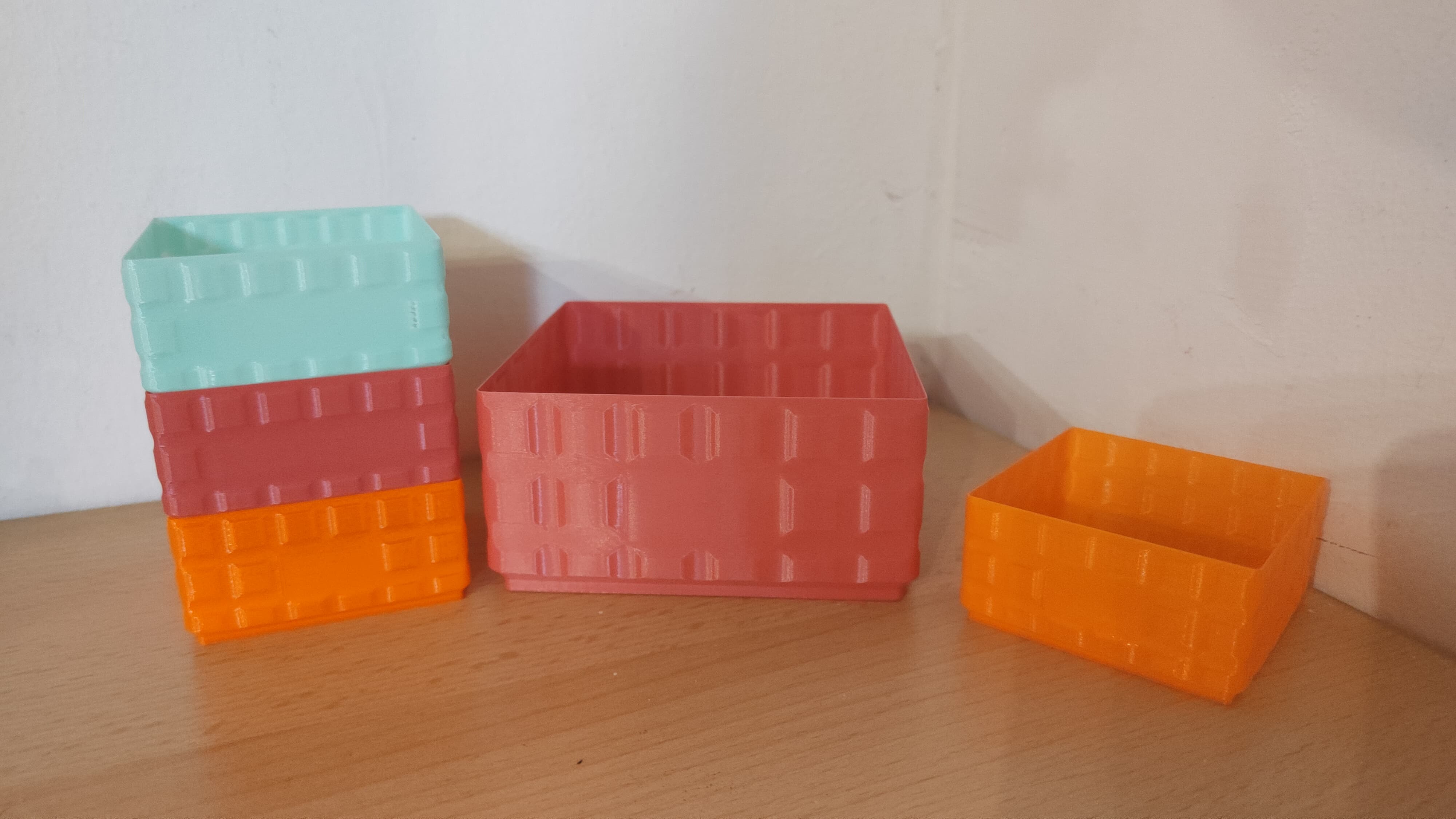

I did print the large box from its original size down to 50% without issues, but I also added a smaller box so you got a bigger area for labeling. It uses very little filament and prints quite fast thanks to it's large structured pattern while providing decent stability.

Print List:

1x Box of your choice, scaled to your need

Print Settings

Set your printer to vase mode, all the other settings will be made by your slicer. Depending on the scale you are using you might want to use variable layer size for at least the small ridge on the bottom of the print or reduce layer size in general.

Generic advice for vase mode prints: use a big nozzle, use a filament you know well that has good layer adhesion and is well tuned for your printer. If you got issues with layer adhesion you might try some higher flow rates or slow down the speed.

General

There's some place for a label or you write with a pen. Even tho I made the observation that permanent markers suffer from the capillary action.

Printables

Stackable Storage Boxes (Vase Mode)

Publicado em 29 de ago de 2024

7
Curtidas
66
Downloads
1
Impressões
Categoria Organizers
Tags
vase storage storagebox vasemode storagecontainer
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (2)
Vase.Mode.Box.100x100x50.stl 391.1 KB
Vase.Mode.Box.60x60x30.stl 386 KB
