Modelo 3D Flexcut Rotating Tool Holder por Dinkus no Printables

Descrição

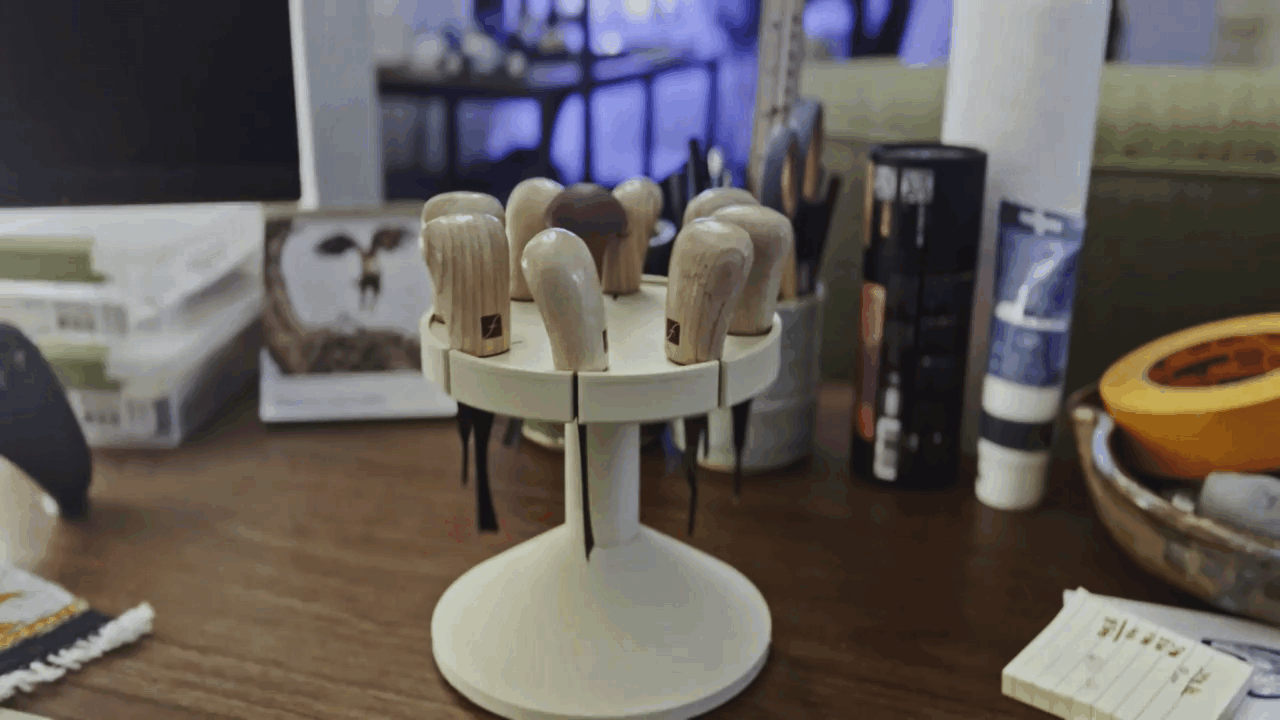

Made this for my wife's linocut palm tools after noticing they were stored in a large cup with no way to identify them or protect the cutting edges. Used this project to start learning FreeCAD - first time designing/modeling a parametric model.

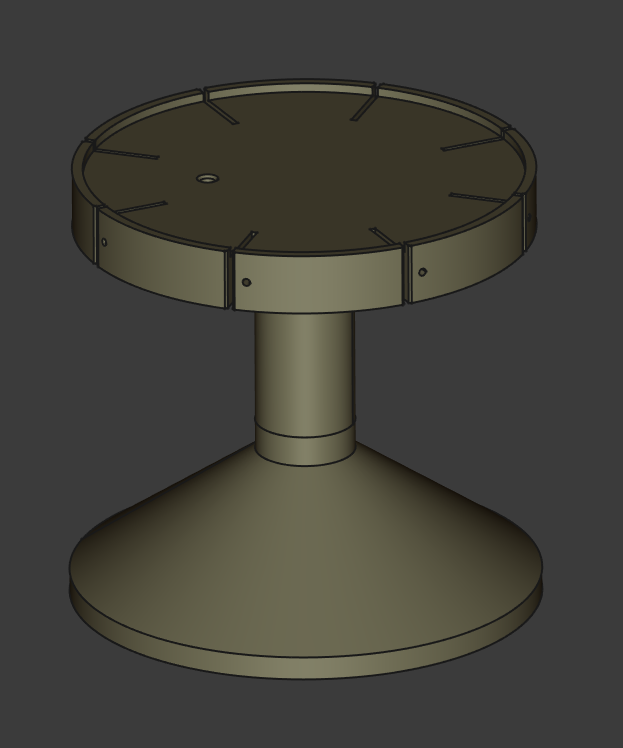

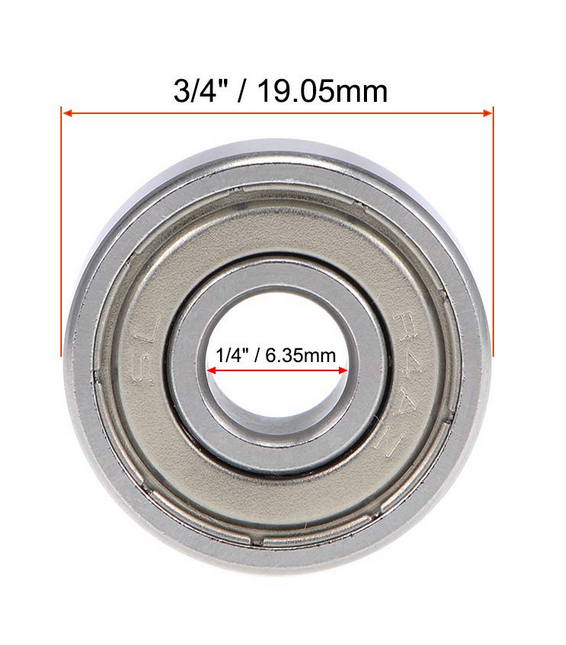

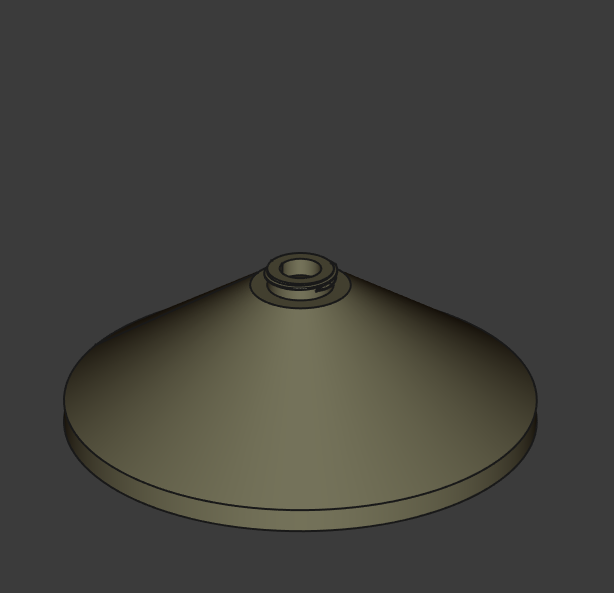

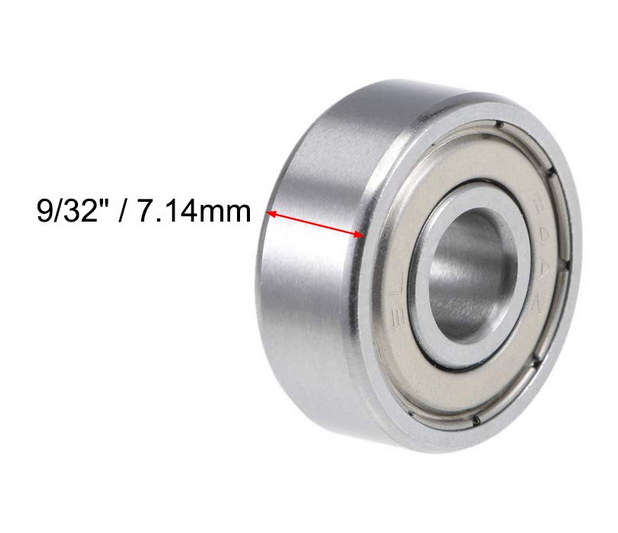

The holder uses a skateboard bearing (press fit into the top portion, dimensions are in the images section) and the hollow base was filled with sand (along with a 3m rubber sheet on the bottom to prevent slipping). The holder is printed in 3 parts and requires no supports.

I've included 2 versions of the top portion, one with pin holes for 3d printed labels, and one without. I also uploaded the labels for the blade profiles she had (2 sizes of the same profiles, so they were just printed in 2 different colors).



Printables

Flexcut Rotating Tool Holder

Publicado em 29 de jul de 2024

14
Curtidas
34
Downloads
Categoria Other Art & Designs
Tags
linocut carving flexcut carvingknives carvingtools carvingtool carvingknife
Licença Creative Commons — Attribution — Noncommercial
Arquivos (11)
FlexcutHolderTopNoLables.stl 119.5 KB
FlexcutHolderTopWithLableHoles.stl 319.5 KB
FlexcutHolderPost.stl 2.5 MB
FlexcutHolderBase.stl 2.8 MB
labelPins.stl 97.3 KB
FlexcutHolderTopNoHoles.stl 66.1 KB
FlexcutHolderBase.step 175.3 KB
FlexcutHolderPost.step 198.5 KB
FlexcutHolderTopNoLables.step 255.8 KB
FlexcutHolderTopWithLableHoles.step 345.6 KB
FlexcutHolderTopNoHoles.step 15 KB
