REDSTONE LAMP from Minecraft

Print instructions:

• 5x diffuser.stl - 0,2mm layer - (white)
• 8x side_support.stl - 0,2mm layer - (no matter)
• 3x side.stl - 0,2mm layer - (black or brown)
• 1x top.stl - 0,2mm layer - (black or brown)
• 1x esp_support.stl - 0,2mm layer - (no matter)
• 1x back.stl - 0,2mm layer - (black or brown)
• 1x bottom.stl - 0,2mm layer - (black or brown)
• 1x led_mount.stl - 0,2mm layer - (no matter)

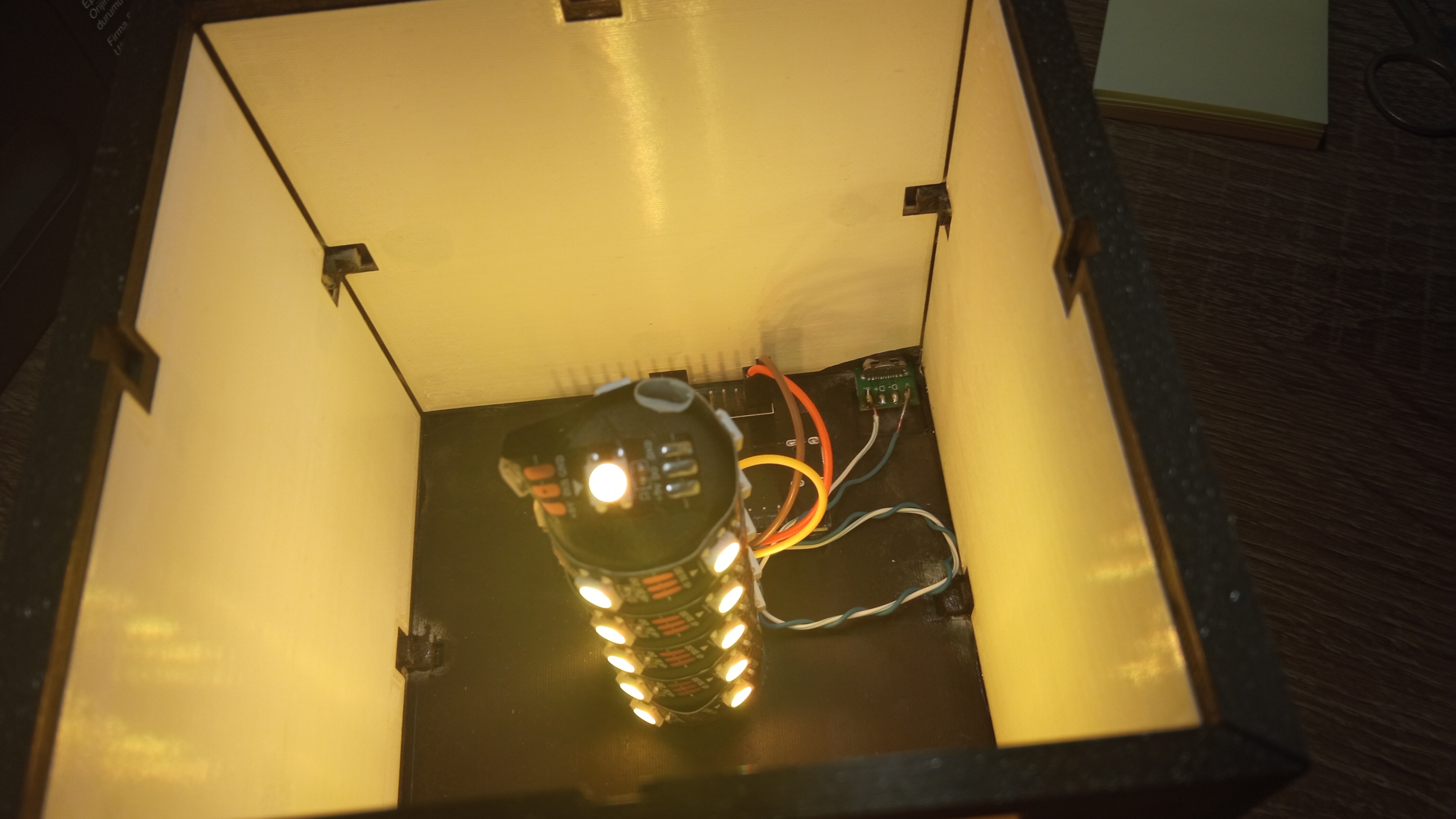

Use WS2812B led addressed strip (mine is 60 leds on 1 meter) and ESP32 with WLED software (link: [https://kno.wled.ge/](https://kno.wled.ge/) ). Also you can use USB-C connector on the back plate to power this lamp ( [https://pl.aliexpress.com/item/1005005772294768.html?spm=a2g0o.order_list.order_list_main.81.7d2a1c24Hz2Ebb&gatewayAdapt=glo2pol](https://pl.aliexpress.com/item/1005005772294768.html?spm=a2g0o.order_list.order_list_main.81.7d2a1c24Hz2Ebb&gatewayAdapt=glo2pol) )

Please note that side parts have asymmetrical bevels, you need to place the side parts with the right side when assembling the lamp




Glue all parts together WITHOUT TOP PART (the top part was made to be able to be pulled out later)
