First: Thanks to DodoAssasin for inspiring me. I got impatient so couldn't wait for your design.

Features:

• still fitting in original case with antennas mounted
• no excess cables
• slim design (roughly same size as original patches)
• easy mounting without opening top plate to release clips

Best results when printed like in the picture. I used PETG but any filament will be fine as ling it is not CF reinforced.

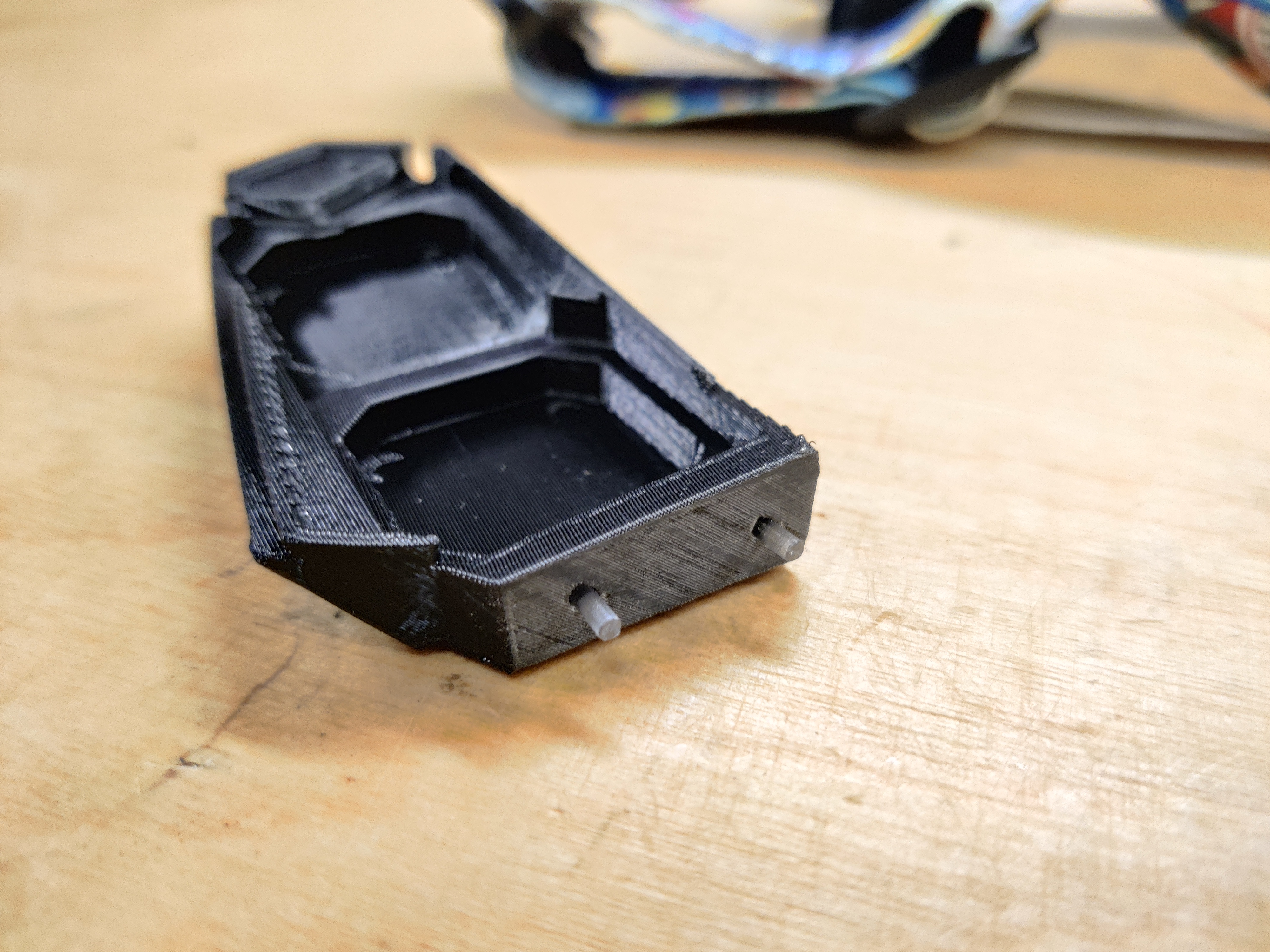

Print the two halves and join them with superglue (use ~8mm of filament in the guidance holes for the best result).

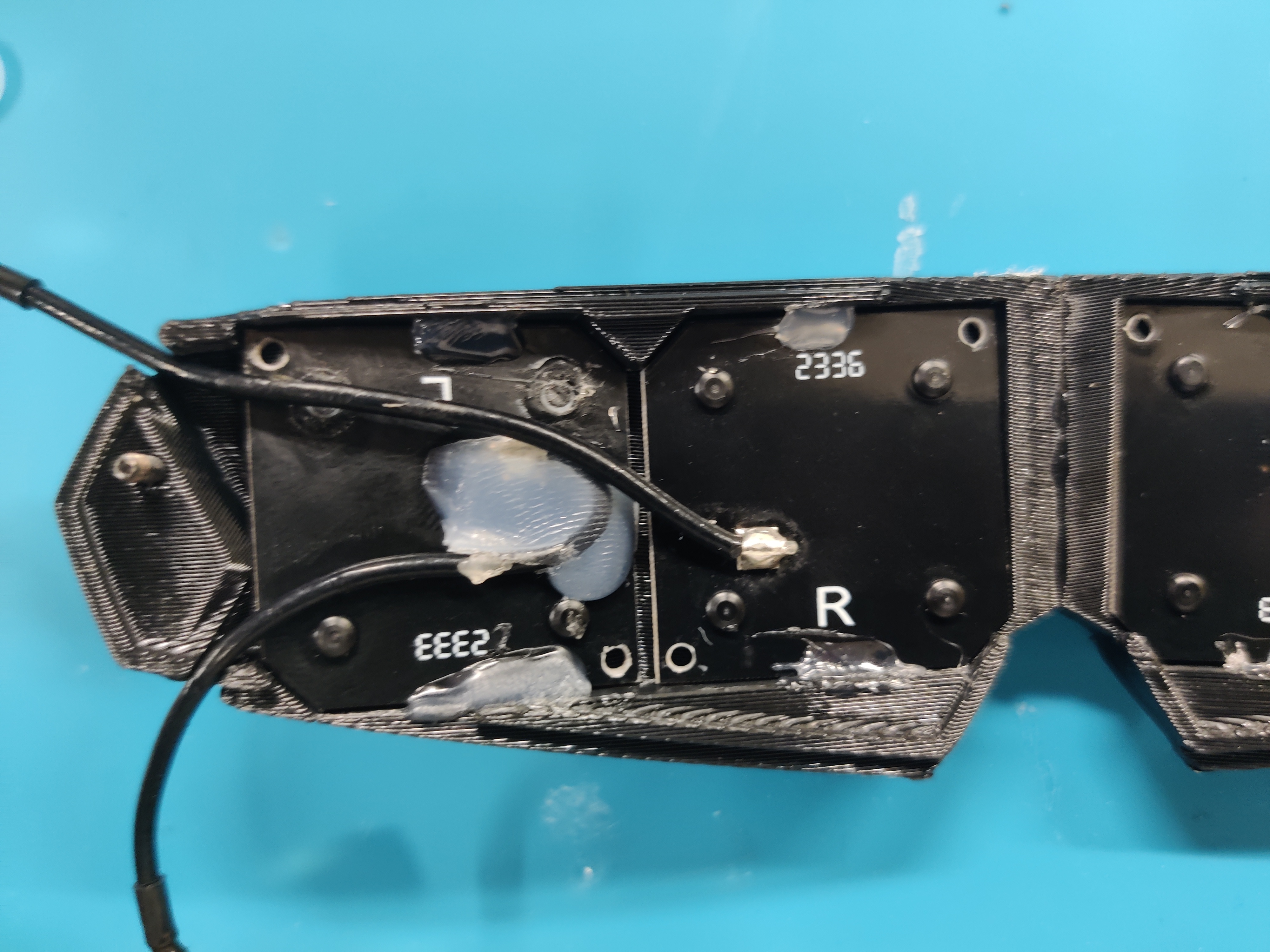

Afterwards carefully bend the wires of two patches so they look like in the picture (reduces excess wire on the outside) and fix with a dab of hot-glue.

Place the patches in the printed part and fix them with two dabs of hot-glue each (you can also further secure and guide the wires but keep aware of the maximum height.

Then mount the patches with 2xM2 screws to the Goggles X and enjoy the long range performance.
