Modelo 3D Case PWM fan controller por SveN no Printables

Descrição

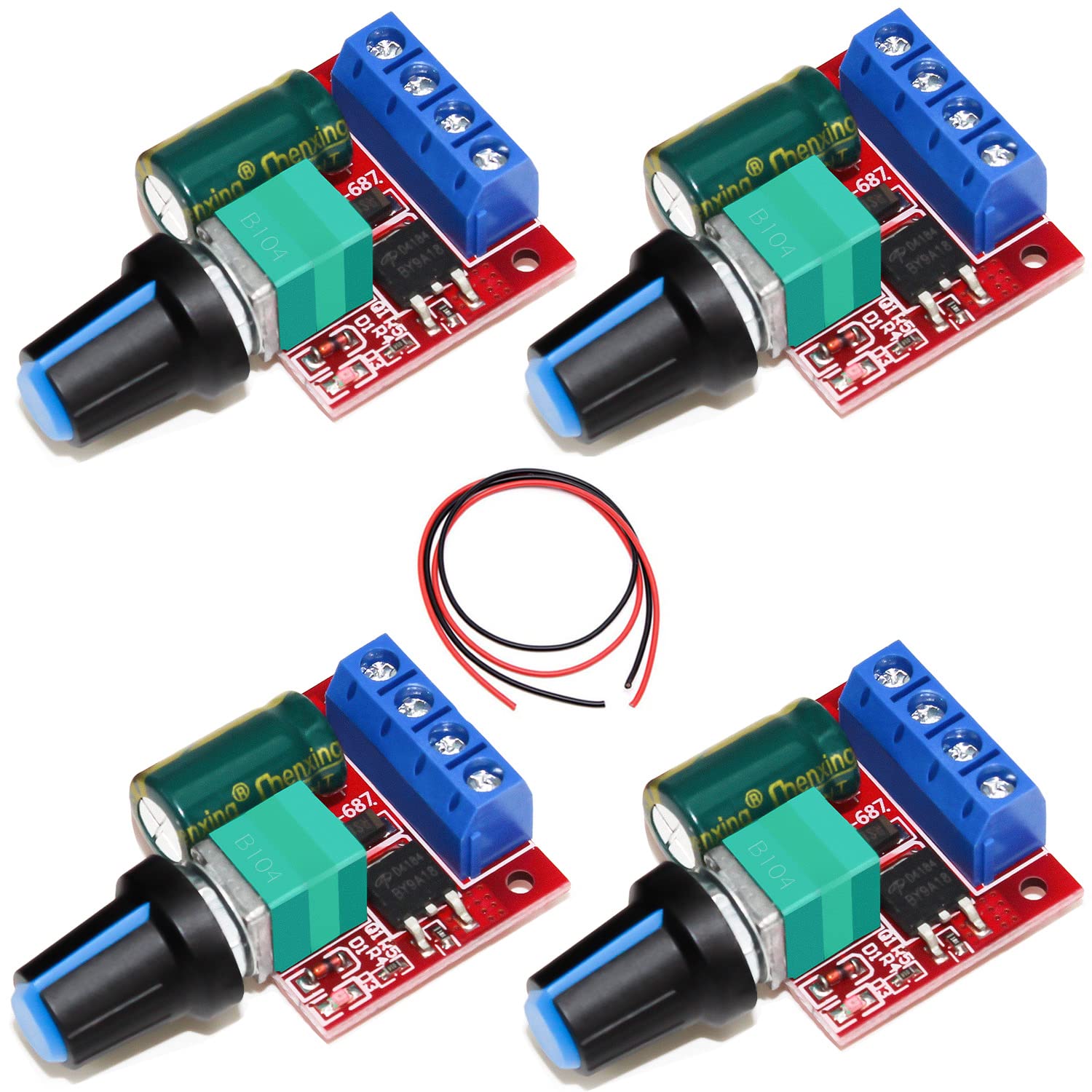

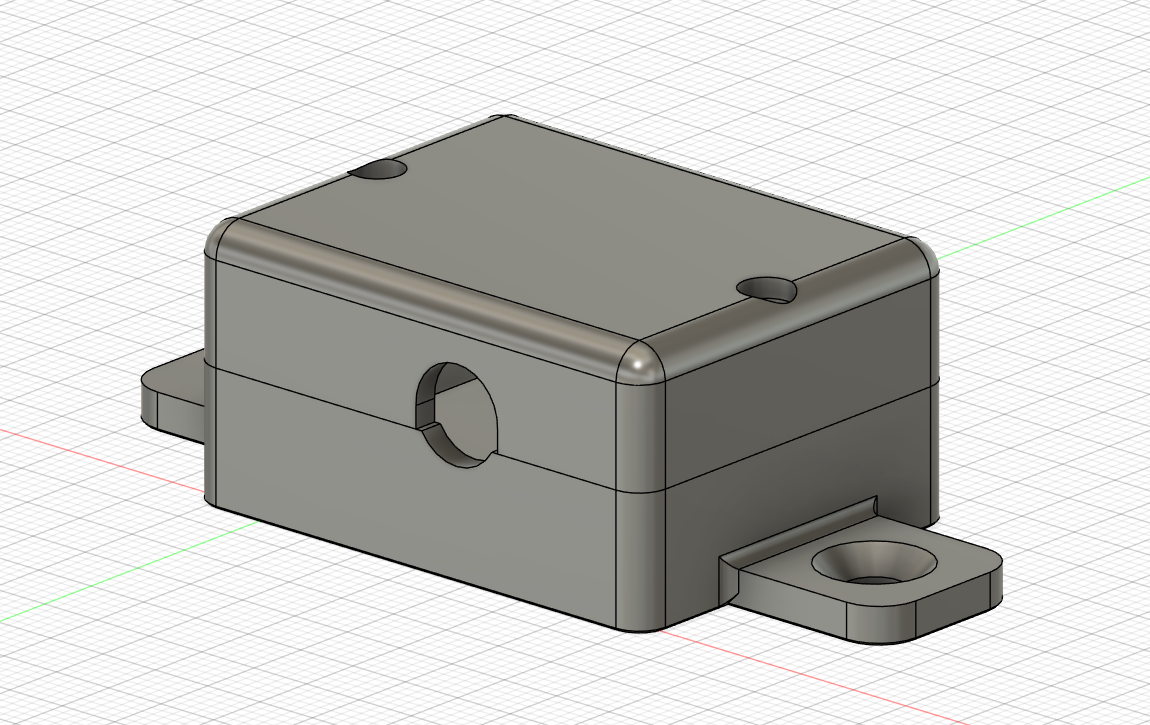

I bought a four piece pack of PWM regulators (see link at the end) to use old pc fans as fans for my reptiles. Then I designed a case for these regulators including mounting options.

This is not an affiliate link, nor do I want to advertise exactly these regulators, but these are the one i designed the case for and it is an exact fit. You might get the same ones from other websites and dealers, so the link is just for reference.

A also desined honeycomb fan cover, so my reptiles can not touch the fans (see my profile) and attachment brackste for the fans for 120mm und 140mm fans.

You will also need:

  • 2x m2x20mm flathead screw or similar
  • 2x m2x10mm flathead screw or similar

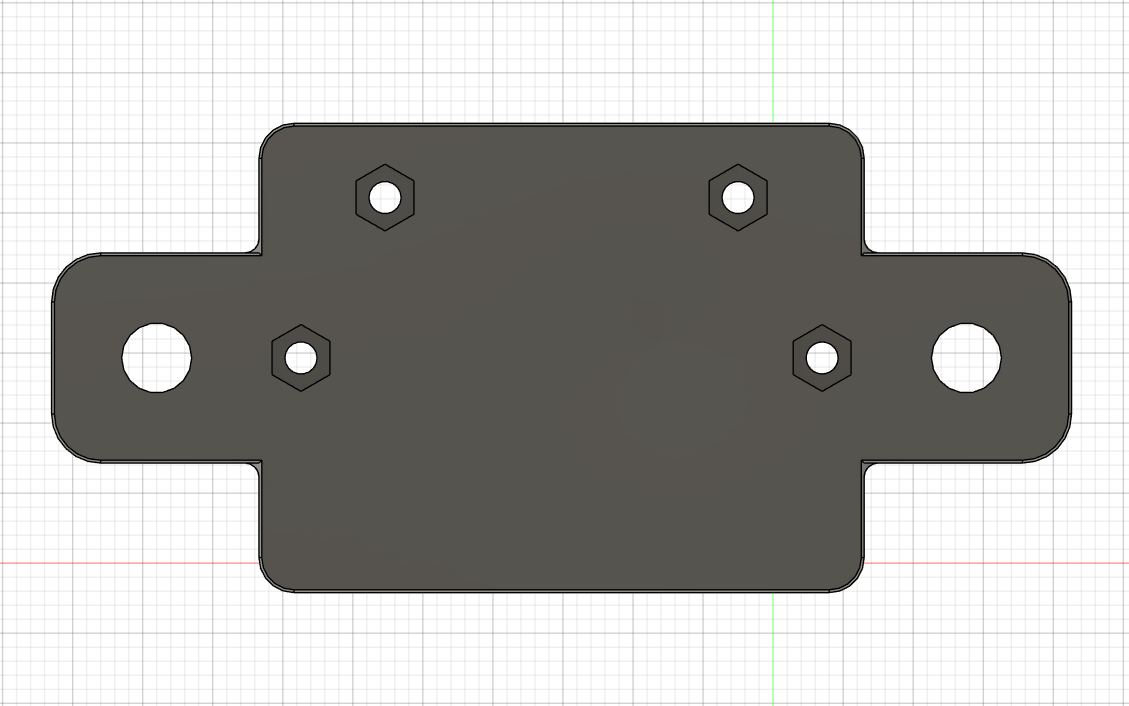

  • 4x m2 hex nut

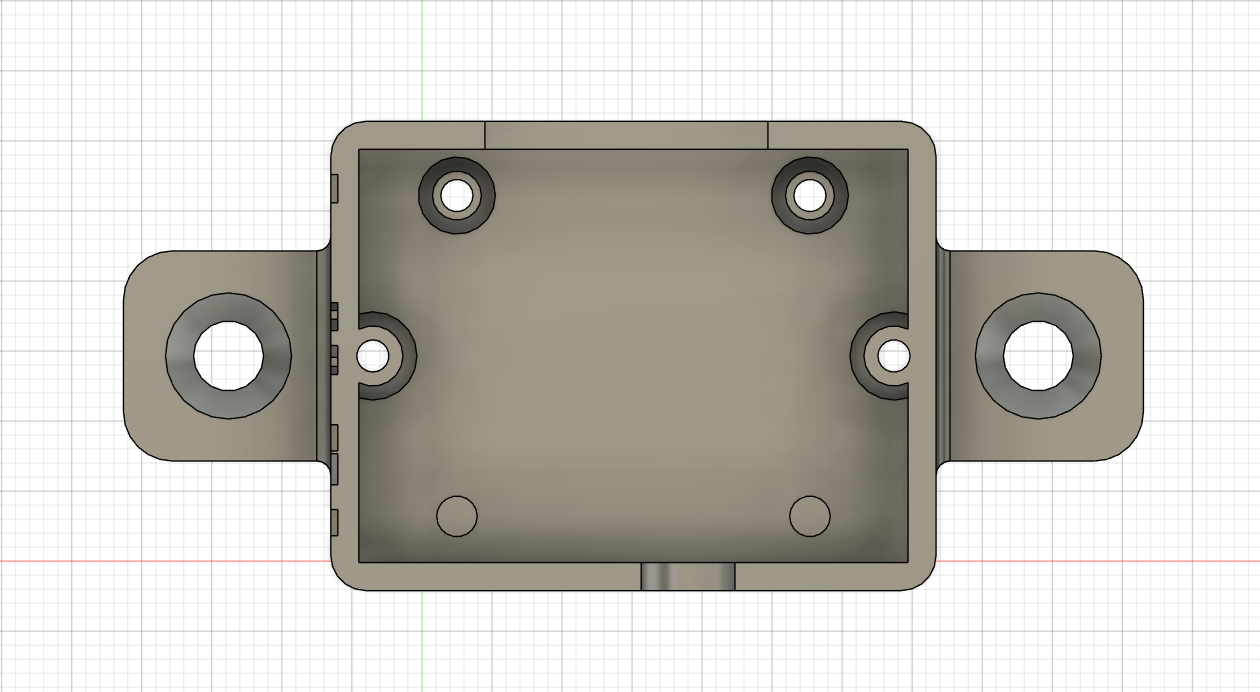

The shorter screws are to attach the board to the case and the longer ones to close the case.

The mounting points are designed for 3.5x16mm wood screws, so every similar screw with a conic head should fit, alternatively use some washers for flathead screws.



I used PLA, PETG might be fine, too. Can be printed without support.







[https://www.amazon.de/Drehzahlsteller-Drehzahlregler-Spannungsregler-Einstellbarer-Fahrerschalter/dp/B09KNKQ7GJ/ref=sr_1_7?crid=3MD9OEU2MAJCU&dib=eyJ2IjoiMSJ9.xr5oDk4HBJRW7aG7oyIZVQvbAO7K9azonz3MziwQUcKU38ruJaCSfv-ZyEfB1iPuaI6dIhf8oj0wY1gKn1ud3Fr97dSPMXzUMUoNe7jgSQnY9qD-itQdVIgExb2drETefVjt8RO0ykki07QmRSwctIxjXOF5NzU3fE4BJUTmlE3oVE86vRXq-B1vYorCB5xk36mx64wWFWA6UciF-O3YCpWPiRzjkoED7dnK96l7S2QkQgfieN9WnuiJtDhOwtLQ6Ms6J6_GI5SvggMpgiVfGykTIhBgyM0hrUPGF5UMzcM.JbqfSHhEeOVQu2Ex9OC1udH3GJm4hus6WNuG3C5zvjE&dib_tag=se&keywords=voltage+regulator+12v&qid=1720973577&sprefix=voltage+re%2Caps%2C98&sr=8-7](https://www.amazon.de/Drehzahlsteller-Drehzahlregler-Spannungsregler-Einstellbarer-Fahrerschalter/dp/B09KNKQ7GJ/ref=sr_1_7?crid=3MD9OEU2MAJCU&dib=eyJ2IjoiMSJ9.xr5oDk4HBJRW7aG7oyIZVQvbAO7K9azonz3MziwQUcKU38ruJaCSfv-ZyEfB1iPuaI6dIhf8oj0wY1gKn1ud3Fr97dSPMXzUMUoNe7jgSQnY9qD-itQdVIgExb2drETefVjt8RO0ykki07QmRSwctIxjXOF5NzU3fE4BJUTmlE3oVE86vRXq-B1vYorCB5xk36mx64wWFWA6UciF-O3YCpWPiRzjkoED7dnK96l7S2QkQgfieN9WnuiJtDhOwtLQ6Ms6J6_GI5SvggMpgiVfGykTIhBgyM0hrUPGF5UMzcM.JbqfSHhEeOVQu2Ex9OC1udH3GJm4hus6WNuG3C5zvjE&dib_tag=se&keywords=voltage+regulator+12v&qid=1720973577&sprefix=voltage+re%2Caps%2C98&sr=8-7)

Printables

Case PWM fan controller

Publicado em 14 de jul de 2024

13
Curtidas
82
Downloads
1
Impressões
Categoria Electronics
Tags
case fan controller 12v regulator
Licença Creative Commons — Attribution — Noncommercial
Arquivos (1)
Gehäuse Fan Controller v7.3mf 112.8 KB
