Modelo 3D Organizer Box por 3DPrintyi no Printables

Descrição

Please read the description!

When you decide to print my model please print the normal box first and look how it goes before you print the organizer holder!


This model is not compatible with gridfinity!

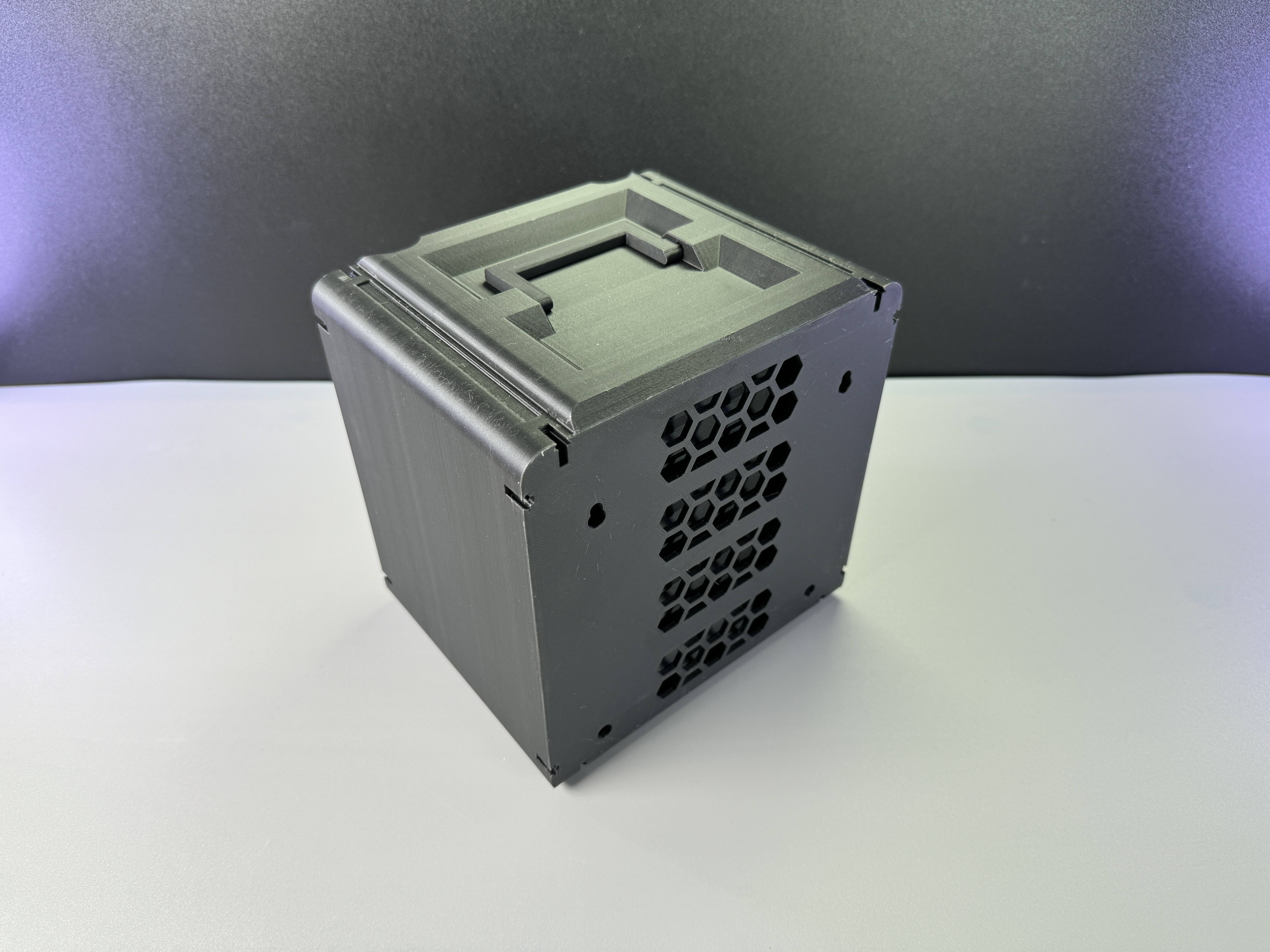

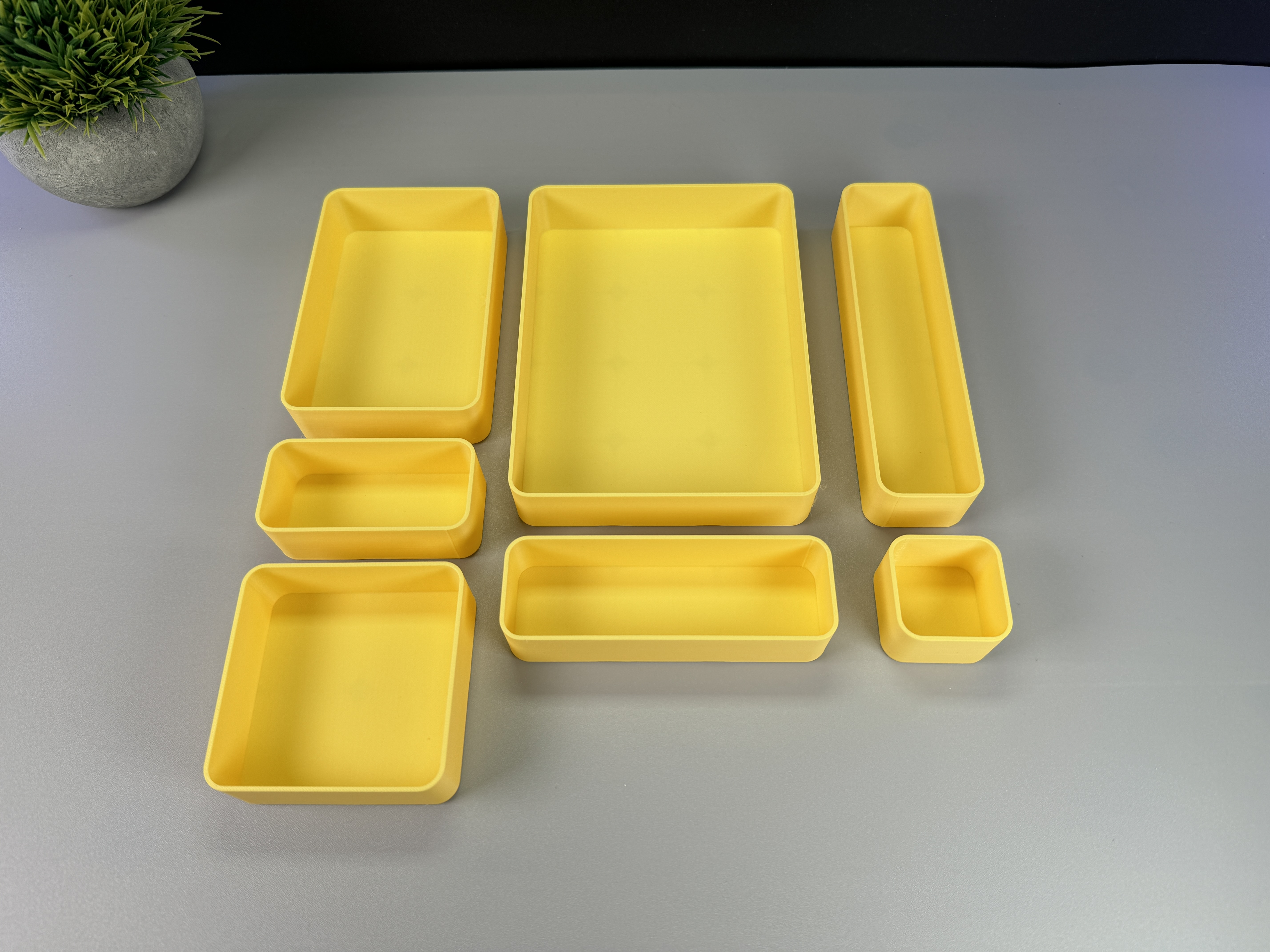

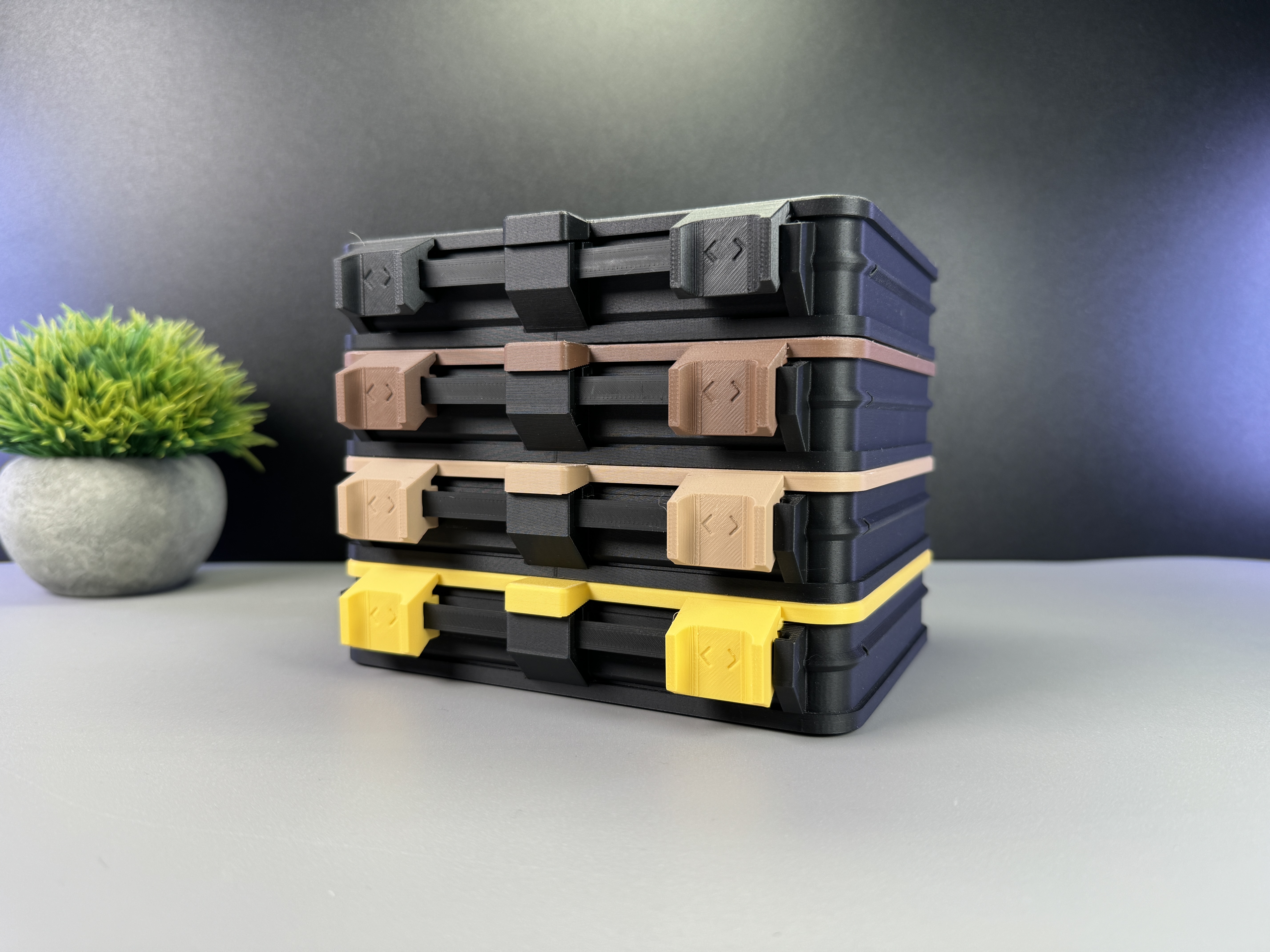

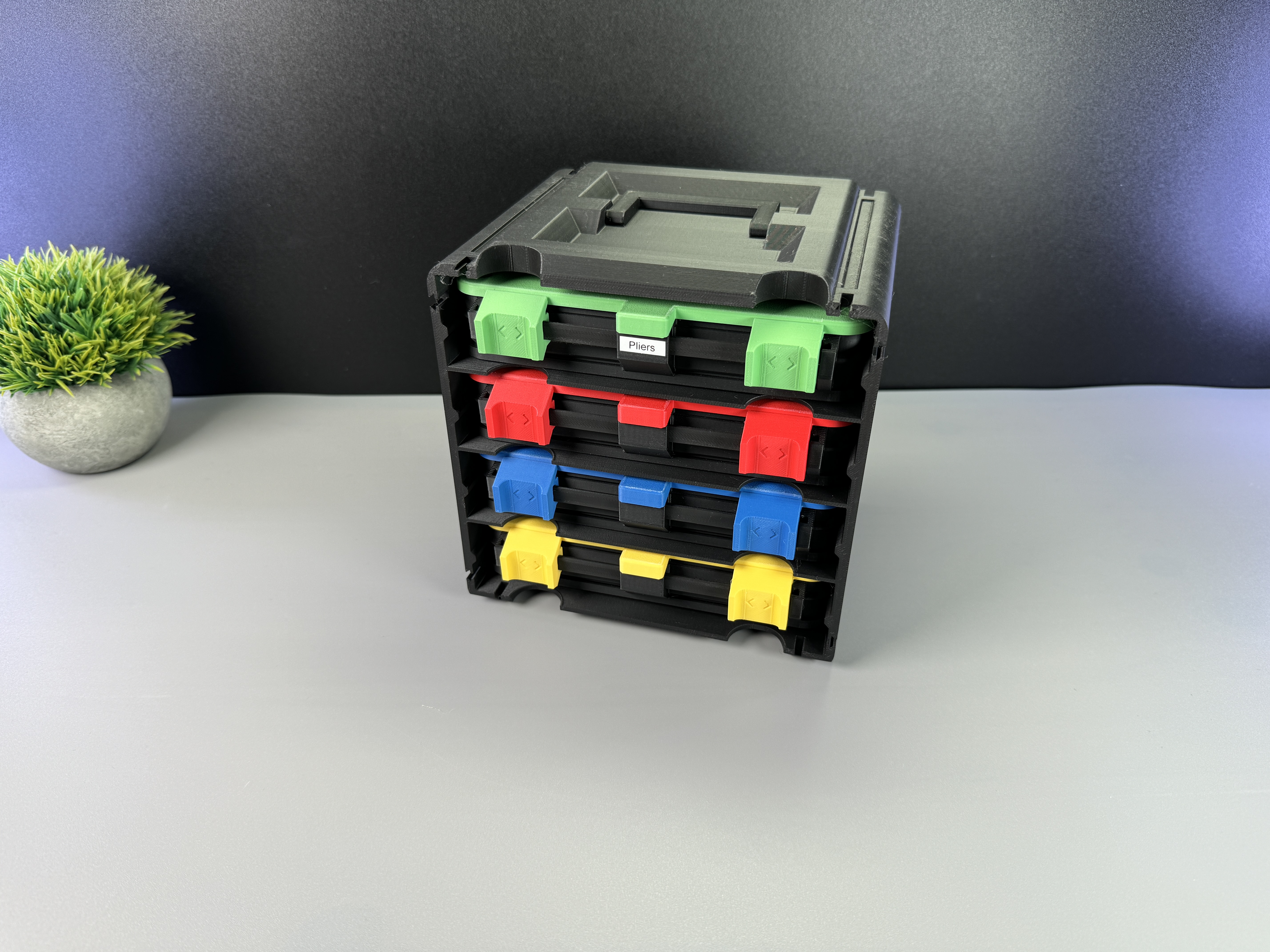

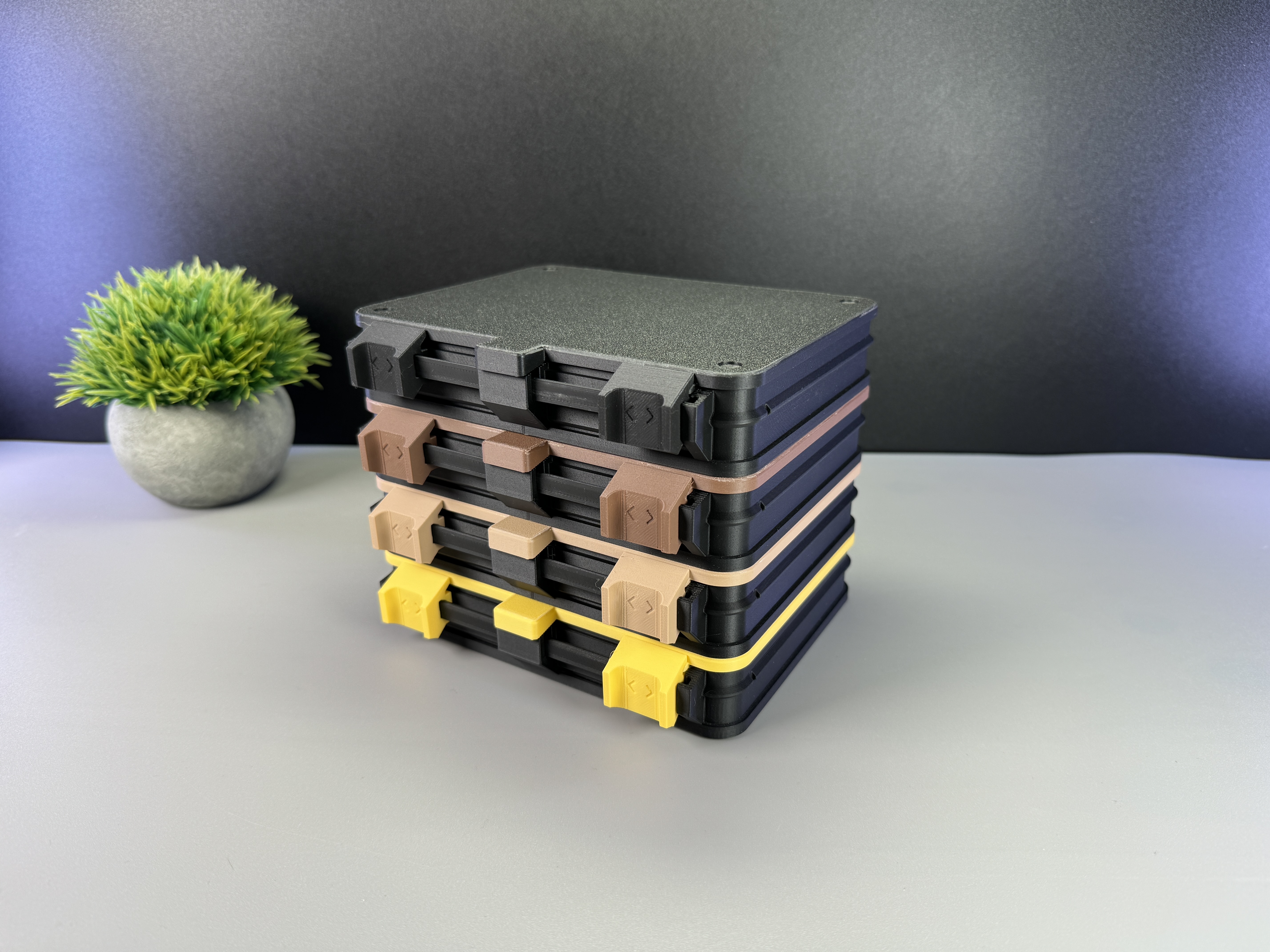

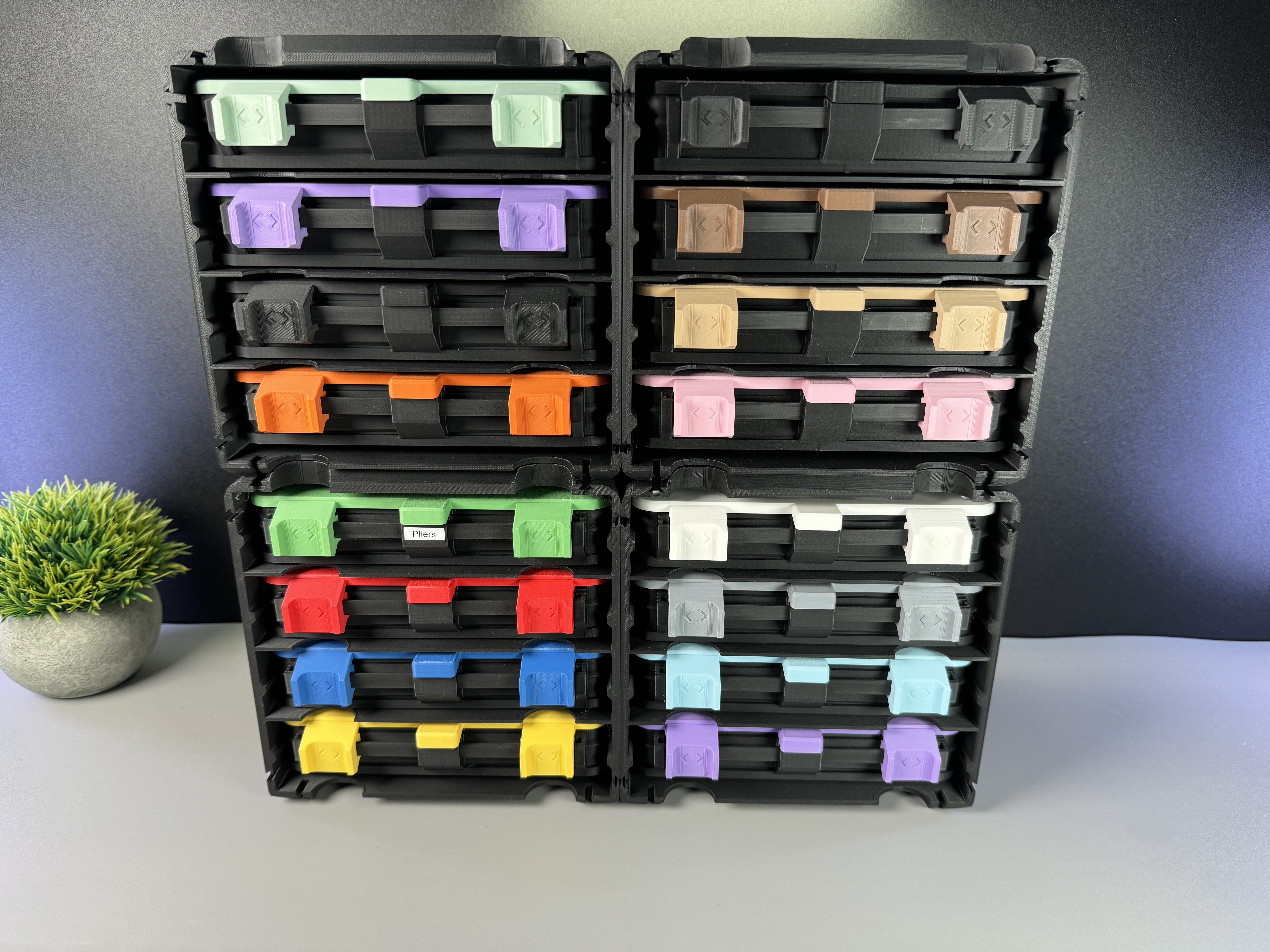

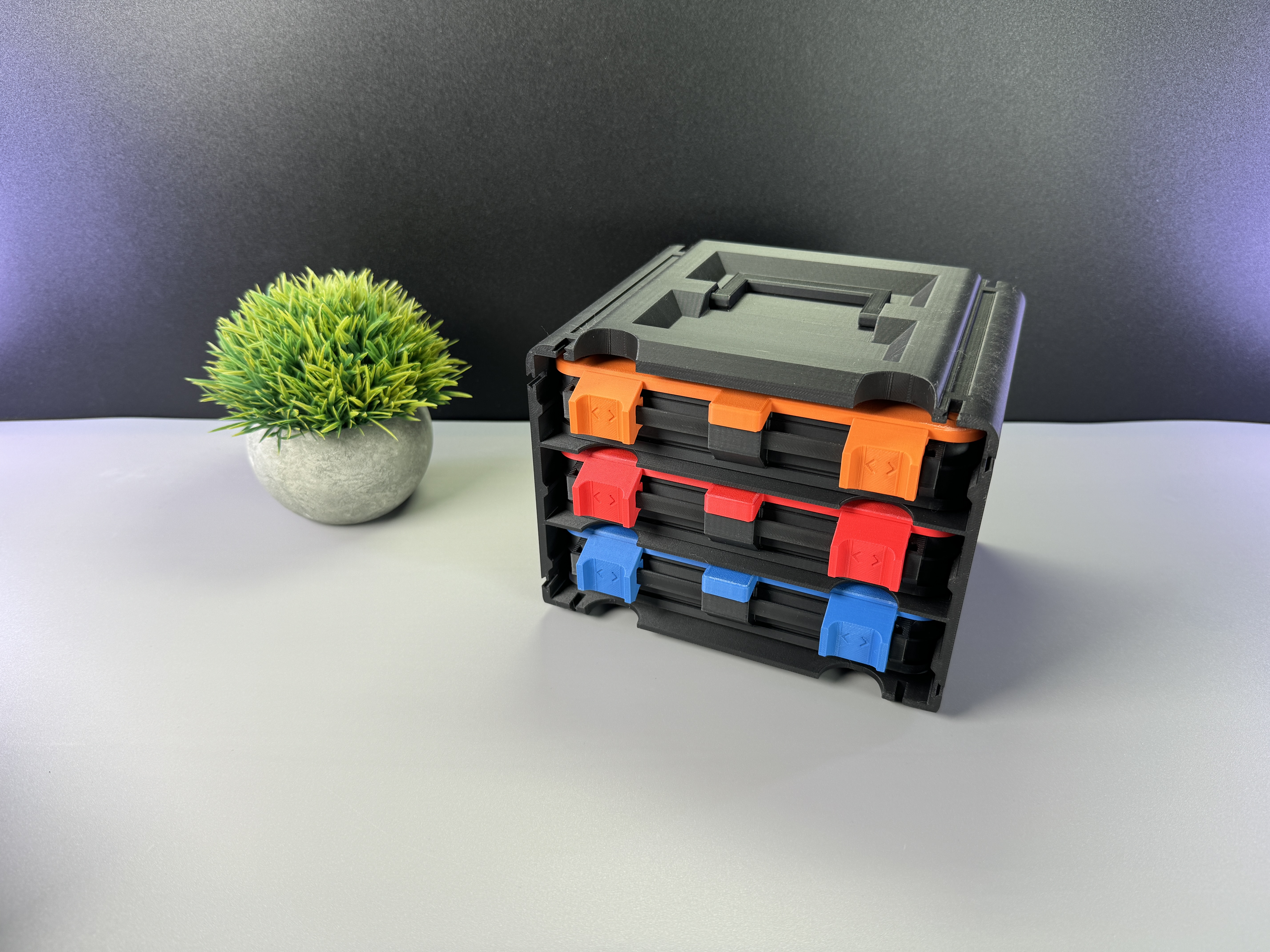

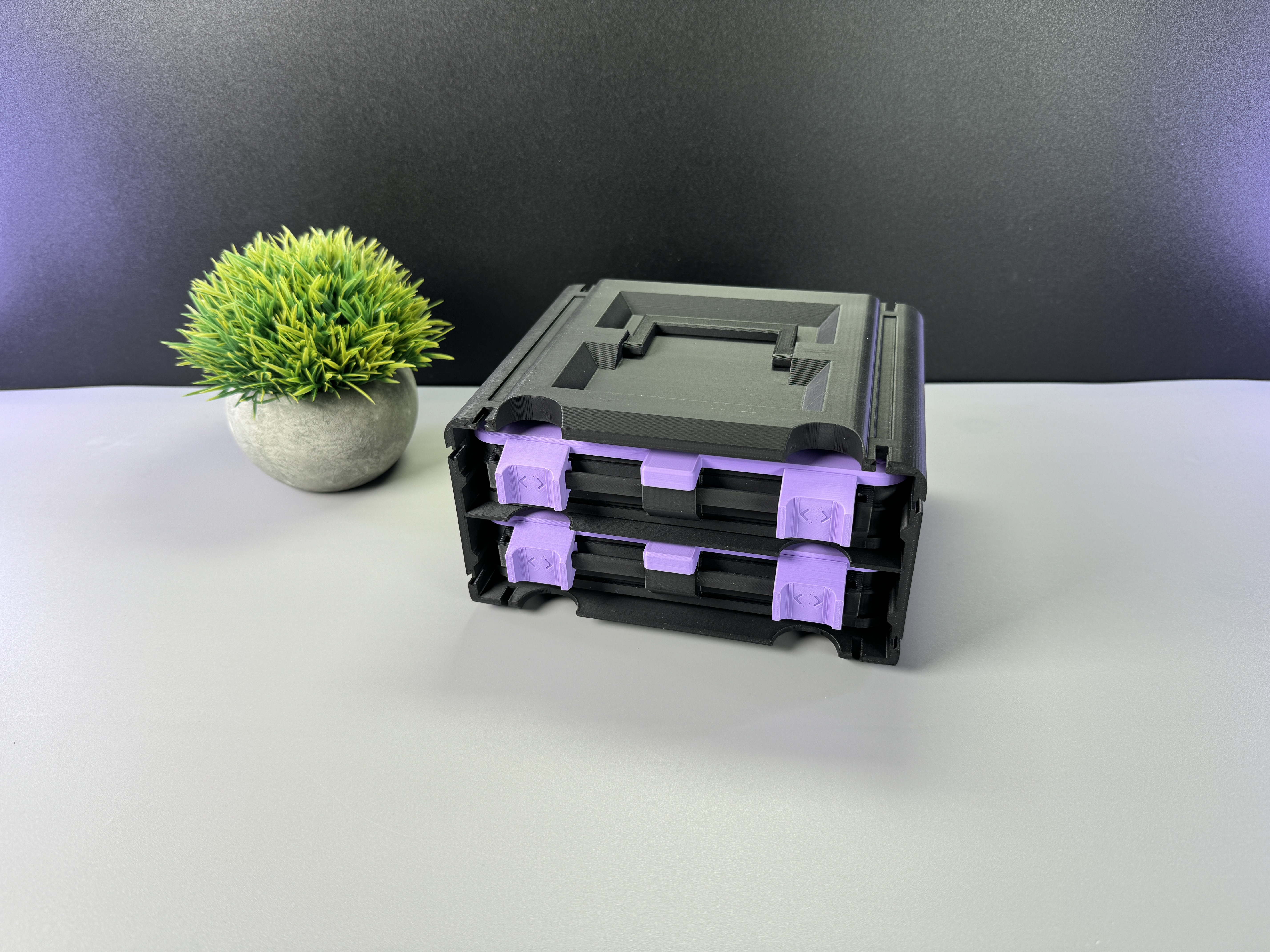

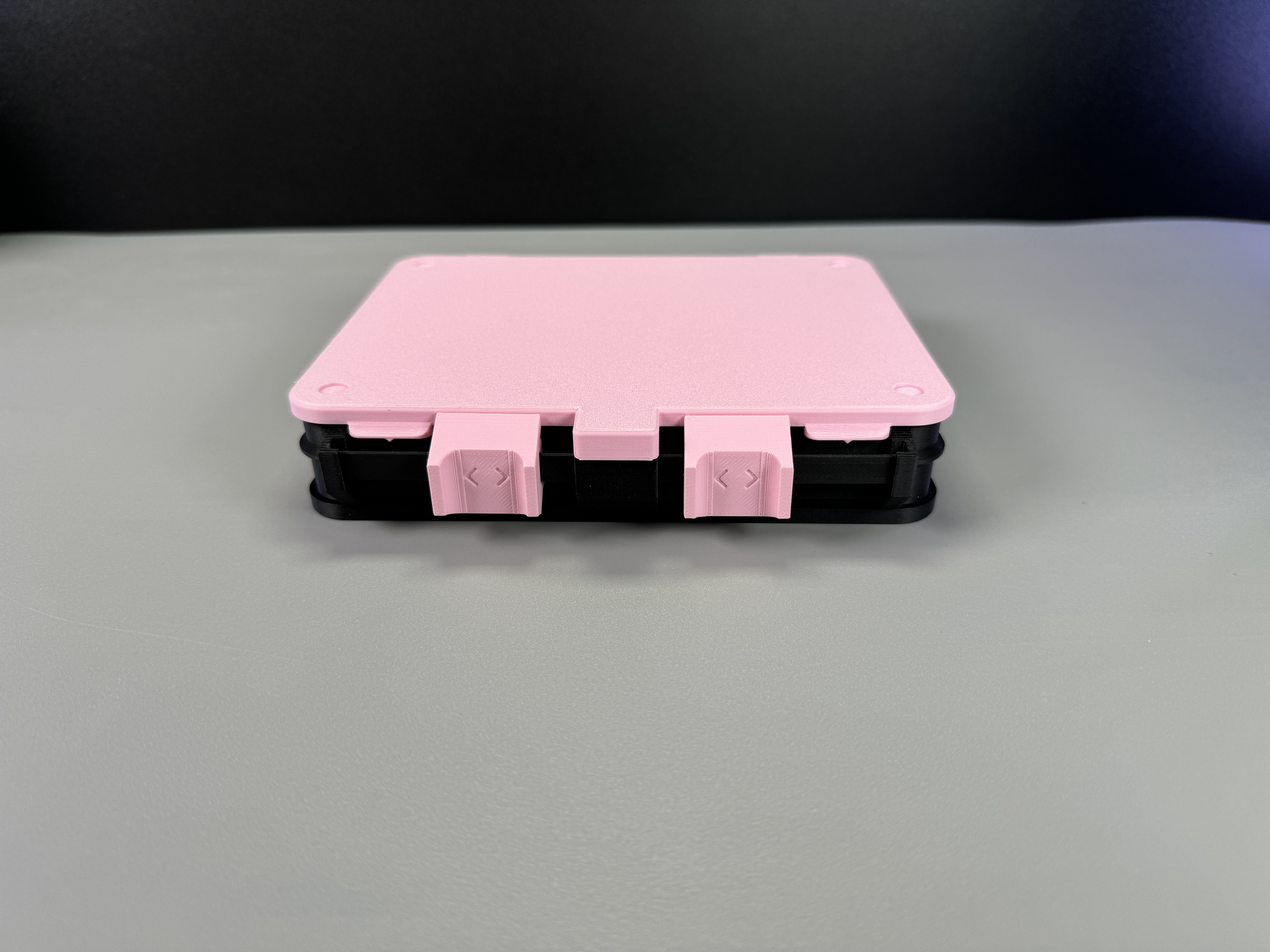

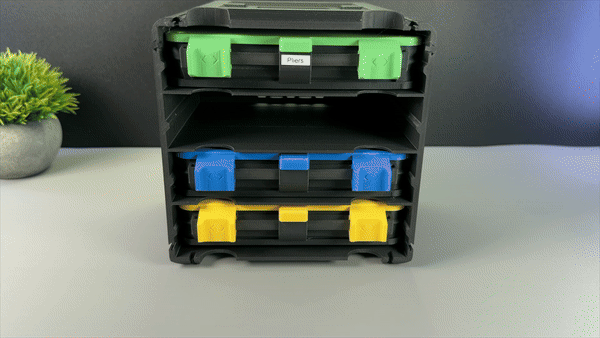

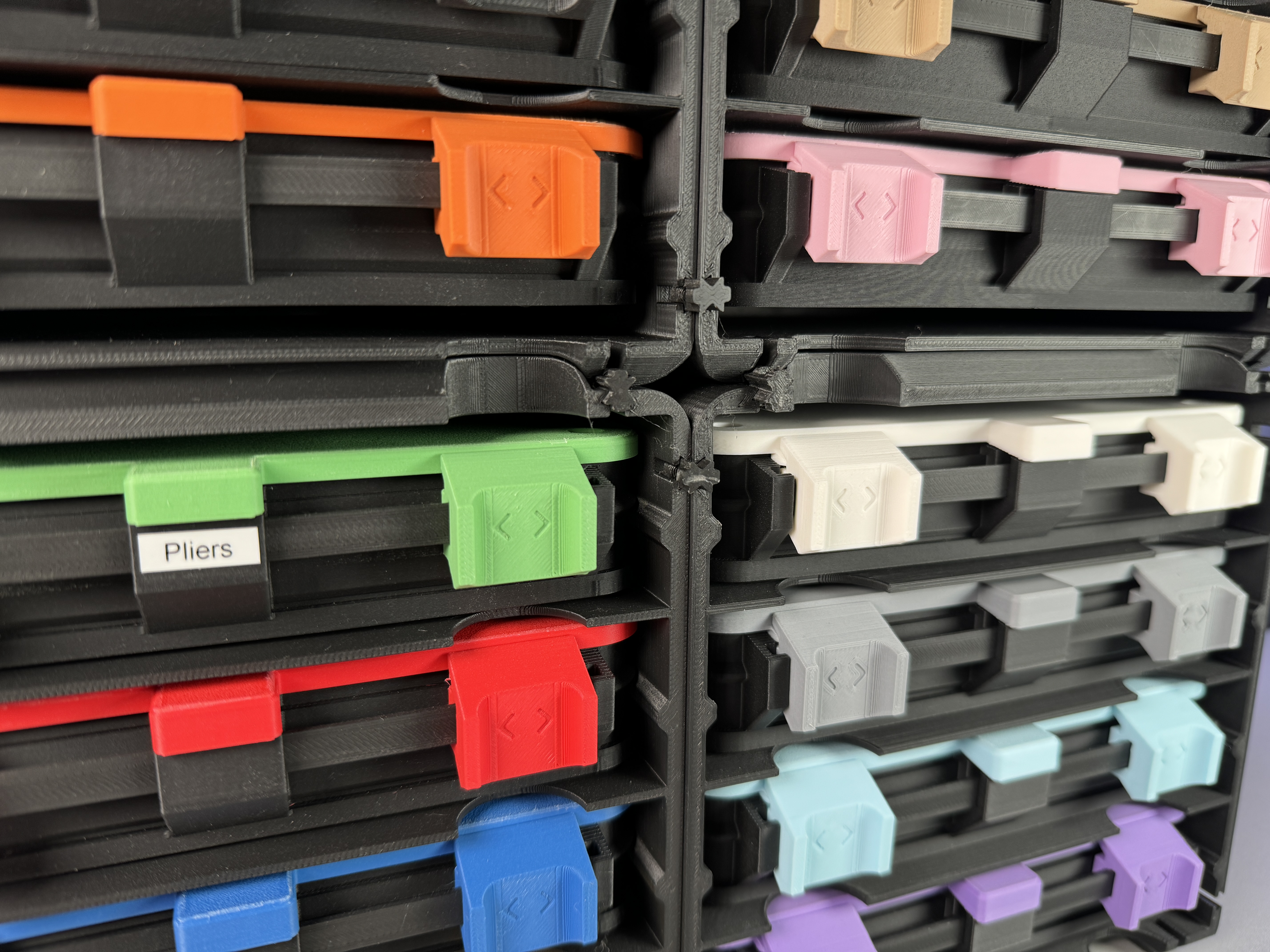

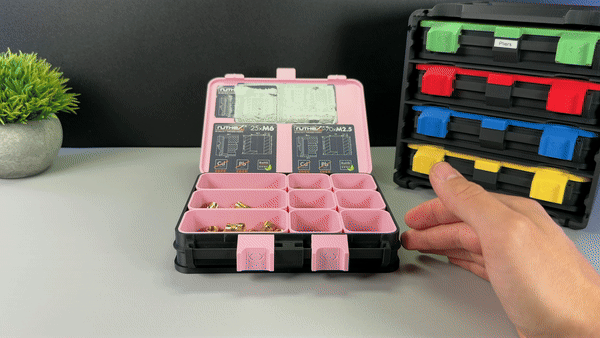

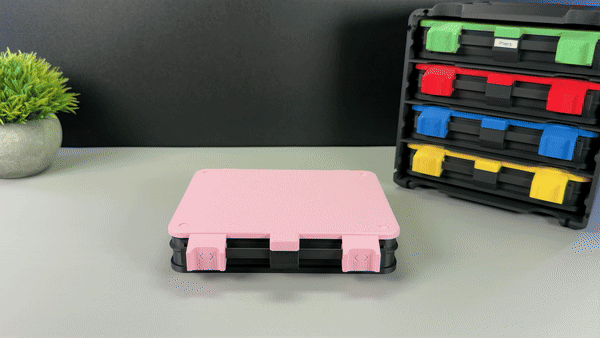

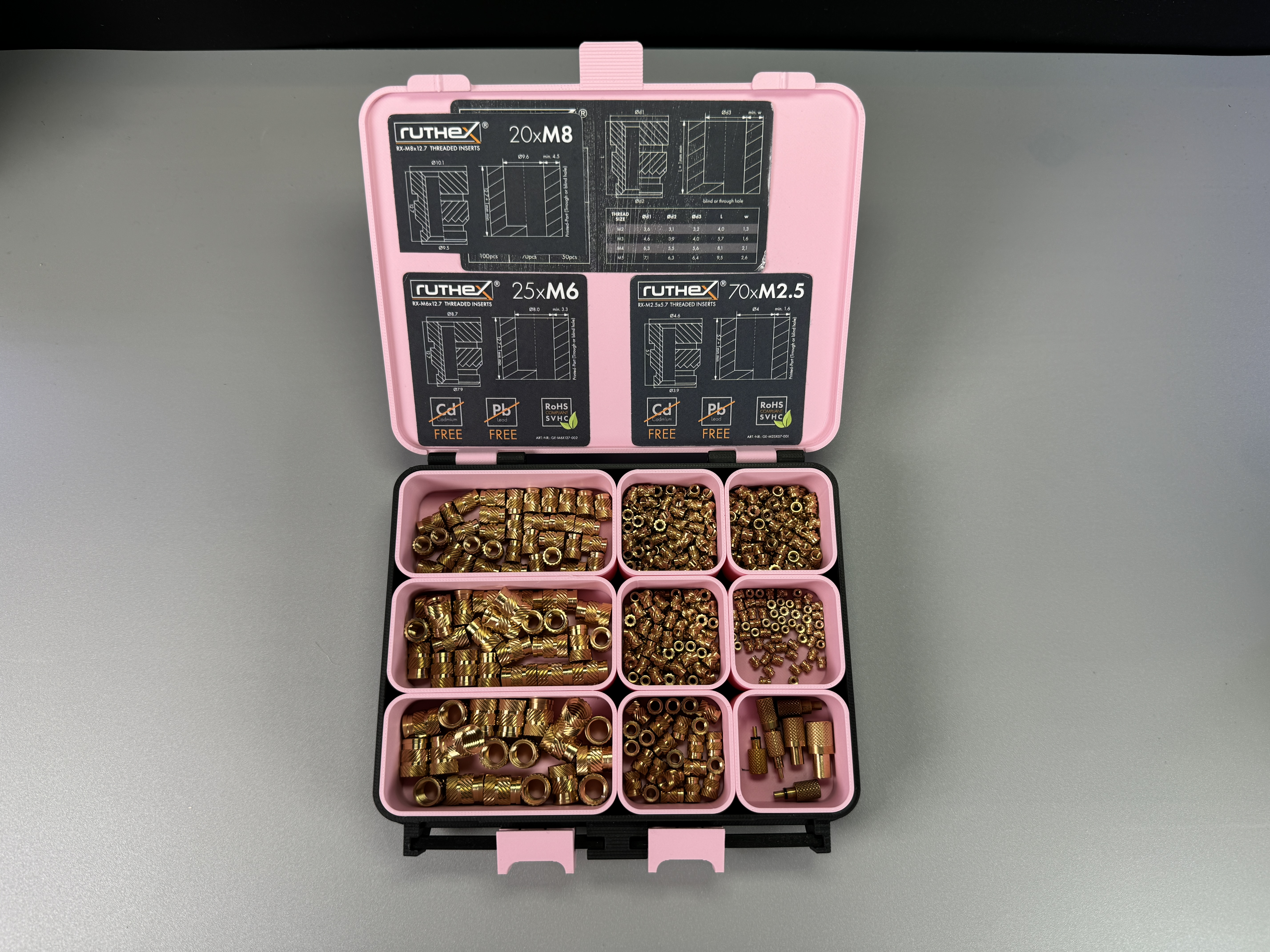

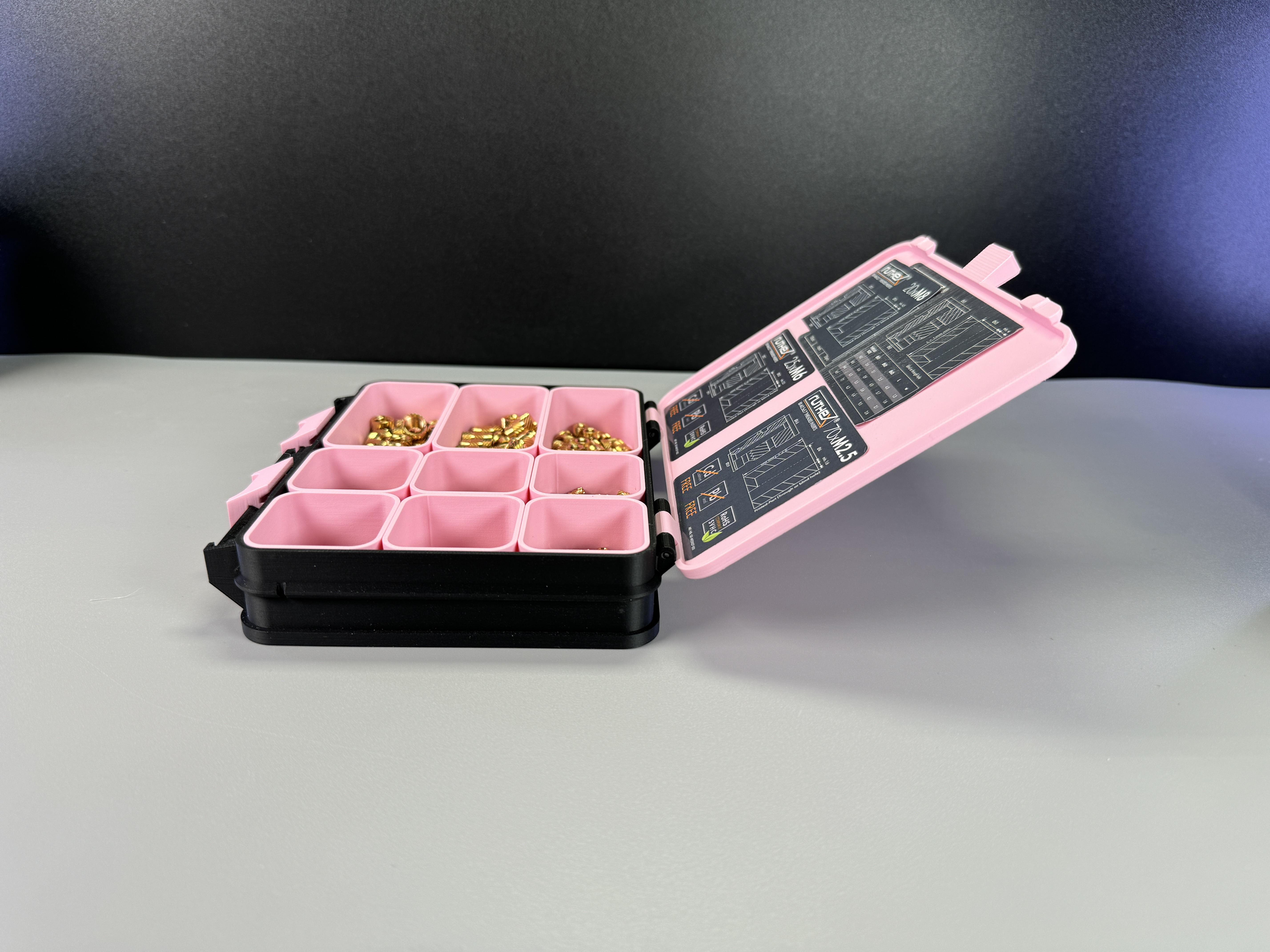

This organizer box has a lockable sliding mechanism. The boxes can be stored in a holder with up to 4 pieces. You can connect the holders with connectors in any direction and thus hold them all together. Inserts are available in all sizes, but more from me will be added from time to time!

The box should only be placed directly on the table and not mounted to the wall, as it is made of plastic.

Size of the Models:

Organizer Box XL: [https://www.printables.com/de/model/980912-organizer-box-xl](https://www.printables.com/de/model/980912-organizer-box-xl)

Organizer Box XL Double: [https://www.printables.com/model/1029683-organizer-box-xl-double](https://www.printables.com/model/1029683-organizer-box-xl-double)

Organizer Box Small Double: [https://www.printables.com/model/1099413-organizer-box-small-double](https://www.printables.com/model/1099413-organizer-box-small-double)

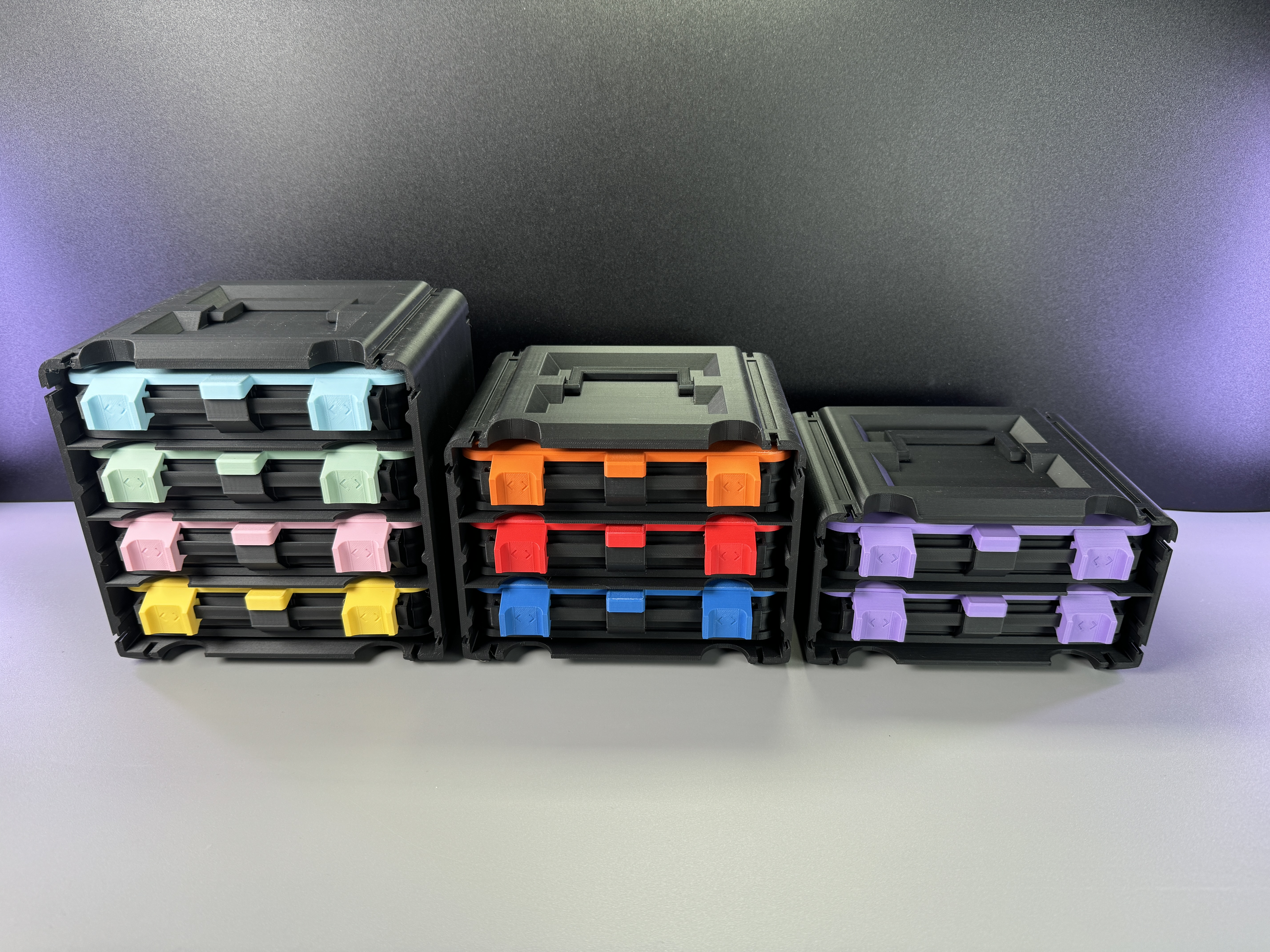

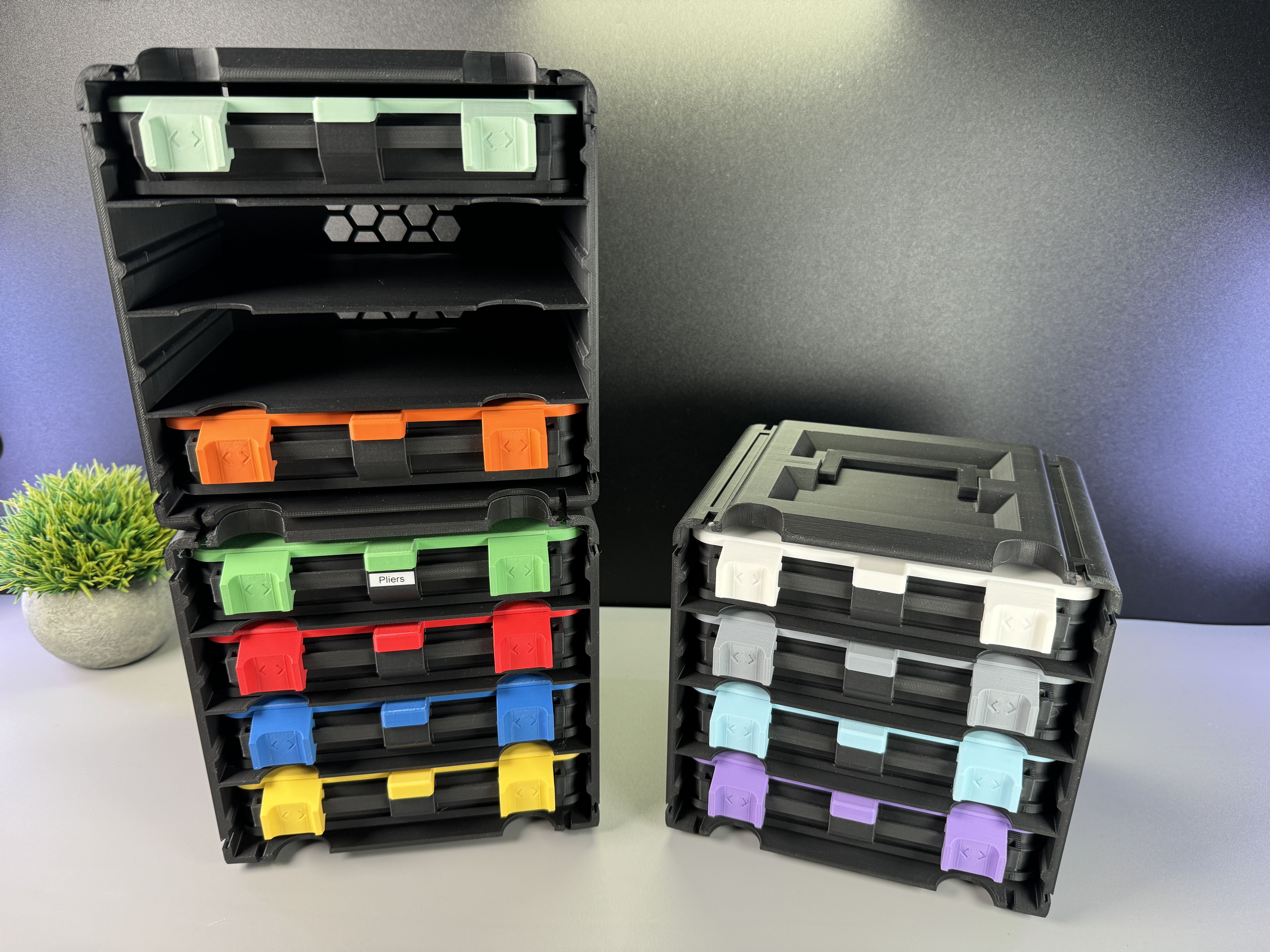

Important!!! You can only connect the box holders with the same sizes in the horizontal length. For the vertical height it doesn't matter which sizes you want to combine. (see picture below)

Here are my tipps for printing! Please use these values, as I have adapted my models to these and only so I can guarantee that everything works perfectly!!!

Tipps and values:

  • Filament: PLA recommended (PETG also works)

  • Quality (Layer Height): 0,2mm

  • Wall Loops: 3

  • Infill: 20%

  • Infill pattern: Doesn't matter (I used Rectilinear)

  • Supports: No! (Do not use supports for all of my Parts!)

  • Wall generator: For all Inserts Arachne!!! For all other parts Classic!!!

Print the parts as they are already oriented

Please make sure that the parts come not loose while printing them. When this happens it could be that the function of my sliding mechanism does not work perfectly!

It's just a recommendation, if the parts should hold well on your plate, you don't necessarily have to use a brim.

You can add a brim to the:

  • Lid

  • Bottom

  • Organizer Holder

  • Slide Lock Left/Right

I have made an instruction how to assemble my organizer box. You can find the instructions  in the download folder!

Changes and added models:

  • 26.08.2024 = Added folder (Other Designs) + with 5 new models inside / Added models: BottomWithoutHoles_V00, LidWithoutHoles_V00, Rail_reduced_0,2mm_2x_V01, SlideLockLeft_With_Label_Indent(Size16x16mm)_V00, SlideLockRight_With_Label_Indent(Size16x16mm)_V00

  • 06.10.2024 = Remade all Inserts (V01 → V02) They are now all stackable! Also organized them a little bit (InsertsXL, InsertsXLHalf, InsertsXLDouble) (InsertsSmall, InsertsSmallHalf, InsertsSmallDouble)

  • 09.11.2024 = Added BoxInsert_1x1_Type1_V01

Problems that have occurred

How to solve them

Rails don't fit in the SlideLockLeft/Right

Scale the rail down on Y and Z scale by 0.4mm or try out which value you need to adjust!

Added Rail_reduced_0,2mm_2x_V01 (Folder:OtherDesigns) this should help too (made the rail smaller) (print it as oriented!)

filament won't fit through the hinges

drill out the hinges if you can (be very careful that you don't take to much away!) because the filament must sit a little tight in the hole, otherwise the hinge will not work correct and the filament can fall out of the hinge!

Printables

Organizer Box

3DPrintyi 3DPrintyi (abre em nova aba)

Publicado em 18 de dez de 2025

1,643
Curtidas
4,730
Downloads
51
Impressões
Categoria Organizers
Tags
box organizer case storage storagebox boxes organizercase organizerbox compartmentbox
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (77)
Lid_V00 (Meshed).stl 779.4 KB
Rail_2x_V00 (Meshed).stl 1.8 KB
Feet_4x_V00 (Meshed).stl 36 KB
Bottom_V01 (Meshed).stl 3.2 MB
SlideLockLeft_V01 (Meshed).stl 44.3 KB
SlideLockRight_V01 (Meshed).stl 44.3 KB
2_OrganizerHolder_V00 (Meshed).stl 665.2 KB
3_OrganizerHolder_V00 (Meshed).stl 756.2 KB
4_OrganizerHolder_V00 (Meshed).stl 848 KB
Handle_BoxOrganizerHolder_V00 (Meshed).stl 100.5 KB
TPU_Feet_BoxOrganizerHolder_2x_V00 (Meshed).stl 684 B
ConnectingPiece_V00 (Meshed).stl 5 KB
SlideLockLeft_With_Label_Indent(Size16x16mm)_V00.stl 68.5 KB
SlideLockRight_With_Label_Indent(Size16x16mm)_V00.stl 68.5 KB
Rail_reduced_0,2mm_2x_V01.stl 2.6 KB
LidWithoutHoles_V00.stl 599.5 KB
BottomWithoutHoles_V00.stl 3.1 MB
BoxInsert_1x1_Type0_V01.stl 376.5 KB
BoxInsert_1x1_Type1_V01.stl 377.3 KB
BoxInsert_1x3_Type1_V01.stl 854.6 KB
BoxInsert_1x2_Type1_V01.stl 626 KB
BoxInsert_1x4_Type0_V01.stl 1.1 MB
BoxInsert_1x2_Type0_V01.stl 622.8 KB
BoxInsert_1x3_Type0_V01.stl 849.1 KB
BoxInsert_2x2_Type1_V01.stl 1.1 MB
BoxInsert_1x3_Type2_V01.stl 851.8 KB
BoxInsert_1x4_Type1_V01.stl 1.1 MB
BoxInsert_1x4_Type3_V01.stl 1.1 MB
BoxInsert_2x4_Type0_V01.stl 1.9 MB
BoxInsert_2x2_Type0_V01.stl 1.1 MB
BoxInsert_2x2_Type2_V01.stl 1.1 MB
BoxInsert_2x2_Type3_V01.stl 1.1 MB
BoxInsert_1x4_Type2_V01.stl 1.1 MB
BoxInsert_3x2_Type3_V01.stl 1.5 MB
BoxInsert_3x2_Type2_V01.stl 1.5 MB
BoxInsert_3x2_Type0_V01.stl 1.5 MB
BoxInsert_1x4_Type4_V01.stl 1.1 MB
BoxInsert_2x4_Type5_V01.stl 1.9 MB
BoxInsert_4x3_Type1_V01.stl 2.8 MB
BoxInsert_3x2_Type1_V01.stl 1.5 MB
BoxInsert_2x4_Type2_V01.stl 2 MB
BoxInsert_2x4_Type3_V01.stl 1.9 MB
BoxInsert_2x4_Type4_V01.stl 1.9 MB
BoxInsert_2x4_Type1_V01.stl 1.9 MB
BoxInsert_4x3_Type0_V01.stl 2.8 MB
BoxInsert_2x4_Type6_V01.stl 1.9 MB
BoxInsert_1x1_Type0_Half_V01.stl 376.5 KB
BoxInsert_1x3_Type1_Half_V01.stl 854.5 KB
BoxInsert_1x2_Type2_Half_V01.stl 622.8 KB
BoxInsert_1x2_Type1_Half_V01.stl 625.6 KB
BoxInsert_1x4_Type2_Half_V01.stl 1.1 MB
BoxInsert_2x4_Type0_Half_V01.stl 1.9 MB
BoxInsert_2x2_Type2_Half_V01.stl 1.1 MB
BoxInsert_2x2_Type1_Half_V01.stl 1.1 MB
BoxInsert_3x2_Type2_Half_V01.stl 1.5 MB
BoxInsert_1x4_Type1_Half_V01.stl 1.1 MB
BoxInsert_1x3_Type2_Half_V01.stl 848.9 KB
BoxInsert_2x4_Type2_Half_V01.stl 2 MB
BoxInsert_4x3_Type2_Half_V01.stl 2.8 MB
BoxInsert_4x3_Type1_Half_V01.stl 2.8 MB
BoxInsert_3x2_Type1_Half_V01.stl 1.5 MB
Bottom+Rail_V01 (Meshed).3mf 709.7 KB
Lid+SlideLockLeftRight_V01 (Meshed).3mf 224.4 KB
TPUFeetOrganizerBox+Feet_V00 (Meshed).3mf 67.3 KB
2_OrganizerHolder_V00 (Meshed).3mf 163.1 KB
3_OrganizerHolder_V00 (Meshed).3mf 176.9 KB
4_OrganizerHolder_V00 (Meshed).3mf 191.2 KB
Handle+ConnectingPiece_V00 (Meshed).3mf 60.3 KB
LidWithoutHoles+SlideLockLeftRight_With_Label_Indent(Size16x16mm)_V01.3mf 201 KB
BottomWithoutHoles+RailReduced_0,2mm_V01.3mf 680.1 KB
InsertsSmallHalf_V02.3mf 4.2 MB
InsertsSmall_V02.3mf 8.1 MB
Box_V01 (Meshed).3mf 977 KB
BoxHolder_V00 (Meshed).3mf 609.6 KB
OtherDesigns_V00.3mf 883.3 KB
InsertsSmallHalf_V02.3mf 4.2 MB
InsertsSmall_V02.3mf 8.3 MB
