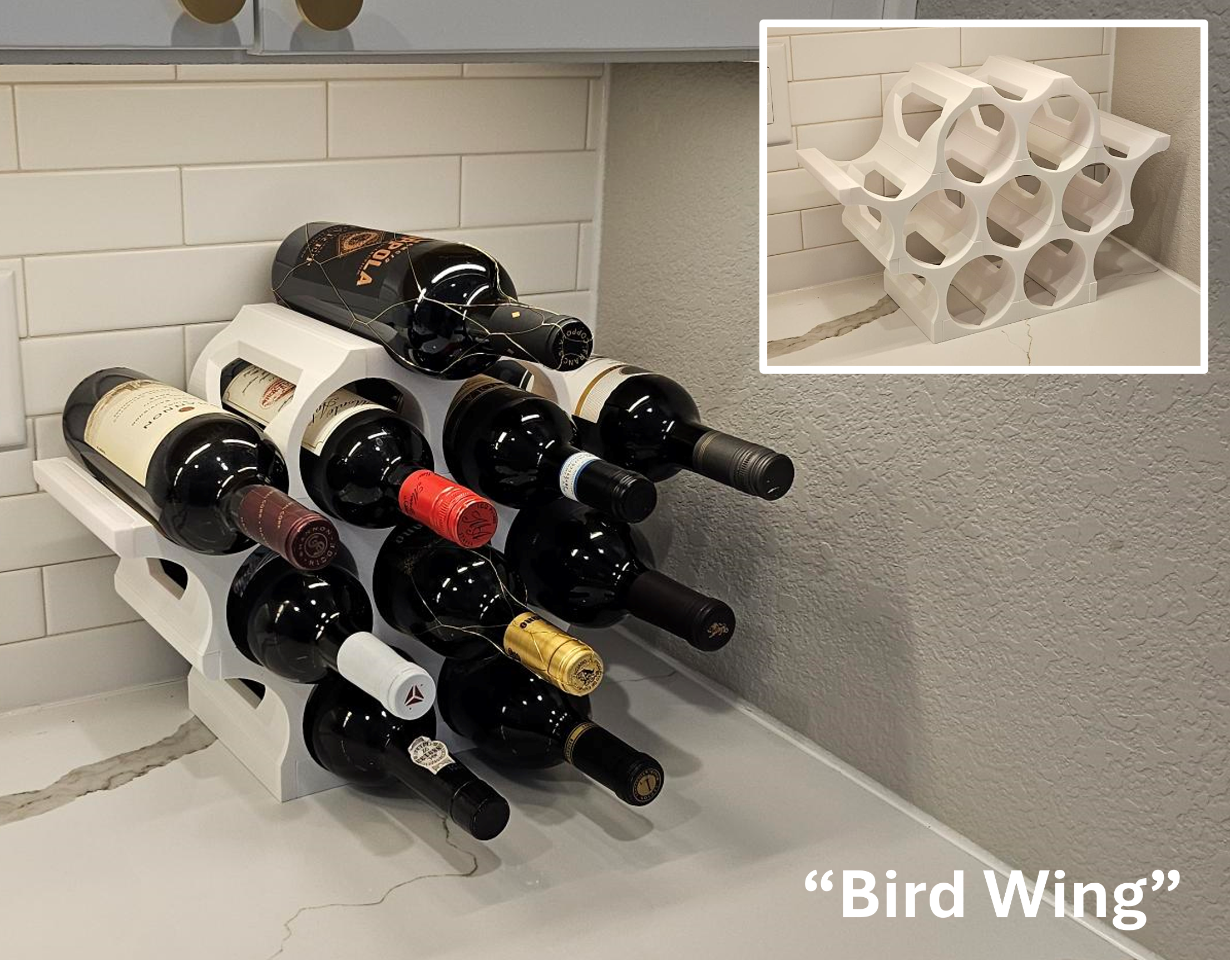

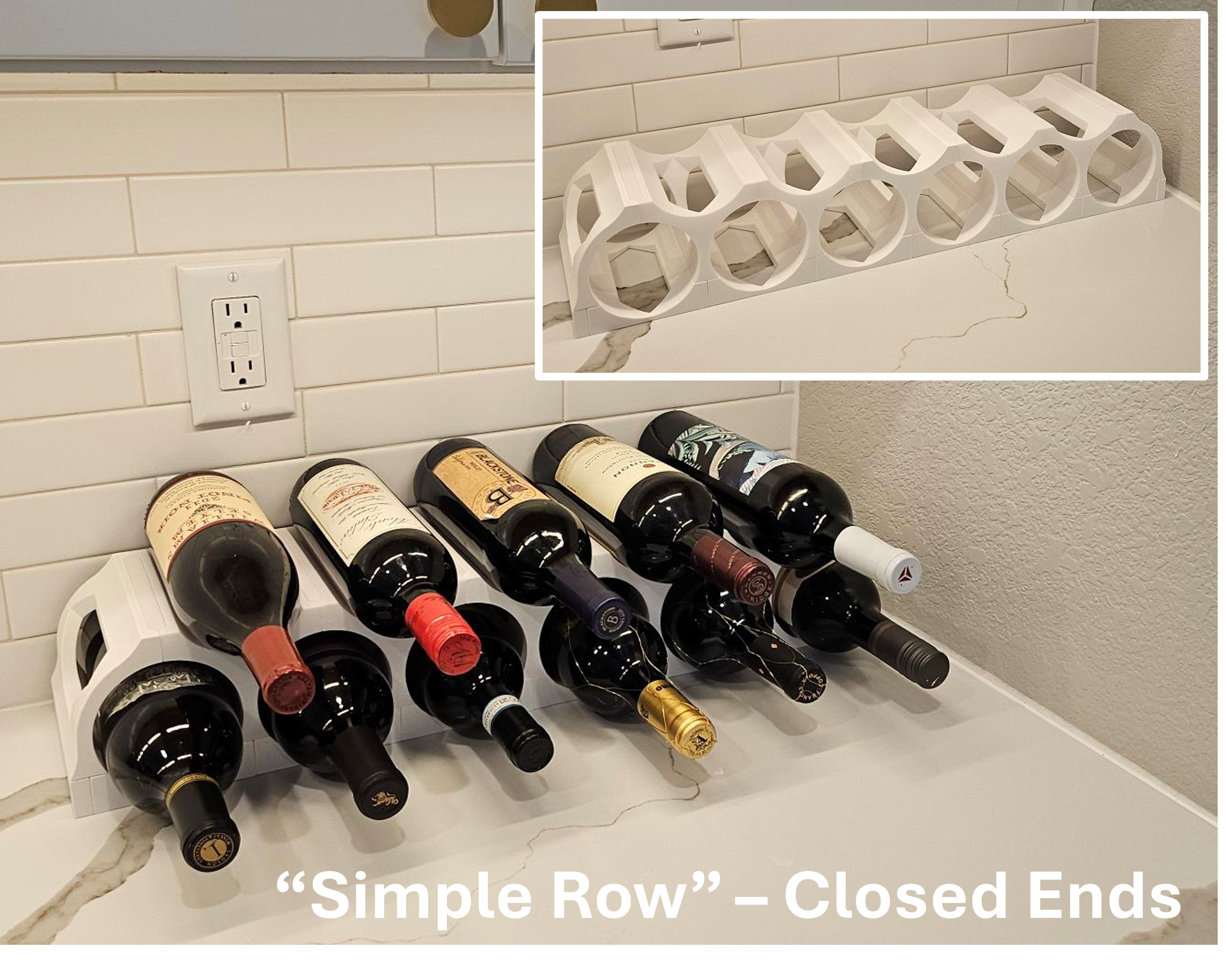

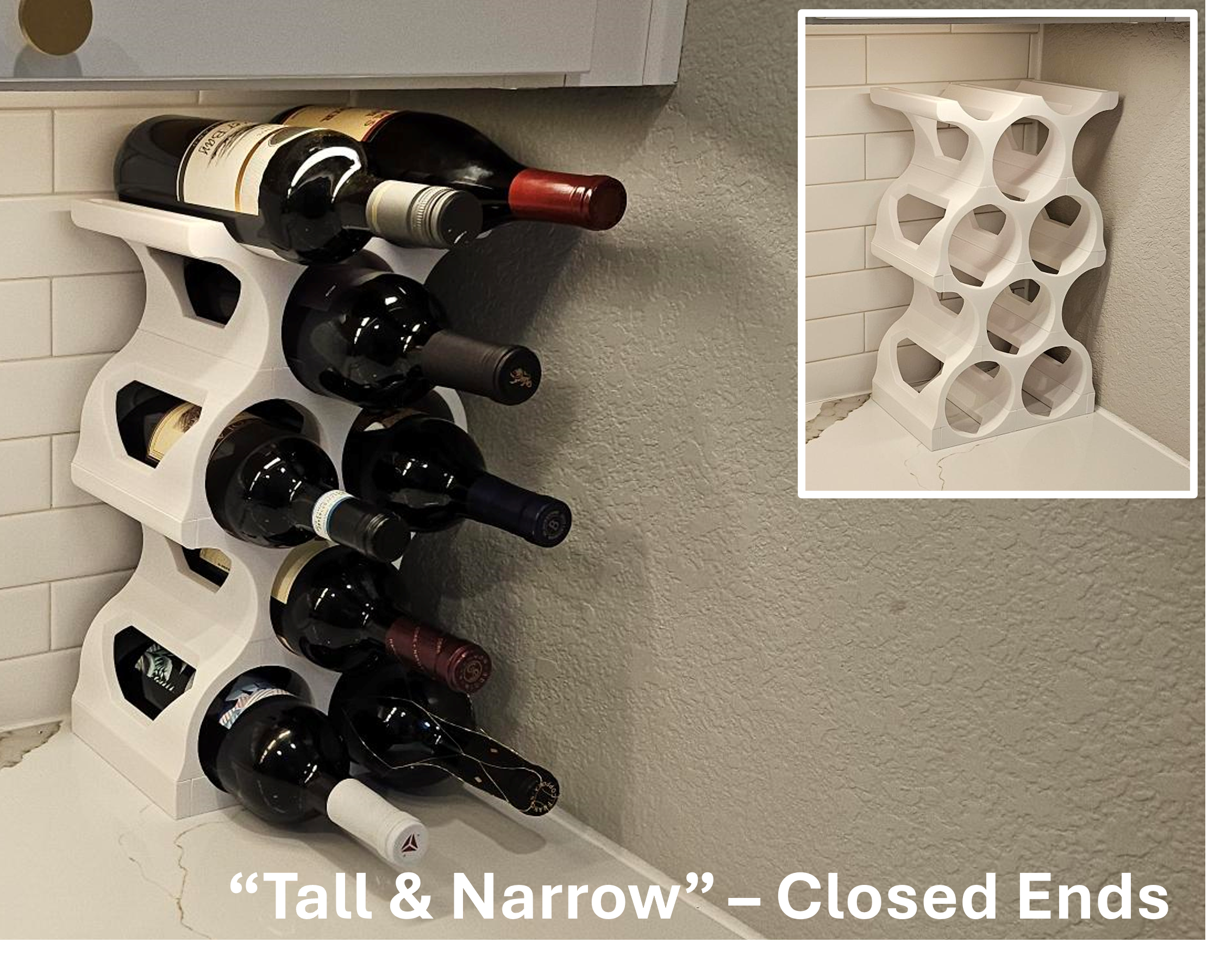

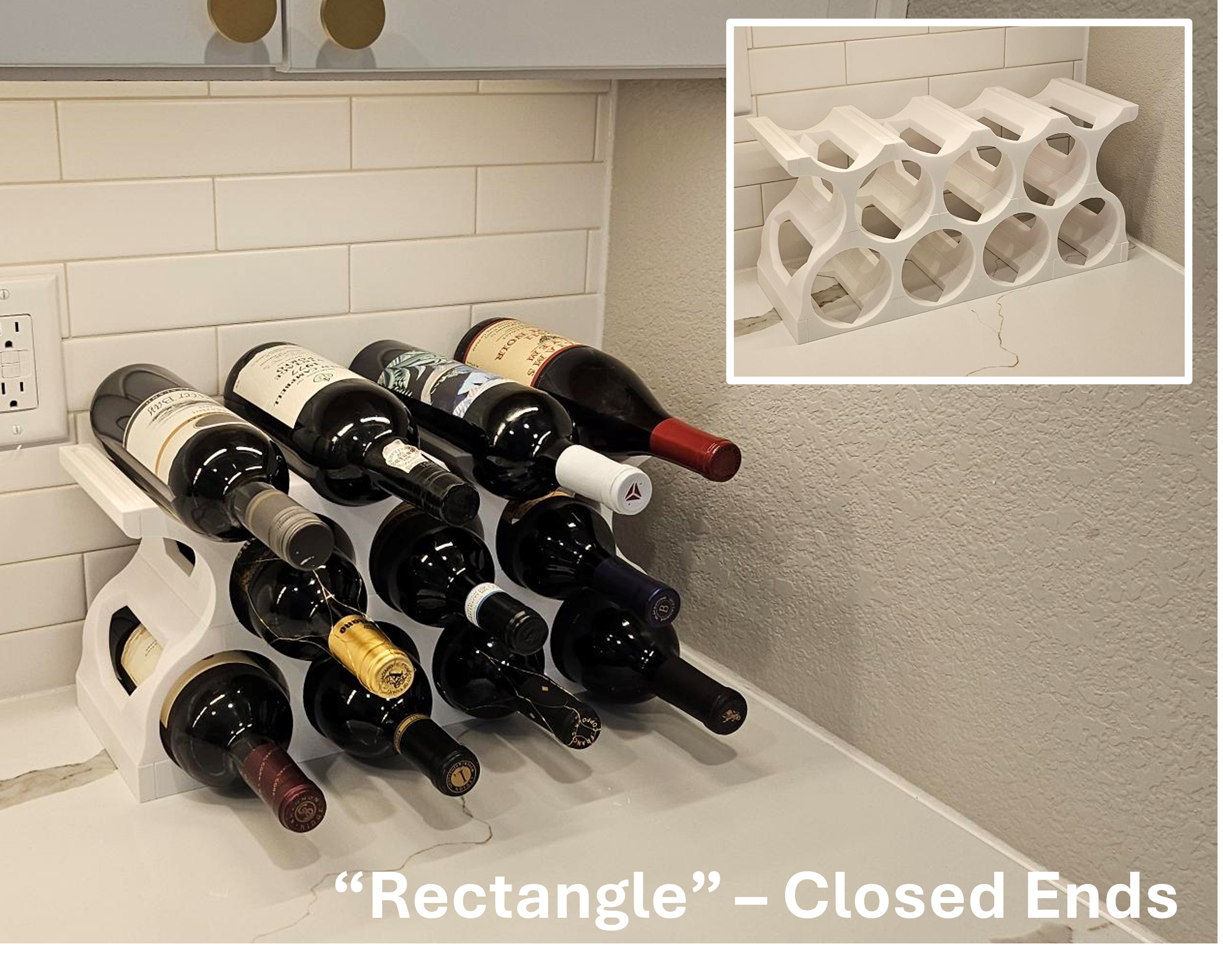

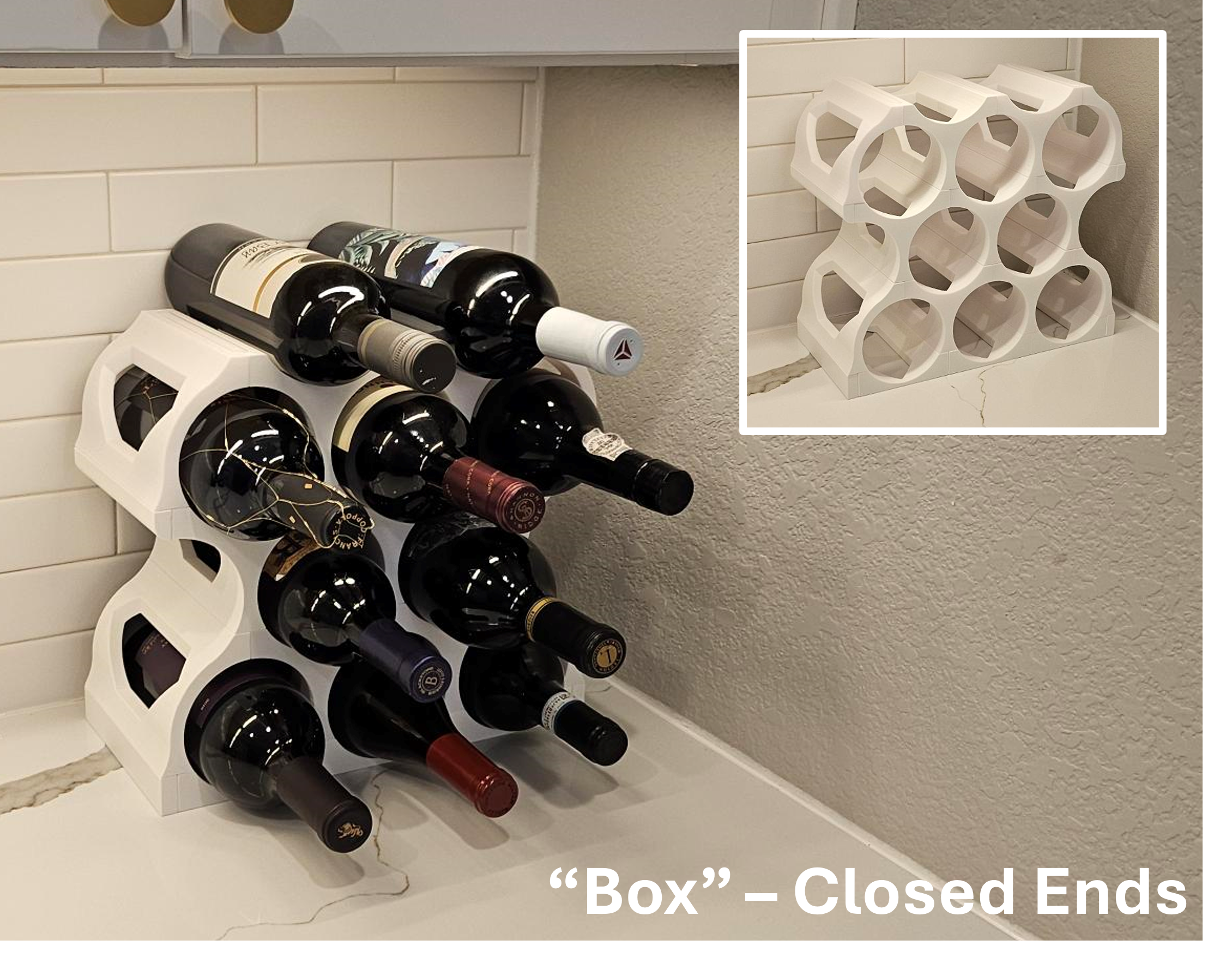

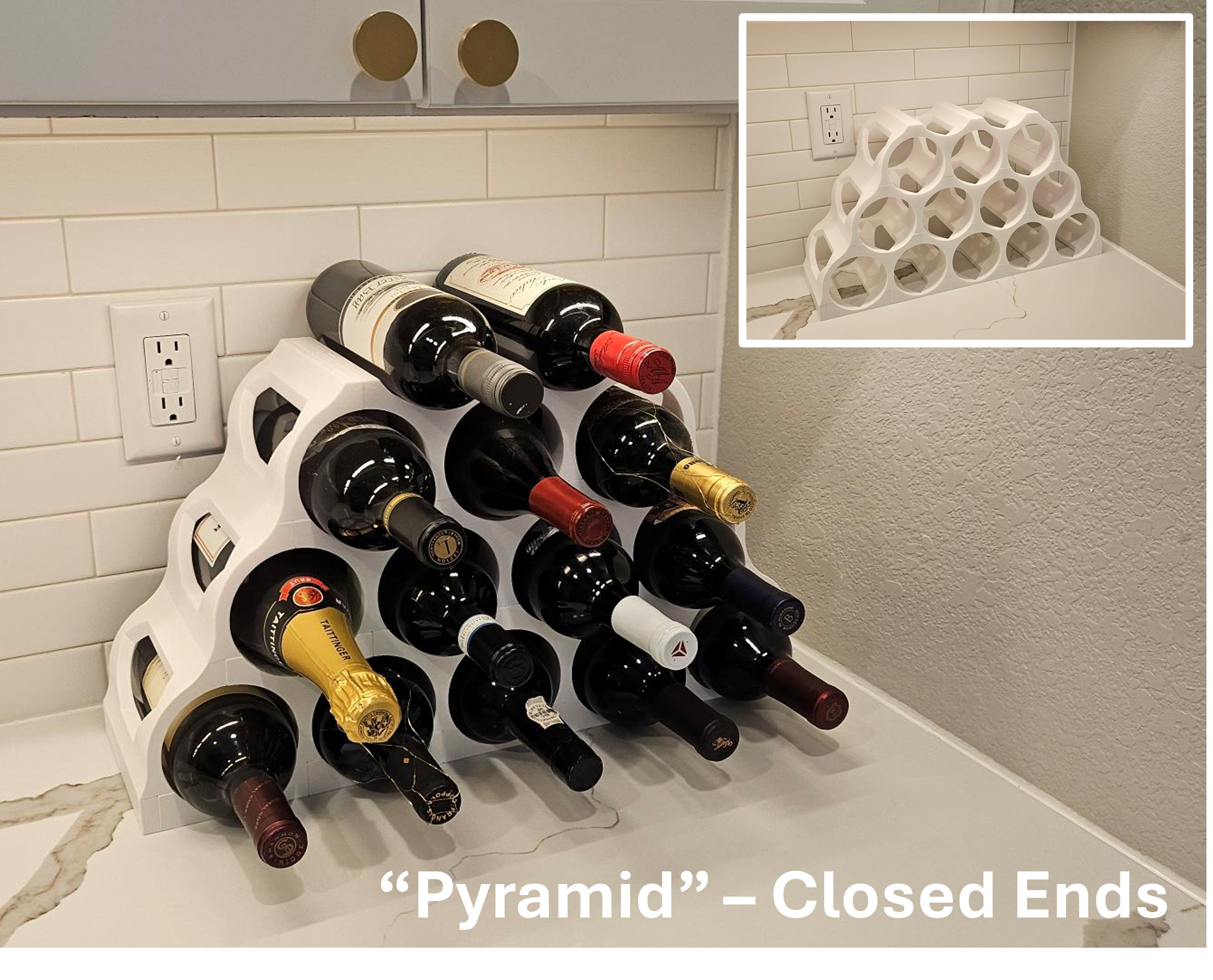

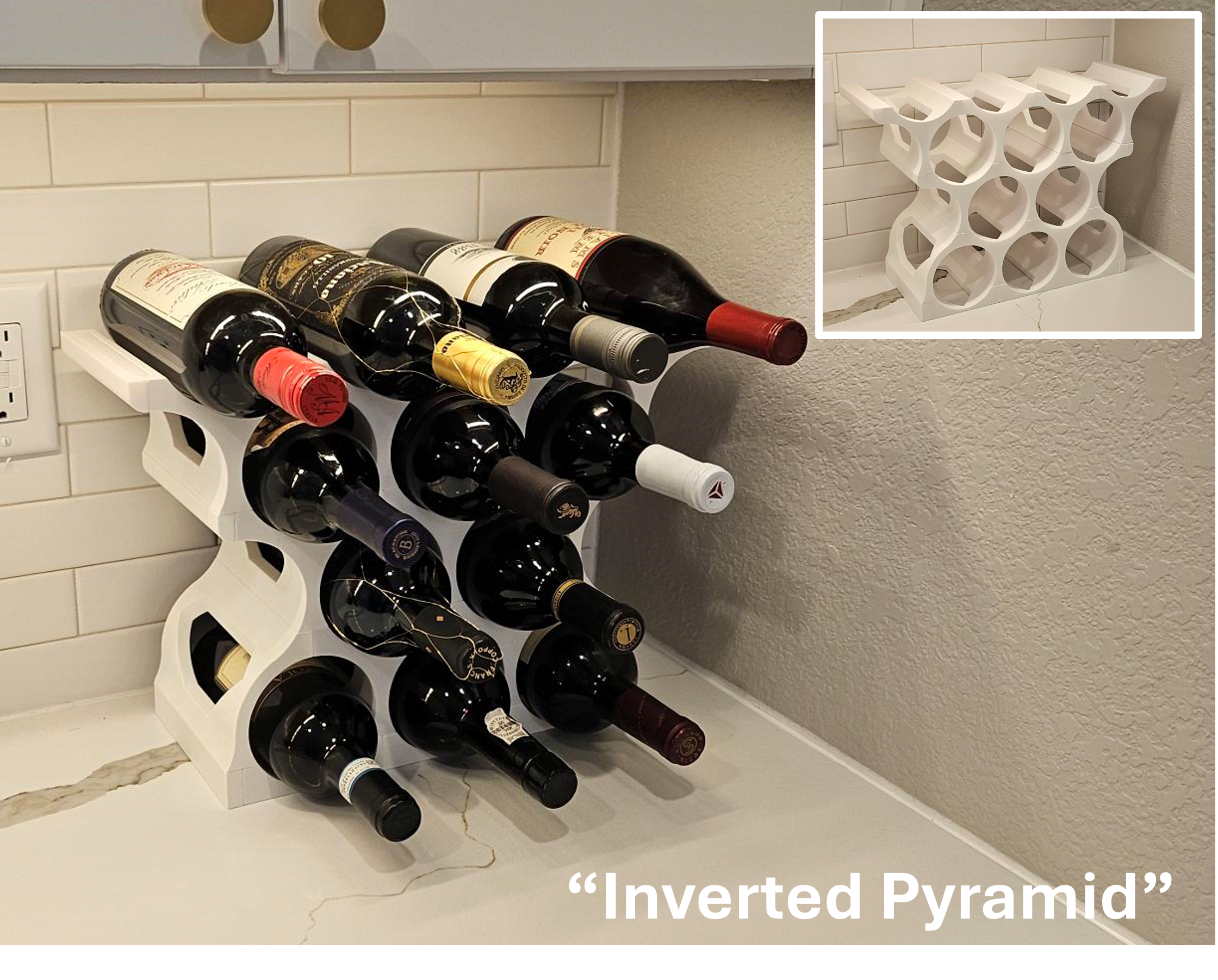

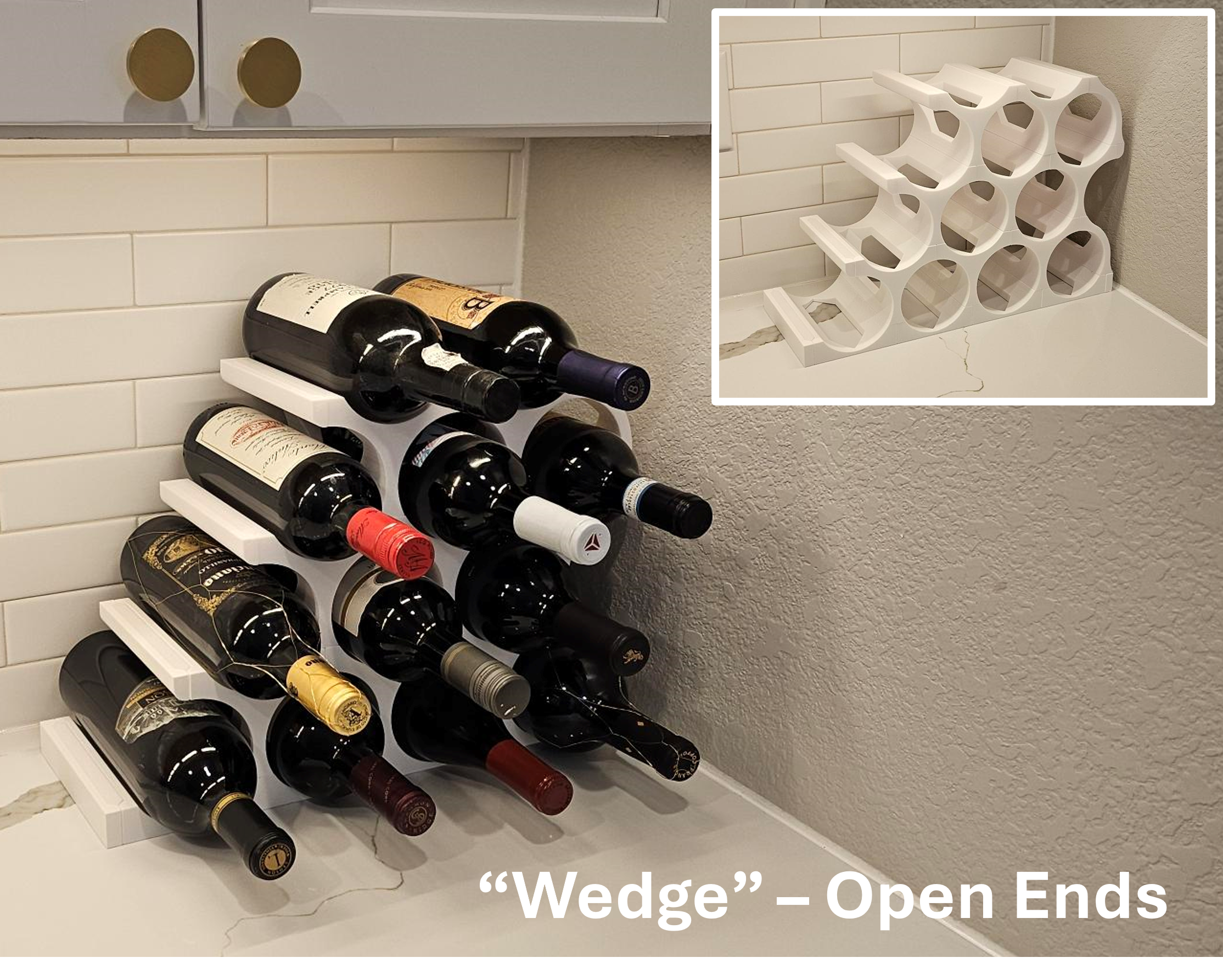

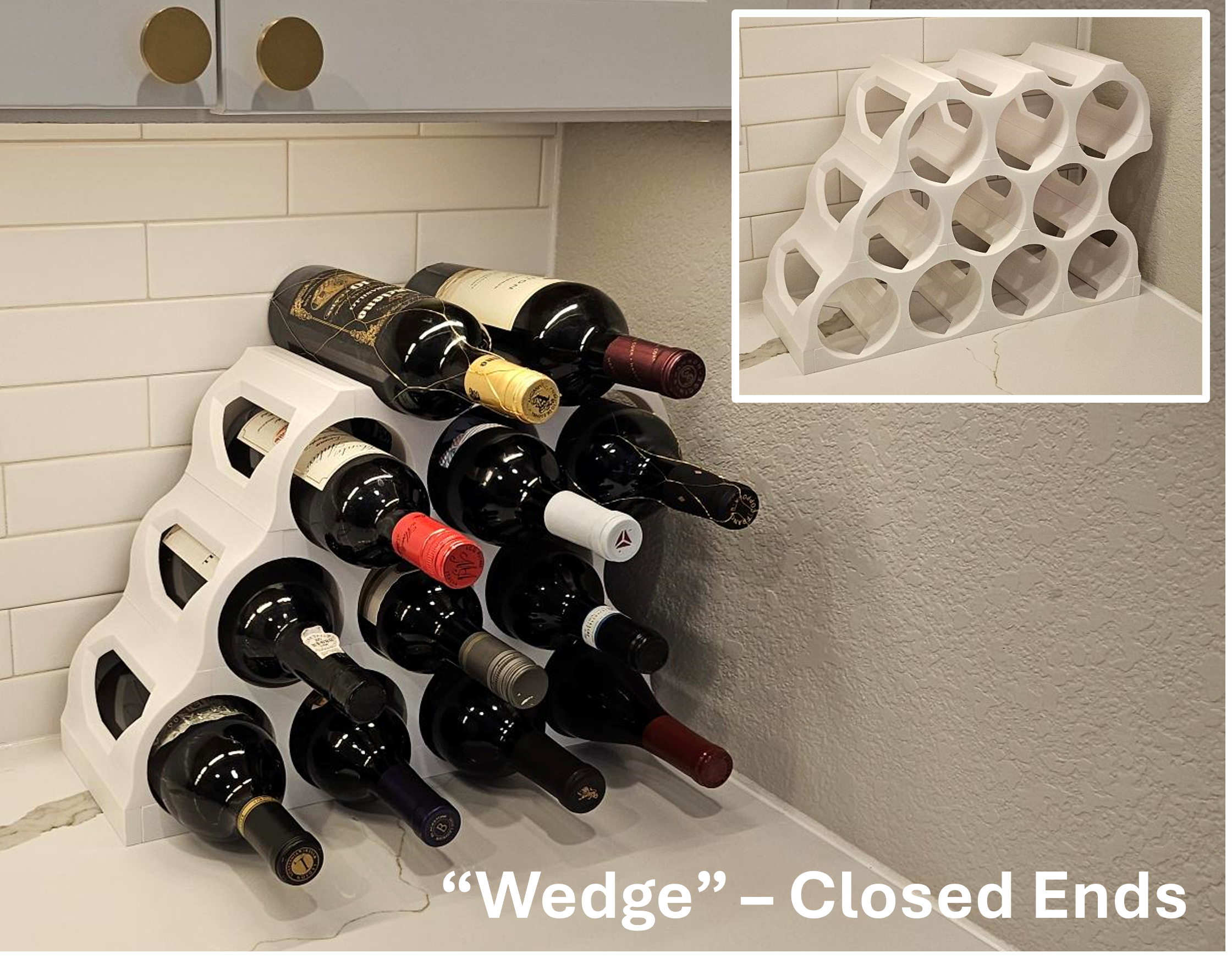

This is a modular wine rack system that can be assembled to create many different configurations. I have included a number of different configurations in the photos section, but don't let that constrain you. This system can be expanded and configured to suit your needs. I haven't experimented with different colors yet, but that could be fun too.

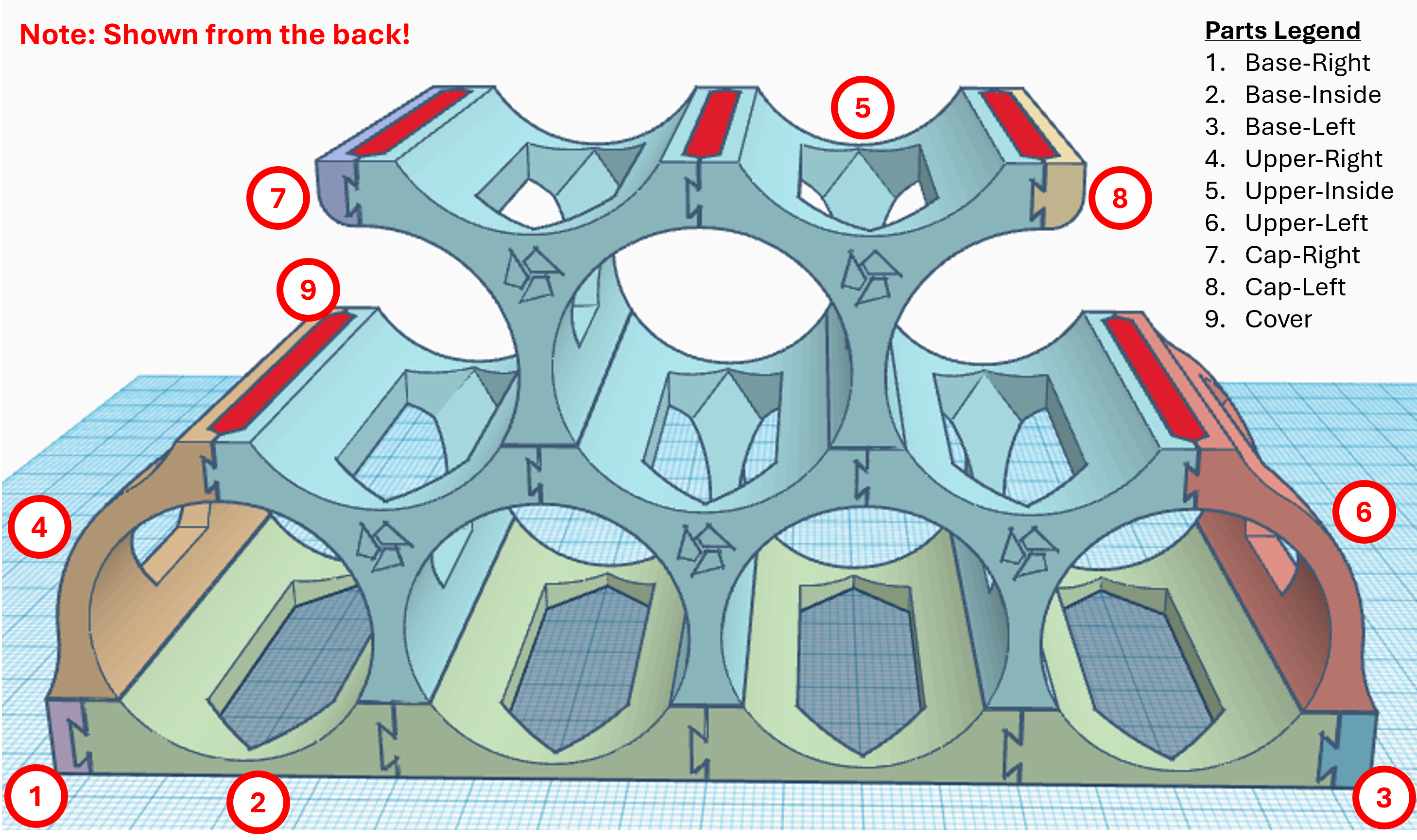

The system consists of 9 different parts that are detailed in the Parts Legend.

The various pieces in a horizontal row are connected via a dovetail joint and the rows nest on top of each other on pockets. The assemblies do NOT need to be glued together so they can be reconfigured as needed. No hardware is required.

All of the parts can be printed without supports. I printed than with a 0.2mm layer height with 2 perimeters and 15% infill.

Please post your Likes & Makes if you like the deign! Cheers!
