A parametric box generator built in OpenSCAD, designed for laser-cut construction. It aims to be compatible with Gridfinity and supports half-units, similar to my other project eurogridfinity-openscad.
It can also generate any size bins.

Generic features

• Customisable length, width, and height

• Customisable material thickness

• Customisable notch length

• Label segment with adjustable length

• Label can be removed, flush, or buried

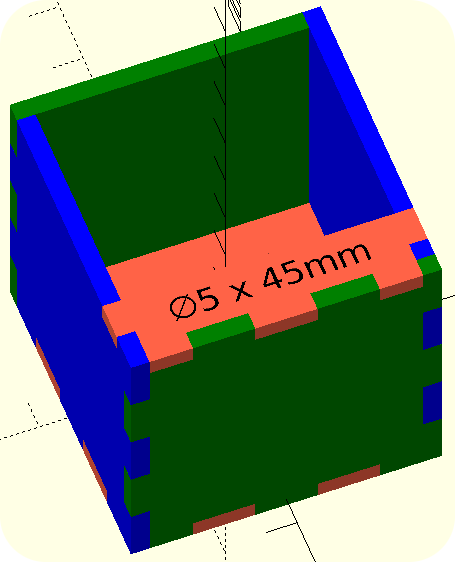

• Customisable text on the label

• Notch removal for thicknesses less than the material thickness

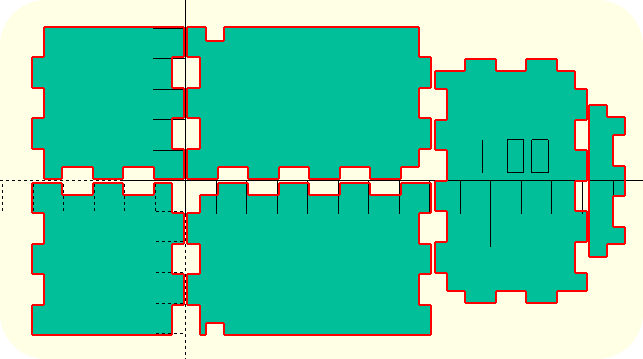

• Complete 2D layout output

Gridfinity-specific features

• Half-unit support for length and width

• Feet adapted to material thickness

• Choice of foot assembly method:

  • Simple gluing

  • Gluing with connector pieces to assist alignment

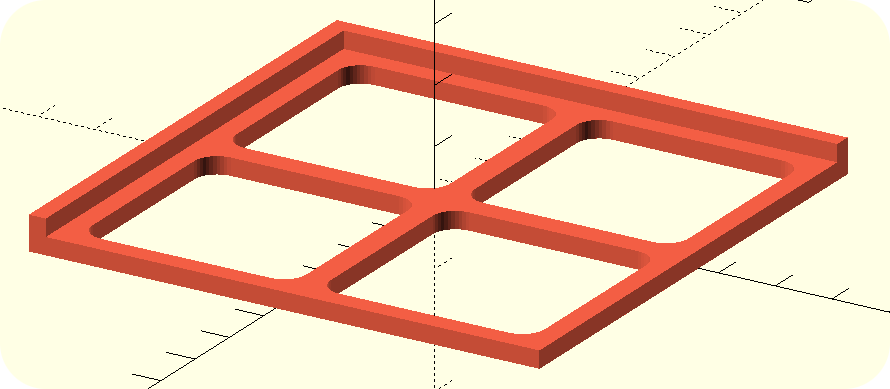

• Jig included to help with gluing

Files and support

All files are available on GitHub. Feel free to reach out if you encounter bugs or have trouble generating files.
