Modelo 3D EDC 4mm Bit Holder por Thijsiez no Printables

Descrição

Instructions:
- 0.4mm nozzle required
- Works best with vase mode

--------

I was looking for the most optimal way to package my 4mm bits to carry around daily. These designs are the most space-efficient I could come up with. Maximum length per bit is 30mm, but most 4mm bits are 28mm long, so there's a little extra space between them.

All holder options come in 3 different tolerances (4.1mm, 4.15mm, and 4.2mm). If you know how many bits you want to carry, maybe try out all tolerances with the shortest model (2x1 and 3x1). I ended up needing the 4.2mm version since my printer is old and the tolerances aren't great.

I tested the fit with iFixit bits and a random cheap set which I've owned for years (pictured). They should also fit Wiha's MicroBits, but I don't have those handy to test. Please let me know which other bits also work, thanks!

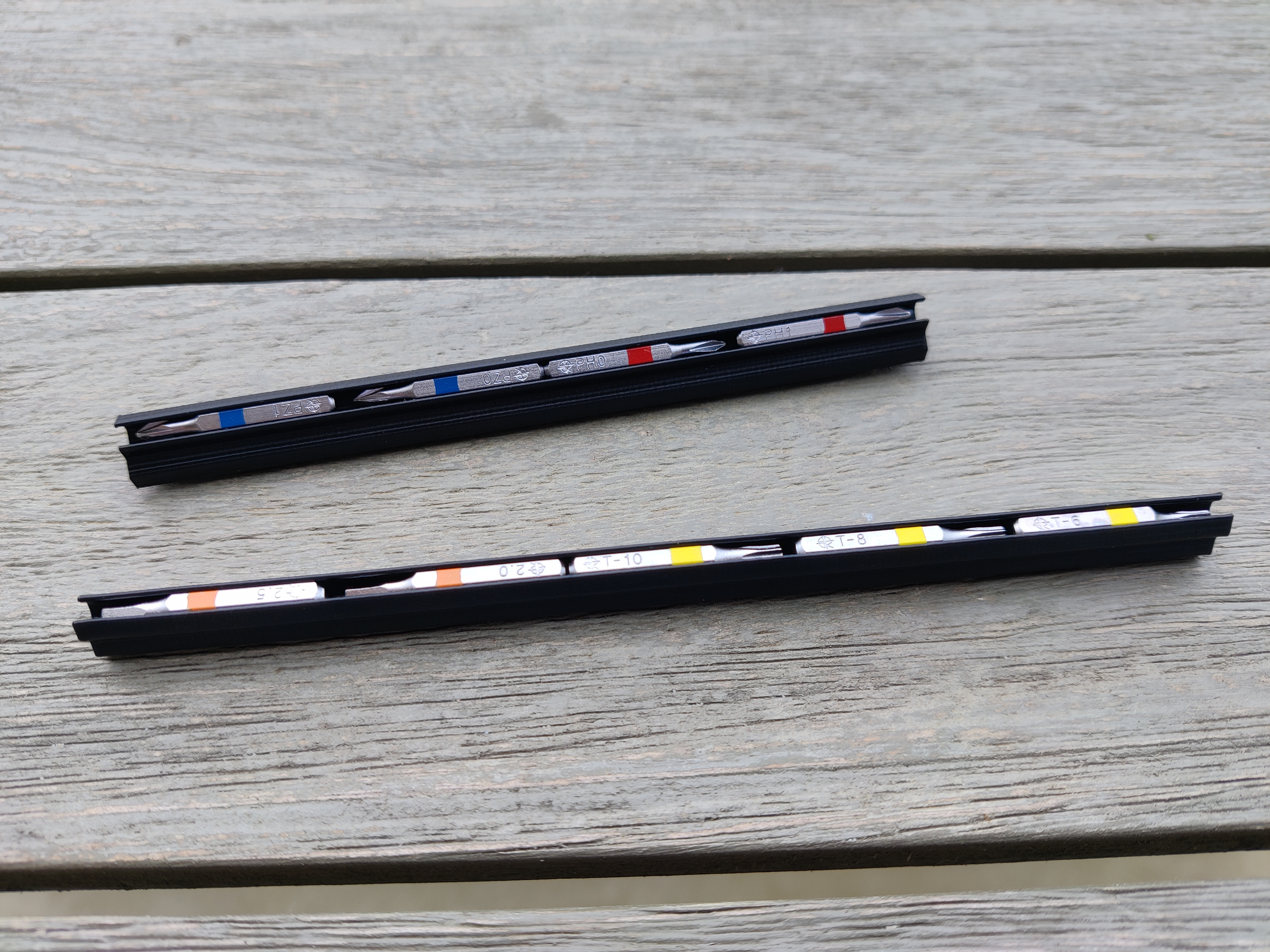

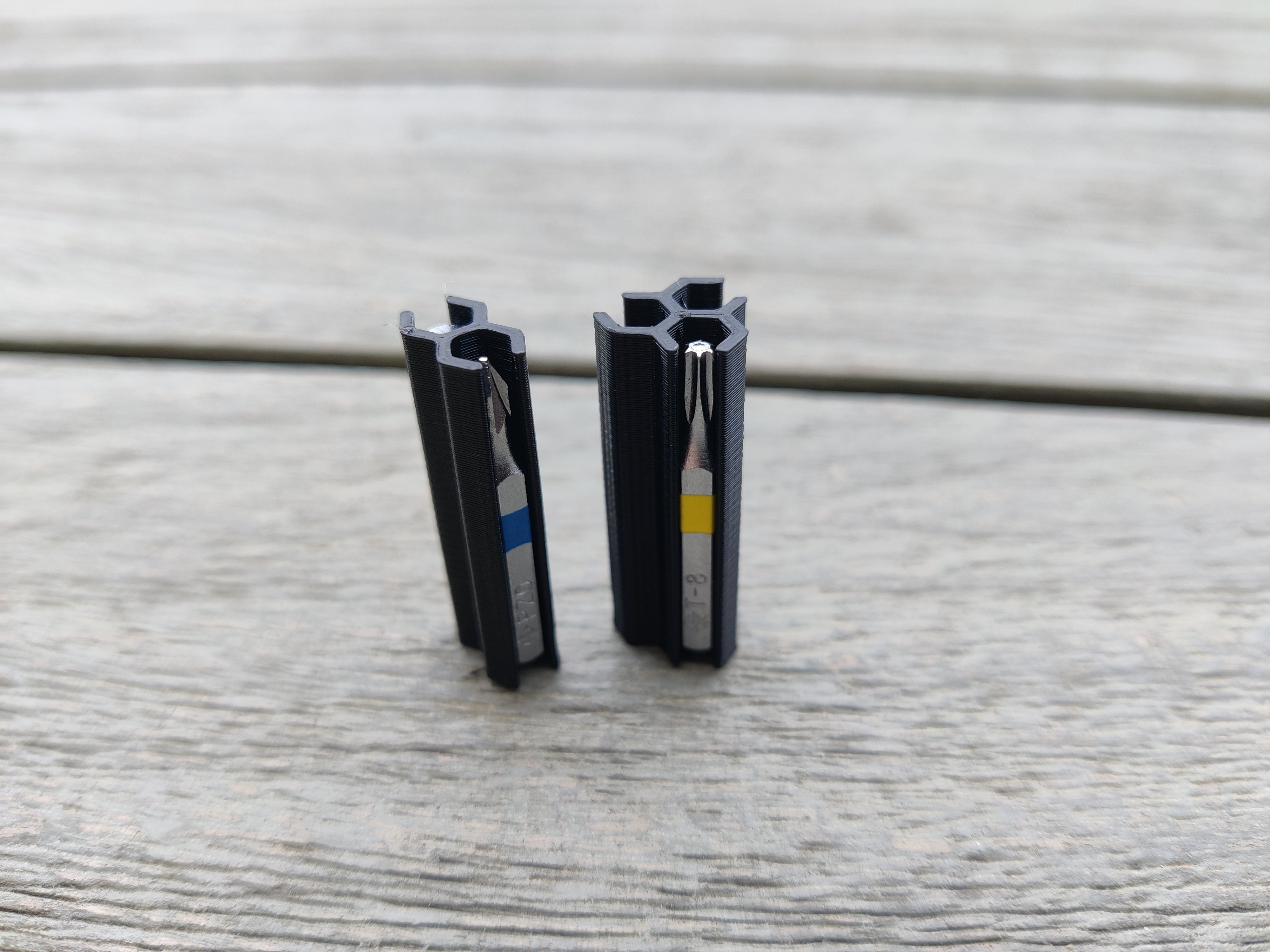

Pictured:
2x5 4.15mm with T6, T8, T10, H2, and H2.5
3x4 4.15mm with PH0, PH1, PZ0, and PZ1
3x1 4.20mm with T6, T8, and T10
2x1 4.20mm with PZ0 and PZ1

Printables

EDC 4mm Bit Holder

Thijsiez

Publicado em 20 de jun de 2024

Curtidas

159

Downloads

Impressões

Categoria Tools

Tags

bit screw screwdriver bits screwdriverbit 4mm bitholder bitsholder screwdriverbits 4mmbit 4mmbitholder screwdriverbitholder

Licença Creative Commons — Public Domain

Arquivos (30)

2x1 4.10mm Bit Holder.STL 4.2 KB

2x1 4.15mm Bit Holder.STL 4.2 KB

2x1 4.20mm Bit Holder.STL 4.2 KB

2x2 4.10mm Bit Holder.STL 4.2 KB

2x2 4.15mm Bit Holder.STL 4.2 KB

2x2 4.20mm Bit Holder.STL 4.2 KB

2x3 4.10mm Bit Holder.STL 4.2 KB

2x3 4.15mm Bit Holder.STL 4.2 KB

2x3 4.20mm Bit Holder.STL 4.2 KB

2x4 4.10mm Bit Holder.STL 4.2 KB

2x4 4.15mm Bit Holder.STL 4.2 KB

2x4 4.20mm Bit Holder.STL 4.2 KB

2x5 4.10mm Bit Holder.STL 4.2 KB

2x5 4.15mm Bit Holder.STL 4.2 KB

2x5 4.20mm Bit Holder.STL 4.2 KB

3x1 4.10mm Bit Holder.STL 5.7 KB

3x1 4.15mm Bit Holder.STL 5.7 KB

3x1 4.20mm Bit Holder.STL 5.7 KB

3x2 4.10mm Bit Holder.STL 5.7 KB

3x2 4.15mm Bit Holder.STL 5.7 KB

3x2 4.20mm Bit Holder.STL 5.7 KB

3x3 4.10mm Bit Holder.STL 5.7 KB

3x3 4.15mm Bit Holder.STL 5.7 KB

3x3 4.20mm Bit Holder.STL 5.7 KB

3x4 4.10mm Bit Holder.STL 5.7 KB

3x4 4.15mm Bit Holder.STL 5.7 KB

3x4 4.20mm Bit Holder.STL 5.7 KB

3x5 4.10mm Bit Holder.STL 5.7 KB

3x5 4.15mm Bit Holder.STL 5.7 KB

3x5 4.20mm Bit Holder.STL 5.7 KB
