Modelo 3D Standard microscopy table por Etienne23 no Printables

Descrição

For my school microscopes we were not able to move around the slides, which for applications like looking at water organisms could be useful. I made the model fully from black PLA, but i might make new models from PETG. Initially the design i took from thingiverse, did not fit very well. The part that attaches to the base of the stage was too long. This part might need to be longer or smaller based on what microscope table you have. I have microscope stages that have a thickness of 12 mm's. Some of the items will be needed to be print with supports.

The longer (plastic) screw was too thick initially which caused it to not fit within the other parts well. Additional items you will need are.

  • A small screw

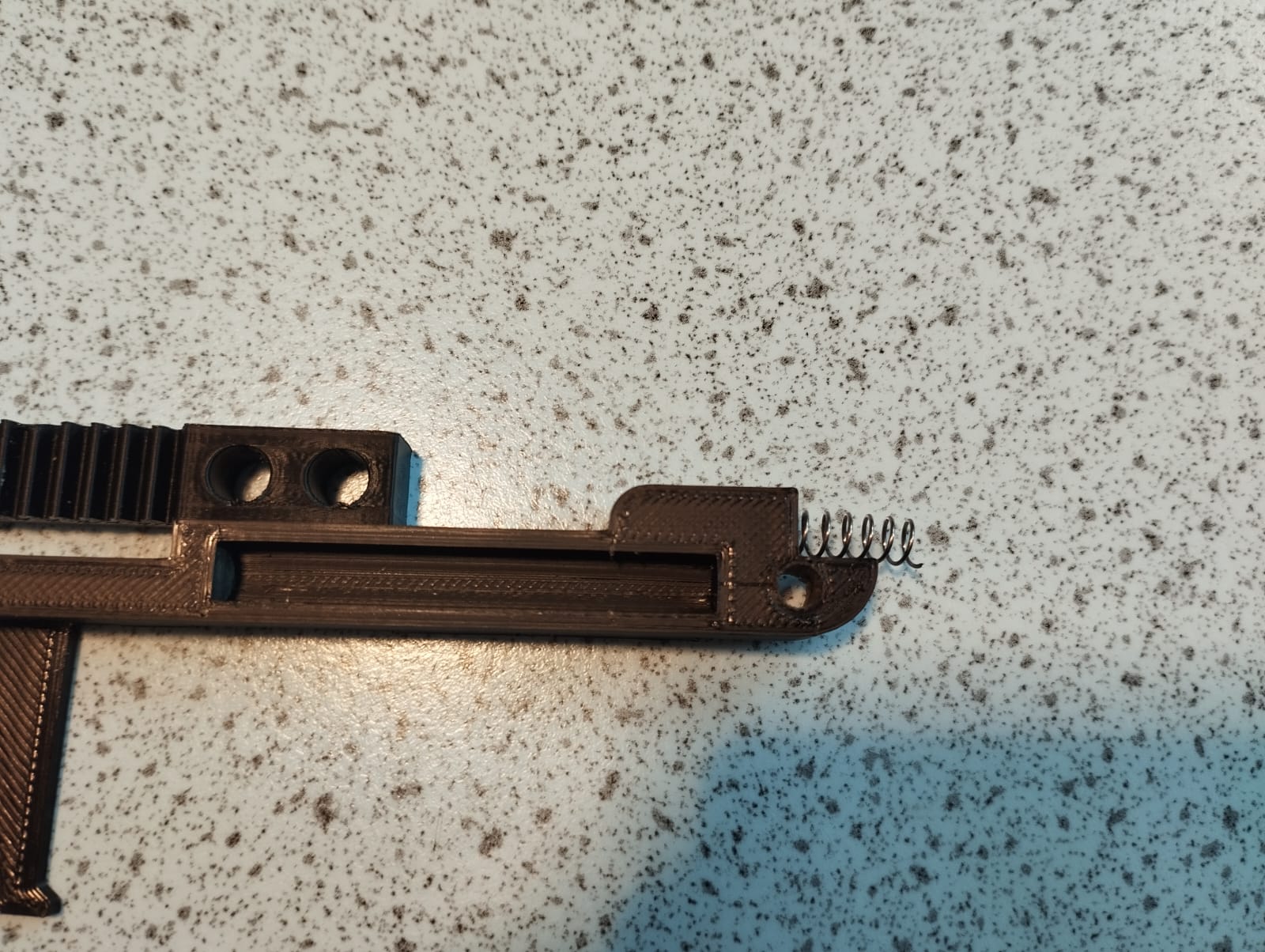

  • A tiny spring (i used springs from a ballpoint pen which fit perfectly).
  • Some hard plastic glue

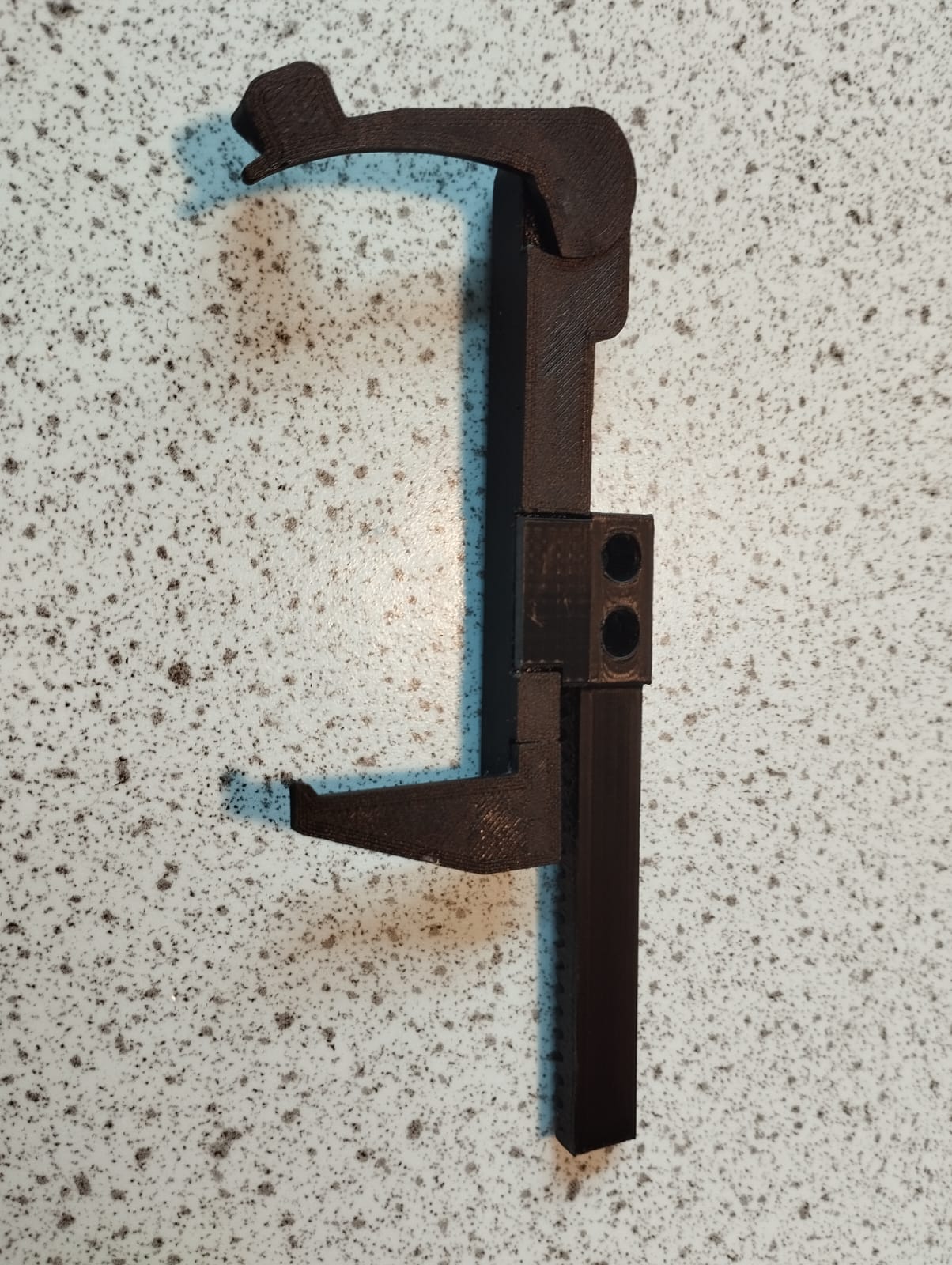

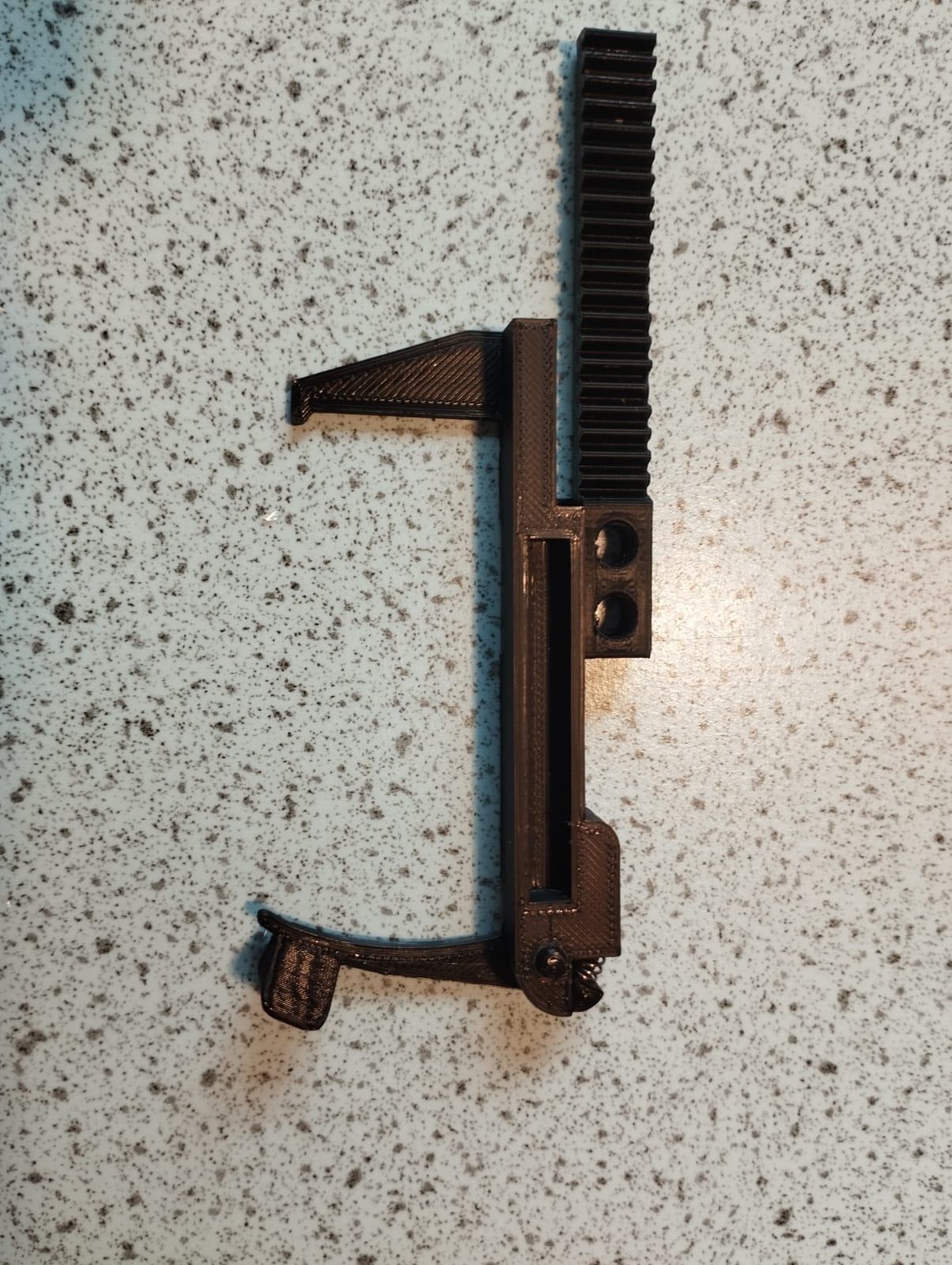

You need the glue to connect the right hook to the bar. You also connect the connector to the bar using glue as seen in photo 4, and you clamp the left hook by using a string.

Printables

Standard microscopy table

Publicado em 18 de jun de 2024

9
Curtidas
32
Downloads
Categoria Chemistry & Biology
Tags
gears microscope
Licença Creative Commons — Attribution
Arquivos (9)
Gear (2).stl 60.3 KB
Connector (1).stl 31.5 KB
Left hook for slide (1).stl 72.9 KB
Frontside attached to stage based on 12 mm stage (1).stl 48.7 KB
Small screw for backpart (2).stl 59.4 KB
Backpart connect with screw (1).stl 50.8 KB
Right hook for slide (1).stl 2.6 KB
Bar connecting left hook for slide and spring (1).stl 26.7 KB
Large screw 6.5 mm diameter (2).3mf 222.4 KB
