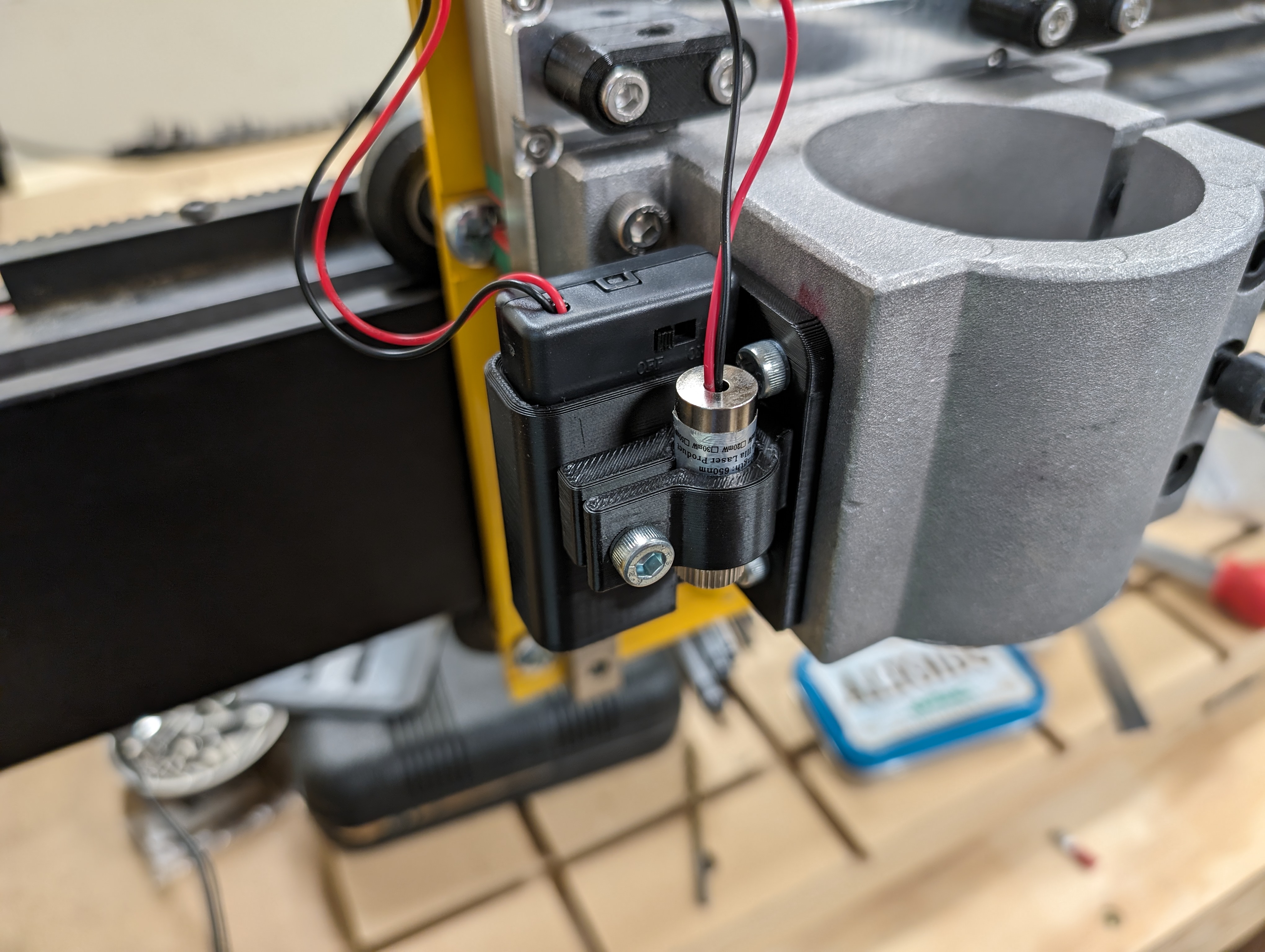

A slightly awkward model to hold a cross laser and batteries, attached to the side of a CNC spindle mount.

The mount expects two M5 bolts, 40mm center-to-center.

The laser holder attaches with a sliding dovetail, and can be glued after installing if needed.

The AAA laser holder uses a  M5x12 bolt and nut. The 2032 laser holder uses M4x12

2032 battery holder: (amzn)

AAA Battery holder: (amzn)

I've also included an older design for horizontal mounting holes, without a battery
