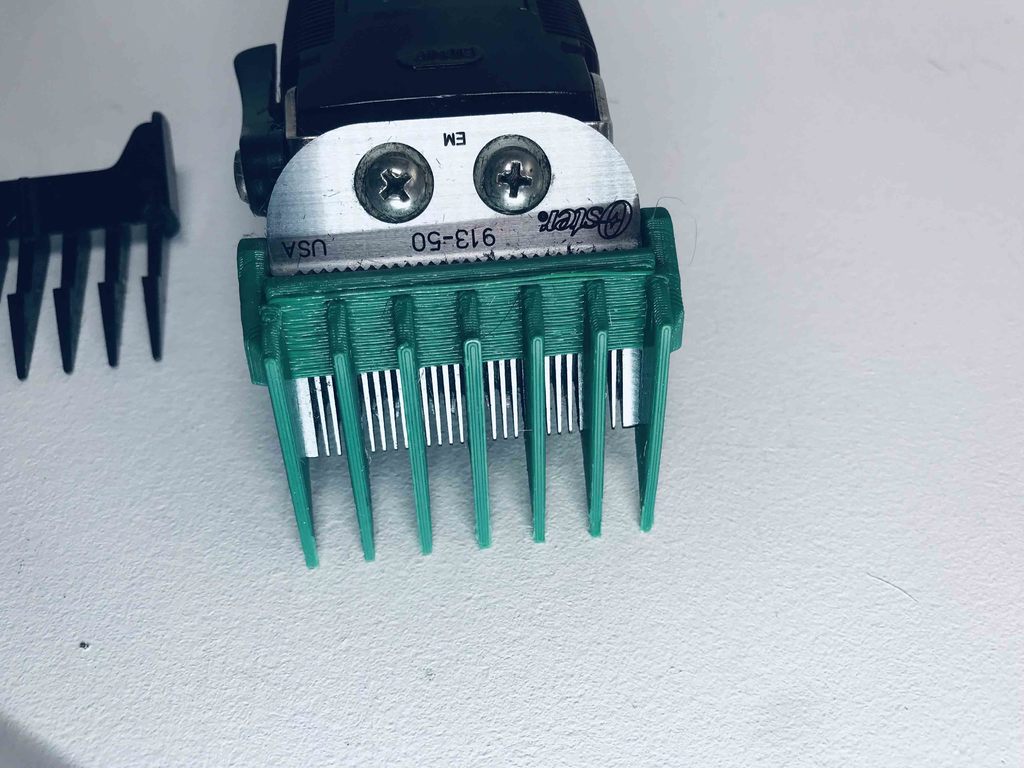

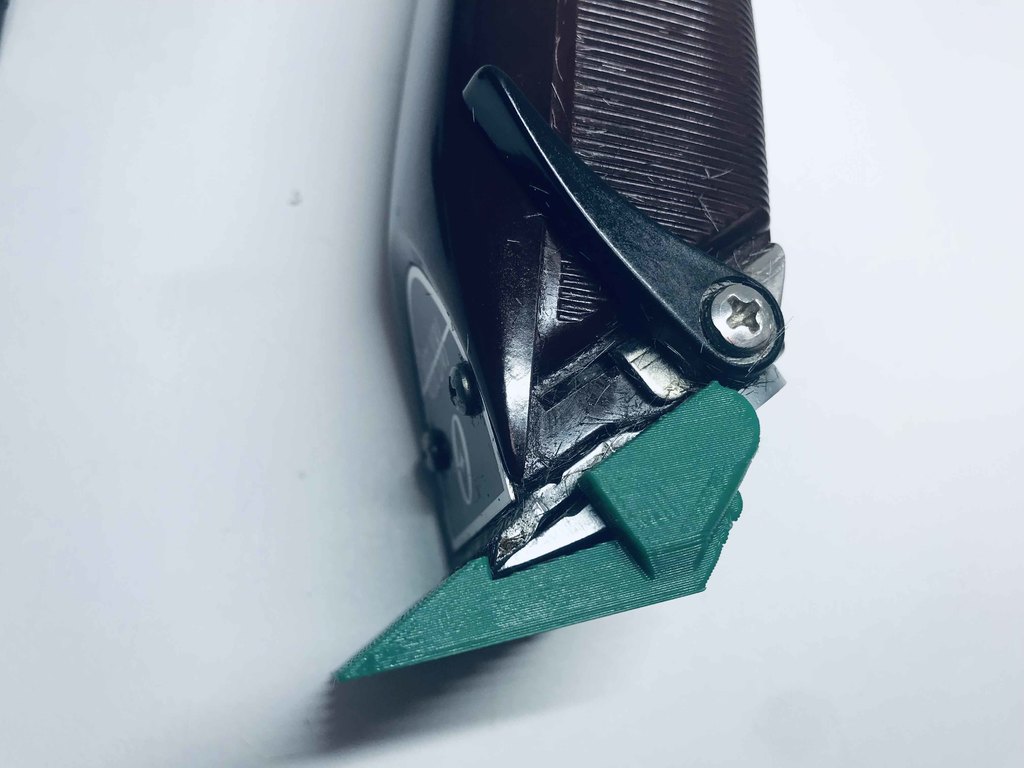

This is a Replacement Comb set for a Oster Fast Feed Clipper.   I had once upon a time download all the combs I could find that might fit this model and none worked right.  I finally got this dialed in.  It fits great and does not bind or hit the blade or lever.

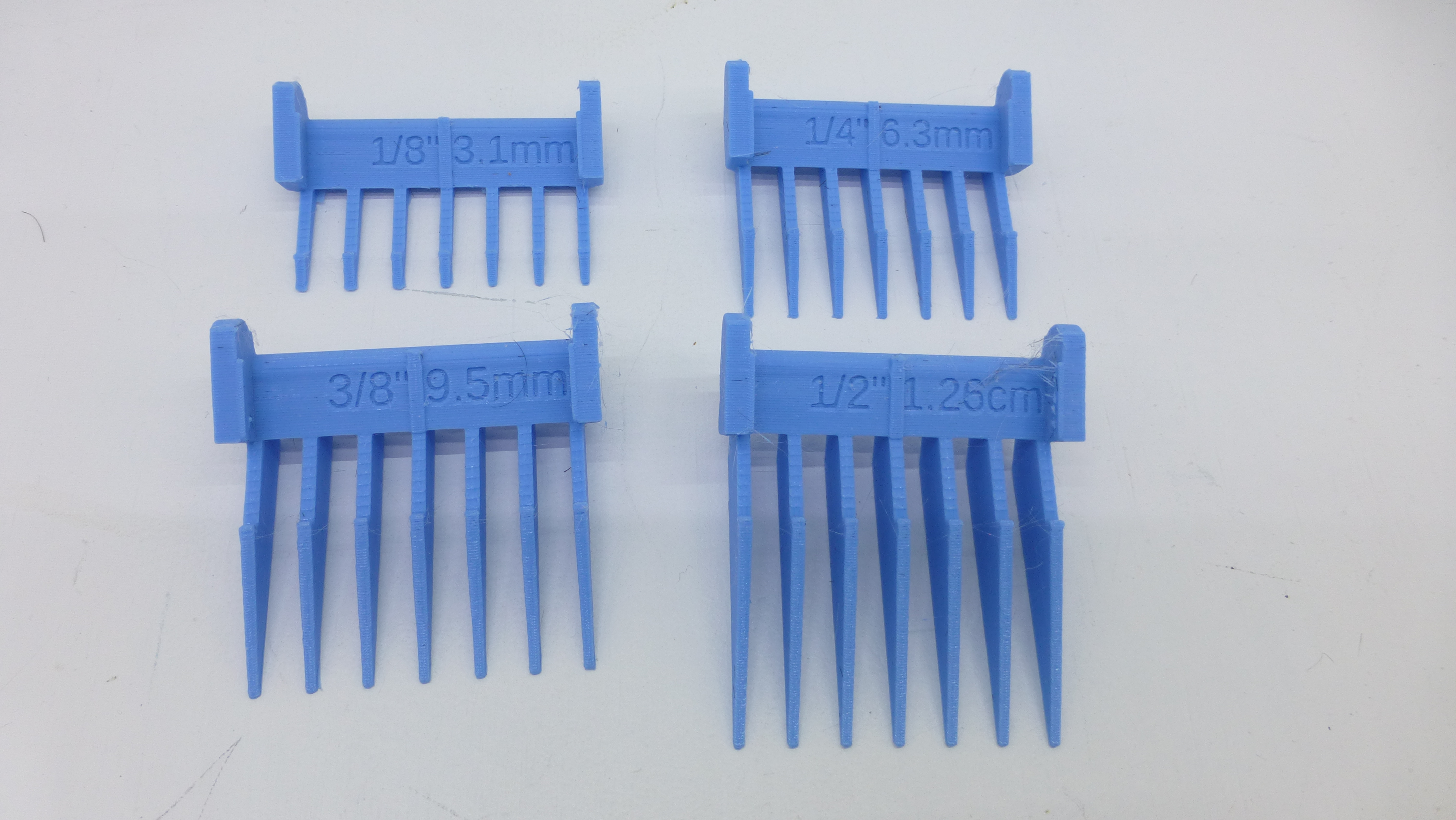

The 1/8th inch I generated with fewer teeth than the original... let me know if that needs to be different.  It has the same qty as the other sizes.

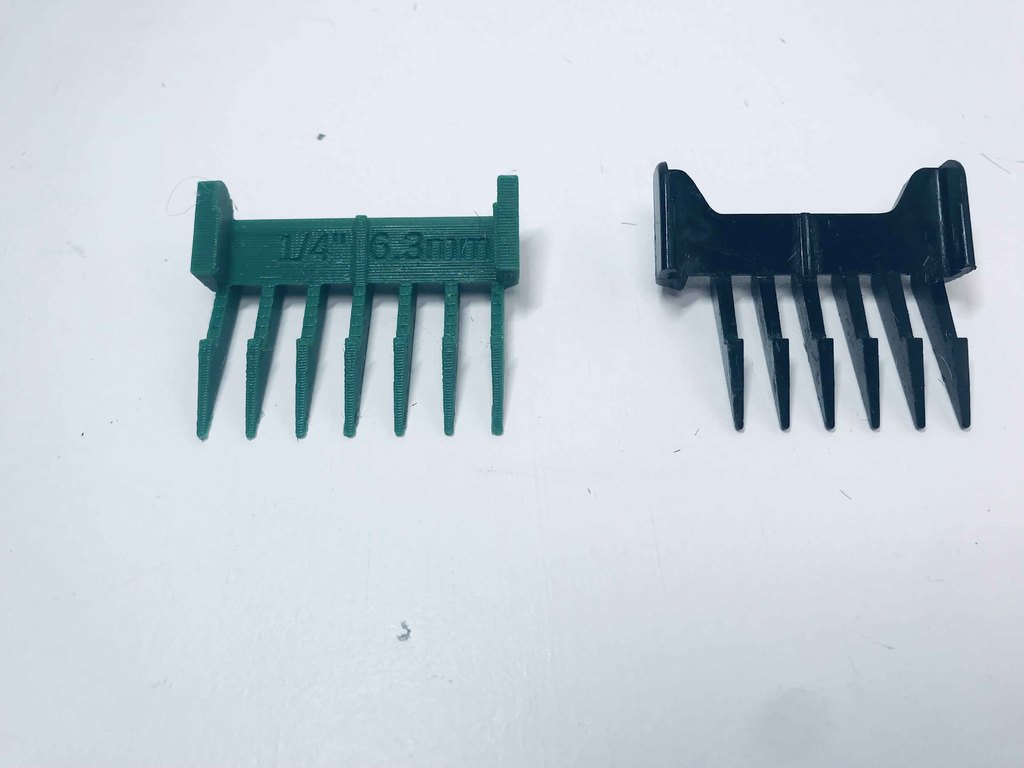

I printed it in PLA.  My blades are a bit narrower than the original, but that allows more hair to pass through.  This version should be printable at .2mm with no supports... I printed V2 at .15 and found the bottom curves to be better defined.

If you printer has issues with some of the small overhangs just add supports.   I printed it bottom of the blade down on the table.  You may want to brim since the only touch point under the blades is one or two lines.

V2 has some better refinement in features and a less sharp point at the front.

V3 Tighter slide on fit, added 3/16" 4.5mm per request

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

No

Resolution:

.2 layer height with a .4 mm nozzle

Infill:

20

Filament:
gst3d PLA any


Notes:

No supports.

If you wanted to print in PETG or some more flexible I would probably need to render a version with thicker blades.

Category: Replacement Parts
