Introduction:

• I've designed these pulls as replacement for broken drawer pulls, or for new drawers.

Mounting Options:

• There are three mounting options: Embedded #8-32 Nut, Embedded M4 Nut, and Front Screw.

1. Embedded #8-32 Nut:
   • Two #8-32 nuts and two #8-32 screws are needed for pulls in this folder.
   • The screw length should be 1/4 inches (~6 mm) plus the thickness of the drawer face thickness.
2. Embedded M4 Nut:
   • Two M4 nuts and two M4 screws are needed for pulls in this folder.
   • The screw length should be 1/4 inches (~6 mm) plus the thickness of the drawer face thickness.
3. Front Screw:
   • Two #8 (~4.2mm) wood screws are needed to screw the pull onto the drawer face.
   • The screw length should be slightly shorter than 36 mm plus the thickness of the drawer face.

Hole Spacing:

• The number in the file name indicate the hole spacing of the screw holes.

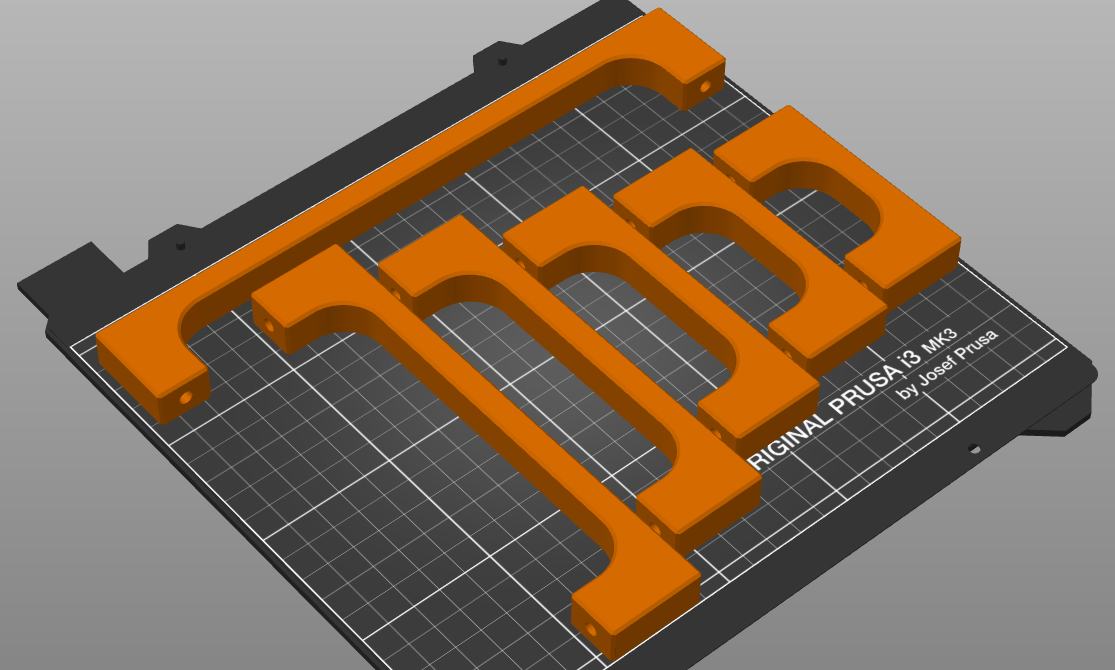

• I've published the most common hole spacing on the market, which are 64, 76, 96, 128, 160, 224 mm.
• If your drawer has hole spacing not published here, feel free to DM me, I'll add it if I'm available.
• I've uploaded the Blender files, feel free to modify them to suit your needs.

Disclaimer:

• Depending on the filament you used, and how heavy your drawer is, the pulls might not be strong enough for your use case. Use them on your own discretion.
