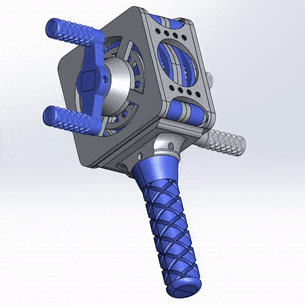

Crank Module

Welcome to the Gearfinity Crank Module! This module is designed to be the perfect starting point for beginners and a foundational component for transforming into other exciting projects like the fan module. Experience the power of gear ratios firsthand and enjoy the satisfying mechanics of the crank.

Key Features:

• Fully 3D Printed: No additional supports or external parts needed.
• Modular Foundation: Acts as a foundation for transforming into other modules.
• Educational and Fun: Learn about Gearfinity basics, gear ratios, and mechanical principles through hands-on experience.

Assembly Instructions:

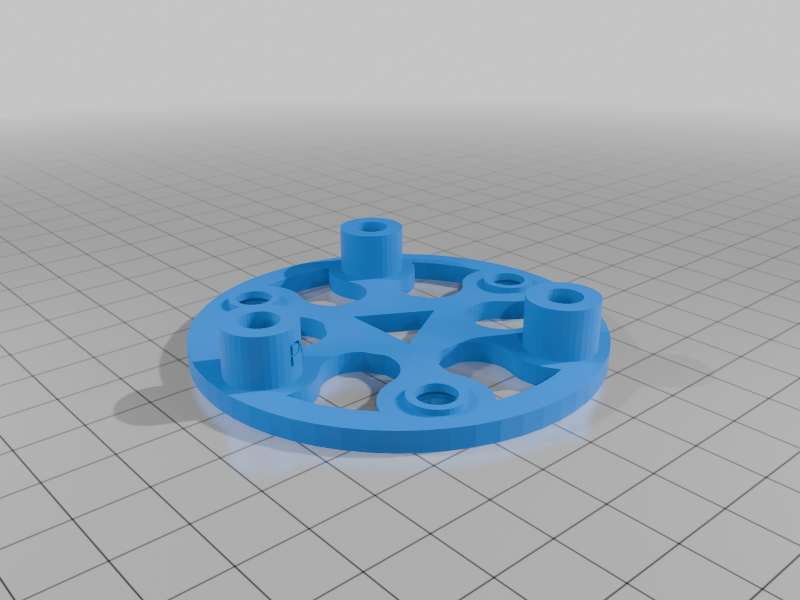

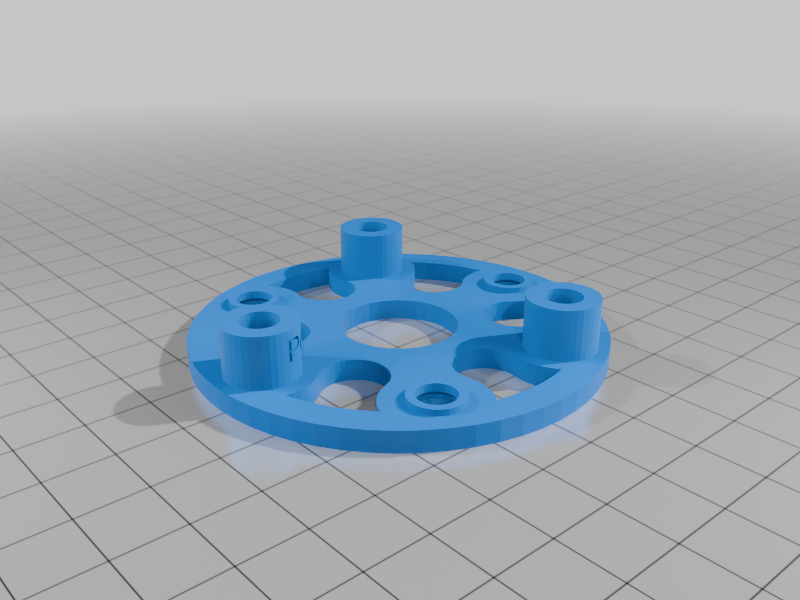

1. Print the Parts: Download and print all necessary STL files (watch the video for part quantities). * HINT: You'll need the Planetary Gear Stage 😉
2. Prepare for Assembly: Gather a small flathead screwdriver or knife for separating parts, and wire cutters/snips or needle-nose pliers for removing pins.
3. Follow the Video: Watch the assembly video above for step-by-step instructions.

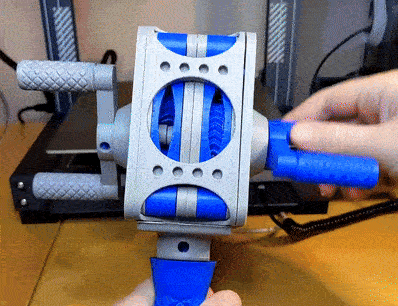

4. Enjoy Your Creation: Once assembled, enjoy the crank module on its own or transform it into other Gearfinity projects like the fan module.

Join the Gearfinity Community:

Learn more and join the Gearfinity community at [https://gearfinity.xyz](https://gearfinity.xyz). By joining, you’ll get the latest updates on new models, exclusive tutorials, and access to our private Discord channel.

Print Settings

Printer Brand:

ELEGOO

Printer:

ELEGOO NEPTUNE 3 Pro

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

5%

Notes:

See parts list for part-specific notes: [https://docs.google.com/spreadsheets/d/158TpOWADwtF0e0_Nwcch7mfOSl0_y_dtp3eGY885oxw/edit#gid=496870948](https://docs.google.com/spreadsheets/d/158TpOWADwtF0e0_Nwcch7mfOSl0_y_dtp3eGY885oxw/edit#gid=496870948)

Check out the foundational models that were used in this project:
[https://github.com/gearfinity/gearfinity/blob/main/README.md#-acknowledgements](https://github.com/gearfinity/gearfinity/blob/main/README.md#-acknowledgements)

Category: Engineering
