Descrição

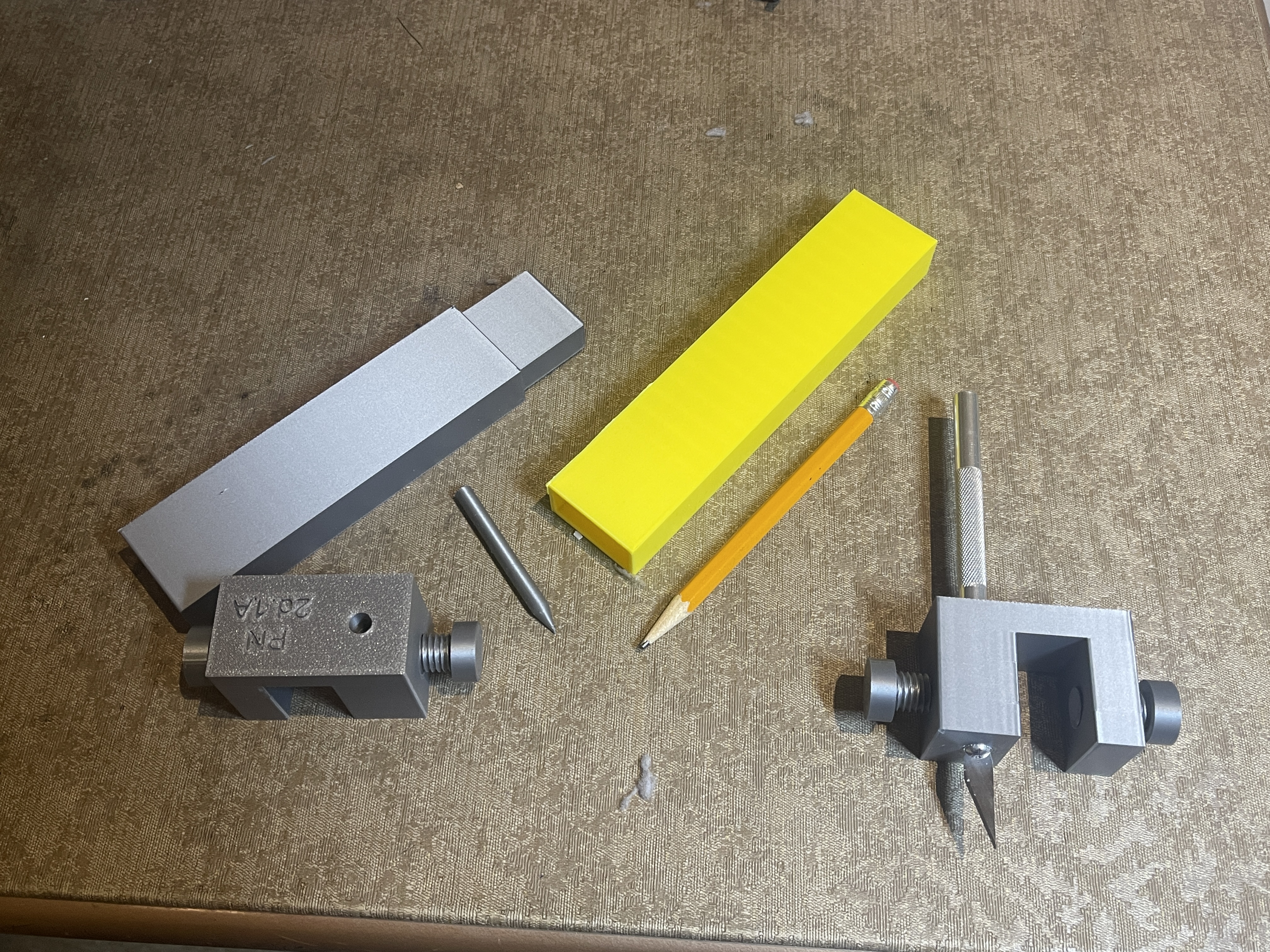

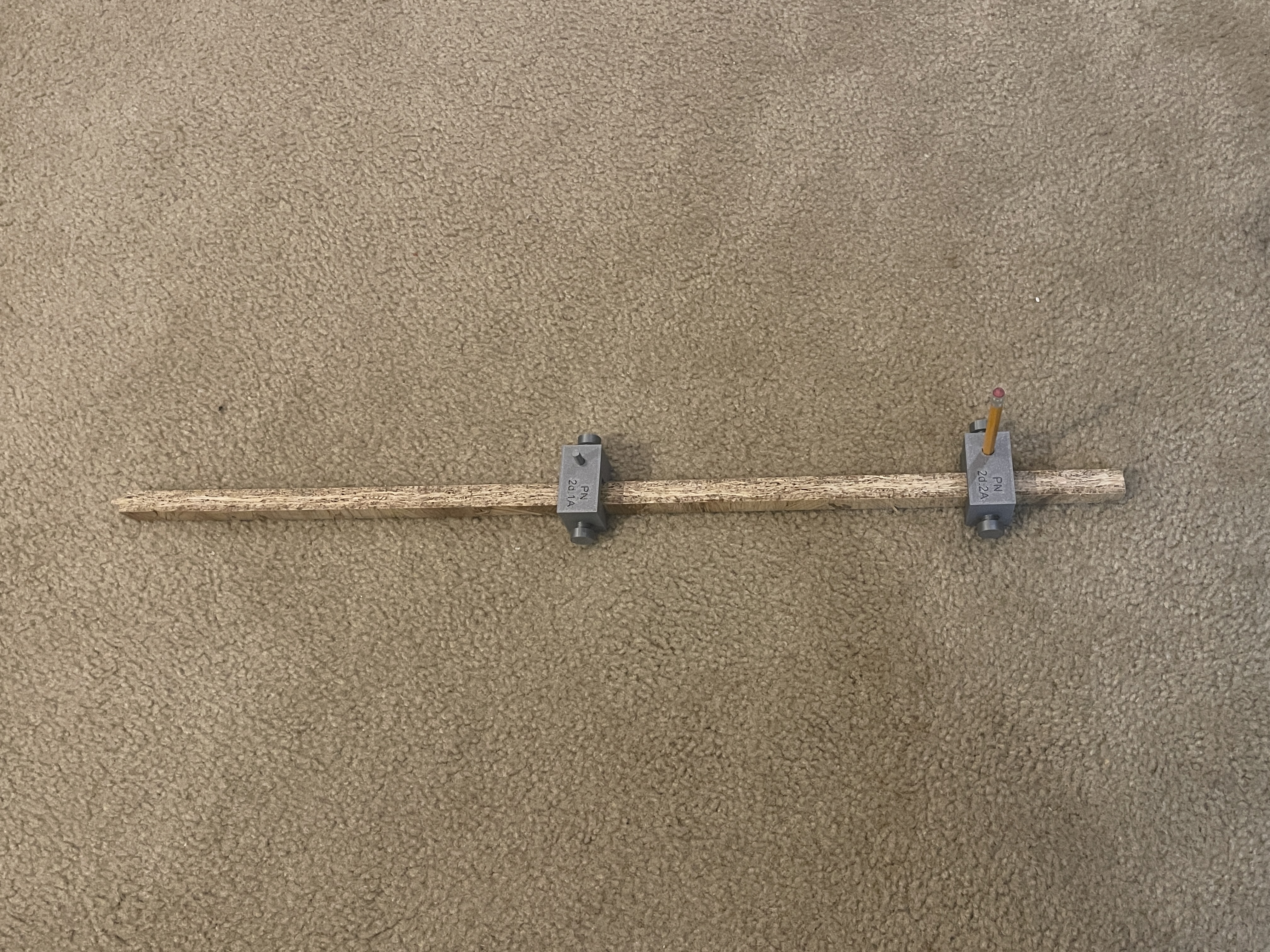

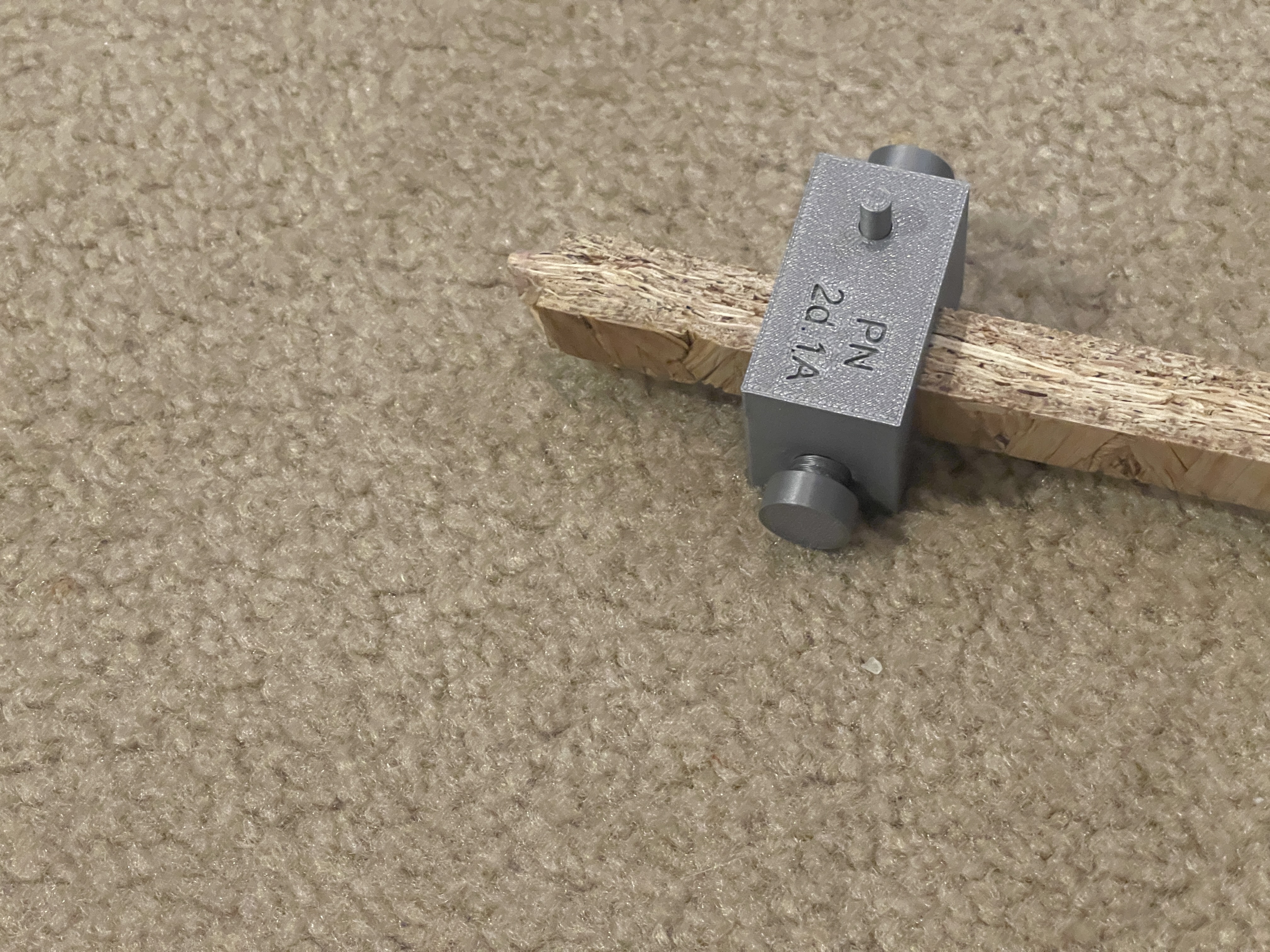

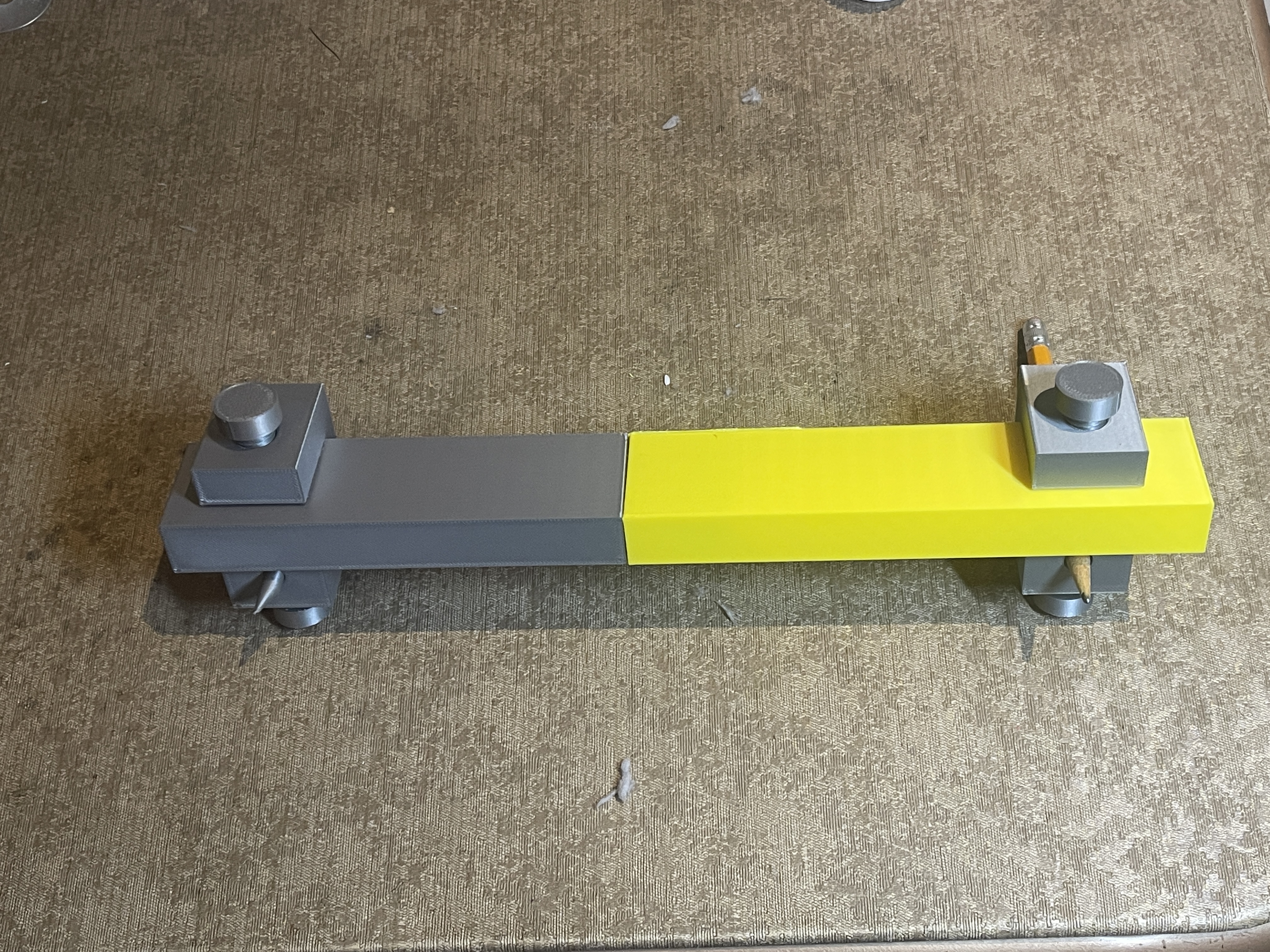

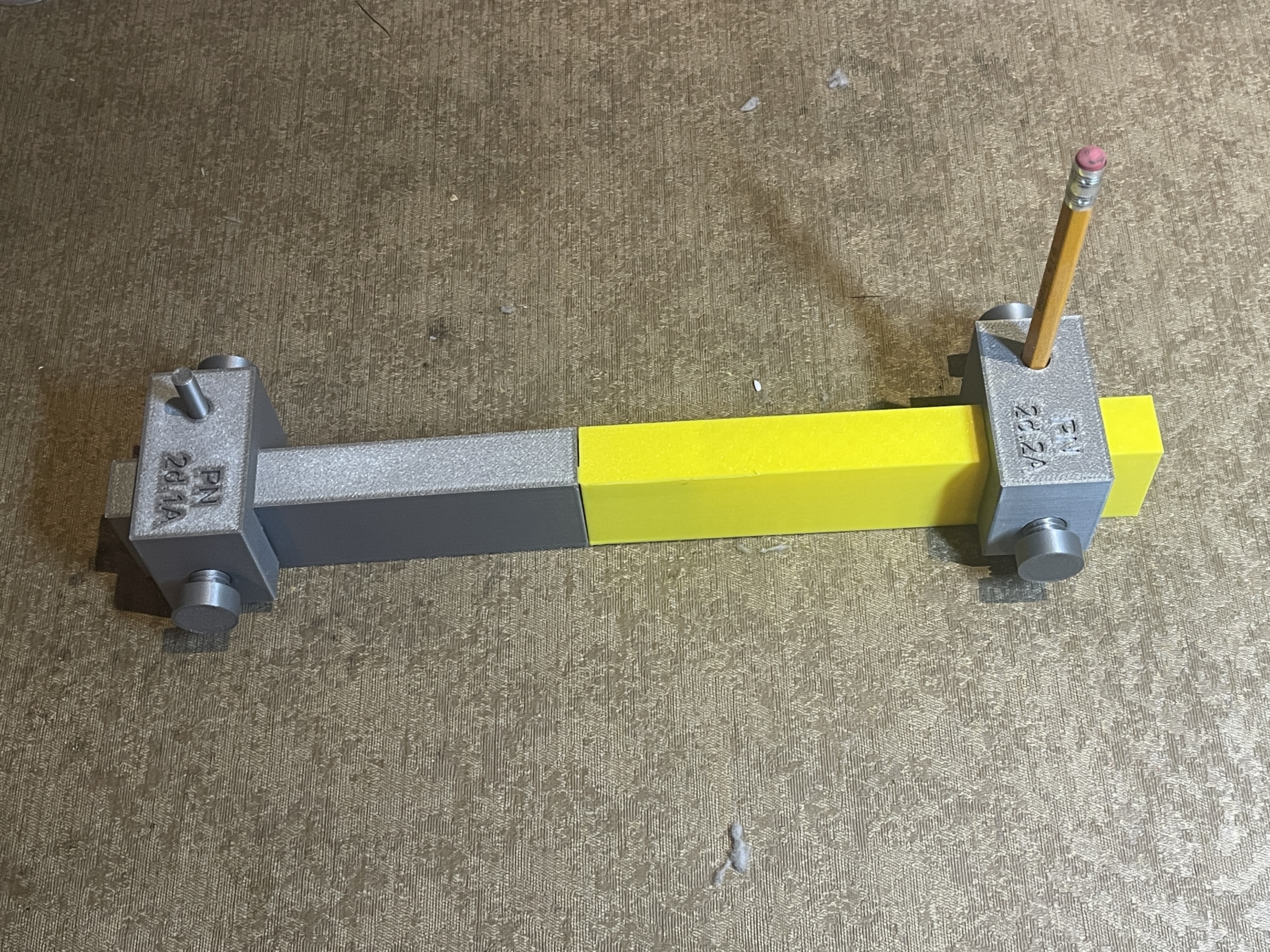

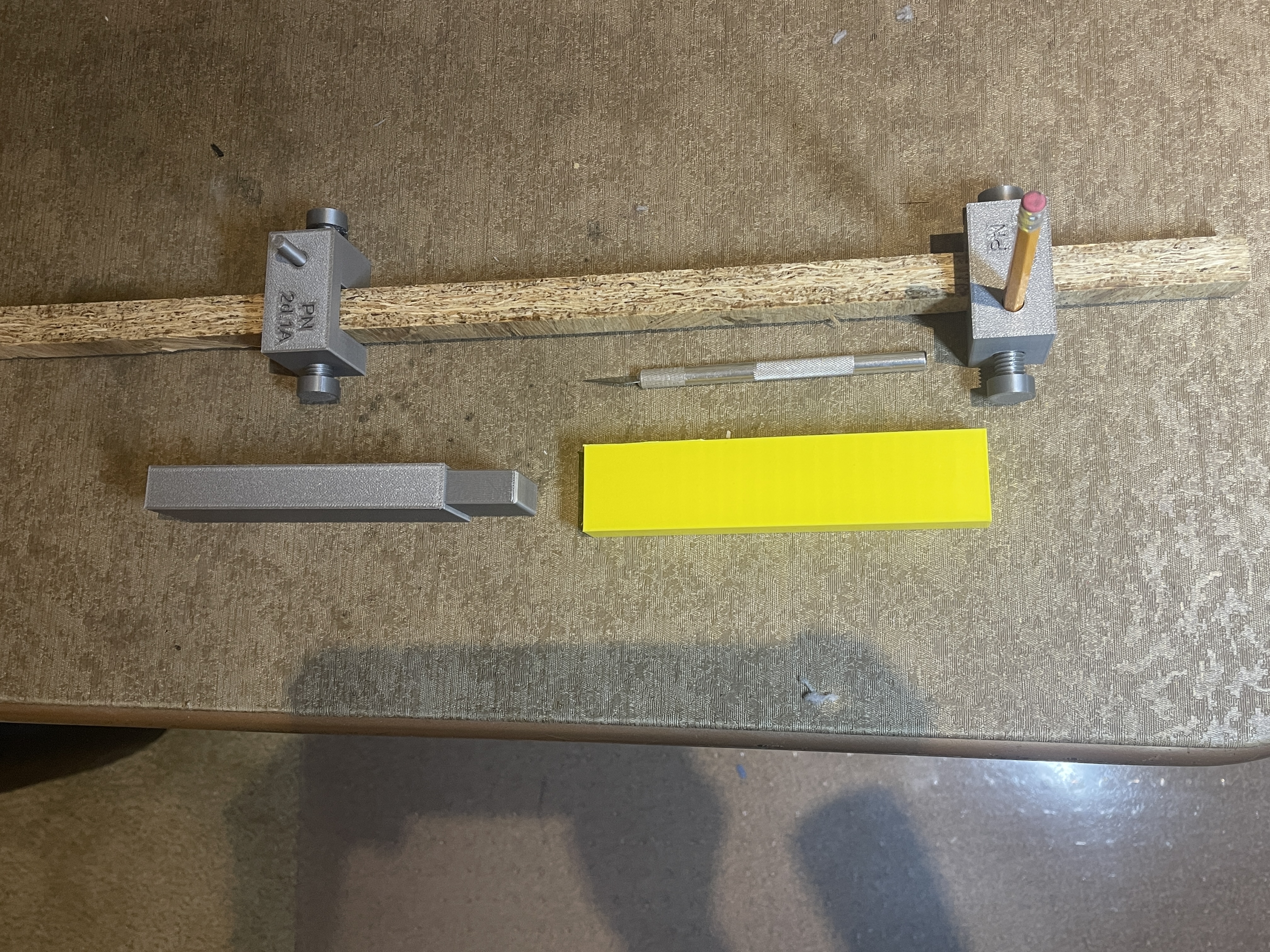

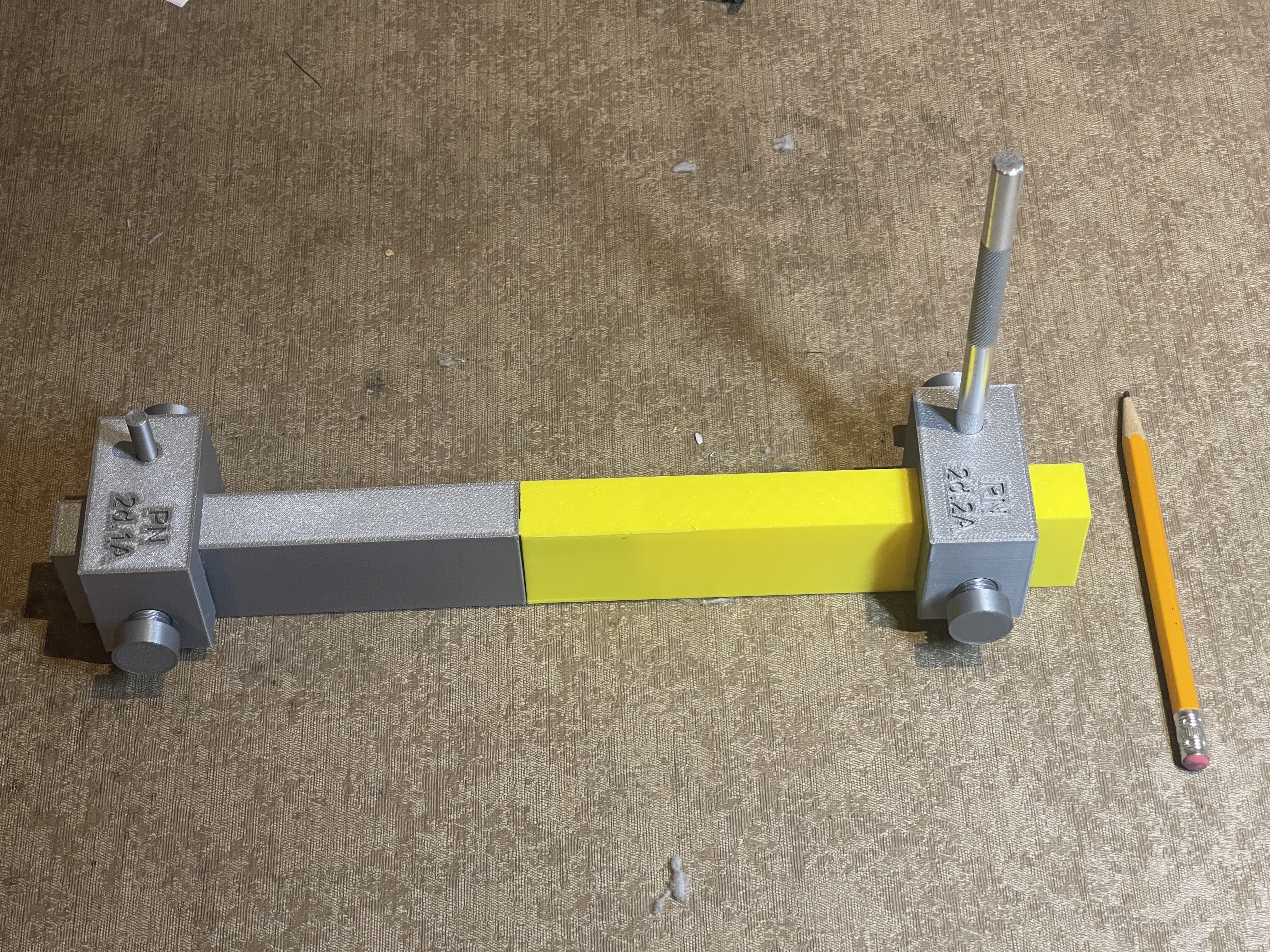

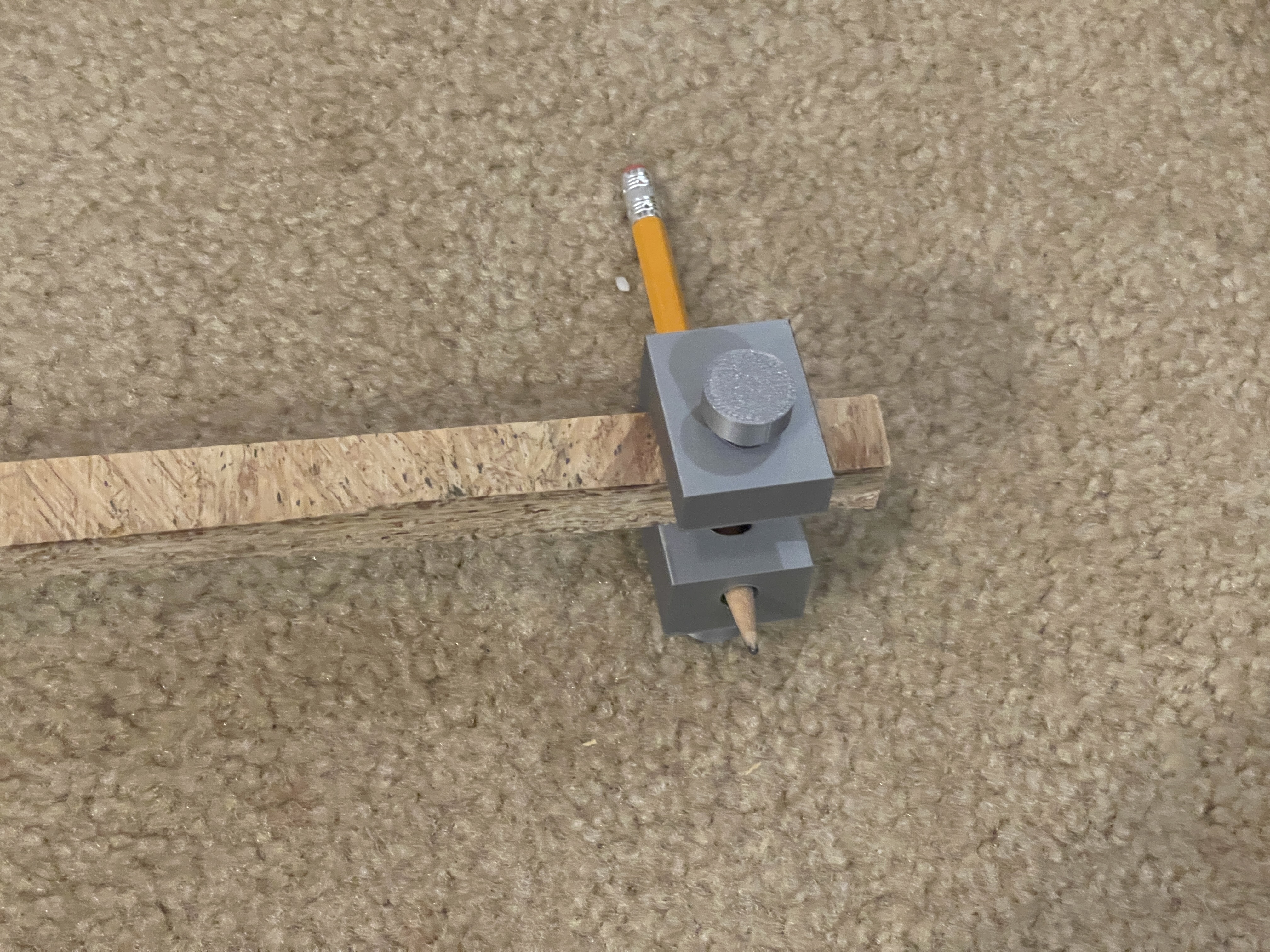

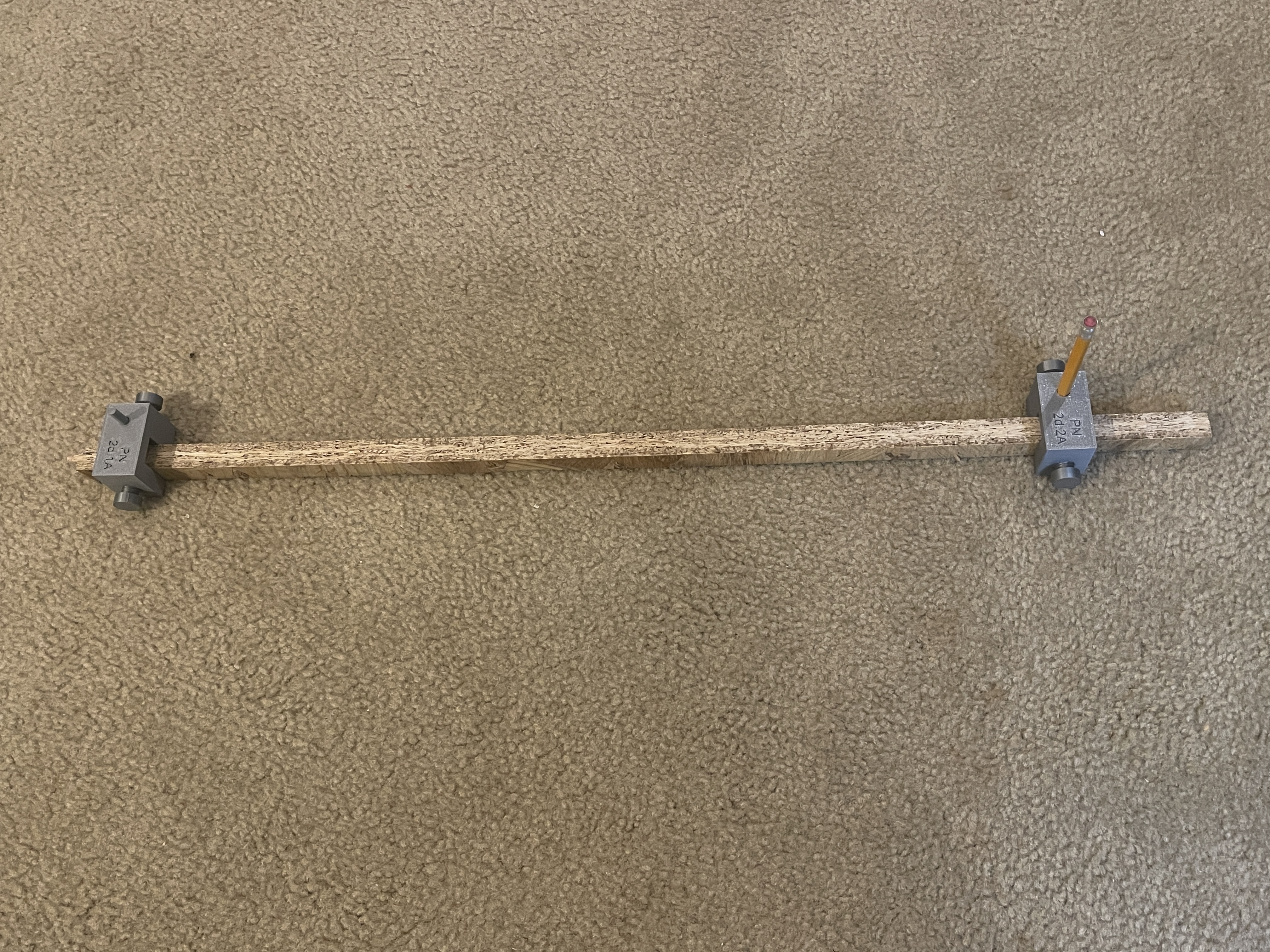

Two sliders can be attached to any length 5/8" to ¾" thick wood beam to allow drawing or cutting a circle. If you prefer not to use a wood scrap, you can print the beam consisting of multiple beam extensions that press fit together.

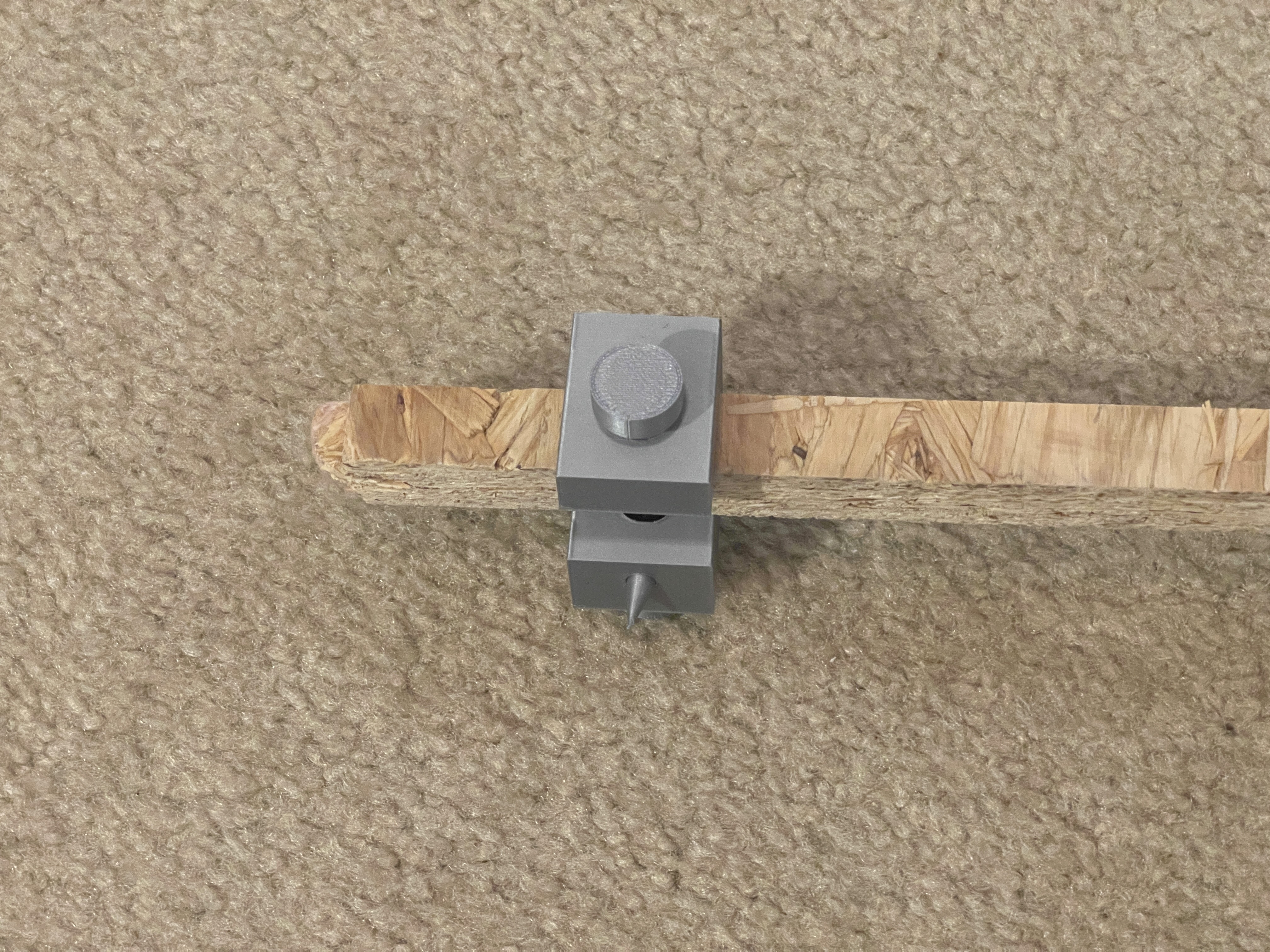

The center pinpoint is offset from the center so that you can turn it and make ~¼" adjustment in the diameter by turning the pin.
PLA bolts secure the sliders, center pin, pencil, and beam together.
The PLA beams are optional.
Printables
Large Diameter Beam Compass
Publicado em 12 de jun de 2024
6
Curtidas
57
Downloads
Categoria
Tools
Tags
compass
circletemplate
largecompass
bridgecompass
Licença
Creative Commons — Attribution
Arquivos (6)
2d.1-Center.stl
328.9 KB
2d.2-Tracer.stl
313.6 KB
2d.3-OffsetPinCenter.stl
27.5 KB
2d.4-Extension.stl
3.8 KB
2d.5-ExtensionFinal.stl
1.4 KB
2d.6-BoltLong.stl
825.1 KB
