XT60 is often used as general purpose connector for low power devices and sometimes needed to connect XT60 to regular PVC 2pin 1.5 mm^2 cable.

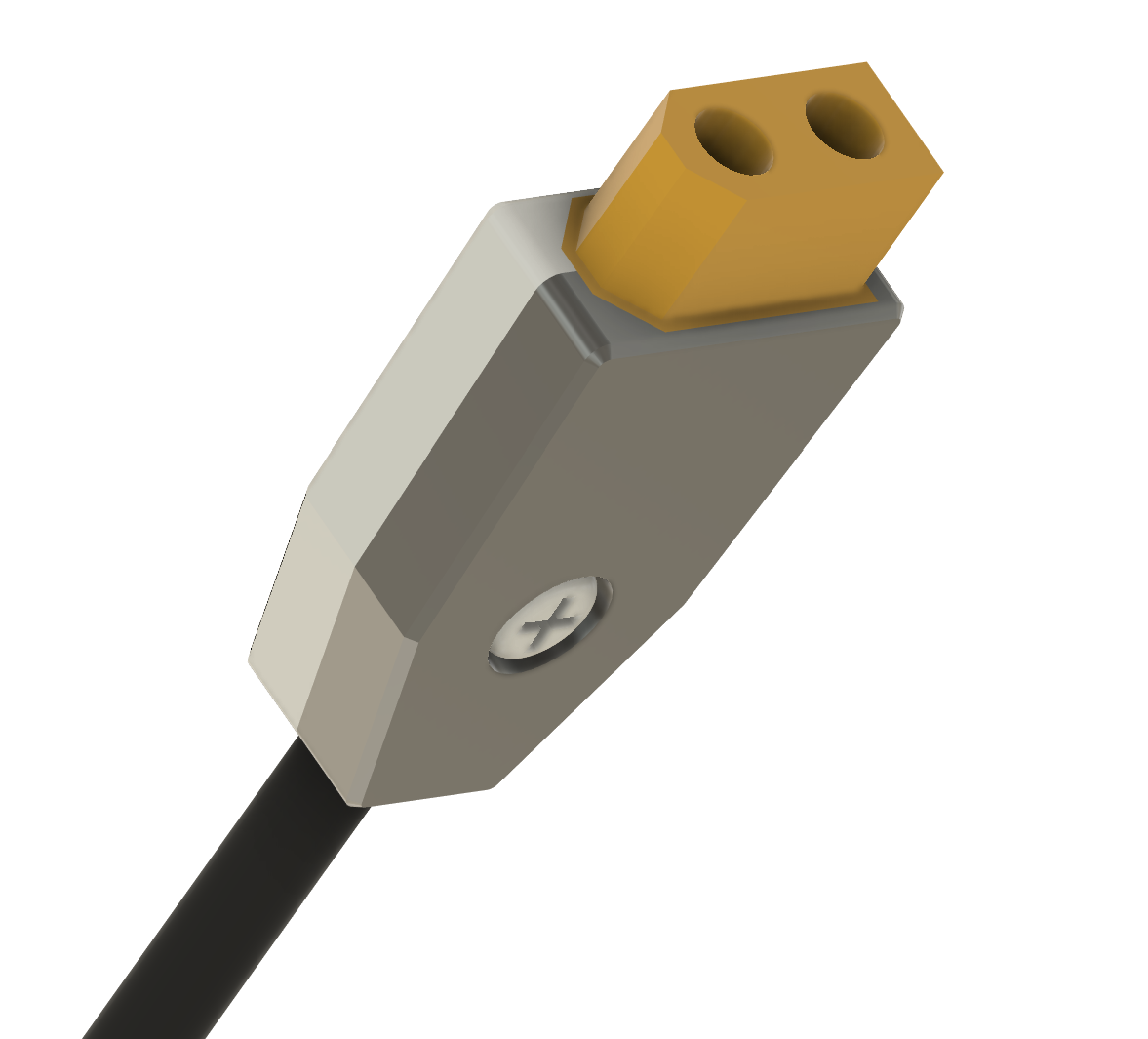

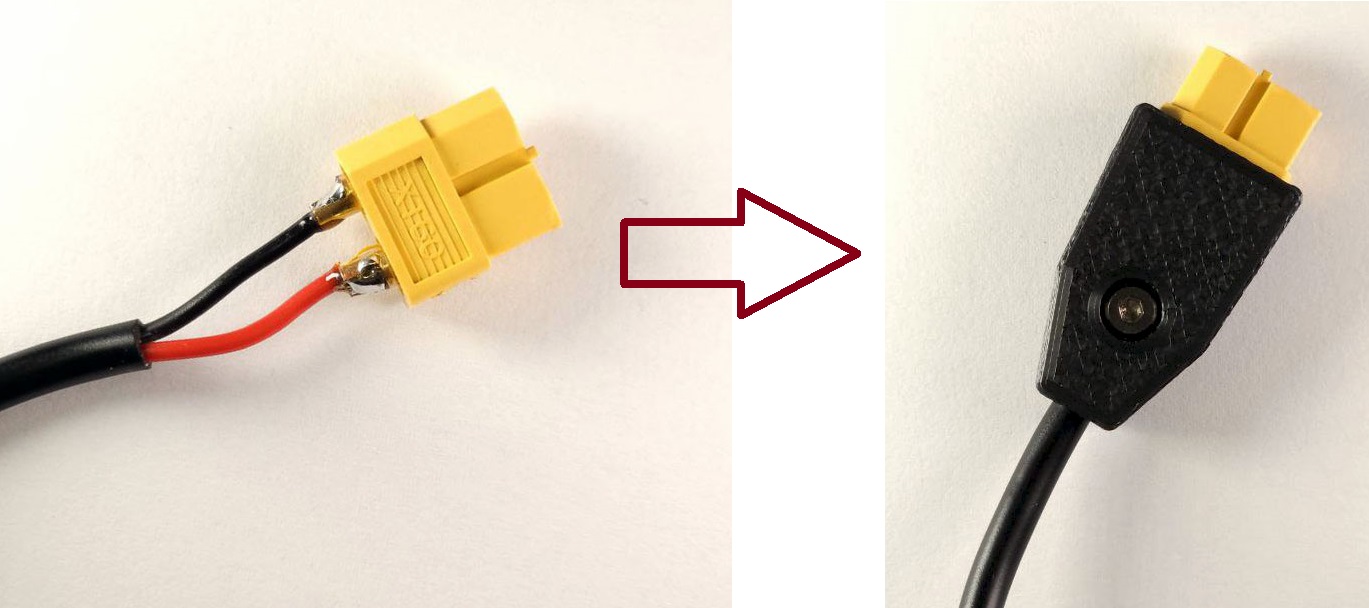

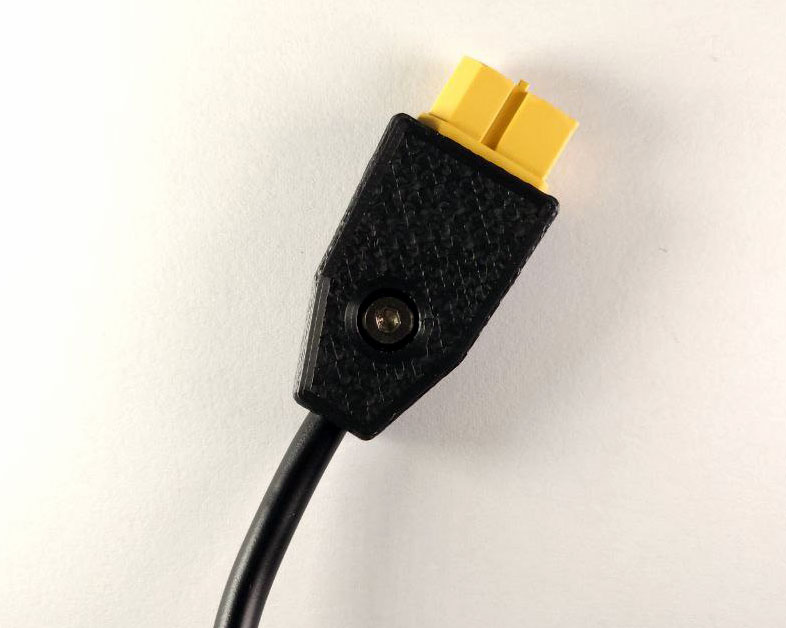

This adapter allows esthetically connect XT60 on the same way as it done in regular AC socket plug.

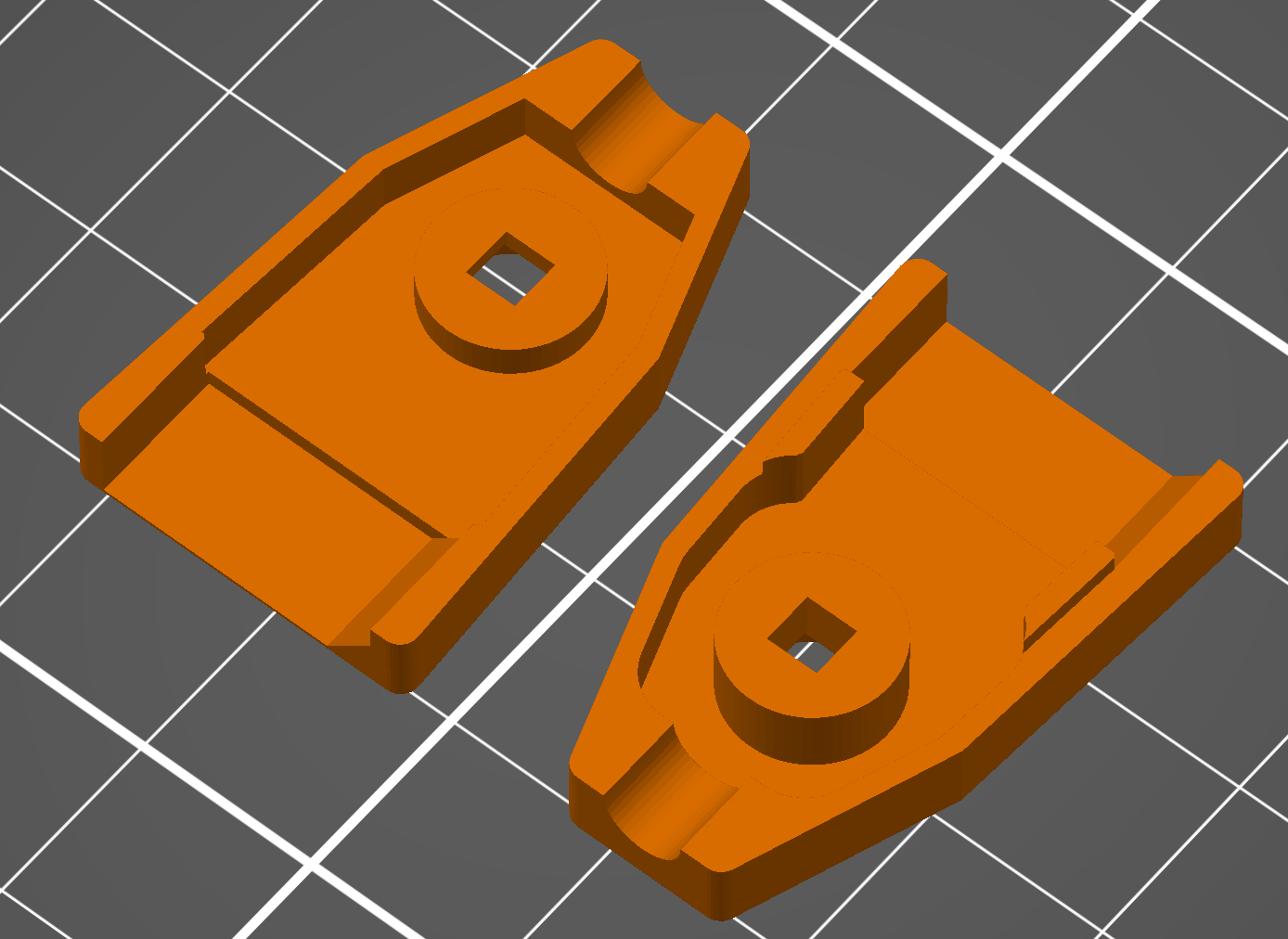

Designed to print without supports.

- Cable type recommended: flat 2 wire 1.5mm² PVC cable or round 4.5mm cable.
- Max current recommended: below 5A.
- Connector type recommended: XT60, non-genuine.

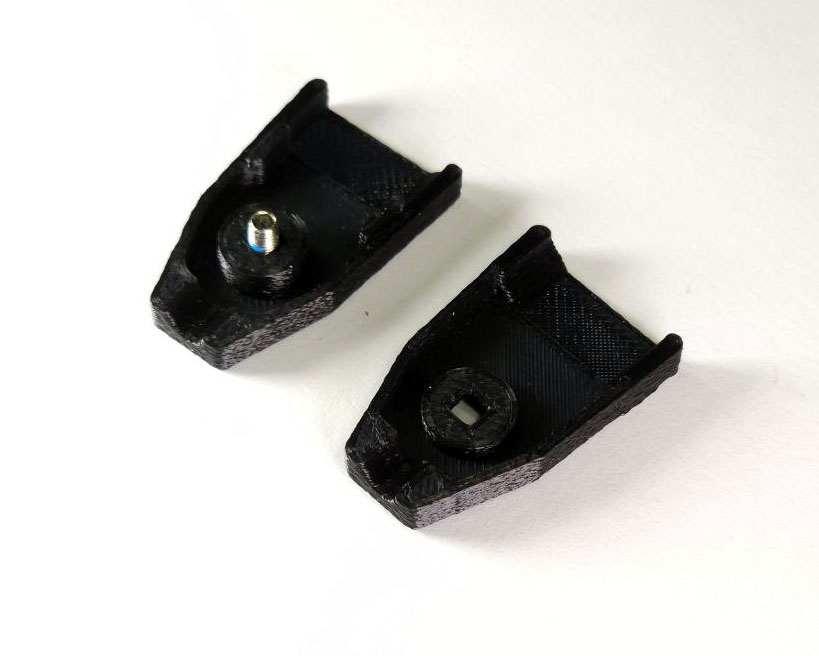

- Screw type recommended: M3 nut + M3 screw 10mm length.
- Glue type recommended: Akfix 705 (gel Cyanoacrylate).

Gen2 improvement:
- Added champfer to prevent elephant foot effect;
- Added fillets to make printing easier;
- Added pins for better positioning;

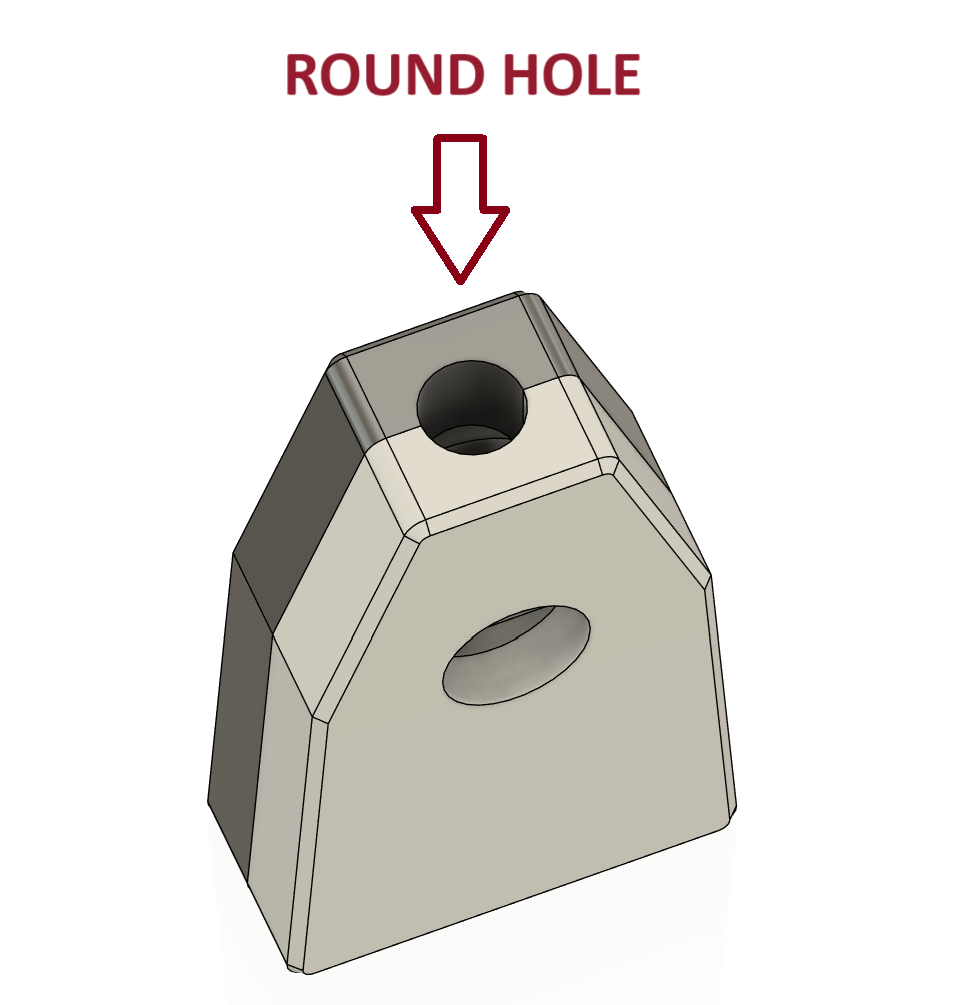

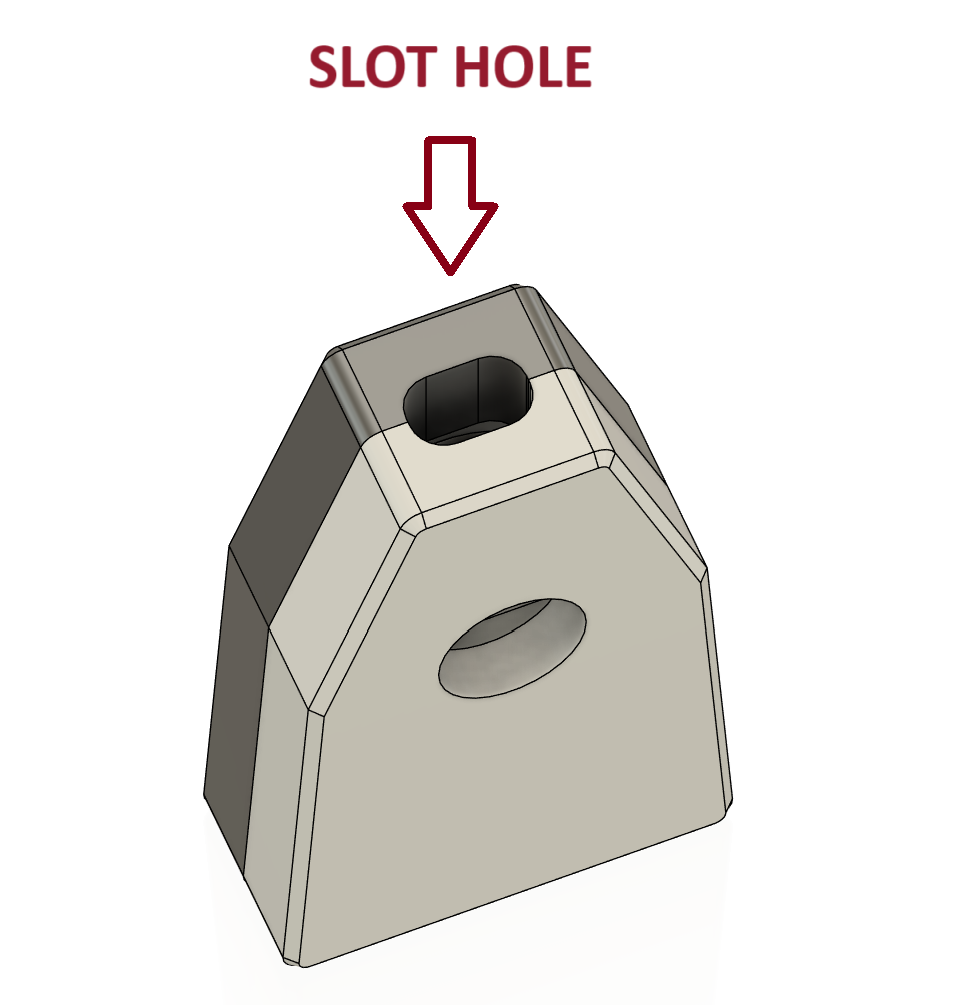

- Added round hole or slot hole option

As case designed to 1.5mm² cable, it's not recommended to push much current through it. Applicable for low power devices, with consumption below 5A.
Not compatible with genuine XT60U connectors, only with cheap ones.
Use glue to secure XT60 and cable inside case.

Gcode files provided made for PLA, FlyingBear Ghost6 or Prusa MK4.
