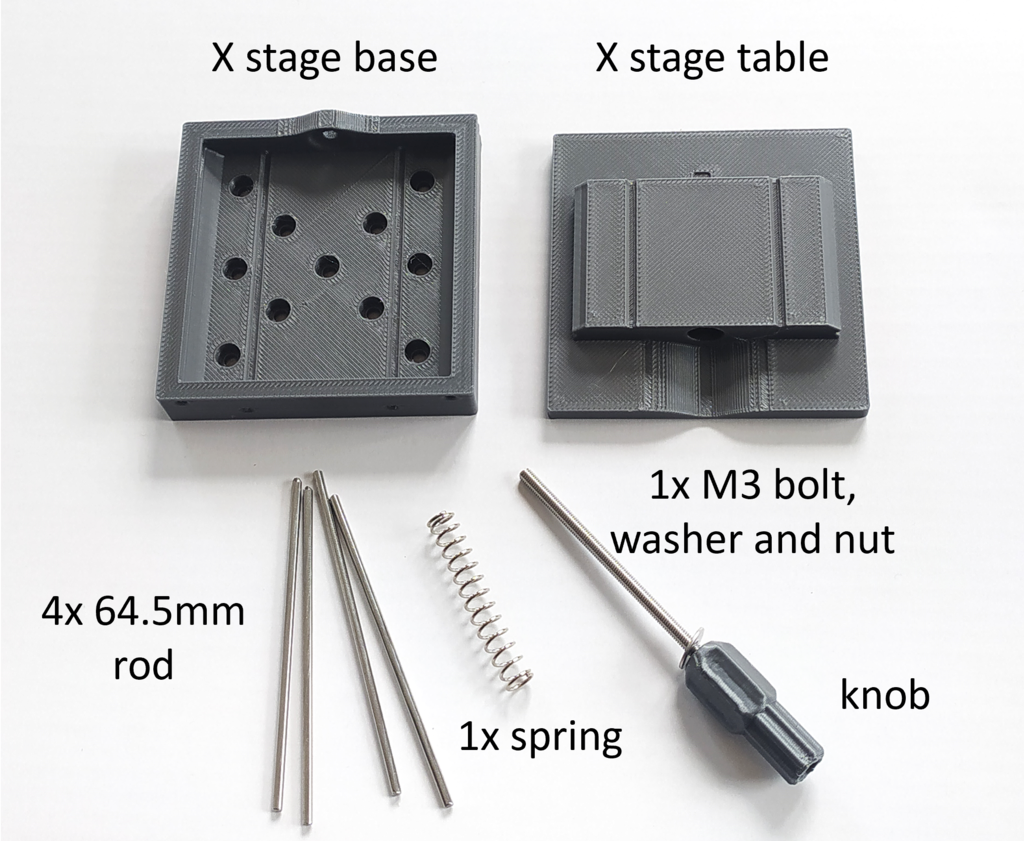

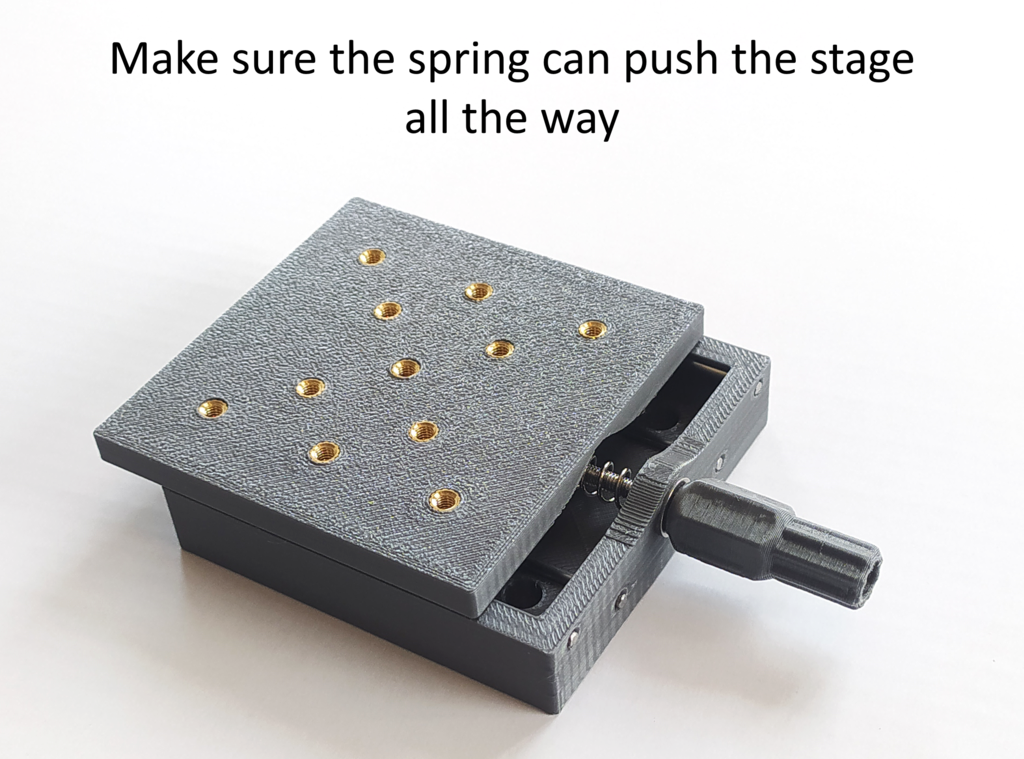

This design is a printed linear stage capable of a positioning accuracy in the order of 10 micron. Besides 3D printed parts it only uses 2mm metallic rods, a 40mm spring and a 55mm M3 bolt with nut and washer. The complete fabrication process is described in an instructable: [https://www.instructables.com/Build-a-3D-Printed-Linear-Stage/](https://www.instructables.com/Build-a-3D-Printed-Linear-Stage/)

I also designed a 2 axis translation stage, a transversal translation stage and two rotation stages. All 3D files will be available shortly:

[https://www.printables.com/model/903033-two-axis-printed-linear-stage](https://www.printables.com/model/903033-two-axis-printed-linear-stage)

[https://www.printables.com/model/903032-orthogonal-printed-linear-stage](https://www.printables.com/model/903032-orthogonal-printed-linear-stage)
