Descrição
Warning: The following may contain game spoilers. Read at your own peril.
If you want to print off the initiative tokens, Recommend printing off the monster labels twice so you don't have to keep removing them from the box.
Update 5-04-2025: Deleted Boss lid that was frosthaven specific. Any monster lid will work for the boss's.
Update 6-22-2024: Added Boss label
Update 6-18-2024: I still need to print off a few more of the monster box lids, but its basically done. Nothing left to do that would affect the layout of the organizer. Be aware, if you get the envelope X contents addon, there is not a spot for it in the organizer. They would just have to sit on top. After adding forgotten circles content to the organizer, there really isnt space to add envelope X. Feel free to remix if you have an idea on how to add it.

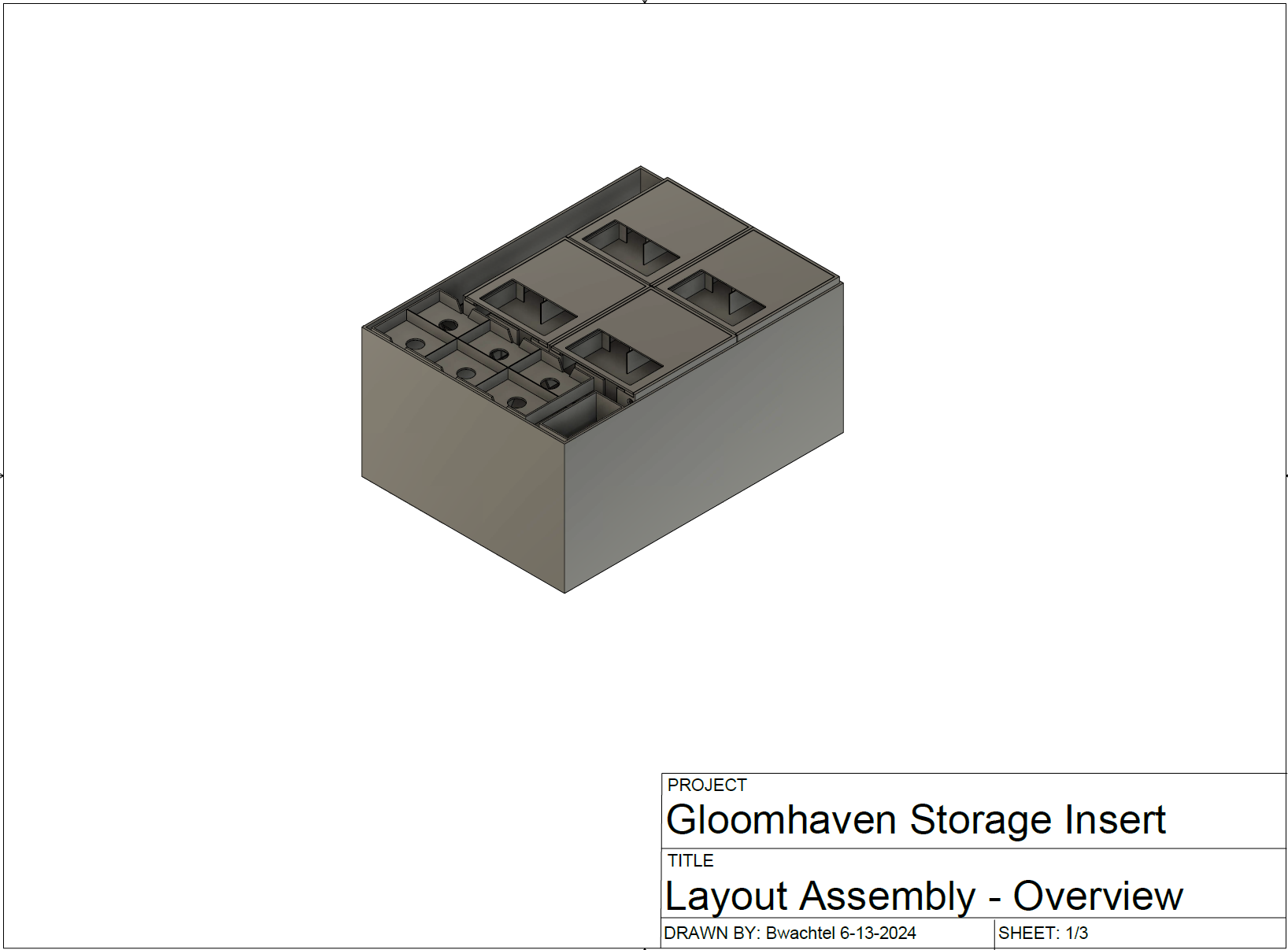

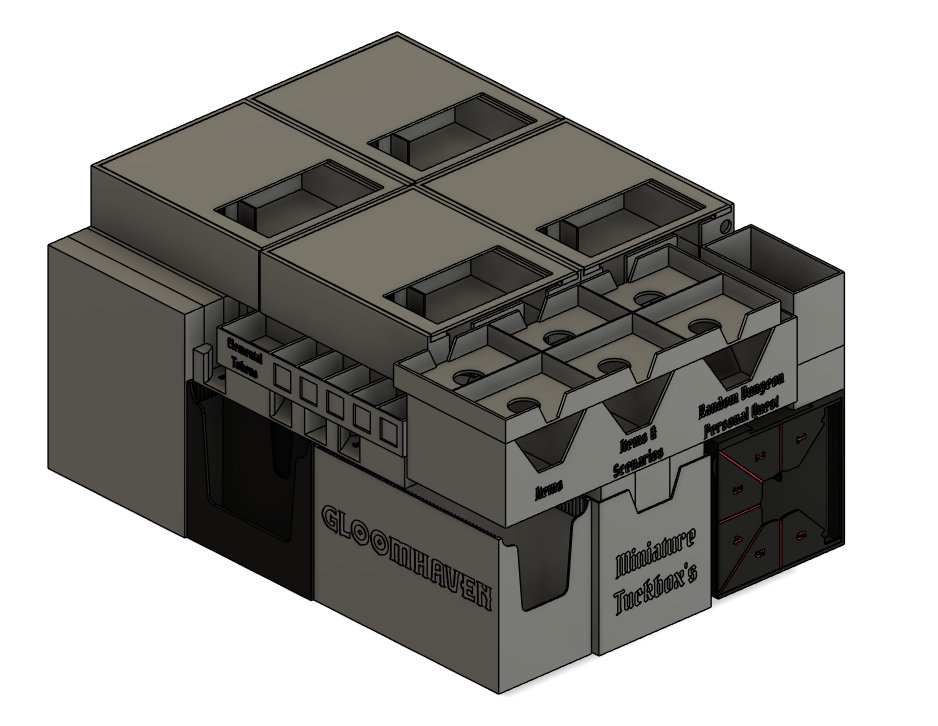

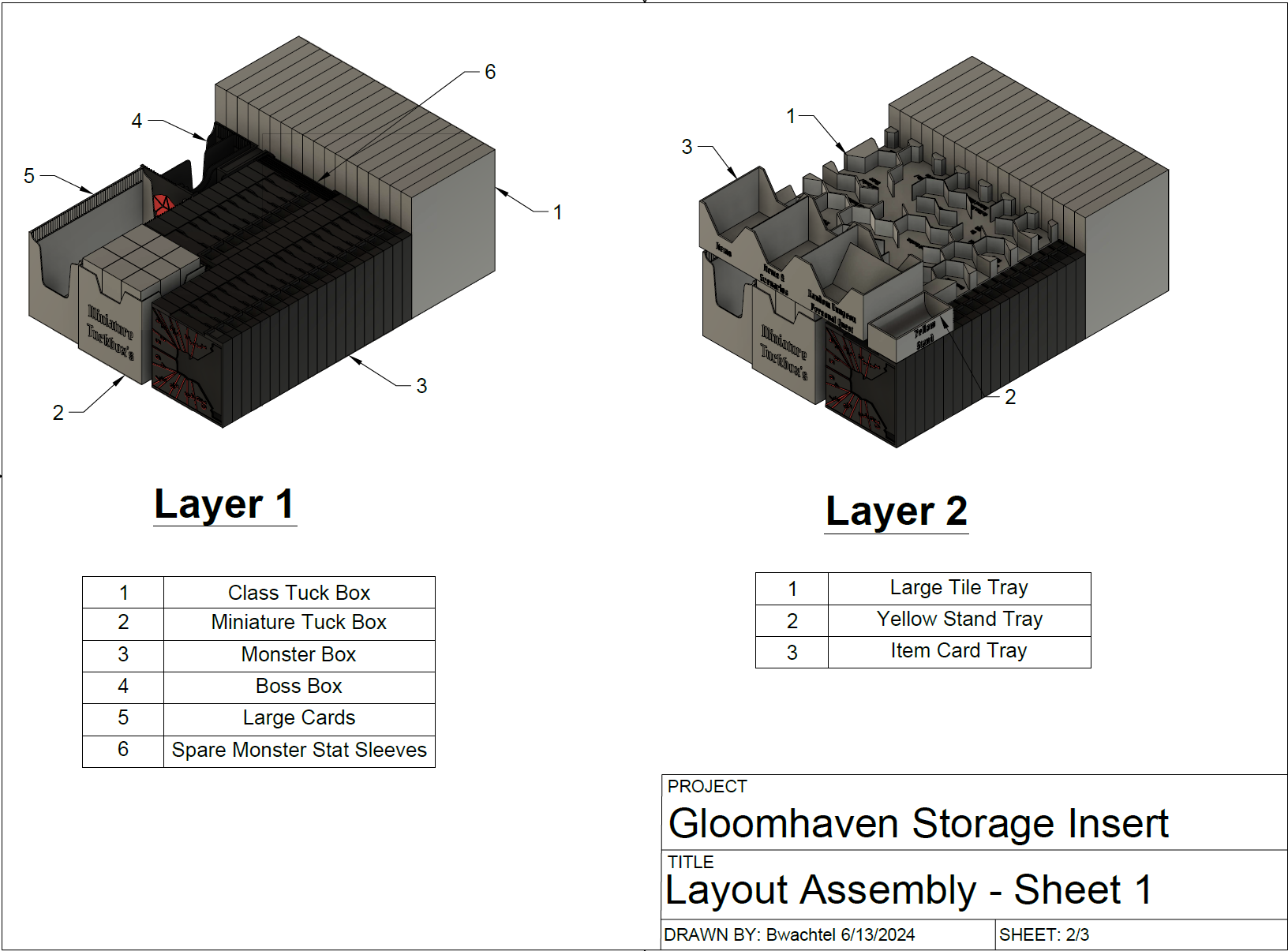

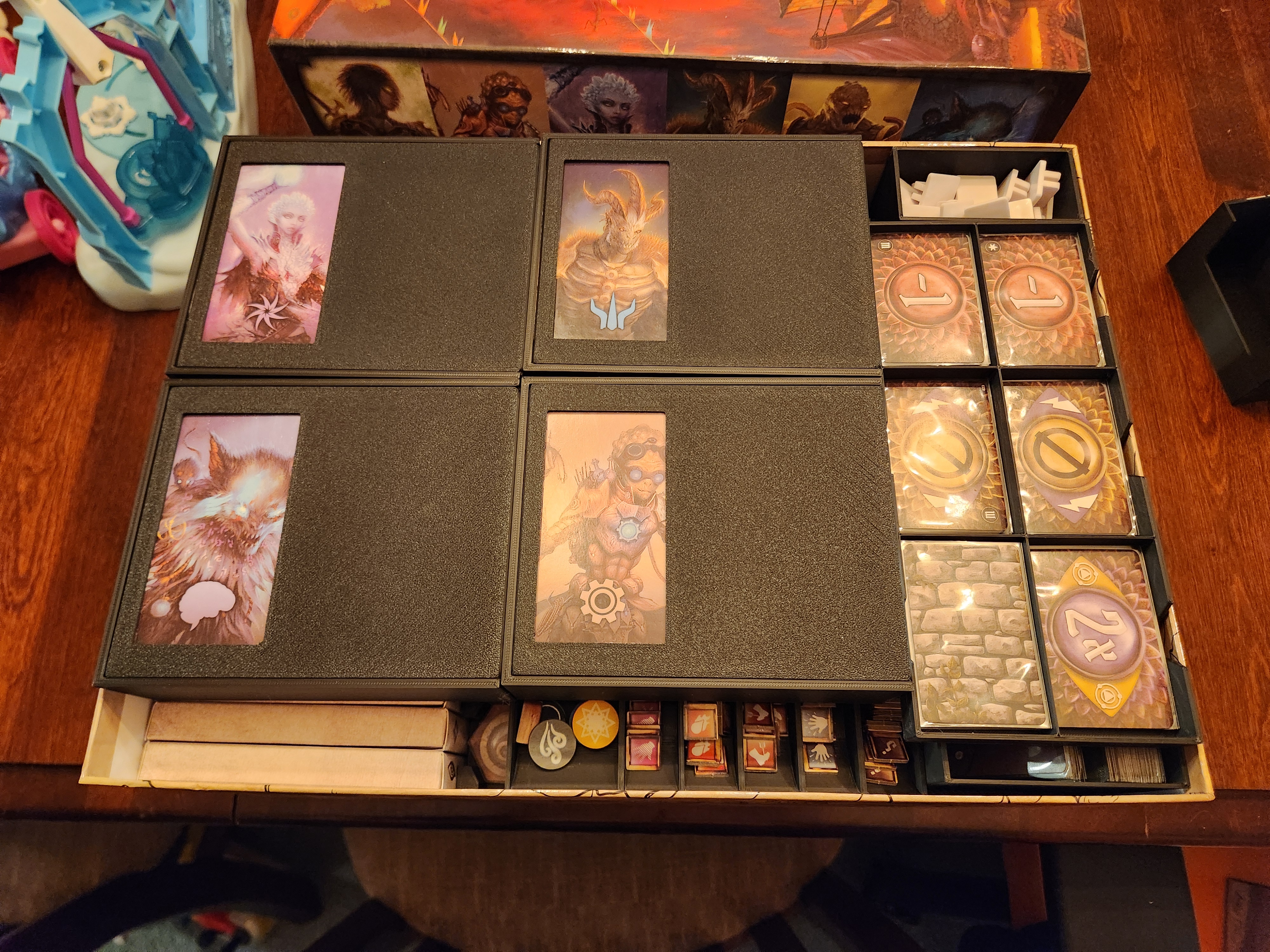

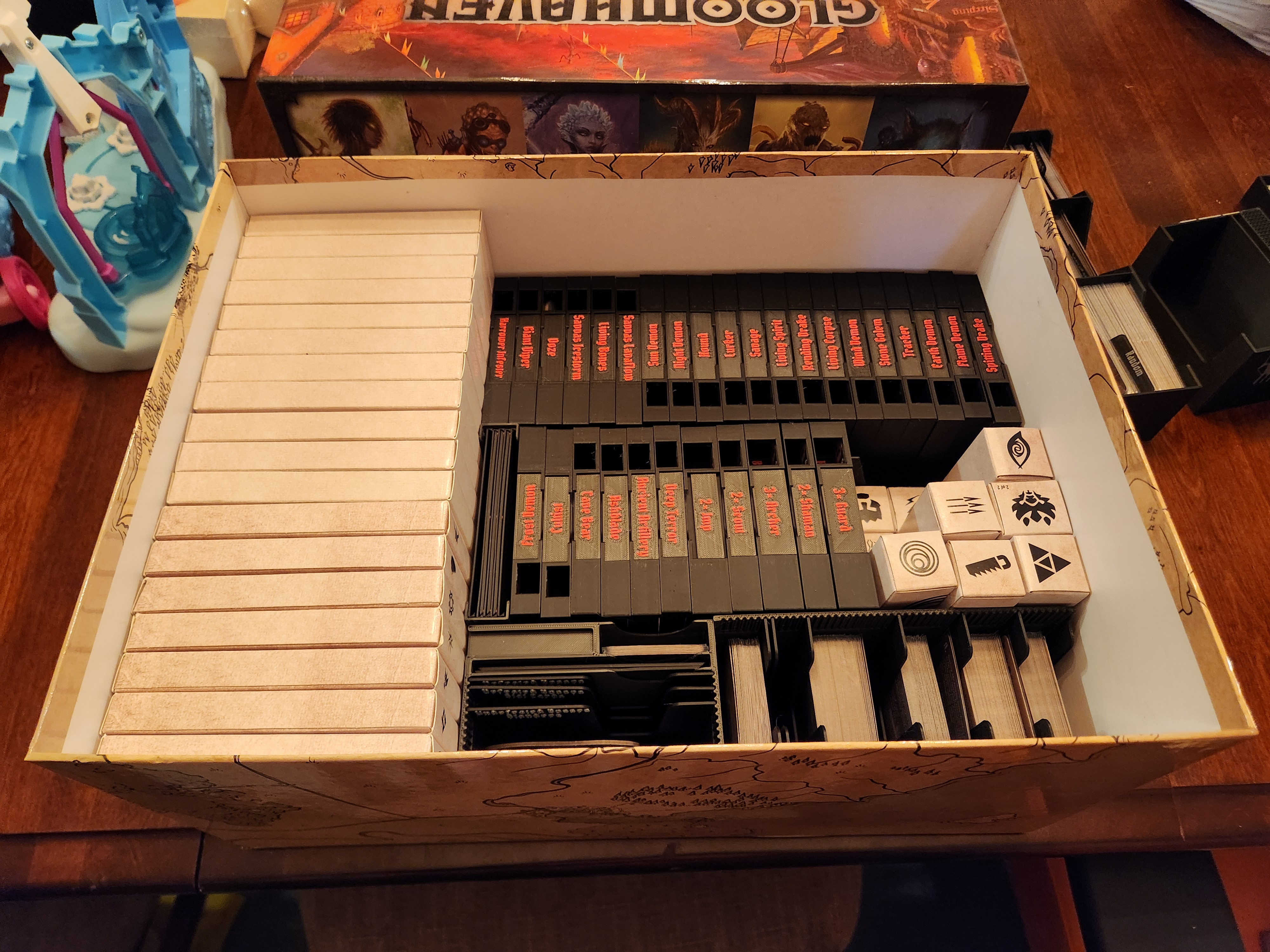

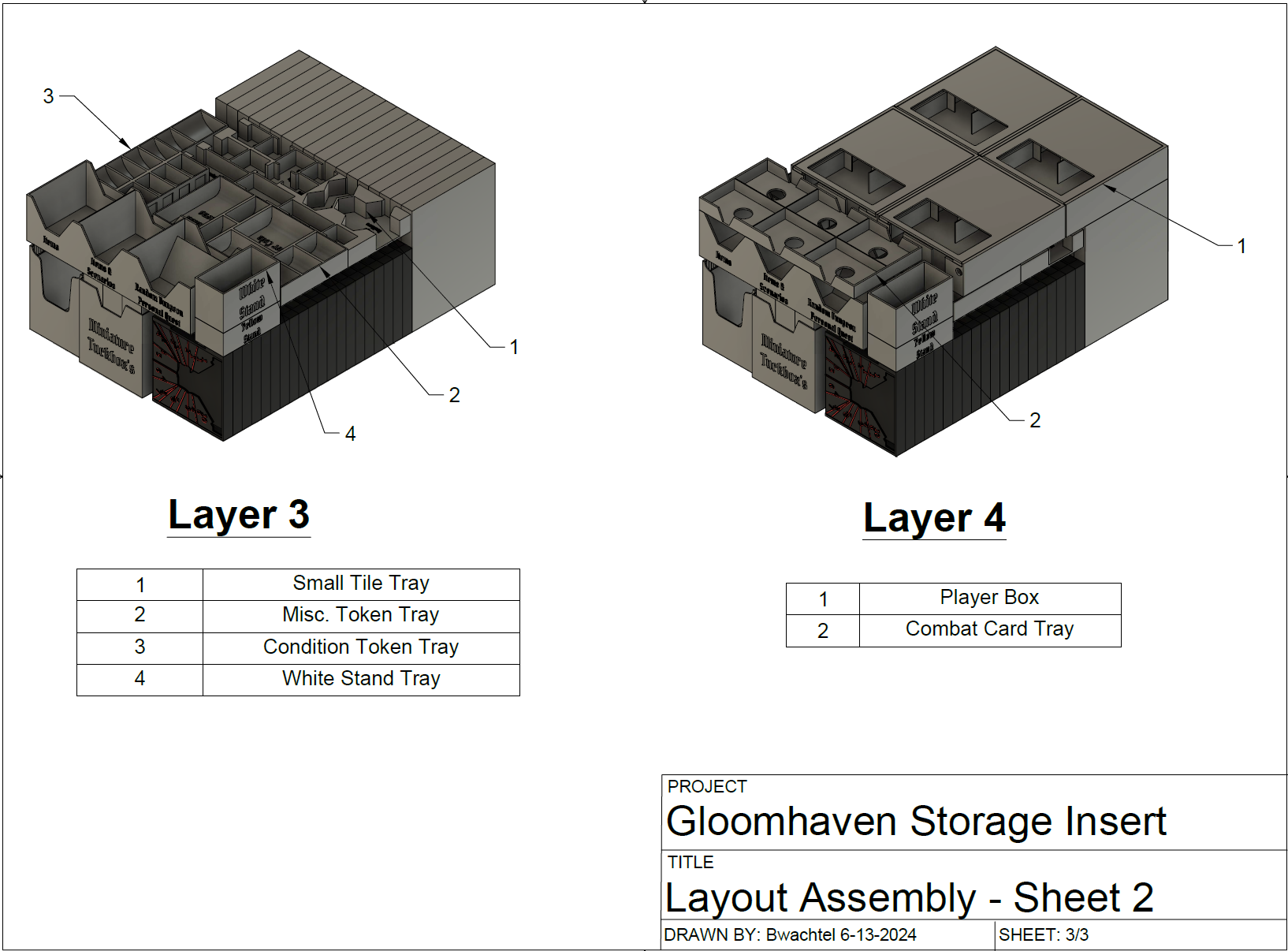

Updated 6-13-24: Updated the layout drawings and images. I did a test fit using my monster boxes from Leon_H's organizer and everything appeared to fit well. Im currently printing the monster box labels and after that i will need to print Extra monster stat sleeves, Boss box, and the monster lids. I will be uploading final pics of the completed organizer after that. At this time, i do not anticipate any further exits to the stl's.
Update 6-11-24: Updated Player box lid. When making my previous updates yesterday, a lip formed during my edits and didn't see it because it was hiding in the player box. Discovered it after my test print from last night. Corrected the model and have uploaded a new player box lid. I test fit the new Player boxes (without lid) with the combat card tray and the fit is much better.
Update 6-10-24: Tested the fit of everything and its looking good. The player boxes did push the combat card tray a little into the box edge, but it still fit. I did decrease the player box length by 1.2mm so 2.4mm if you account for both player boxes in series, this should help with the spacing. Im test printing the new player box to confirm the new lids still fit the character dashboard (measuring with calipers, there was about a 1.25mm excess so should be fine removing 1.2mm). Everything else though is fitting quite nice.
If you have downloaded any files, recommend checking dates of the files i uploaded to see if ive made any revisions since you downloaded. I did start adding notes to the STL's that ive updated, but only started doing that with the player boxes. will start doing that going forward.
The layout drawings are still out of date and i will be uploading new ones in the next day or two. Feel free to leave a message if you have any questions!
Update 6-9-24: Still printing the organizer and making modifications as issues arise. Today i added Class and a few monster initiative tokens. Also updated the small tile tray.
Update 6-8-24: Keep finding little things here and there that need correcting or missing. Major items are the white and Yellow stand boxes, The Condition token tray, and the combat cards tray. Recommend taking a look at the dates on the STL's if you've already downloaded. Also i have been changing all of the text to be Pirata One to match gloomhaven text. I will be uploading more changes today, but they will be just updating the text and updating the layout drawings. Im continuing to print the project and will make updates as i run into issues. Will be posting completion photos once im done.
Update 6-6-24: Was missing “Locked cards ” dividers for the large card tray, the "single monster stat card" with accompanying “Monster stat card Tray”, the “Item Tray” Dividers and finally was missing a tray for the monster standee bases and elemental tokens. All of the files have been uploaded and layout overview PDF's updated. I am currently in the process of printing out the organizer to test fit, but i am optimistic that everything will fit.
Update 6-4-24: All files should now be uploaded. No files have been print tested yet, so print at your own risk. If you do print test, feedback would be greatly appreciated.

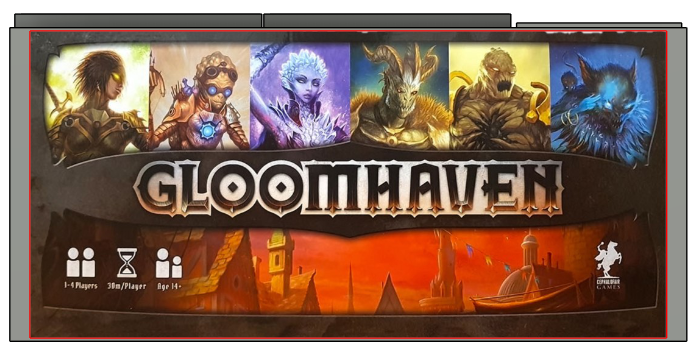

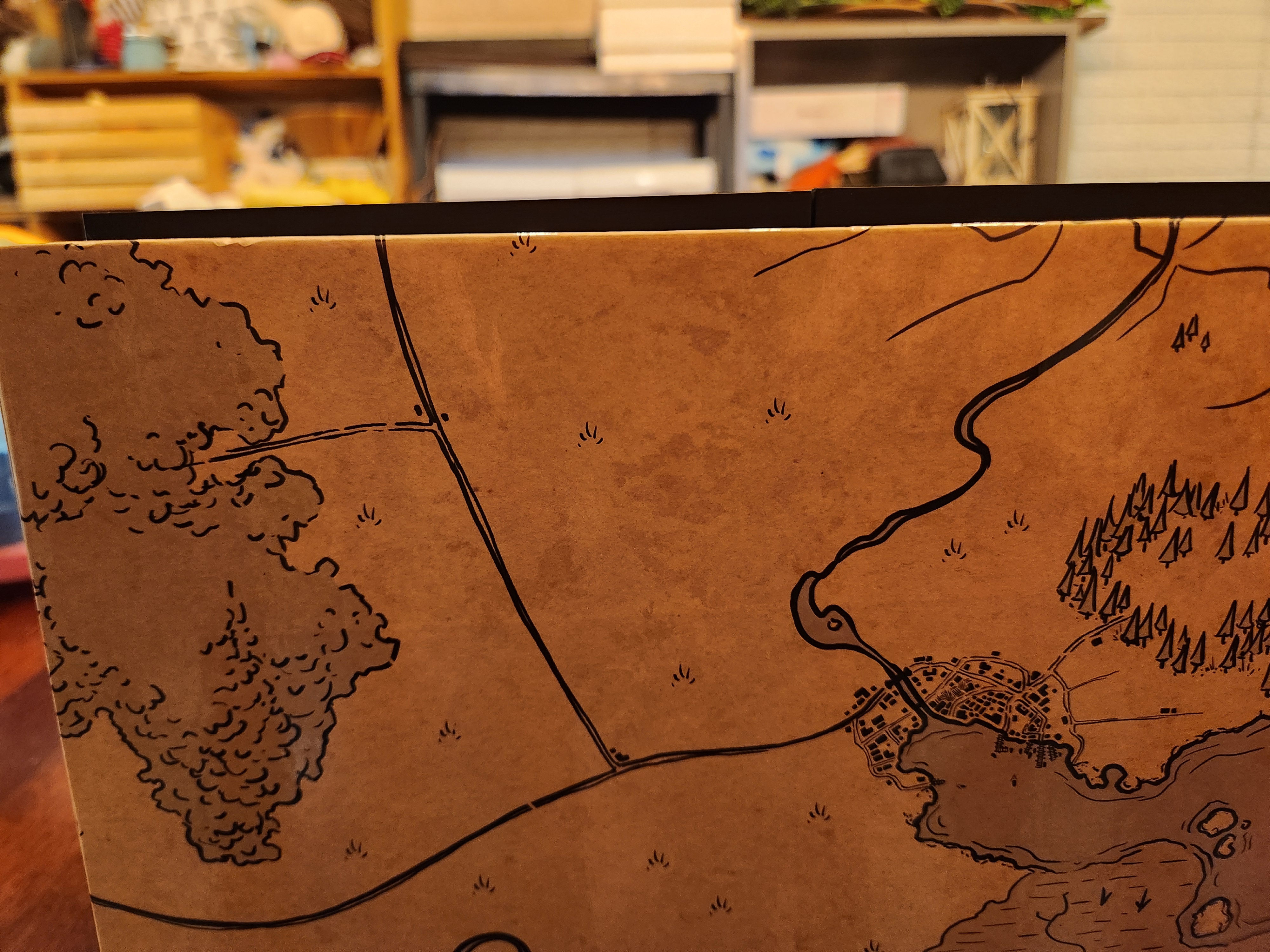

Original Post: This projects goal is to fit all of gloomhaven into the original box with minimal lifting to the lid. I based this design off a few other designs i have found over the years, see below for credits.
This is my first iteration of the design and i have not printed it to test yet. Feel free to print it and provide feedback. I will post updates here as i have the time and filament to print test the parts. Looking in 3d, everything does seem to work, but im sure real life will say otherwise.
Currently I did not add text for the rift tokens but they easily fit in any of the open spots in the large terrain tray.
The bulk of this design came from Leon_H including the following. [https://www.printables.com/model/437214-frosthaven-insert](https://www.printables.com/model/437214-frosthaven-insert)

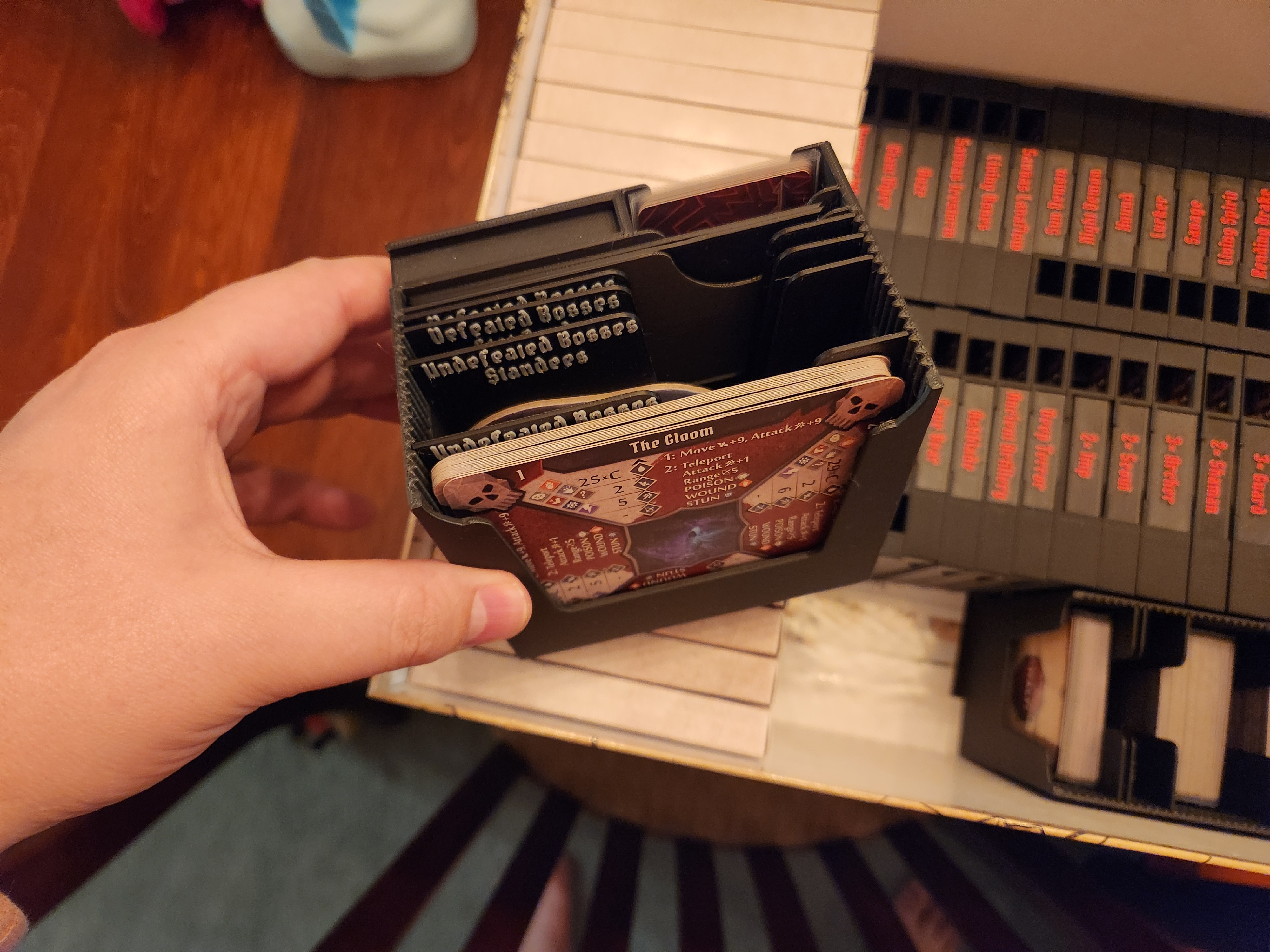

- Monster and Boss Trays

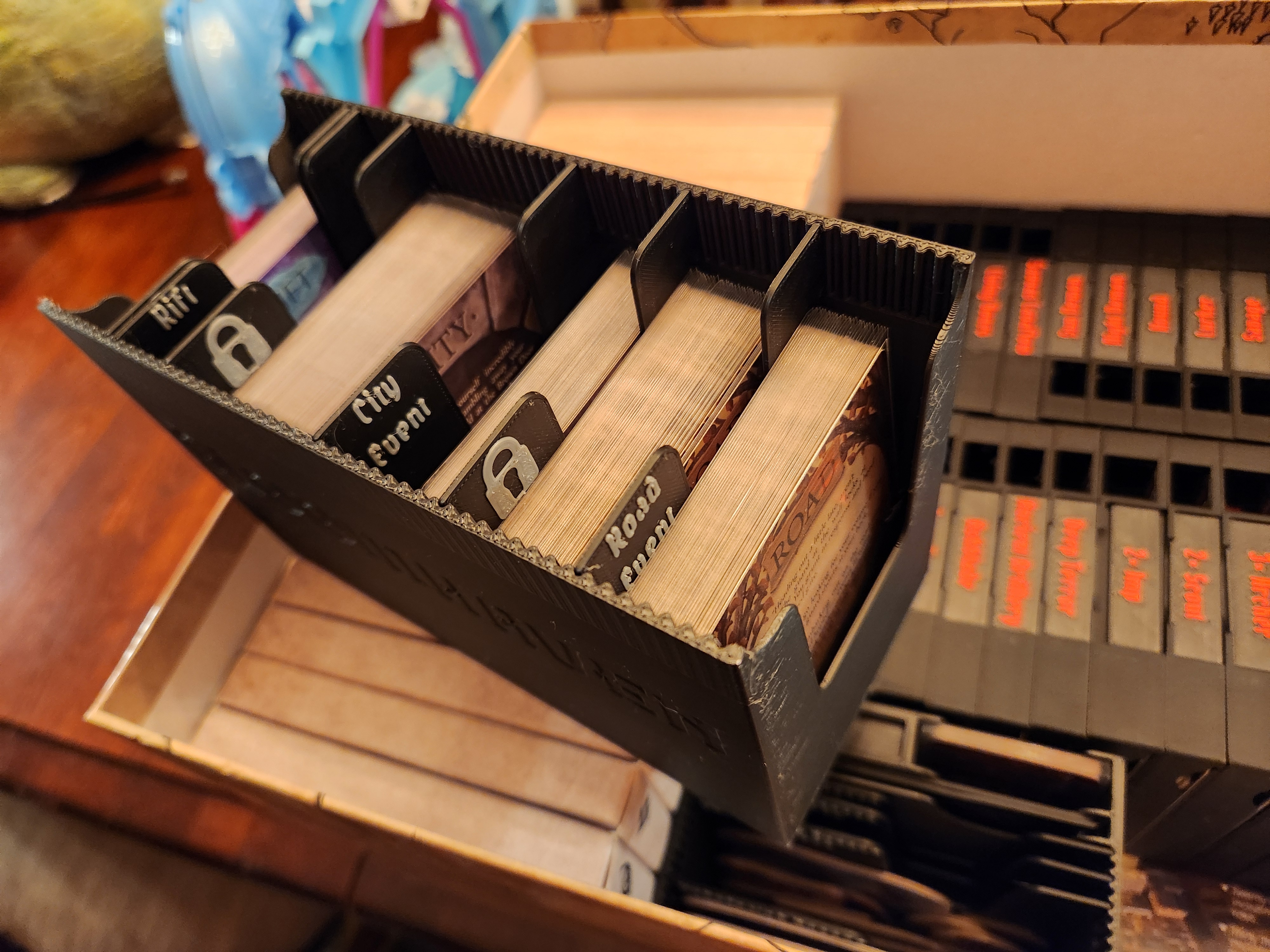

- Large Card Tray
- Condition Token Tray

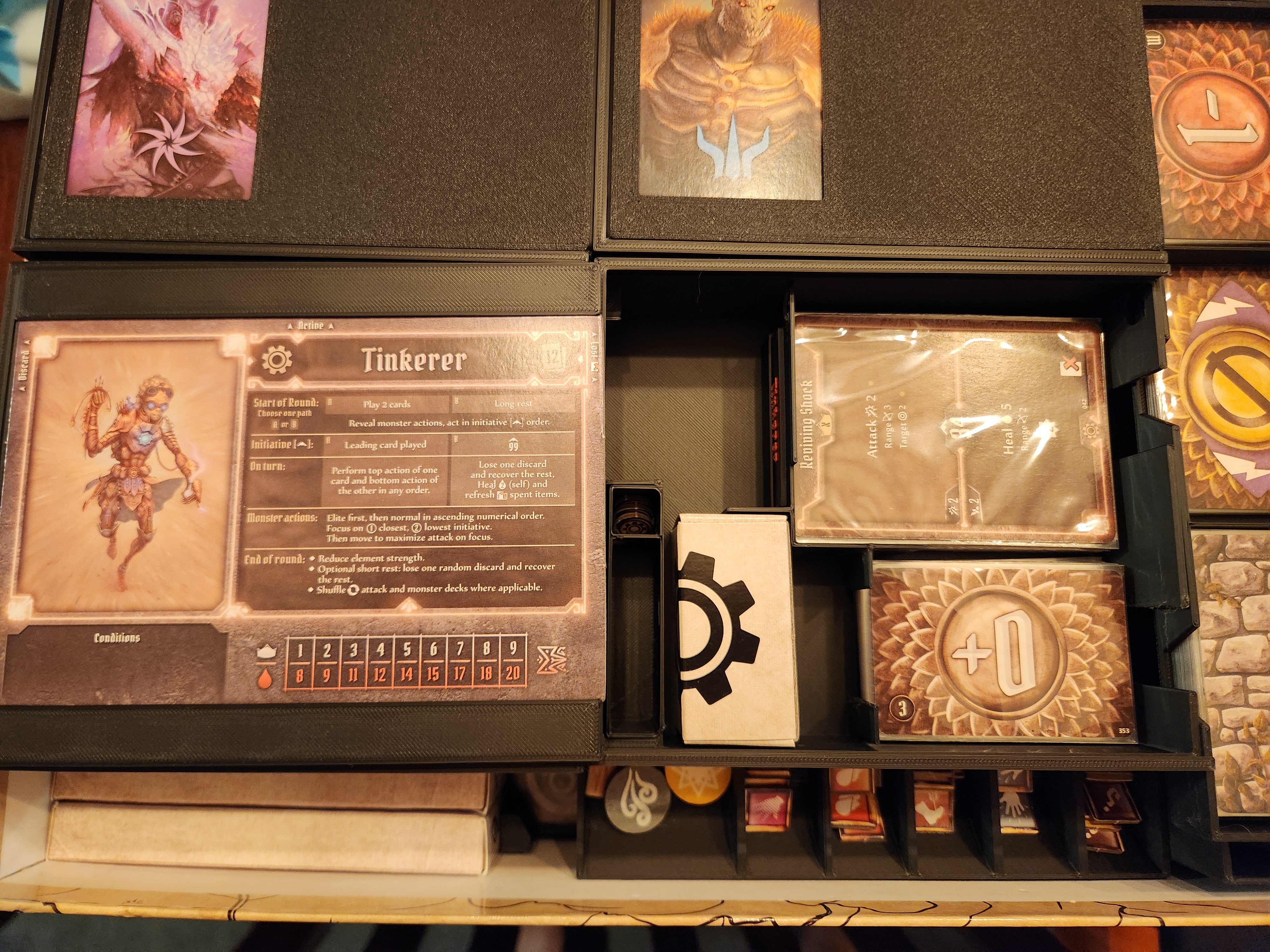

- Player Boxes
The following component was remixed from westenskow [https://www.thingiverse.com/thing:3483482](https://www.thingiverse.com/thing:3483482)

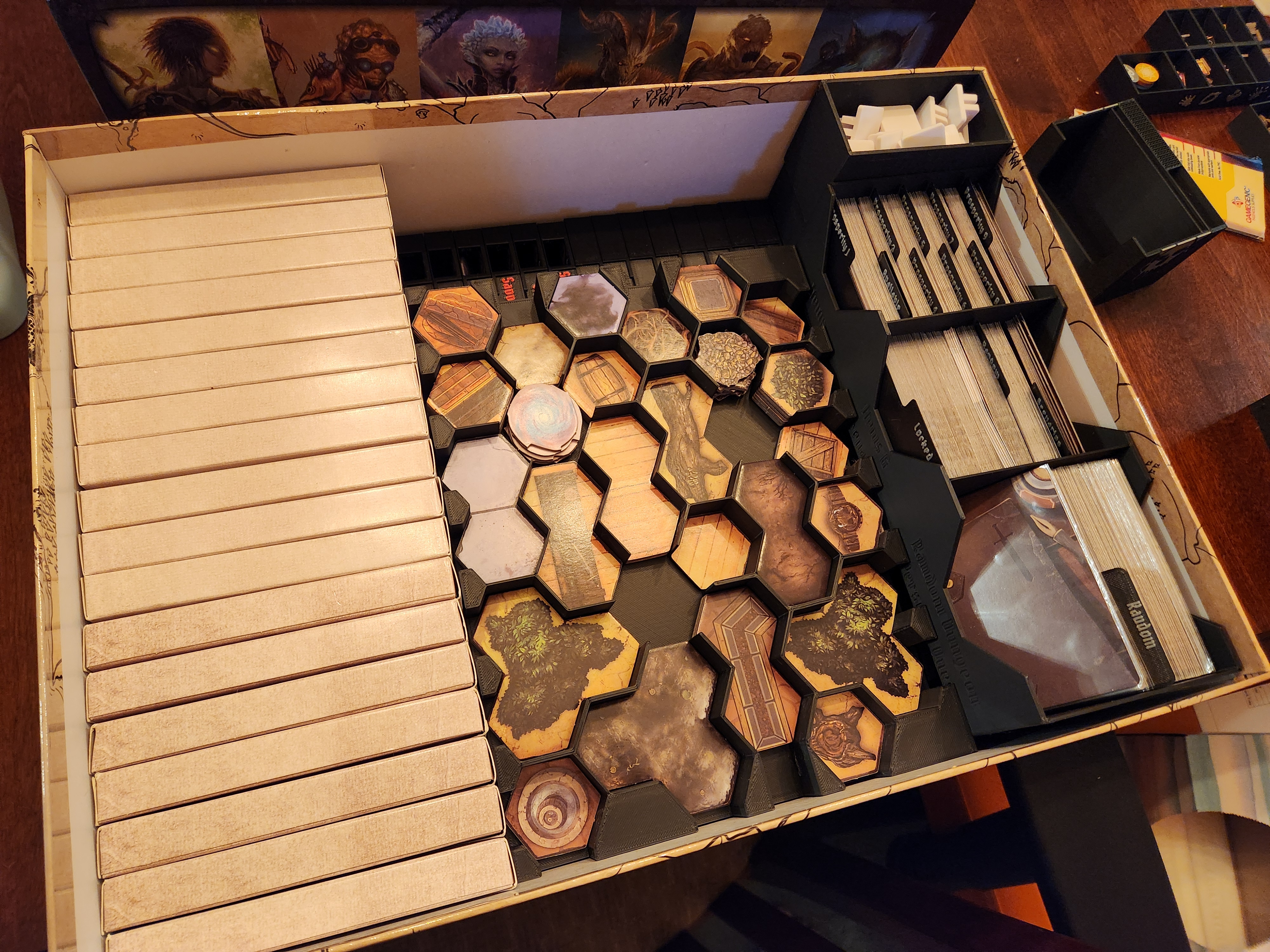

- Large Terrain Tray
- Small Terrain Tray

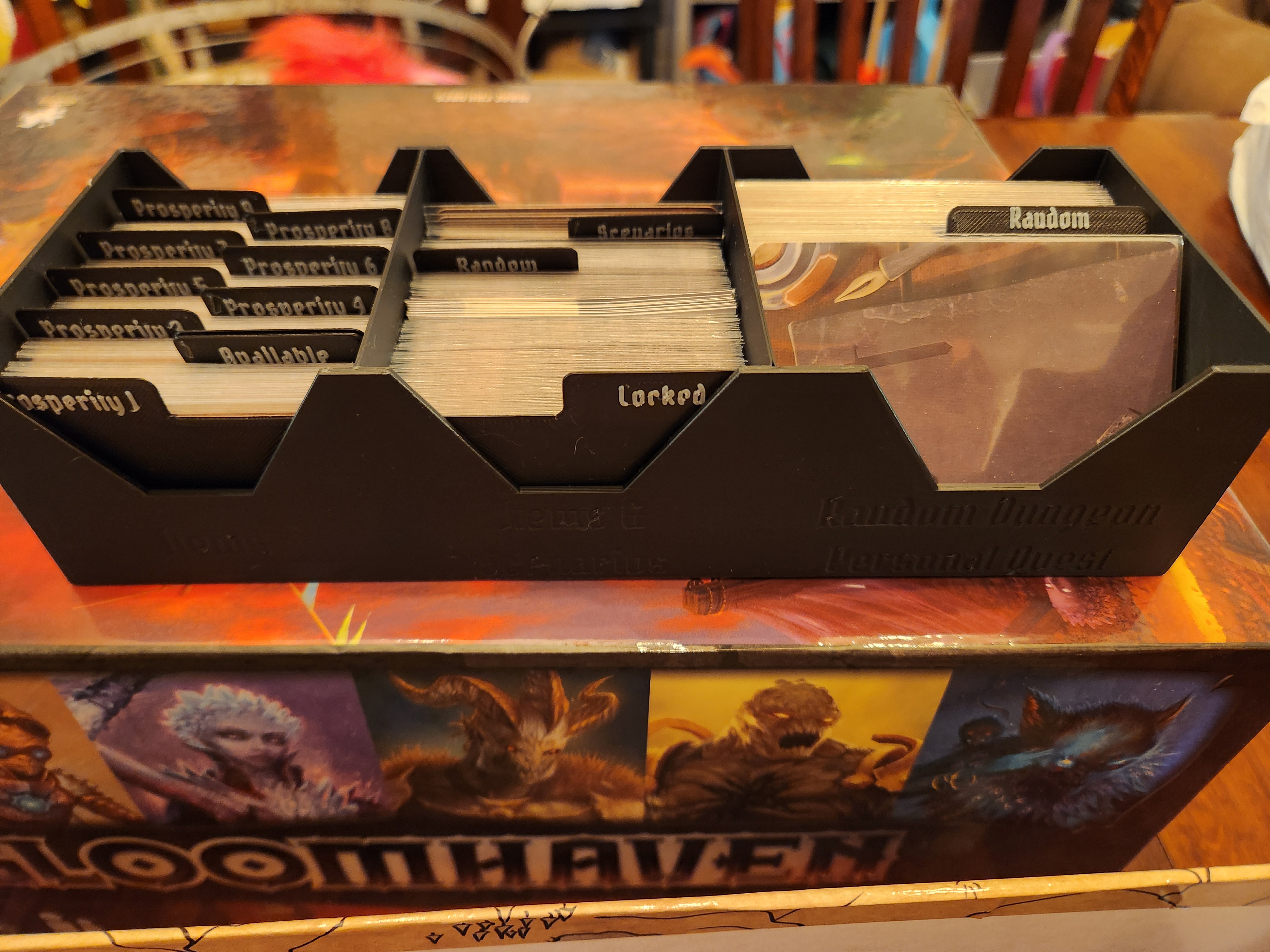

- Item/Random Dungeon/Personal Quest Tray
- Combat Card Tray
- Misc. Token Tray
