Modelo 3D Layer Height Test Cube (20x20x20) por Khale_XY no Printables

Descrição

What is it?

This is a collection of test cubes that are marked with each respective layer heights. I have also included a blank cube in the collection if you want to test a specific layer height that isnt included, simply add a negative text to the same spot when you print to identify the layer height afterwards.

This cube will also cover stringing, holes, text clarity, and a 45 degree overhang. You can scale the model as well if you want to test quality for larger prints.







Print Settings:

You will need to change the layer height of each cube as engraved on each cube (it is also in the name of each one).

I'm using Orca Slicer depending on what slicer you are using, it will differ. I also printed these with an Elegoo Neptune 4 through a 0.6mm nozzle, so your results will vary depending on the nozzle & printer you are using, as well as your calibration/print settings.

In Orca slicer: Under Process > Objects > Select each object (cube) > Change Layer Height.
After you adjust the layer height, click Arrange All Objects option > Auto Rotate > Arrange.

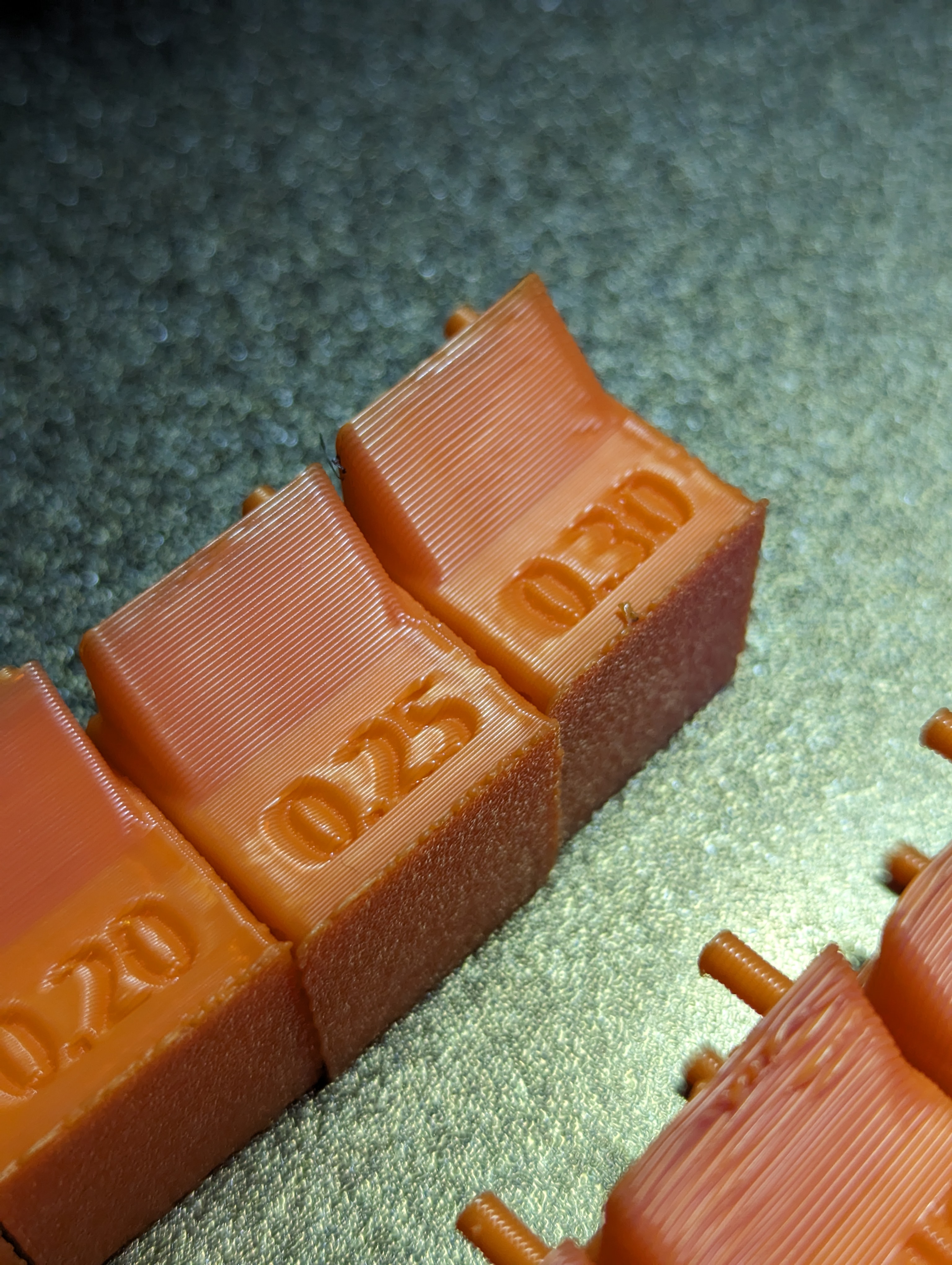

Result:







Hope I didn't miss anything.

Good luck!



Printables

Layer Height Test Cube (20x20x20)

Publicado em 31 de mai de 2024

5
Curtidas
40
Downloads
Categoria Test Models
Tags
calibration cube xyz 20x20 hole layer stringing 20x20x20 height
Licença Creative Commons — Attribution — Share Alike
Arquivos (9)
Calibration Cube Layer 0.20.stl 174.4 KB
Calibration Cube Layer 0.35.stl 183.2 KB
Calibration Cube Layer 0.40.stl 167 KB
Calibration Cube Layer 0.15.stl 163.7 KB
Calibration Cube Layer 0.50.stl 177.4 KB
Calibration Cube Layer 0.45.stl 165.5 KB
Calibration Cube Layer 0.30.stl 184.5 KB
Calibration Cube Layer 0.25.stl 172.9 KB
Calibration Cube Layer BLANK.stl 112.9 KB
