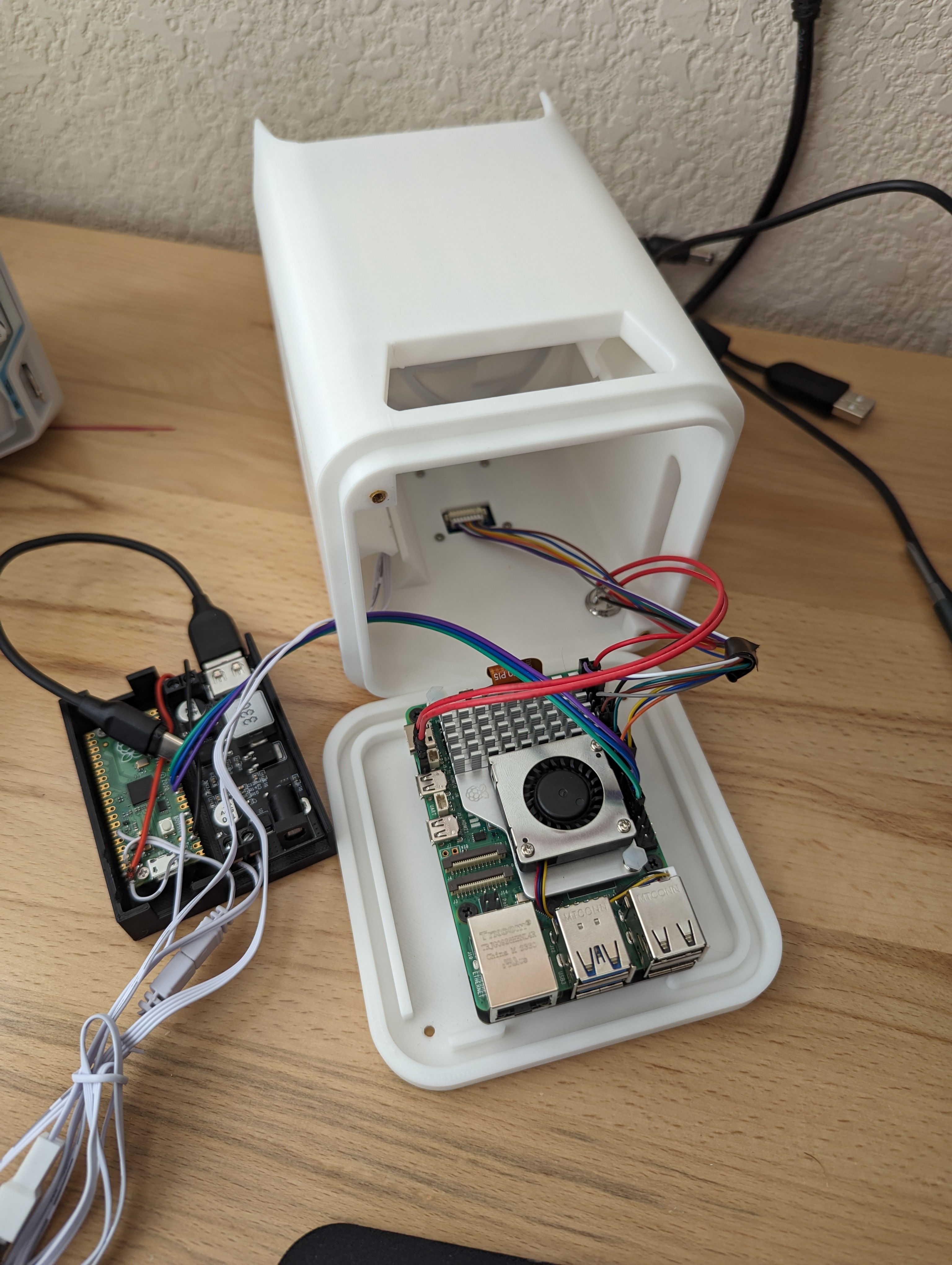

This is a Raspberry Pi 5 Server Case. I received inspiration from the “White Tower” in the Lord of the Rings. It uses 2.5mm inserts to attach the Top of the Tower to the Base and supports SSD Hats. The Raspberry Pi Board is mounted to the base using M2 screws and spacers. There is a little bit of soldering required if you want to use the Power button. You will need a 12v Power supply for the fan. I recommend printing upside down for best results.

Versions

1.

• Pi5-Tower-Top-v1 (LCD Screen and Power Button)
• Pi5-Tower-Base

2.

• Pi5-Tower-Top-v2 (No LCD Screen/No Power Button)
• Pi5-Tower-Base

3.

•  Pi5-Tower-Top-v3 (No LCD Screen)
• Pi5-Tower-Base

External Dependencies

• PC Fan Controller (I'm using a Pi Pico to control the Fan speed and RGB lights)
• Soldering Station
• 12v Power Supply (Choose between a DC step down voltage regulator or two separate power supplies)

Hardware

• 1.69 Inch LCD IPS Screen
• Momentary Push Button
• M2 Countersunk Screws / Brass Spacers (optional)
• M2.5 Countersunk Screws and inserts

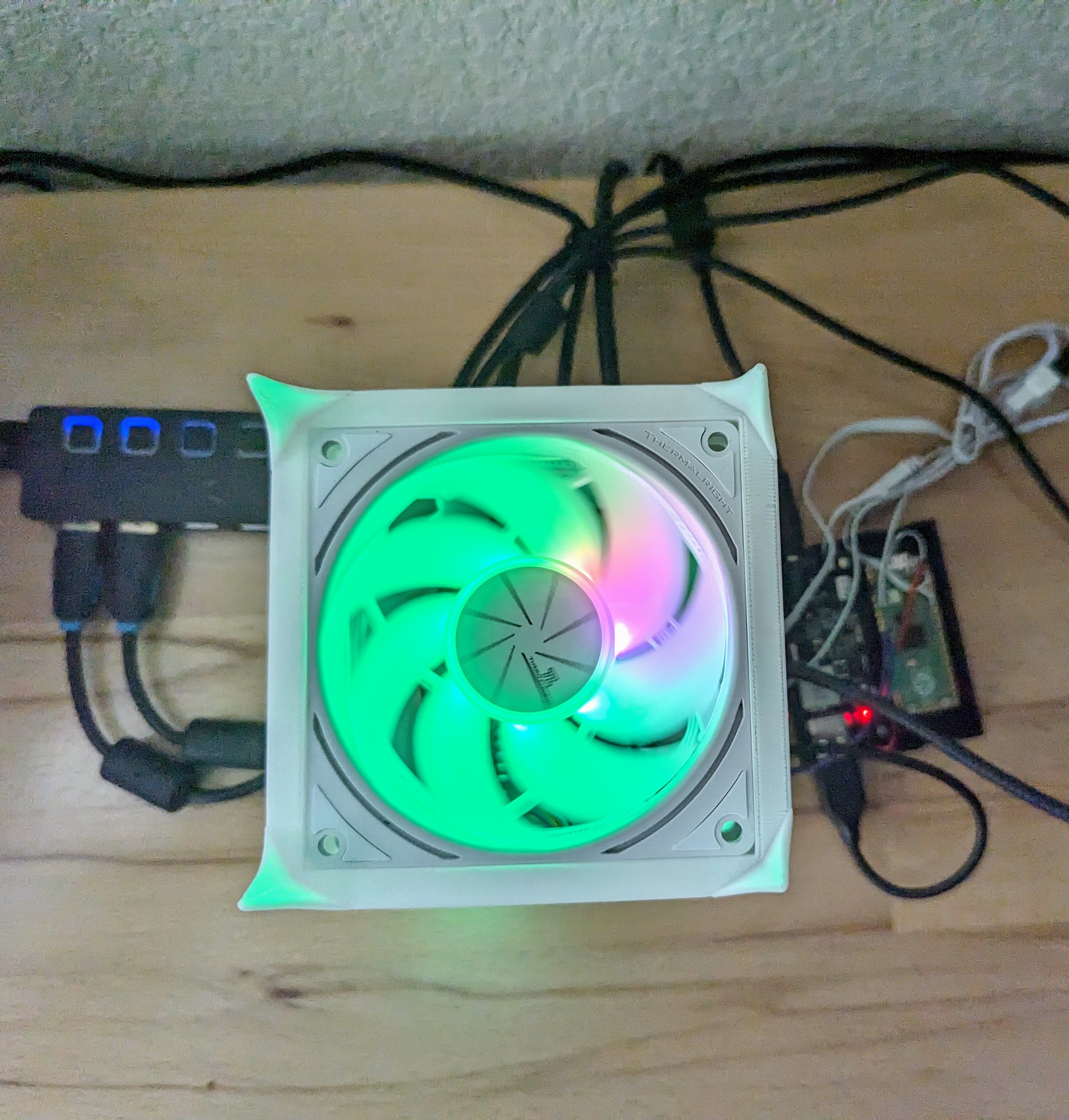

• Thermalright TL-P9W-S CPU Fan ARGB

Optional

• Geekworm X1002 PCIe M.2 NVMe SSD 2280 for Raspberry Pi 5

Supports: Yes

Filament: Tecbear White PLA

Nozzle: 0.4mm
