Puzzle Cube with Box

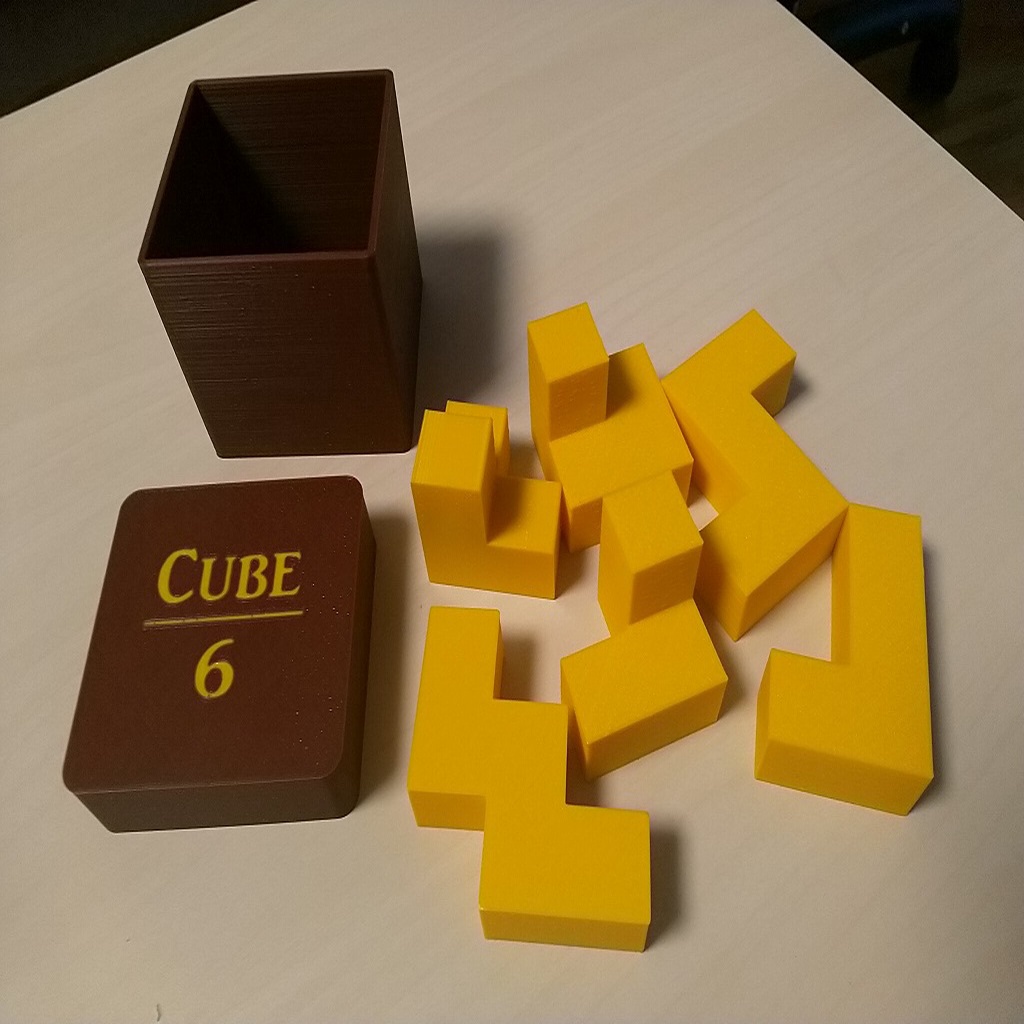

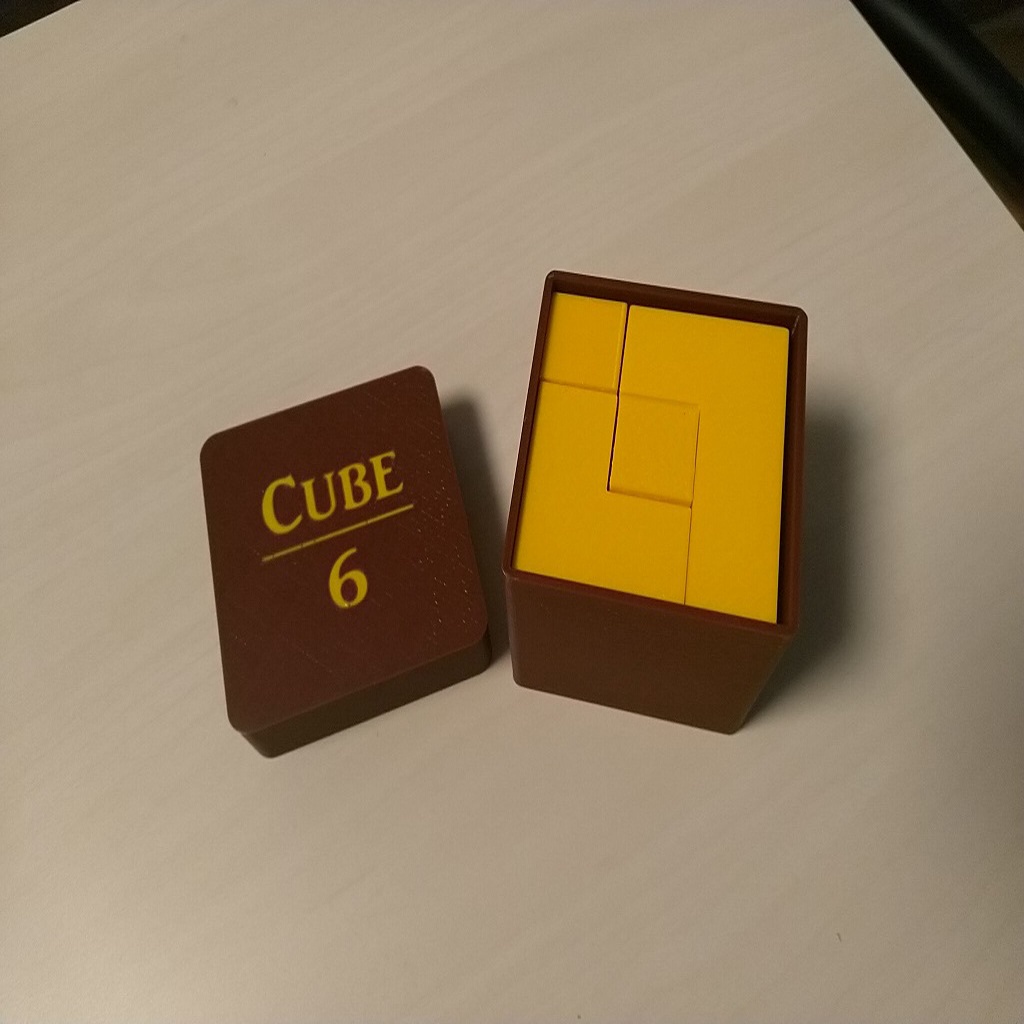

This is a 6-piece 3x3 puzzle cube I made for my kids, with a nice box and logo on the lid for multicolor printers. There's also a file for a lid without logo for single color printers. Dimensions of the cube are 6x6x6cm.

Some adults struggled to solve it but the kids figured it out after some minutes. I won't post the solution therefore unless someone absolutely cannot solve it.

Print Instructions

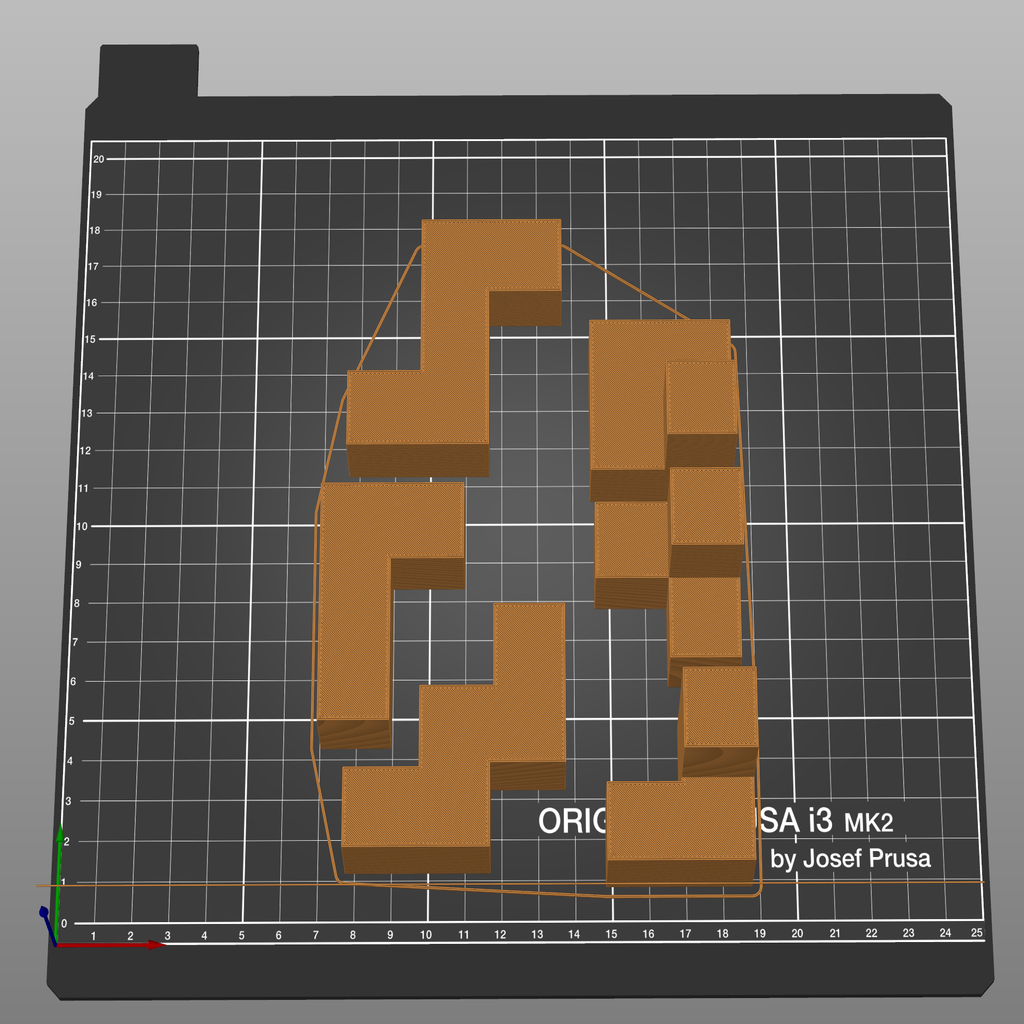

Print all 6 Pieces.stl - arrange them without overhangs as shown in the Slic3r screenshot
Print the Box.stl
For Multicolor print Lid_with_LOGO.stl and LOGO.stl with different colors at once
For Singlecolor print Lid_SINGLE.stl Note: print the pieces with "Seam position random" to have the pieces fit together evenly. For the Box and Lid use "rear" or "aligned" unless you plan to fine-grind it.

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK2 MMU

Rafts:

Supports:

Resolution:

0.2

Infill:

25% Rectilinear

Filament:

FormFutura PLA

Notes:

Slic3r Settings:

* First Layer: 0.2mm

Vertical Shells: 2
Solid Layers Top/Bottom: 2
Quality Settings: none
Seam Position: random for the pieces, rear for box and lid
