About:

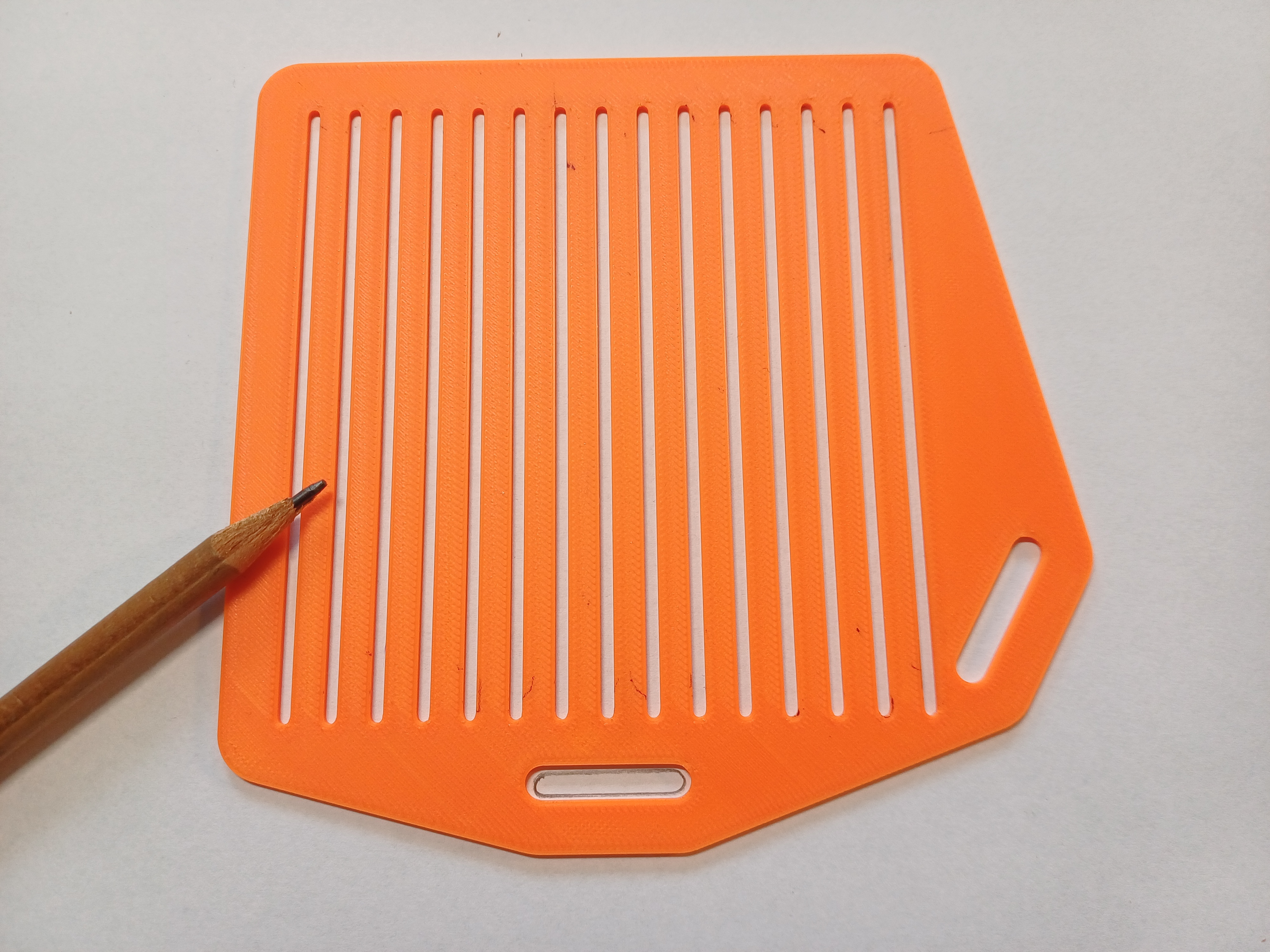

Every good project starts with a sketch. An isometric grid drawing template is a tool that simplifies the creation of precise technical drawings (such as 3D model sketches) and artistic works of art.

An isometric grid is a specific arrangement of lines inclined at a 30-degree angle relative to the horizontal, allowing the visualization of three-dimensional objects on a two-dimensional surface.

How to use?

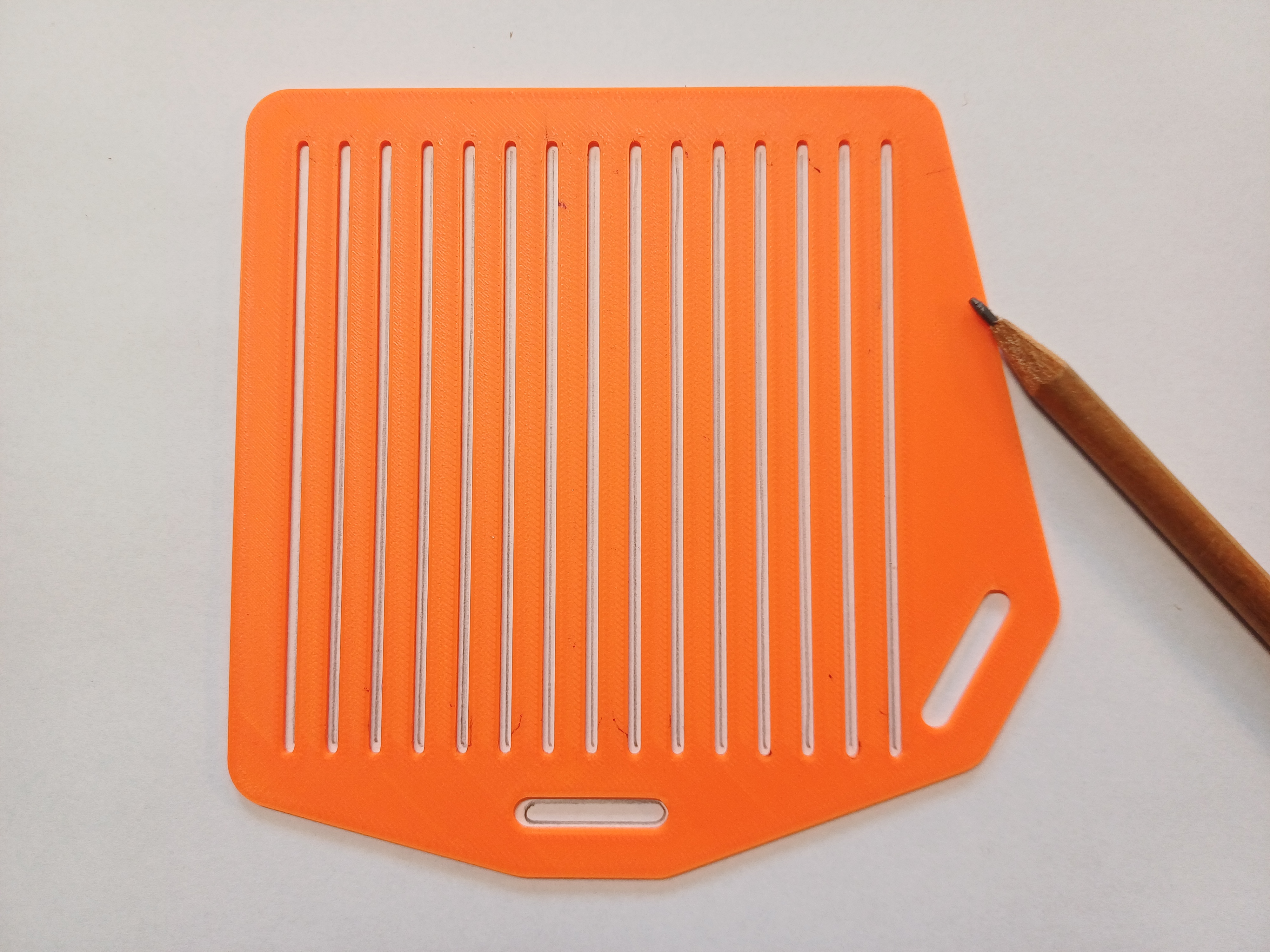

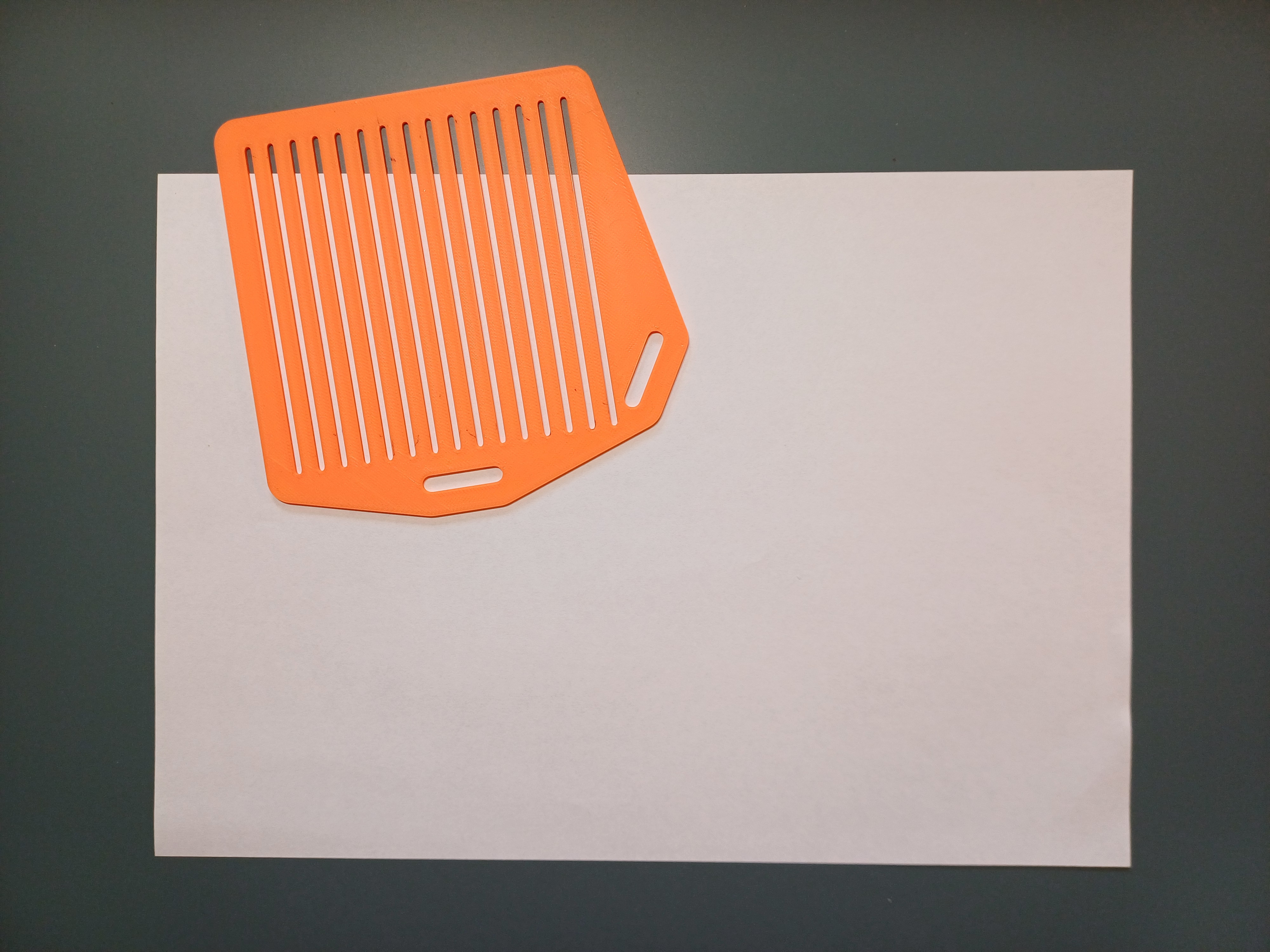

• Place the template on a piece of paper and outline the control gap numbered Ⅰ (see pictures 4 and 5);

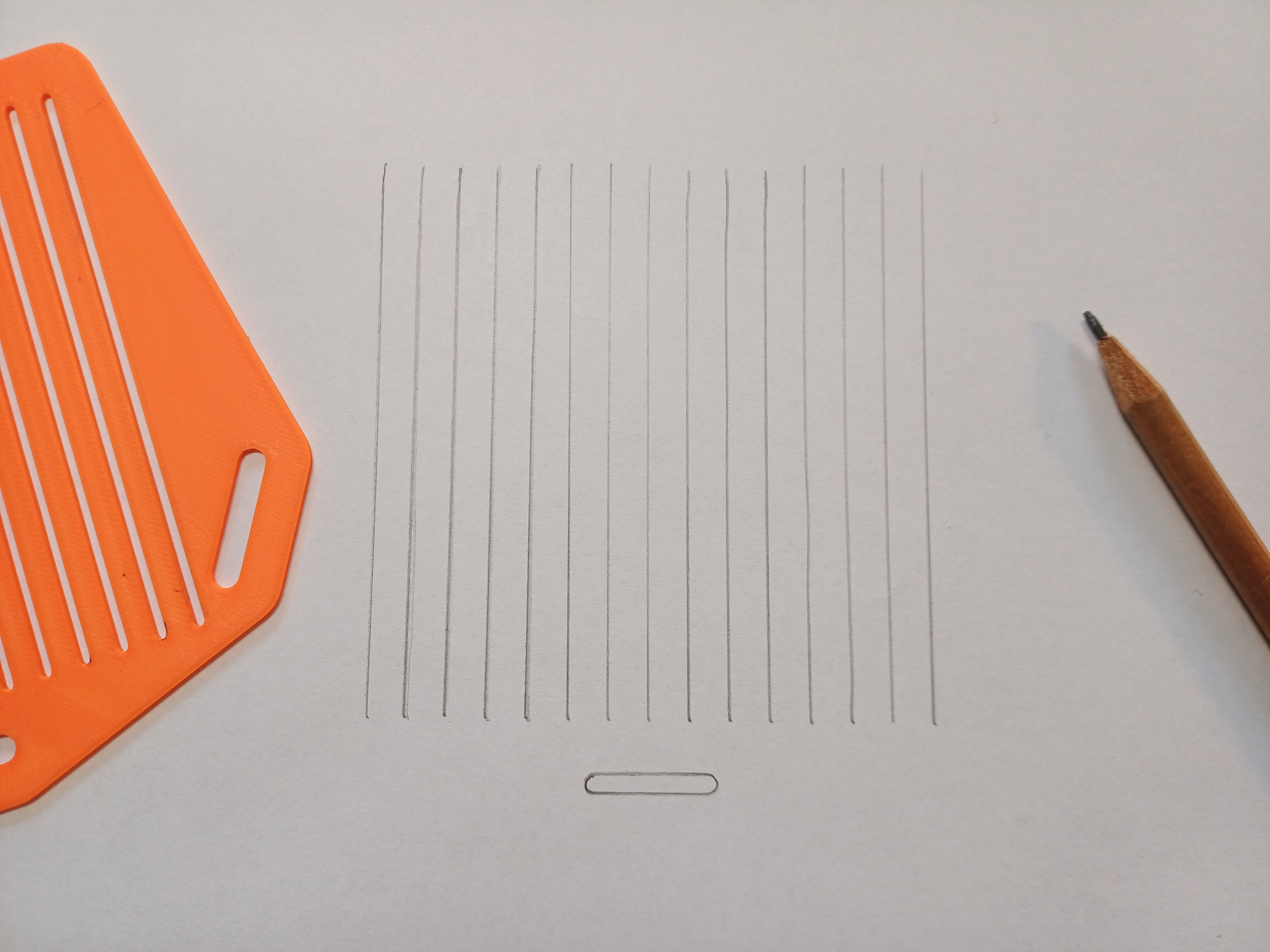

• Trace all the lines (pictures 6 and 7);

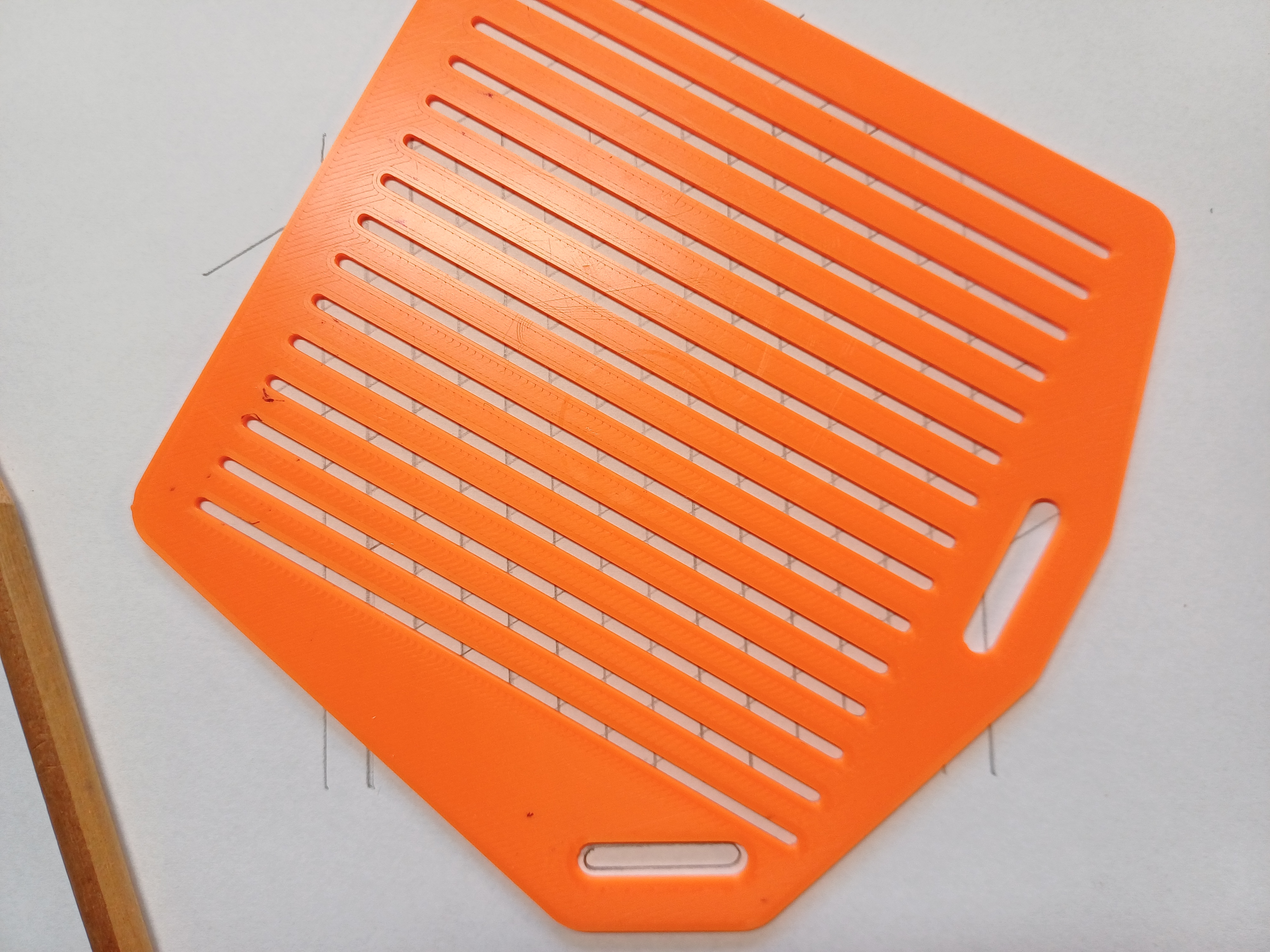

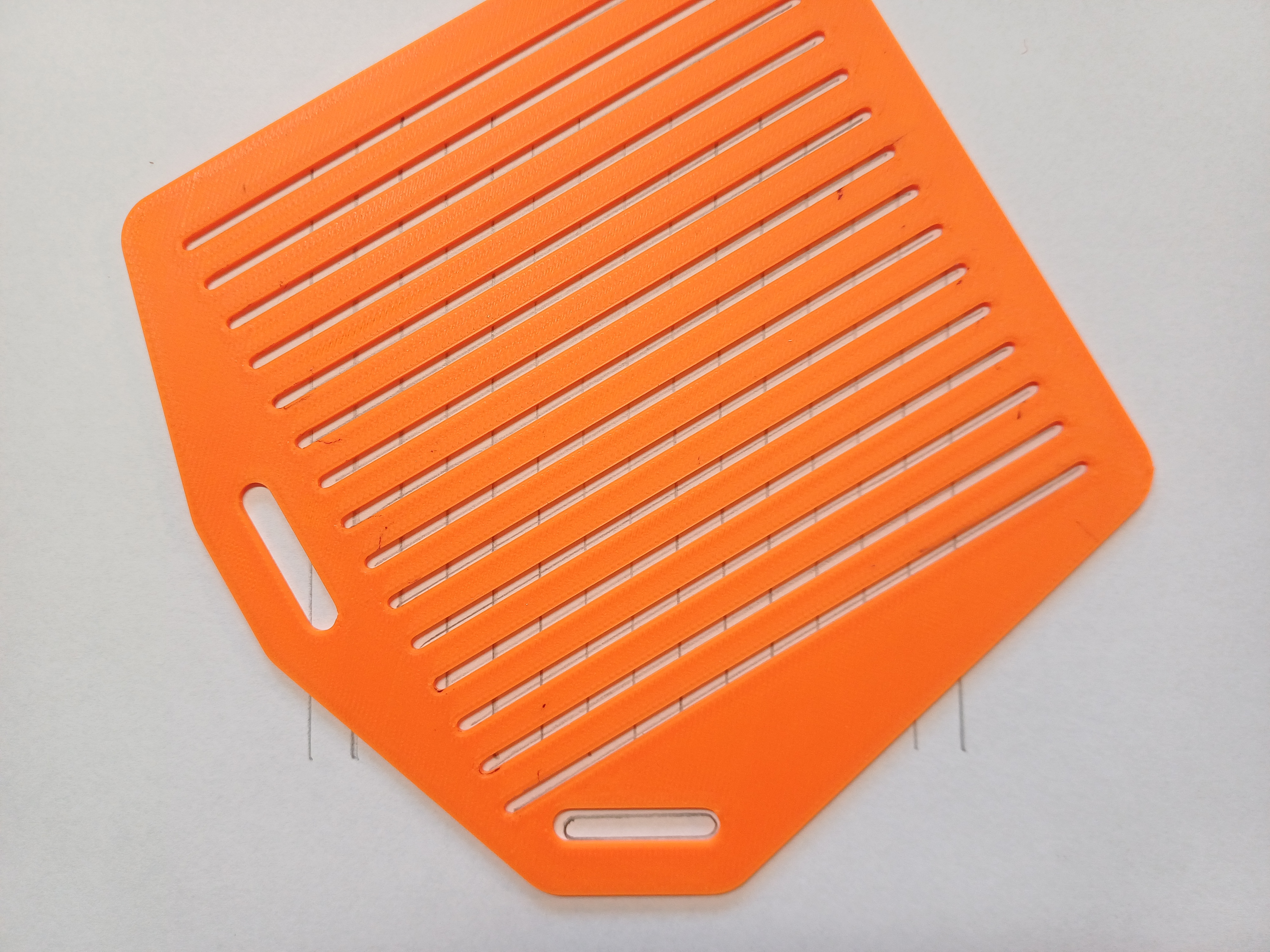

• Once you've finished the first direction, align the control contour with the gap numbered Ⅱ (see picture 8);

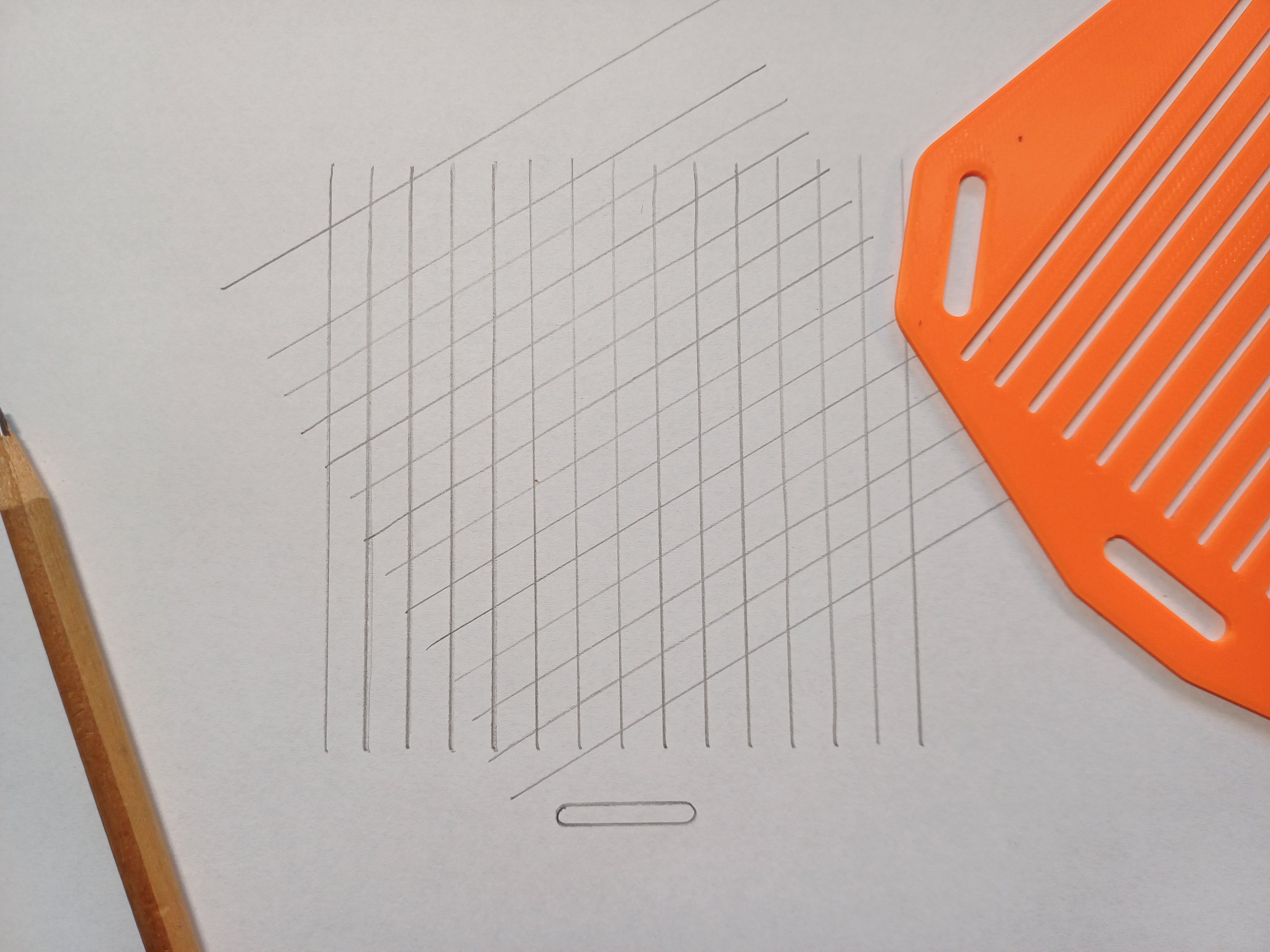

• Trace the lines (pictures 9 and 10);

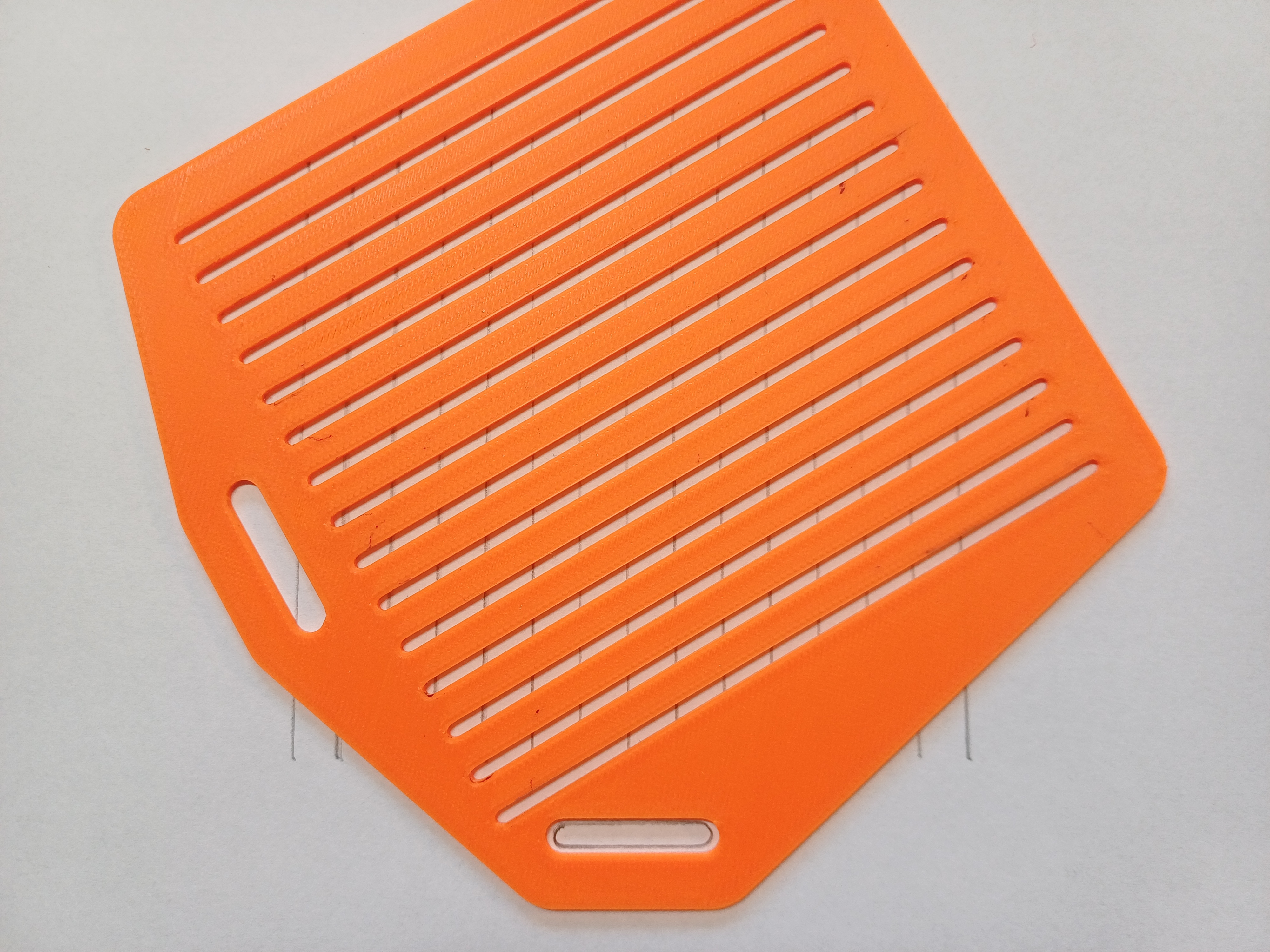

• After completing the second direction, align the control contour with the gap numbered Ⅲ, which is on the opposite side of the stencil (see picture 11);
• Trace the lines (picture 12);

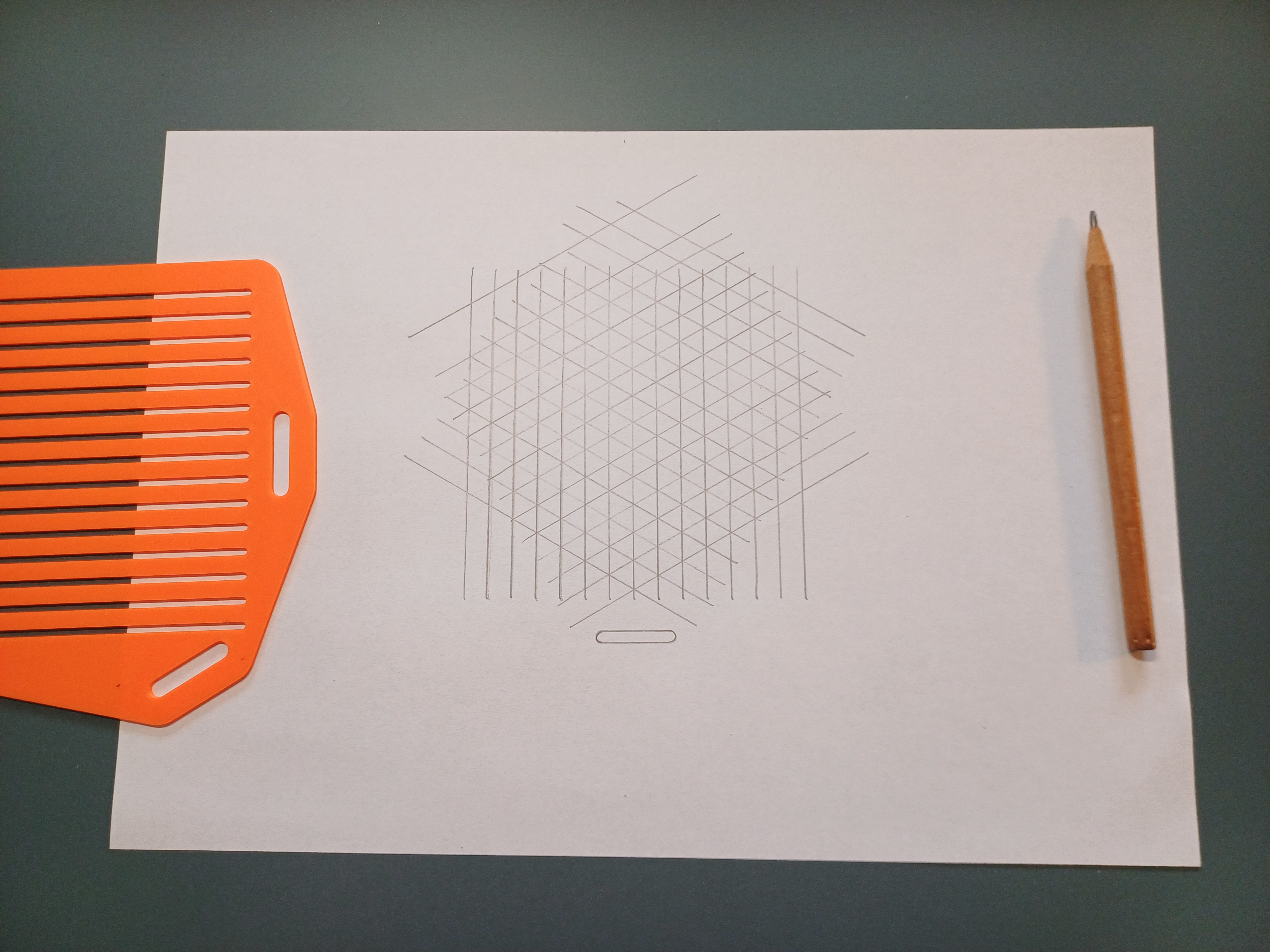

• And YOU'RE FINISHED!!! (picture 13)

Now you're free to draw/sketch/design whatever you want!

(picture 1)

Printing advises:

• Print with any material
• Print with any nozzle diameter

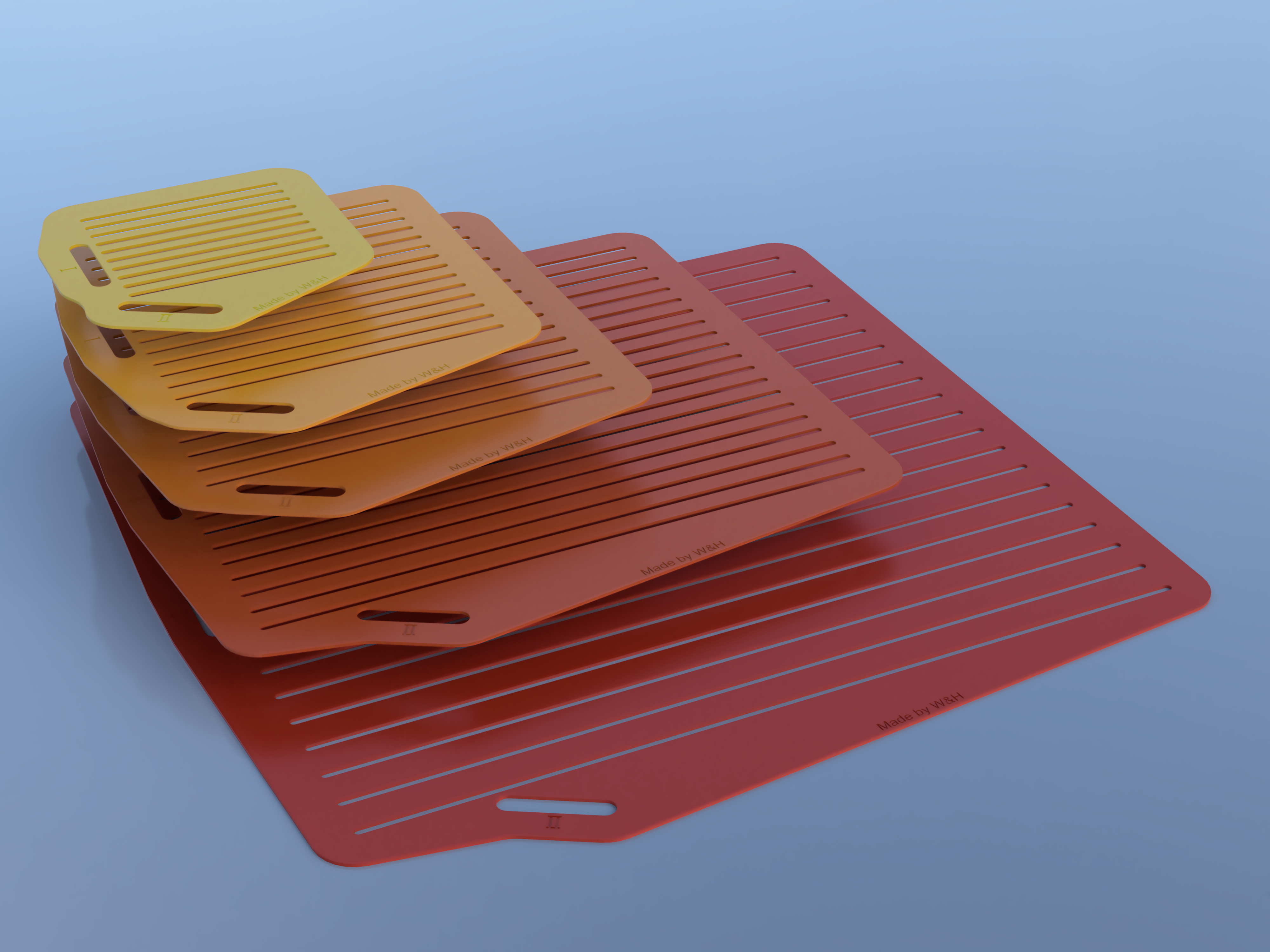

• Choose the size that fits you best * **

* Tiny, small, standard and big sizes fits on Prusa mini

**I've added a few sizes of the template, but if you prefer something different, download the .f3d or .f3z file and change parameters in Fusion 360. If you don't have Fusion, write your preferred dimensions in comments. I'll try to help :)
