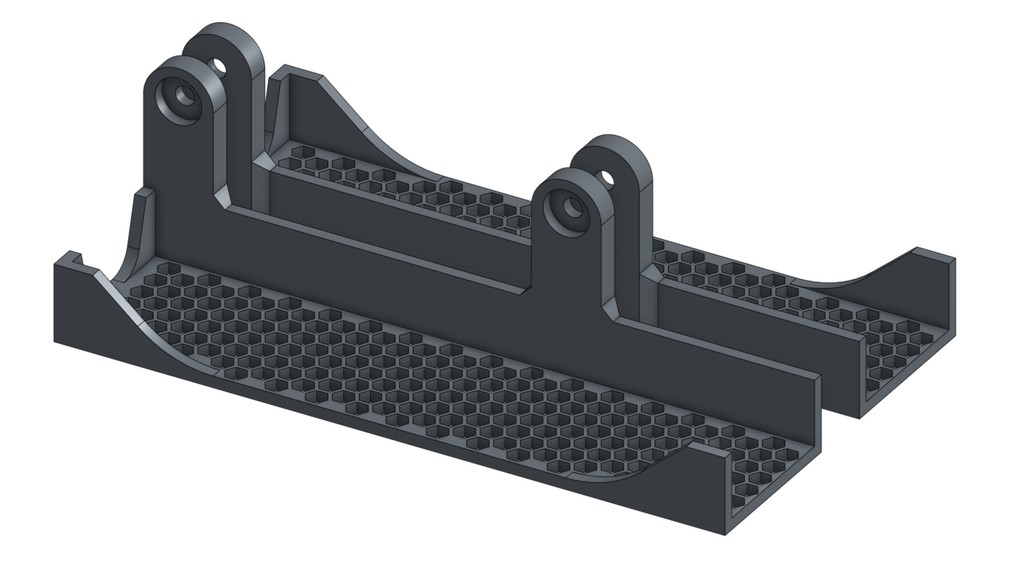

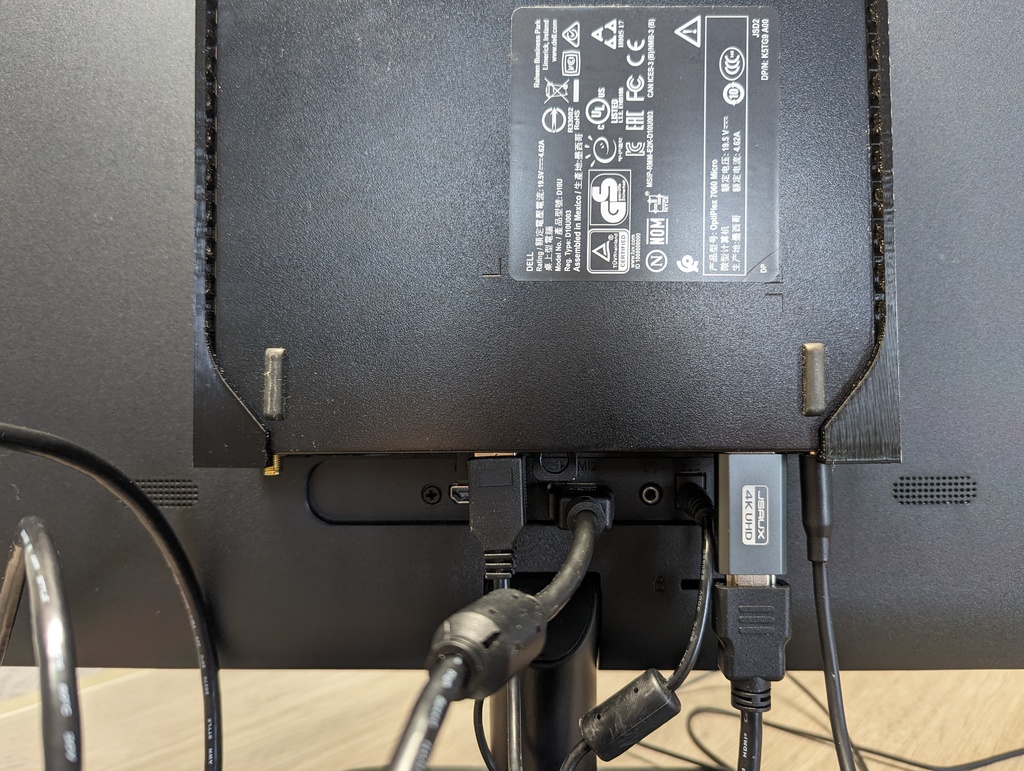

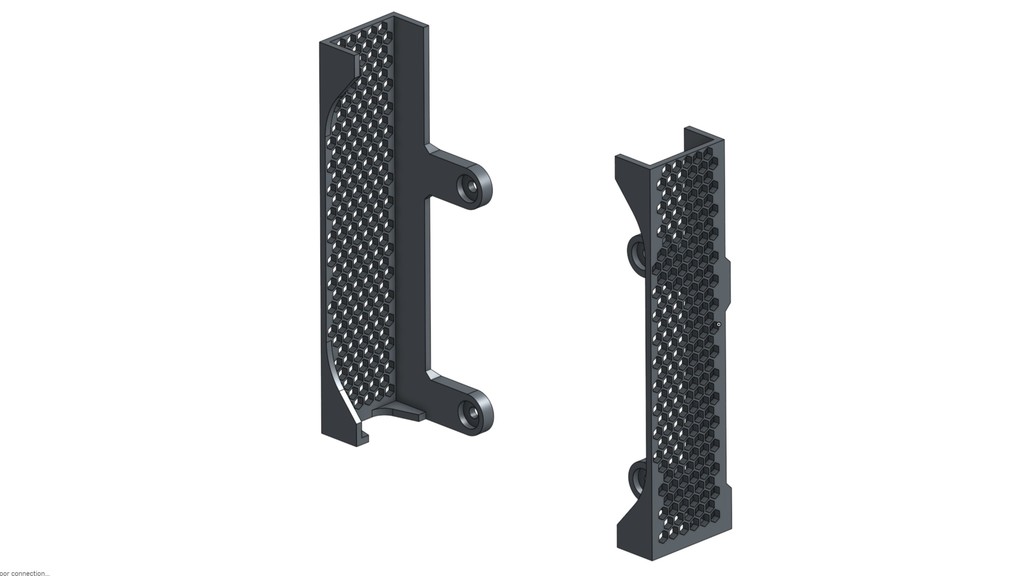

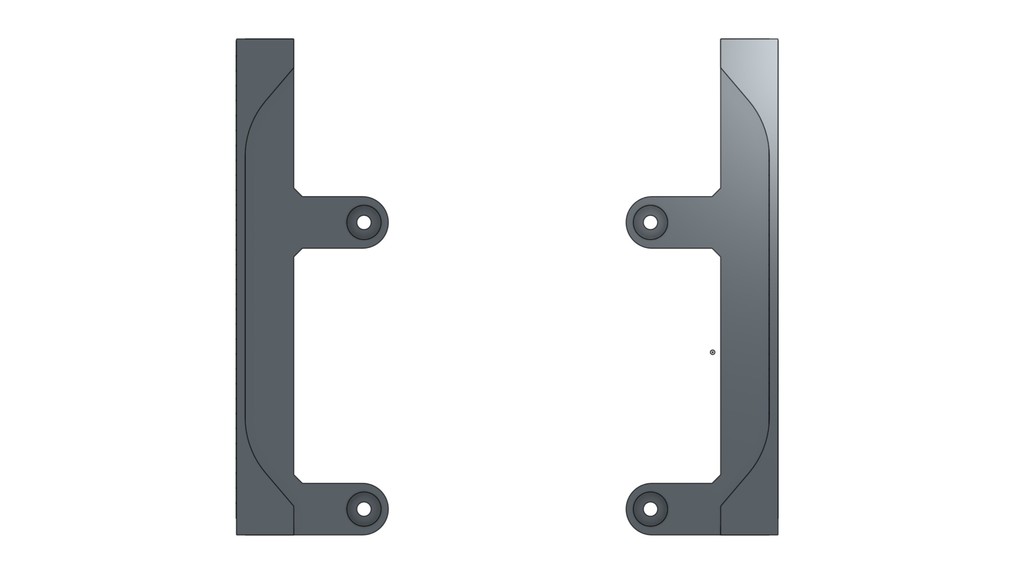

This is a VESA monitor mount for the Dell OptiPlex Micro series PCs. I used it with a OptiPlex 7060. Can be mounted vertically or horizontally as hole spacings are 100mm. I remixed this from Elppa8's version so that the bottom cleared the HDMI ports of the 27" AOC monitor. I also added a honeycomb grid to reduce plastic while keeping most of the strength. It's made as two brackets as opposed to a single plate bracket to reduce print time and use less material. It can be printed without supports, but I did so the holes are cleaner. This design allows for maximum airflow under and around the PC.

Here's the public link to the Onshape document so you can save and edit as you please. Please post your remakes so I can see what everyone comes up with!
[https://cad.onshape.com/documents/6b19d4152d71675b114bd705/w/a3ae8a8b6b341e2784570ea1/e/104183774c47b5fa47c51b1e?renderMode=0&uiState=67bf216e08c7c12321b1f3be](https://cad.onshape.com/documents/6b19d4152d71675b114bd705/w/a3ae8a8b6b341e2784570ea1/e/104183774c47b5fa47c51b1e?renderMode=0&uiState=67bf216e08c7c12321b1f3be)
