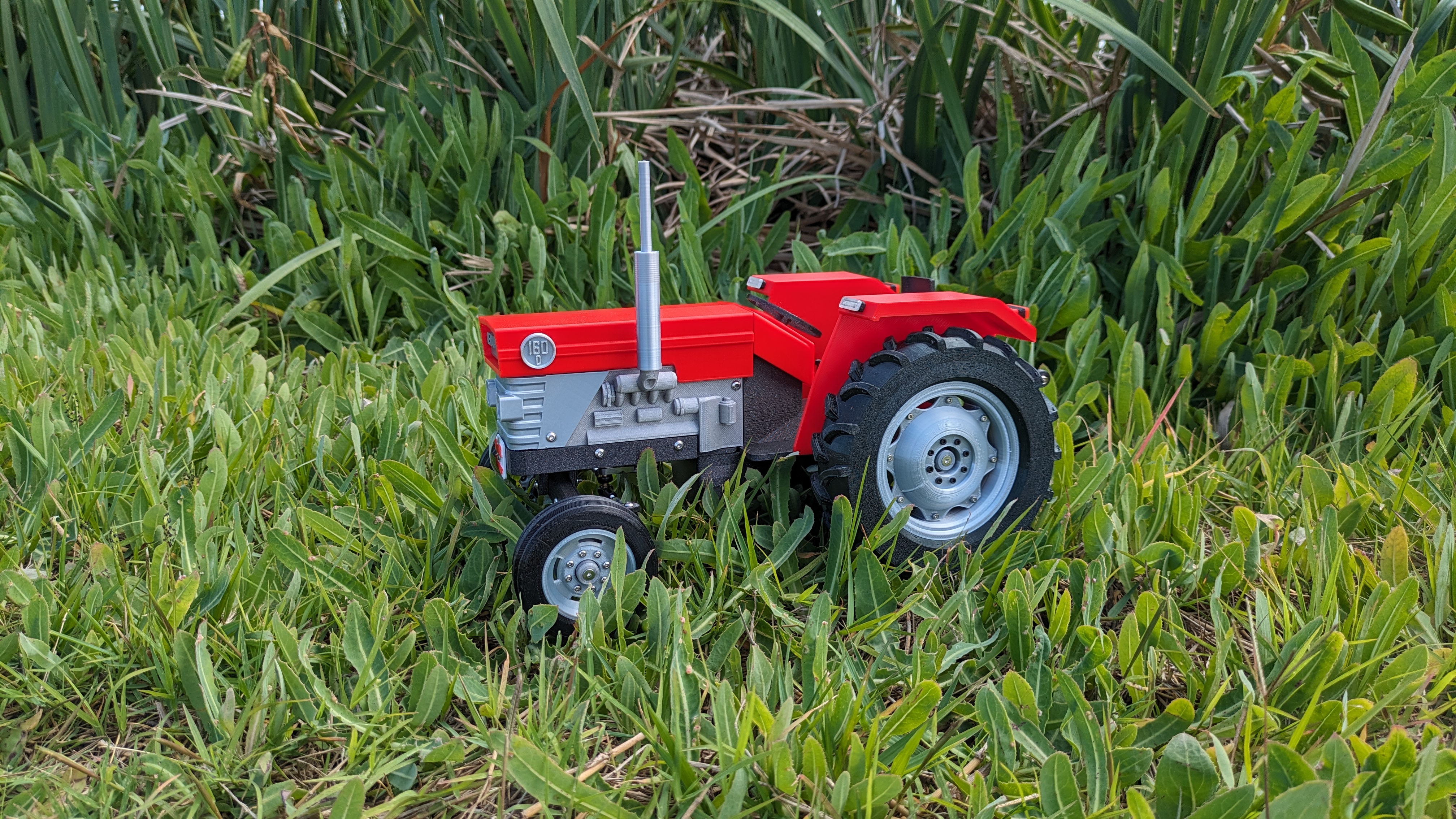

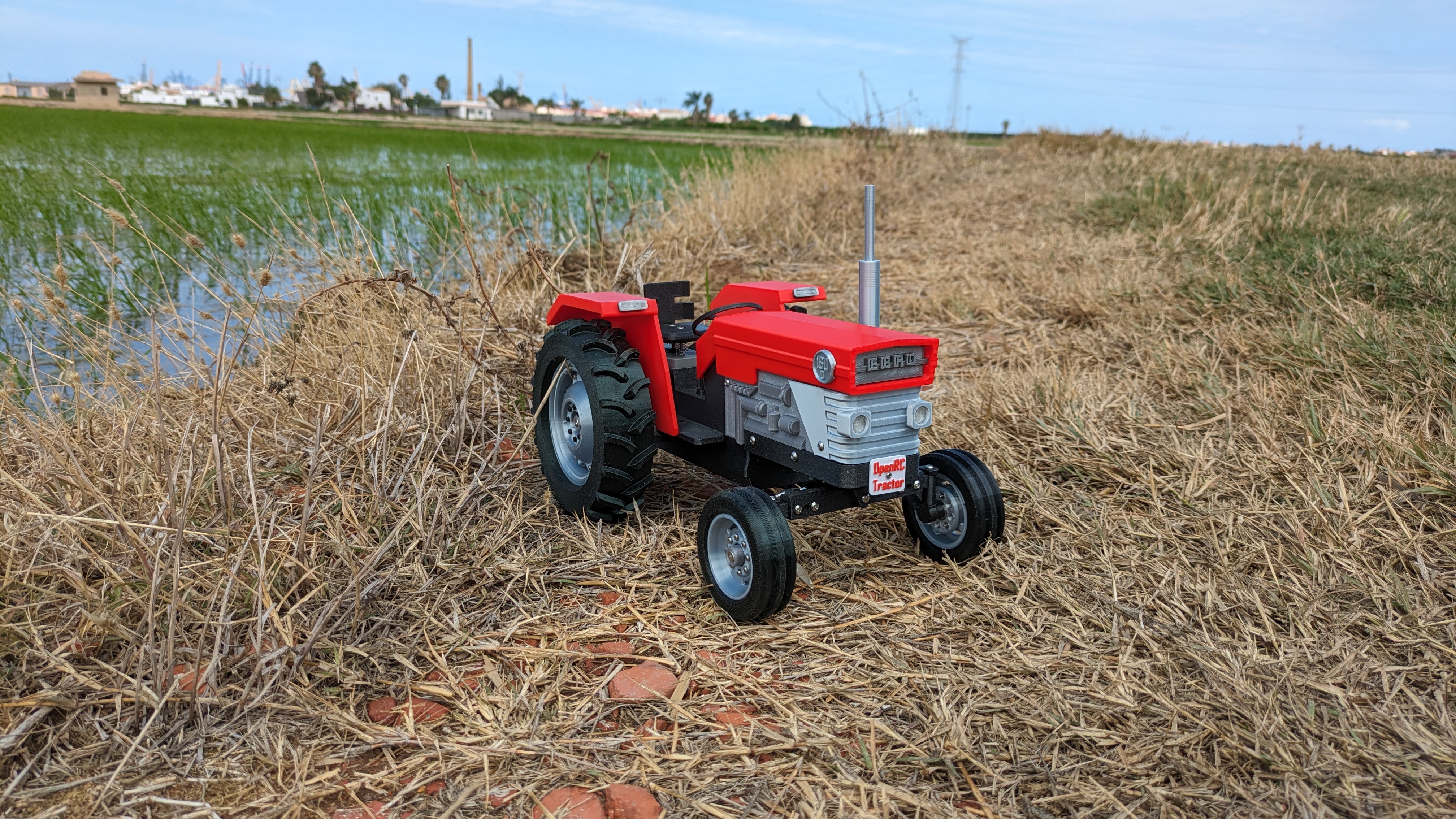

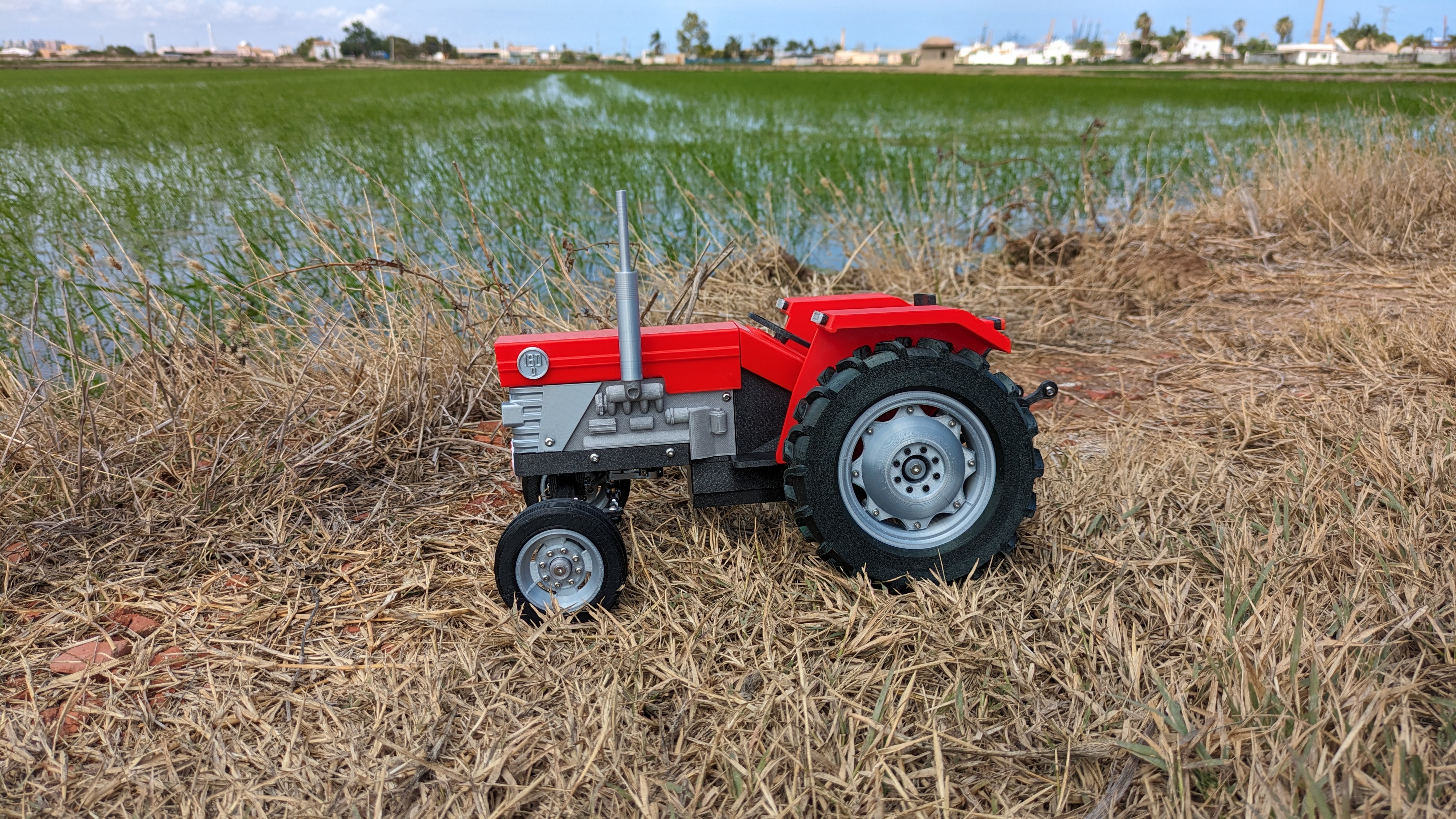

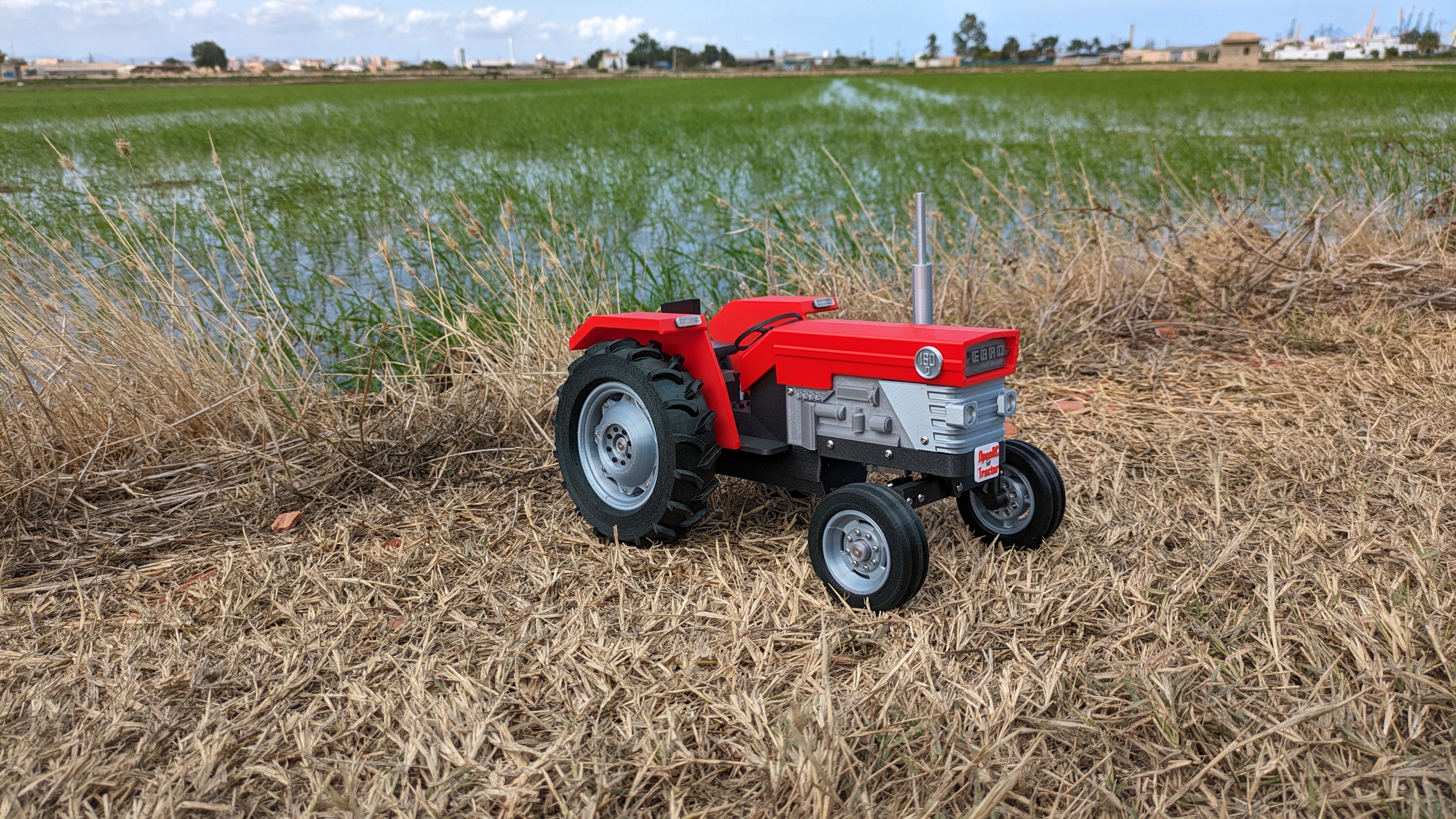

Modelo 3D OpenRC Tractor MK2.4 por makitprojects no Printables

Descrição

This was my first OpenRC Tractor. It's based on the Ebro160d/MF165.

After many years since first version, I still think this is a great model, so I improved some parts of the MK2 and released MK2.4. They are not huge changes but they make a difference:

  • Redesigned differential. Say good bye to your grinding problems!

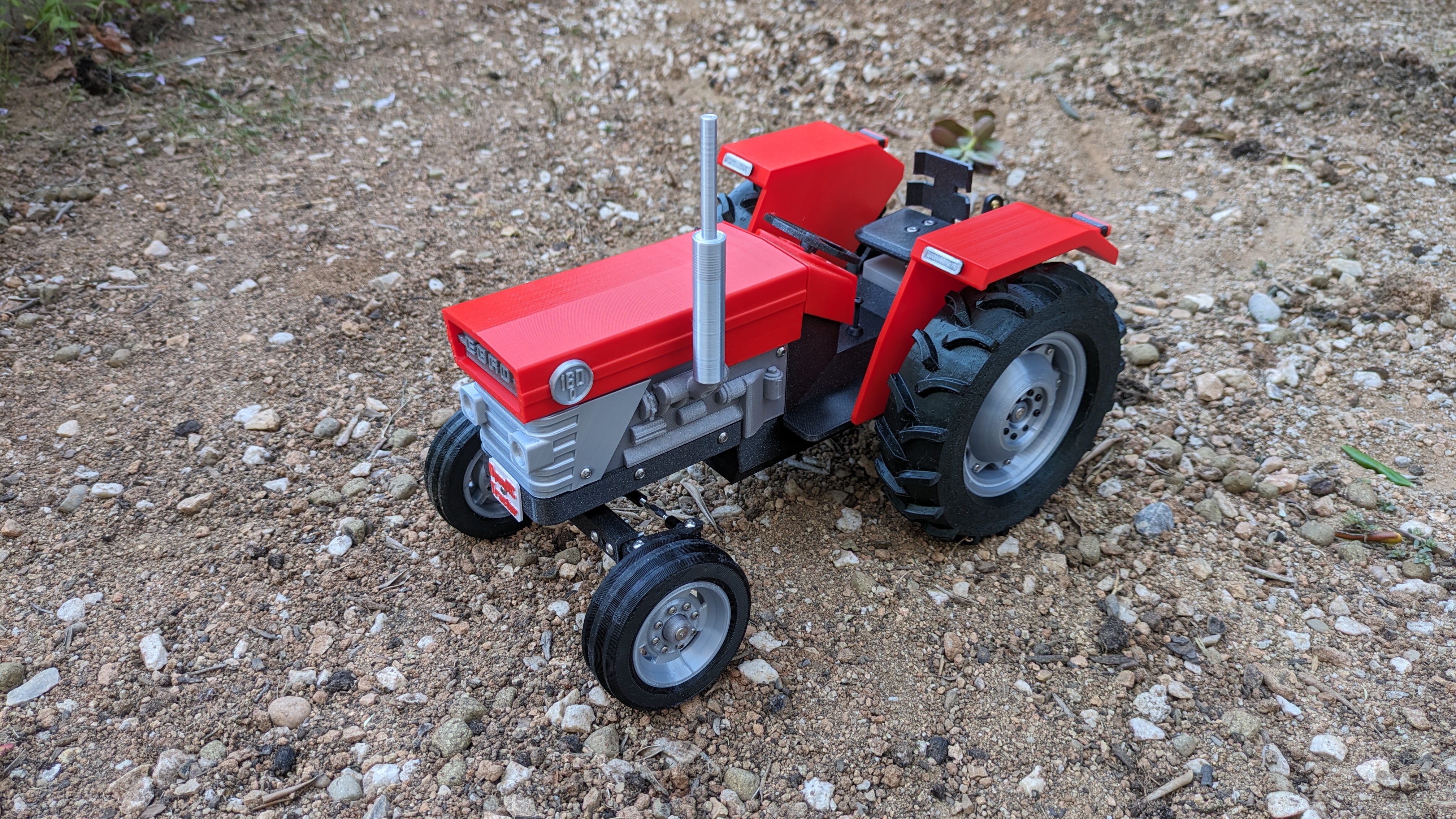

  • Motor panels with more detail and realism
  • Easier cable management
  • Ackerman style steering
  • Standard servo steering! (micro servo optional)
  • New 3 part rims (beadlock style), so tires can be printed in any filament, flexible or not.
  • Optional rim look

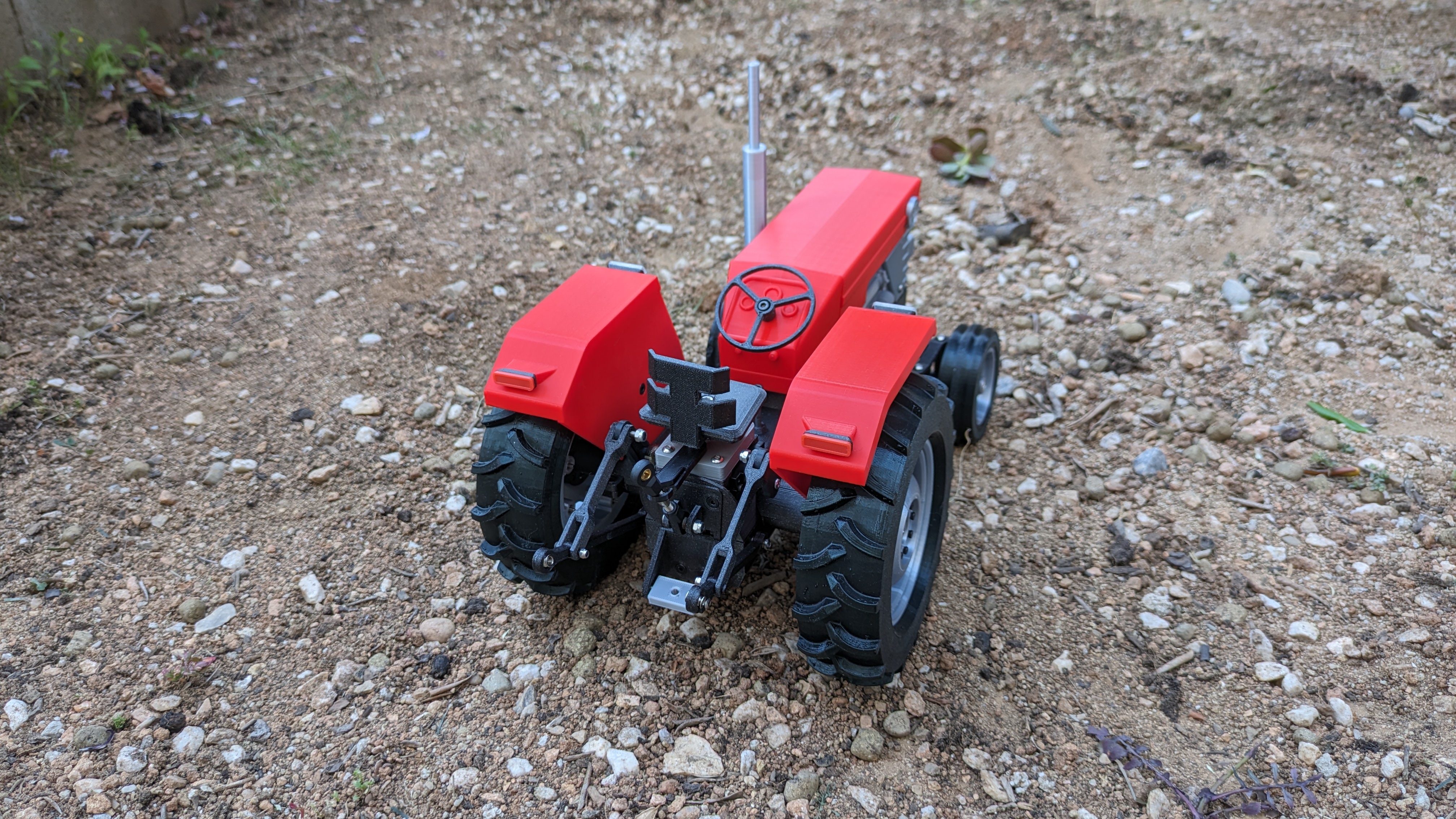

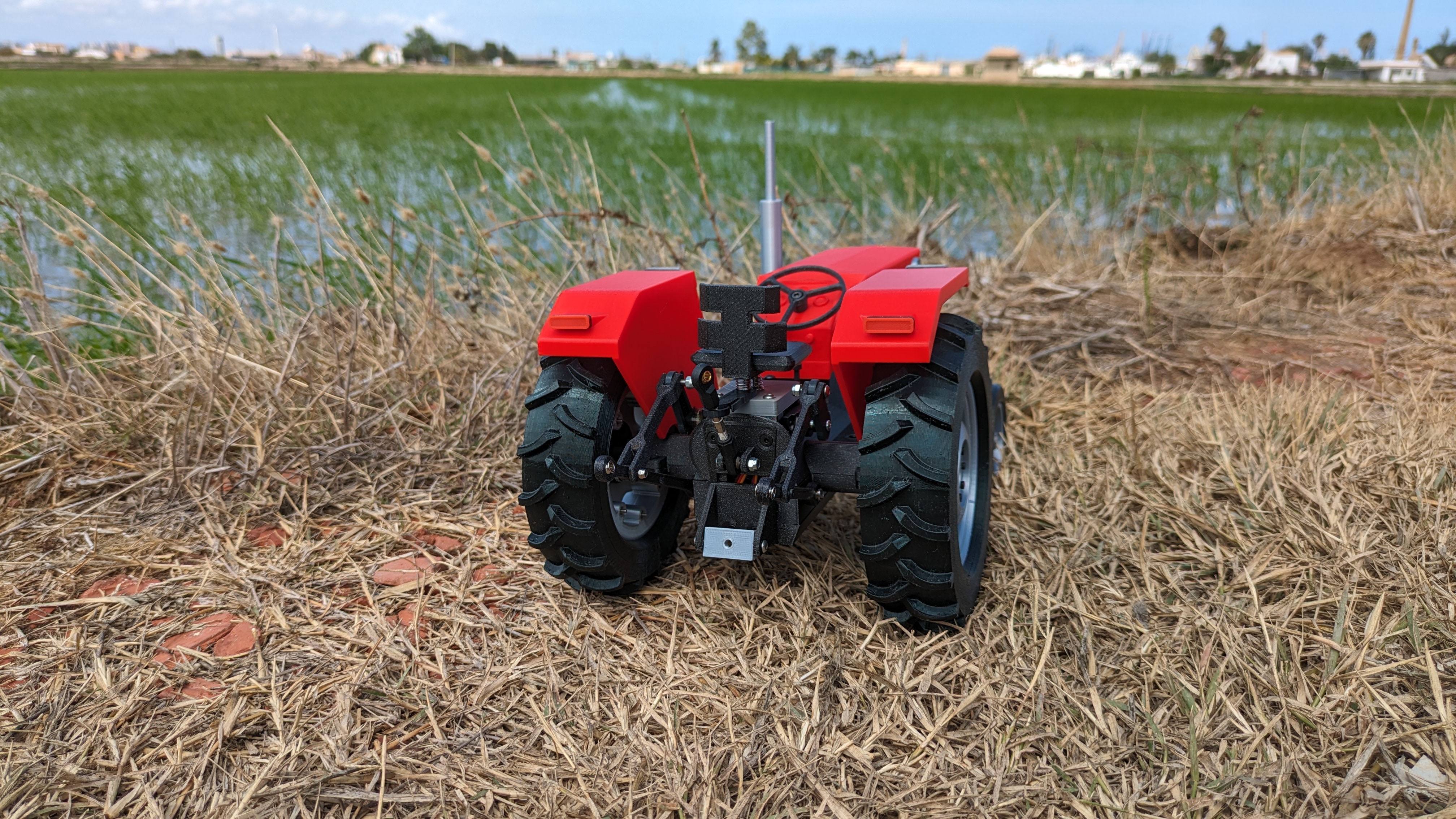

  • New realistic rear arms (TEA20 style)
  • New rear center arm support to avoid it from falling
  • Easier motor panel assembly

Instructions

  • Parts with MK24 are new or modified. List of changes can be found here.
  • List of hardware here.
  • If you have already printed MK1 or MK2, you can print some files and upgrade to last version. And if you haven't printed it yet, It's about time! :)
  • I'm recording new assembly videos of this MK2.4 version. I'll release them as soon as they're ready!

I completely changed my website to make it easier to access to all OpenRC Tractor designs. (currently migrating).

If you like my tractor, please click "like", follow me and post a make. This will help me to win some prusameters to keep printing! and follow my youtube channel to stay tuned to new videos!

You can also support my work with a coffee or a tip!

Thank you!!!

Printables

OpenRC Tractor MK2.4

makitprojects makitprojects (abre em nova aba)

Publicado em 4 de jun de 2024

217
Curtidas
1,229
Downloads
9
Impressões
Categoria RC & Robotics
Tags
rc openrc tractor agriculture
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (63)
6a-MK24-front_axle_right.stl 584 KB
2a-MK24-upper chassis.stl 1.4 MB
2b-MK24-upper chassis.stl 1.1 MB
5-MK24-front axle holder (tight fit).stl 333.5 KB
1-MK24-lower chassis (minor changes).stl 424.1 KB
10-escape.stl 175.7 KB
4-front_dumper.stl 343.1 KB
9c-188_badge_x2.stl 286.1 KB
7-front_grid.stl 939.2 KB
9-160d_badge_x2.stl 282.9 KB
6b-MK24-front_axle_left.stl 577.3 KB
3-front_bridge.stl 750 KB
9b-165_badge_x2.stl 252.6 KB
8-front_dumper_block.stl 277.6 KB
5-front_axle_holder_x2.stl 315.2 KB
16-MK24-rear_hook.stl 82.8 KB
11-servo_arm_x2.stl 318.3 KB
14b-MK24-rear arm lower_x4.stl 836.3 KB
17-MK24-front chassis Micro Servo.stl 998.5 KB
17-MK24-front chassis Standard Servo.stl 1.5 MB
12b-MK24-EBRO-motor_left.stl 2.8 MB
14a-MK24-rear arm upper_x2.stl 452.8 KB
15-MK24-rear plate.stl 1 MB
19-hood.stl 329.5 KB
12a-MK24-EBRO-motor_right.stl 1.5 MB
20-console.stl 1.1 MB
13-rear_light_cover_x4.stl 66 KB
18-front_badge.stl 538.8 KB
26c-MK24-FRONT RIM gear case (optional)_x2.stl 1.3 MB
27-MK24-front tyre_x2.stl 1.1 MB
26b-MK24-FRONT RIM outer ring_x2.stl 1.8 MB
21-steering_wheel.stl 398.9 KB
29c-MK24-REAR RIM Option 2 star_x2.stl 1.8 MB
29c-MK24-REAR RIM Option 1 star_x2.stl 2.7 MB
39-openRC_tractor_plate.stl 218.3 KB
43-MK24-wheel nut_x4.stl 262.5 KB
30-MK24-rear axle_x2.stl 389.6 KB
35-rear_light_base_x4.stl 100 KB
200a-MK24-diff support_boltcap.stl 451.4 KB
23a-fender_arm_right.stl 163.8 KB
29a-MK24-REAR RIM inner ring_x2.stl 1.9 MB
25-seat.stl 550.2 KB
23b-fender_arm_left.stl 164.2 KB
22b-fender_left.stl 362.6 KB
29c-MK24-REAR RIM Option 3 star_x2.stl 10.3 MB
41-seat_base.stl 545 KB
29d-MK24-REAR RIM axle adapter_x2 short.stl 1.4 MB
26a-MK24-FRONT RIM inner ring_x2.stl 1.3 MB
28-MK24-rear tyre Option 1-narrow_x2.stl 4.1 MB
24-seat_back.stl 408.6 KB
200b-MK24-diff support_nut.stl 449.2 KB
29d-MK24-REAR RIM axle adapter_x2.stl 1.4 MB
29b-MK24-REAR RIM outer ring_x2.stl 2.2 MB
38-front_light_bracket.stl 298.6 KB
200c-MK24-diff support middle.stl 100.6 KB
201-MK24-gear-bracket.stl 553.3 KB
22a-fender_right.stl 361.7 KB
40-MK24-center_rear_arm_holder.stl 169.8 KB
37-(alternative)_one_piece_rear_light_x4.stl 129 KB
28-MK24-rear tyre Option 2-wide_x2.stl 6 MB
203-MK24-motor mount.stl 281.7 KB
30-MK24-rear axle_x2 short.stl 390.1 KB
18b-MF165-front_badge.stl 105.5 KB
