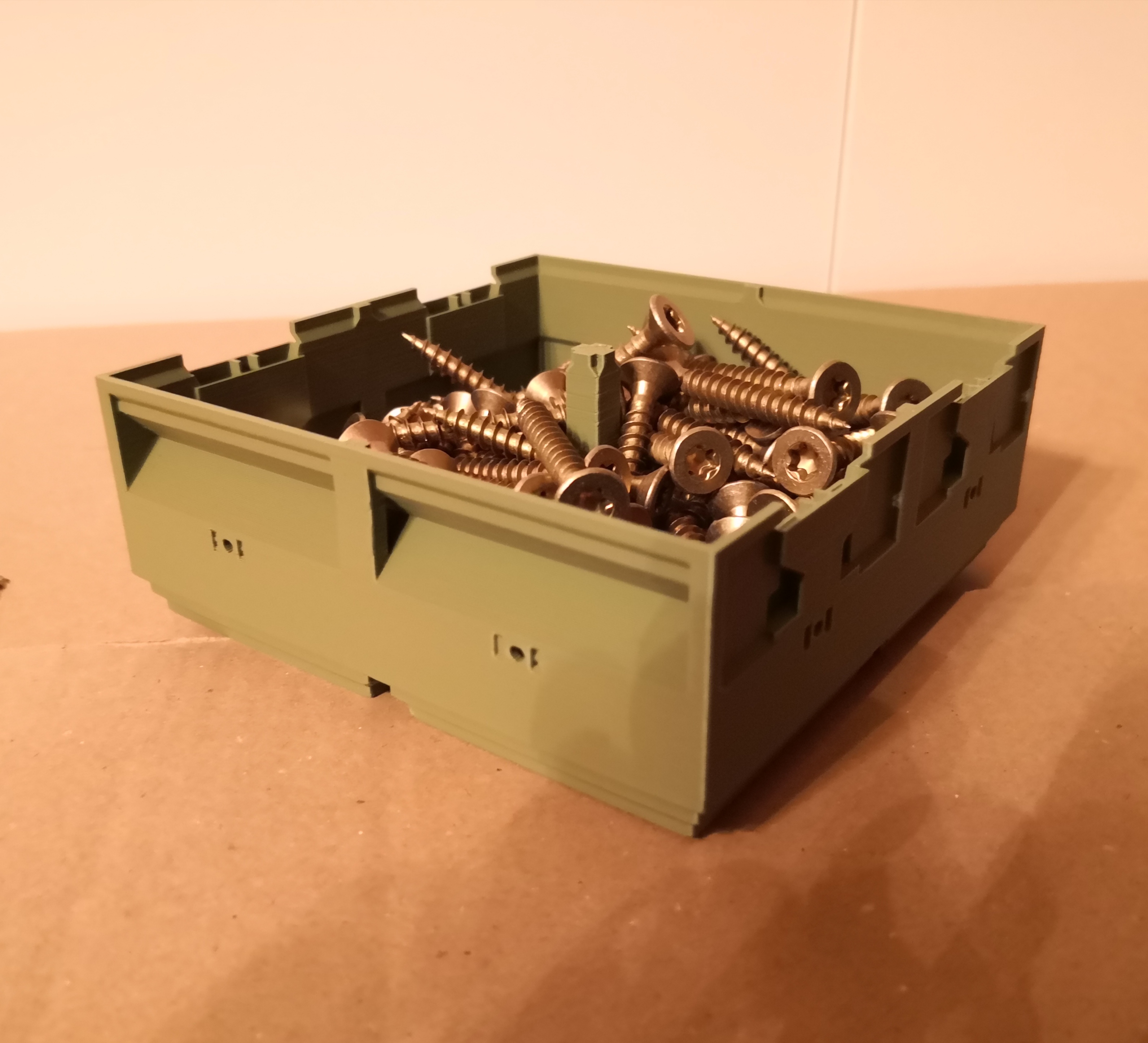

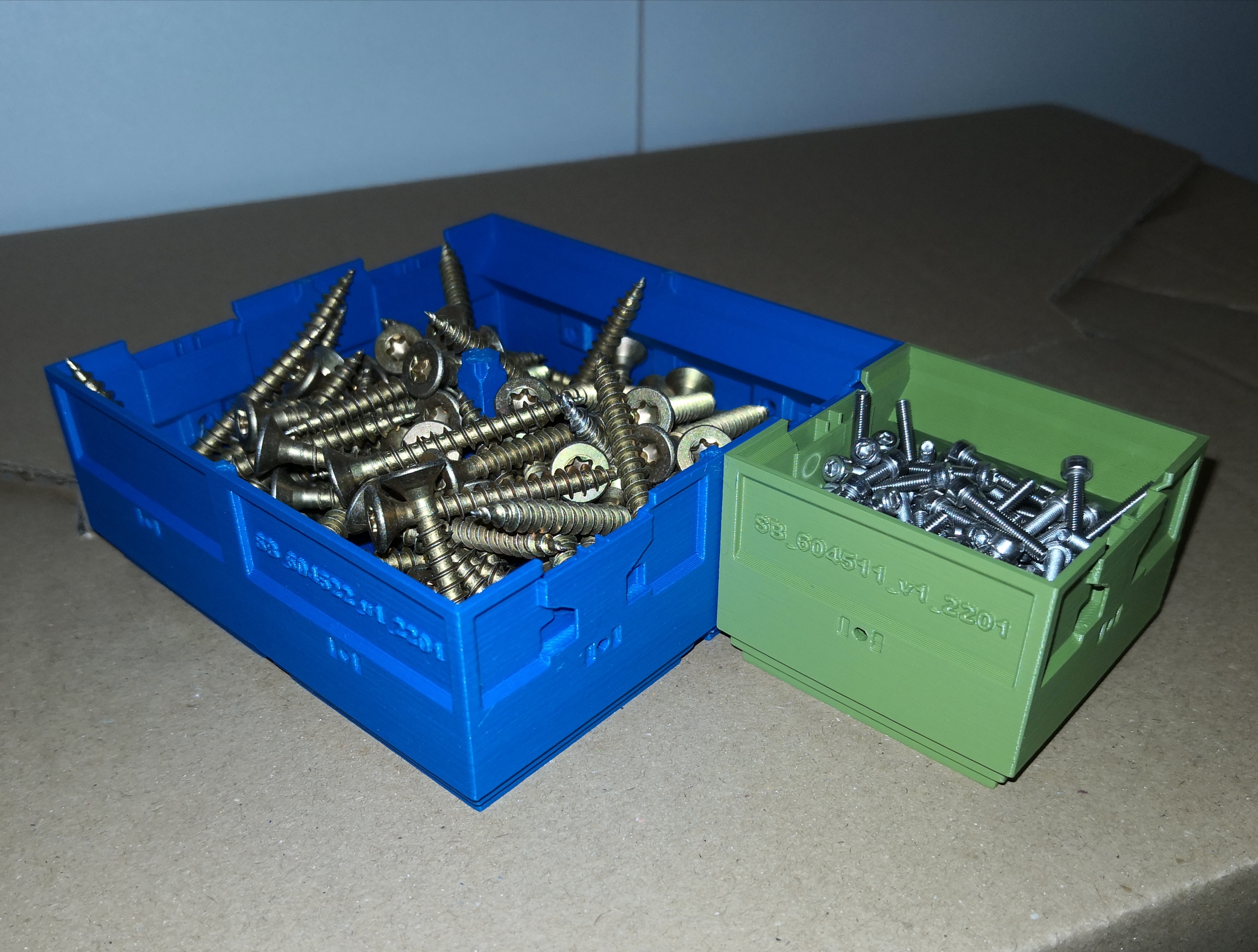

With this assortment system you can store all your screws, nuts, etc. You can print the boxes that you want, and if you need more later, it is easy to expand.

All expansion-parts of the assortment System you can find in this collection: Assortment System

Features of this system

• The dimensions of 60 mm grid size is prefect for the Prusa MK3S - you can print in maximum a 3x4 box
• Also the big boxes are very rigid.

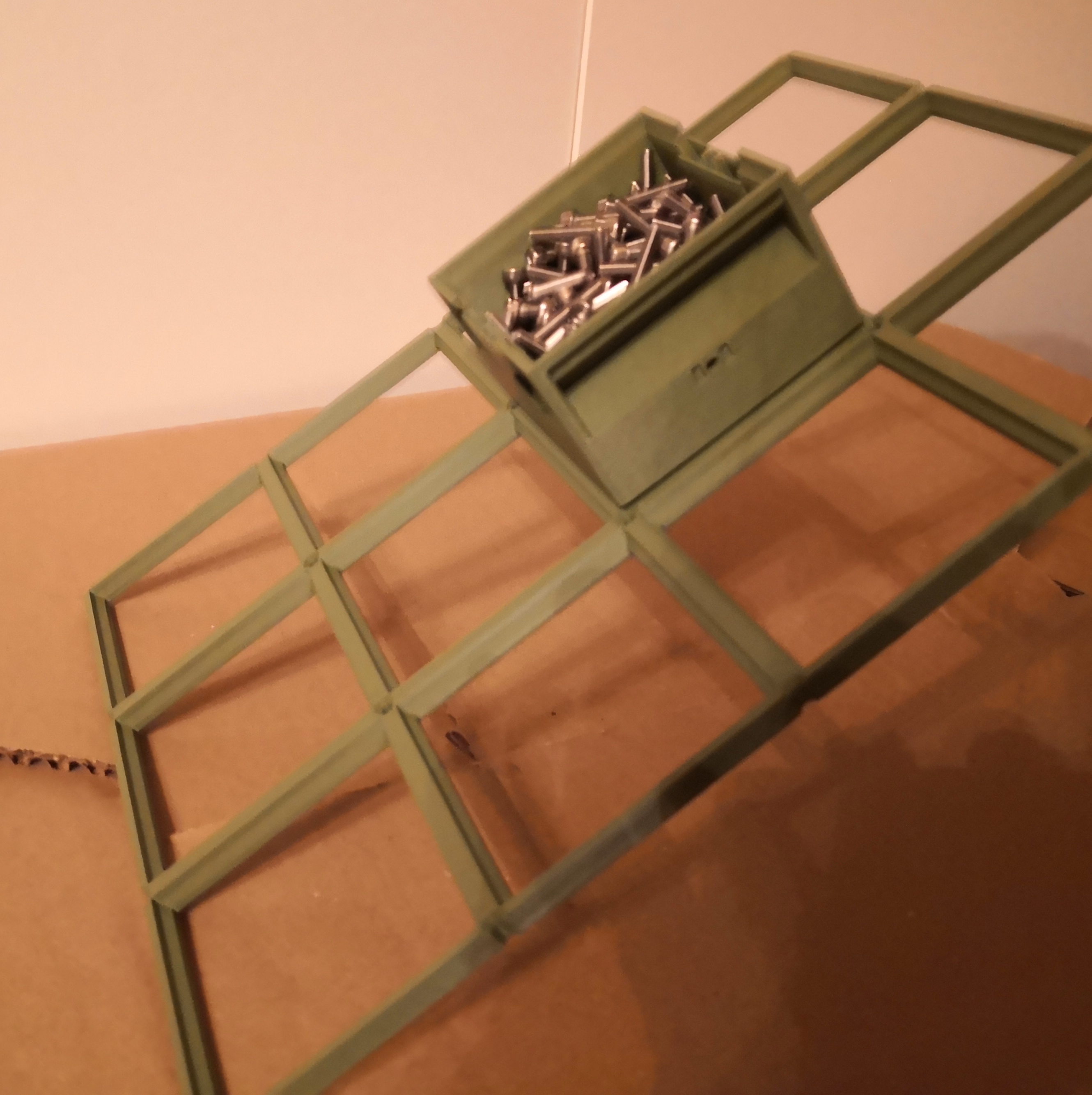

• The grid holds the boxes in place.

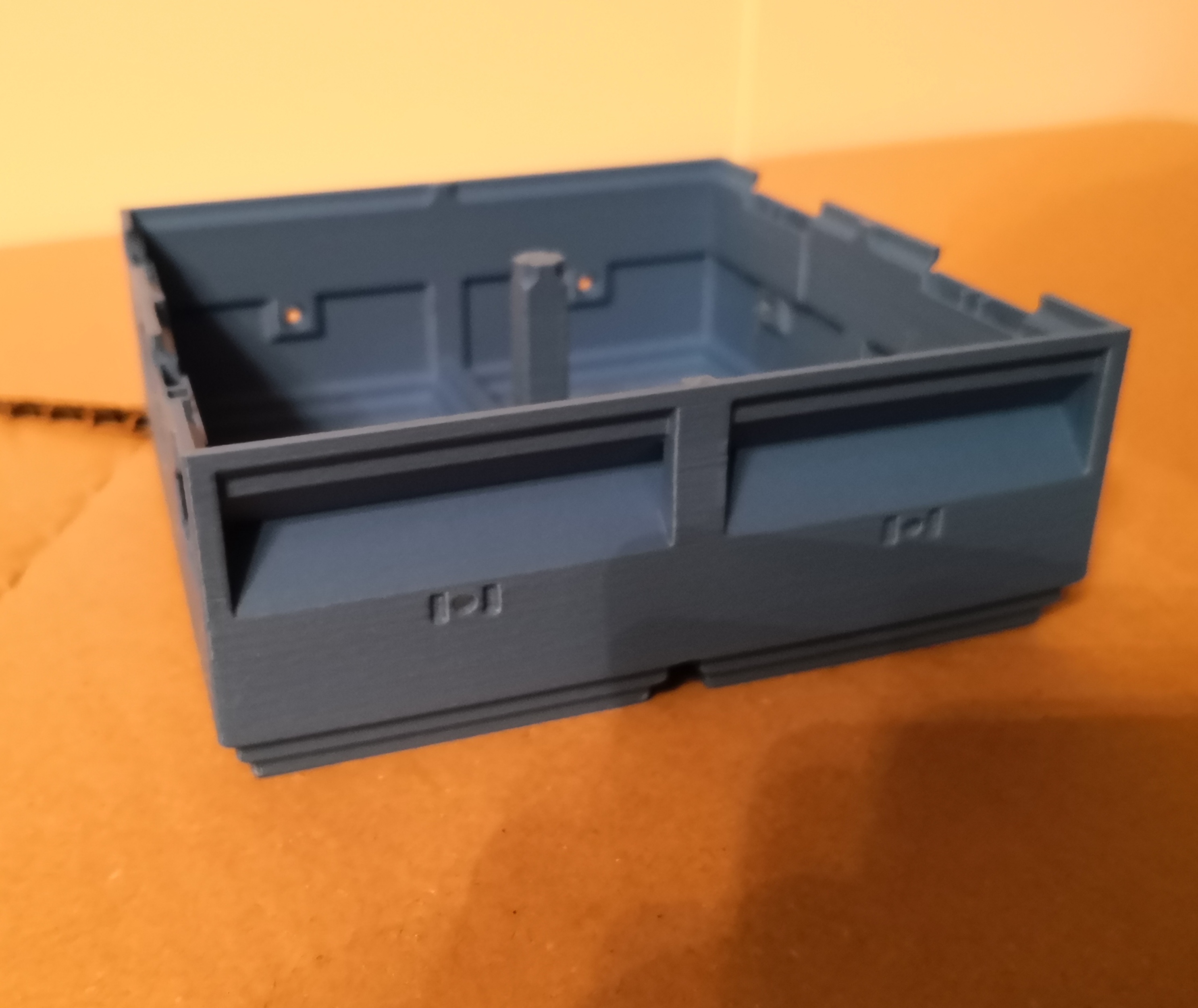

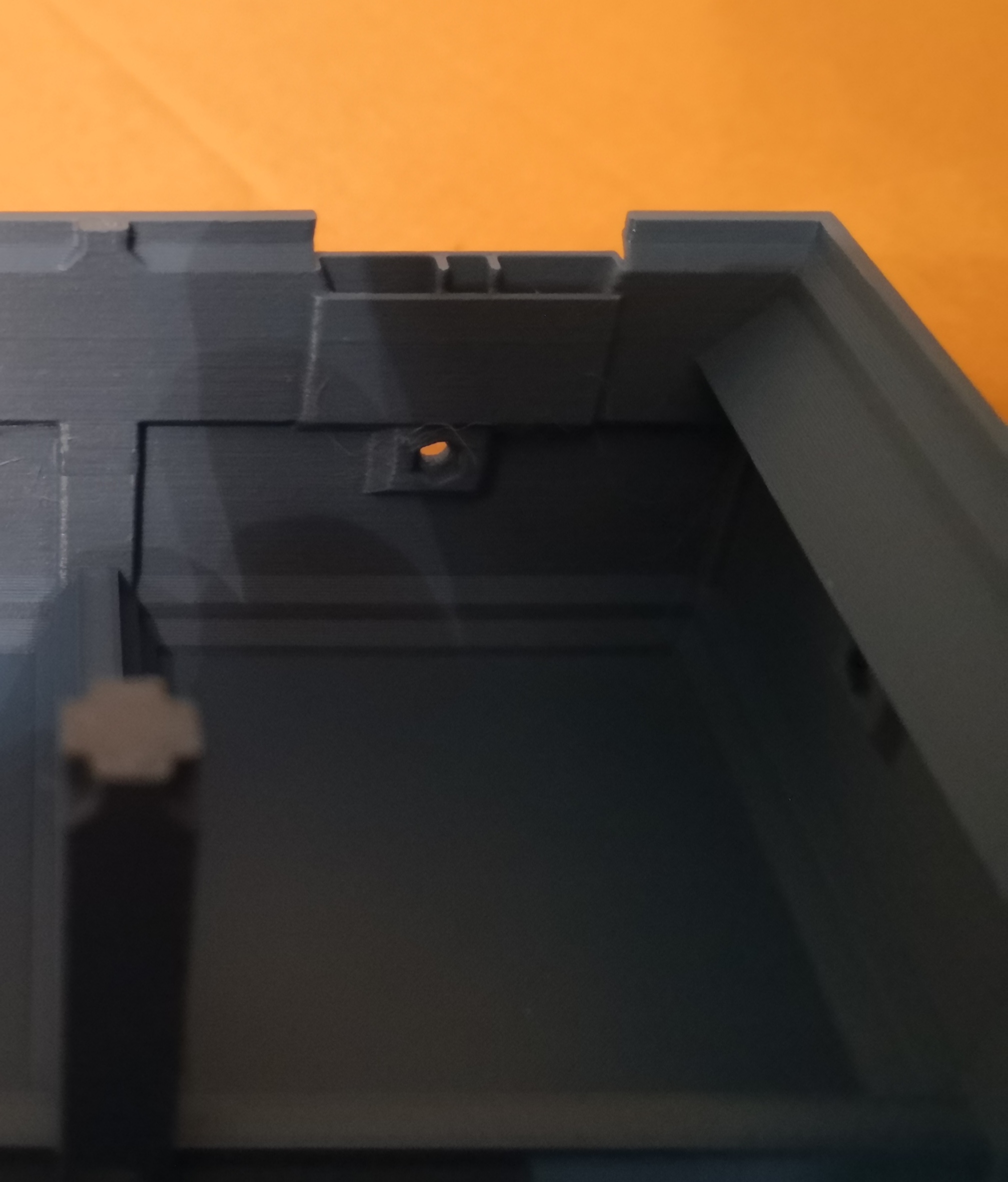

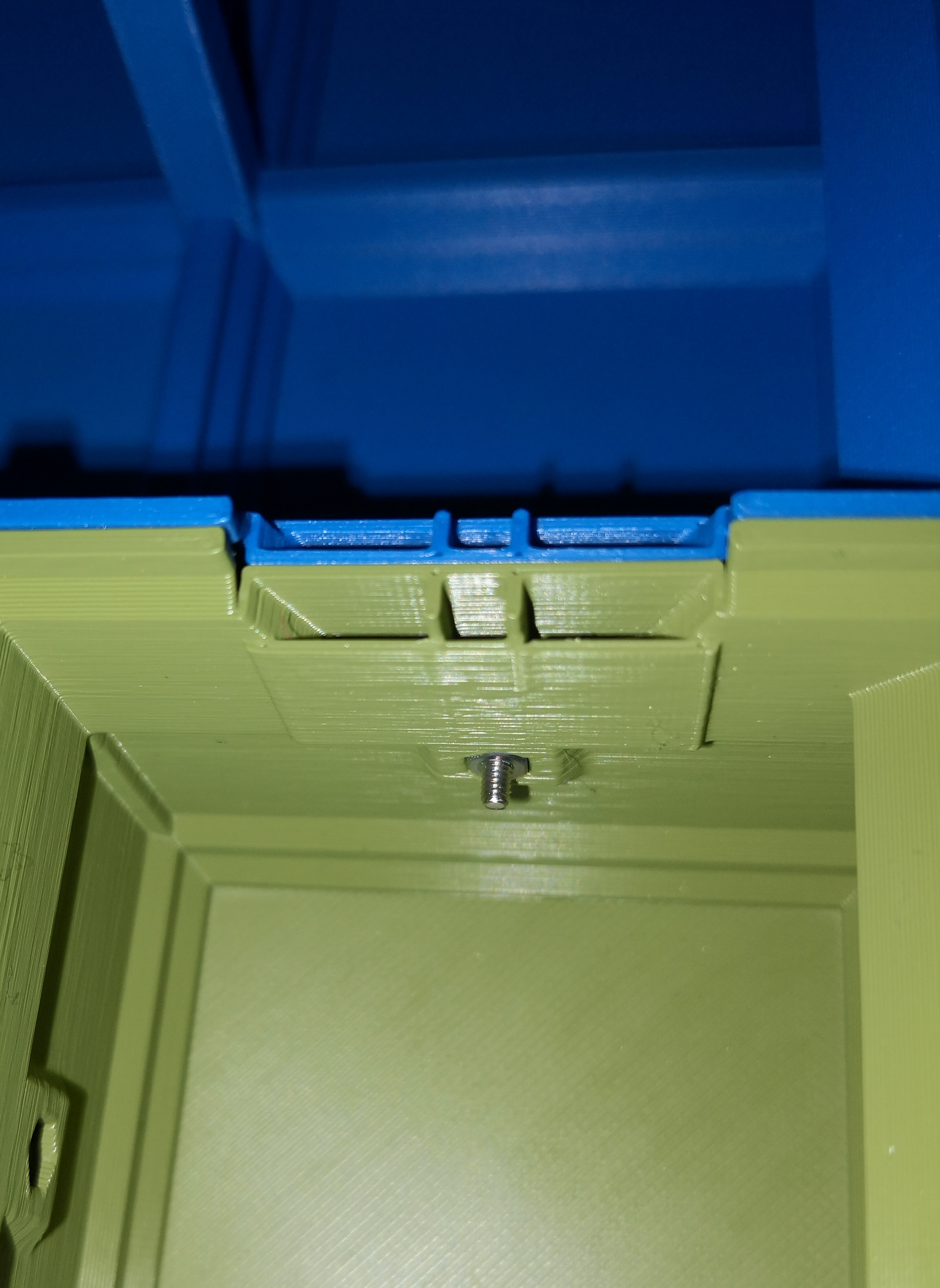

• The boxes can be connected with M2 screws - holes and places for the nuts are printed into the box

• The system is expandable through M2 screw accessories and with the snap buckle system in the walls (more to come!)

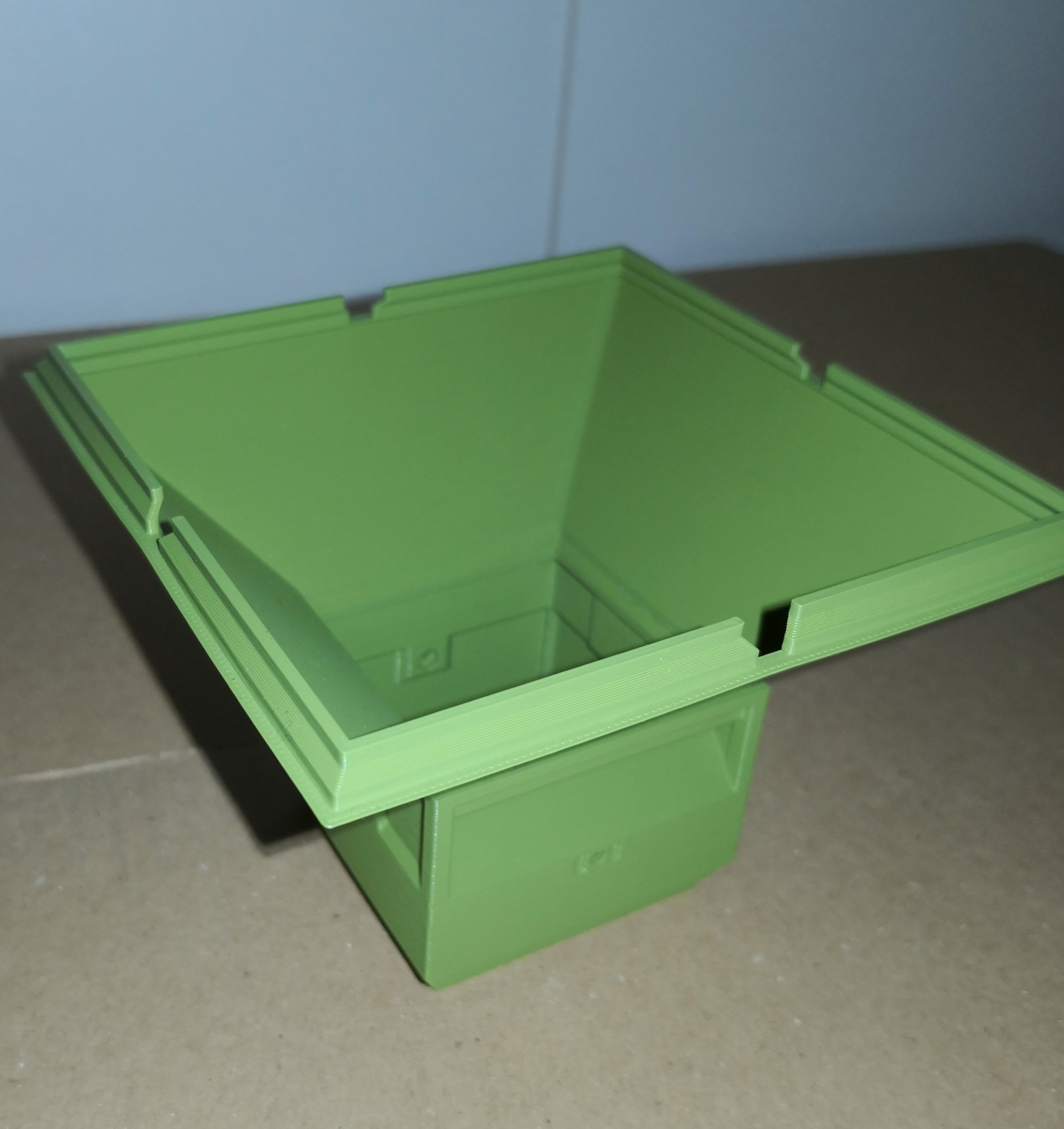

• The Boxes can be stacked as you like. Also, a 1x1 on a 3x4 is possible.
• There are two places for labelling (inside and outside).
• You can use screws or glue to fix the grids on the surface.
• The boxes have a small tolerance for better fitting.

Naming Scheme

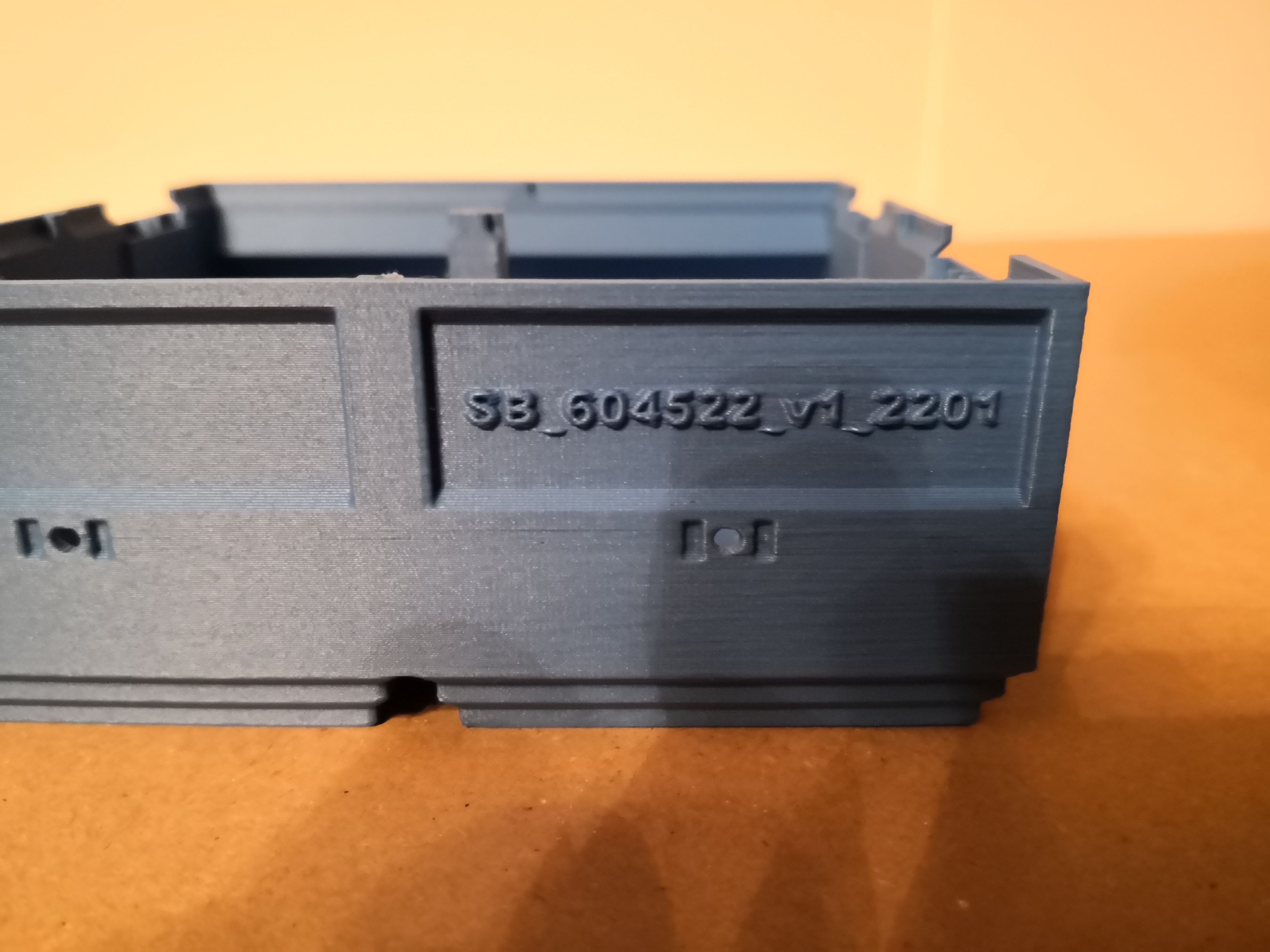

The Parts are named after the following scheme. This scheme is also printed on the boxes.

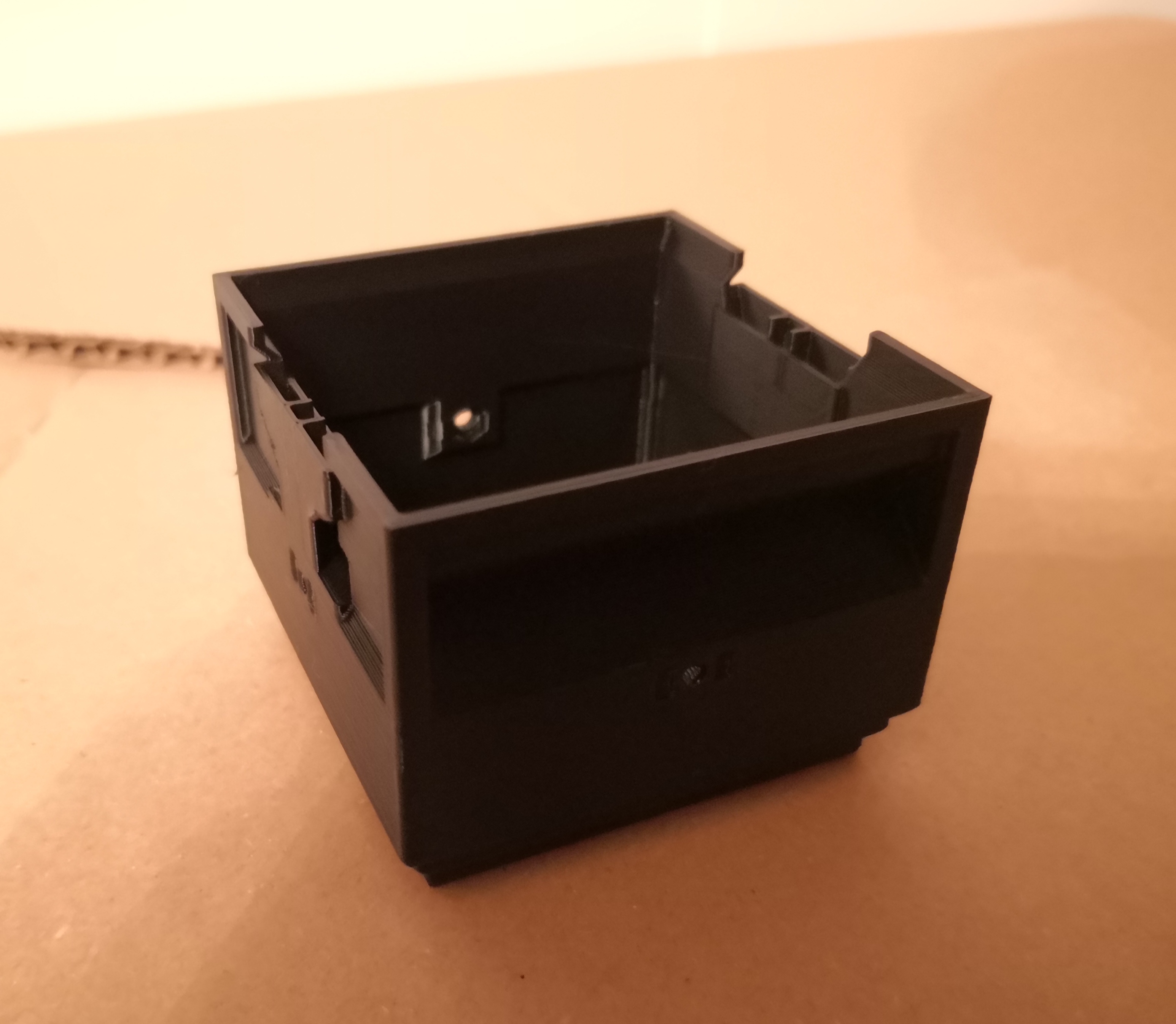

Box

• SB for Storage Box
• First + second number = grid size
• third + fourth number  = height
• fifth number                  = number of elements in the width
• sixth number                 = number of elements in the depth
• V1                                    = version
•

Example: SB_604523_v1_2201

• The box has a grid size of 60mm and a height of 45 mm. In the width it is 2 grid modules big (120 mm) and in the depth it is 3 grid modules big (180 mm). The box is version 1 and from January 2022

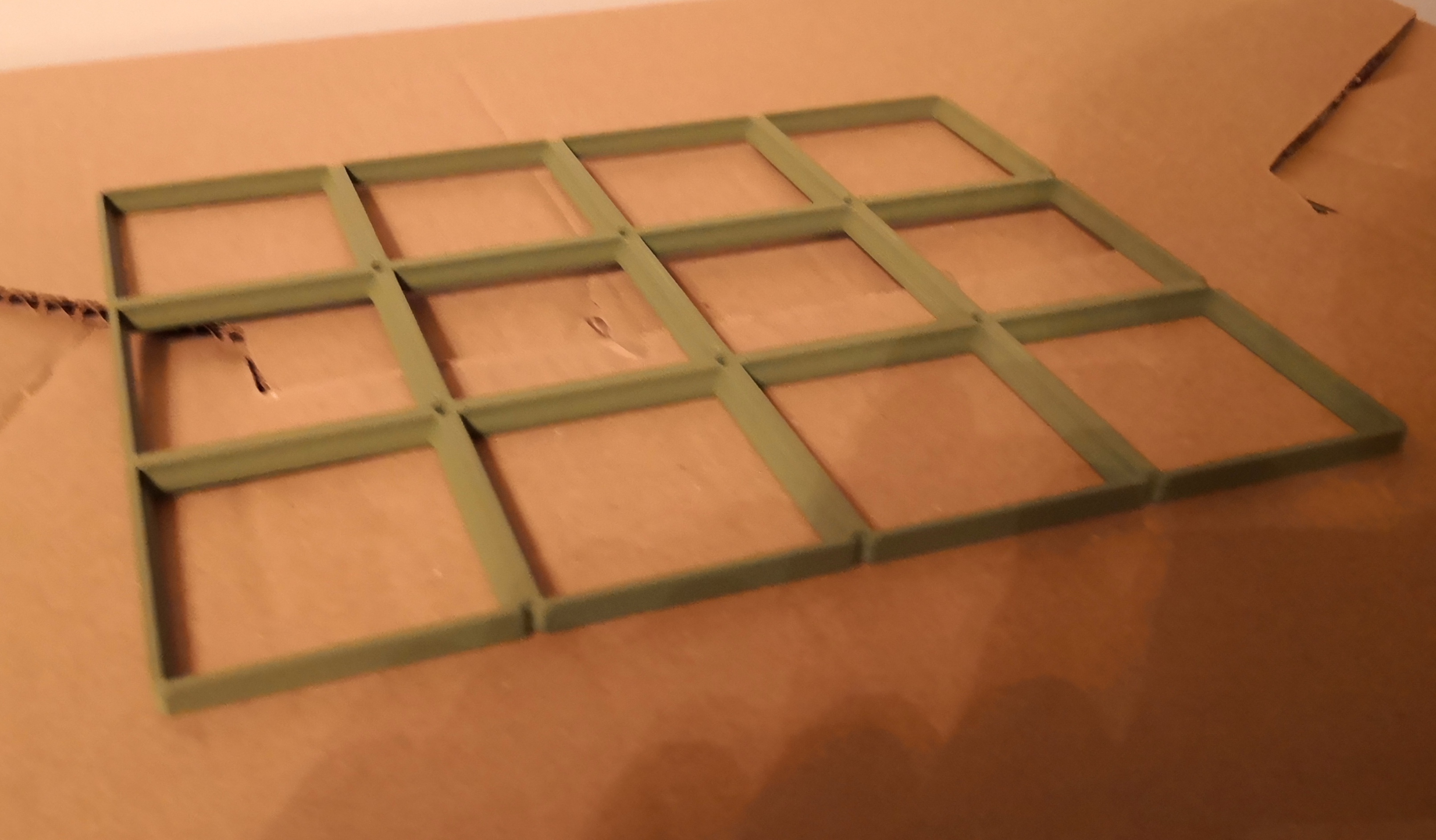

Grid

• AS_grid
• First + second number = grid size
• thirth number                = number of elements in the width
• fourth number               = number of elements in the depth

Example: AS_grid_6034

• This grid is for a grid size of 60 mm and is 3 gird modules large in the width (180 mm) and 4 grid modules large in the depth (240 mm)

List of parts

Storage Box

Grid

Measurement

• The uploaded model is with a grid size of 60x60 mm and a height of 45 mm. (Probably more variants in the future, if needed)

Print instructions

Recommended Print Settings

• Infill: 15 %
• Layer height: 0,20 mm
• Supports: No

Optional hardware

• For fixing the grid
  • this: screw 3x16 SPAX (schraubenking) - will slightly look out of the grid
  • or this: screw 2x20 DIN97 (schraubenking)
• Screw to conncect boxes: M2x8 TX ISO14579 (schraubenking)
• Nut to connect boxes: M2 DIN 934 (schraubenking)

Tools

• drilling machine (Amazon DE - [https://amzn.to/3SP7lTU](https://amzn.to/3SP7lTU))
• For M2 screws - screwdriver TX 8 (Amazon DE - [https://amzn.to/4kbwa8w](https://amzn.to/4kbwa8w))
• For 3x16 SPAX: bit TX 10 (Amazon DE - [https://amzn.to/43orF4R](https://amzn.to/43orF4R))
• For pre drilling: drill 2mm (Amazon DE - [https://amzn.to/3ST2Mb8](https://amzn.to/3ST2Mb8))

Tested Printer

• Prusa i3 MK3S+ Drucker

Tested Filament

• Prusament PETG Prusa Orange
• Prusament PETG Prusa Galaxy Black
• Prusament PLA – Prusa Glaxay Black
• Polymaker PolyTerra PLA Sapphire Blue
• 3DJAKE rPLA Schwarz
• 3DJAKE rPLA Grün
• etc.

Future Expansions

• handle
• case
• cover
• tool inserts, bit inserts, drill inserts, etc.
• drawer - system
• external label field
• different grid sizes
• different heigth
• smaller sidewalls, for faster prints and fewer material consumption
• etc.

Updates

---

If you have any questions or improvements/suggestions do not hesitate to contact me!
If you like what you see, consider following me to support my work - more to come -

AUGU5TO | PrusaPrinters

Thanks to Alexandre Chappel for the inspiration of the system!
