A free-form cubic frame lamp. Old factory style, abstract Cityscape.

185 mm height x 150 mm Width

Print 2 of each of the walls and 1 of each of the base  and the lid.

Melt 1 x M3 Inserts into the bottom and top bar of each wall.

Attach the walls to each other. The connections are tight, so work them into each other gradually to loosen them a bit.

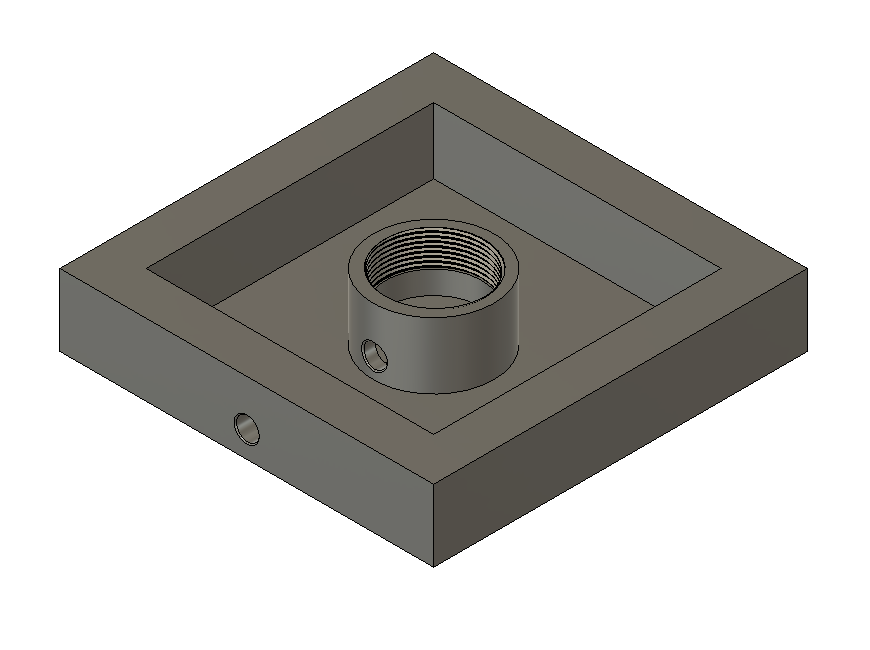

Run the cable through the base, attach the cable and switch wire to the socket and turn the  socket into the base plate.  Then attach the base plate using 2 to 4 M3 x 8mm screws

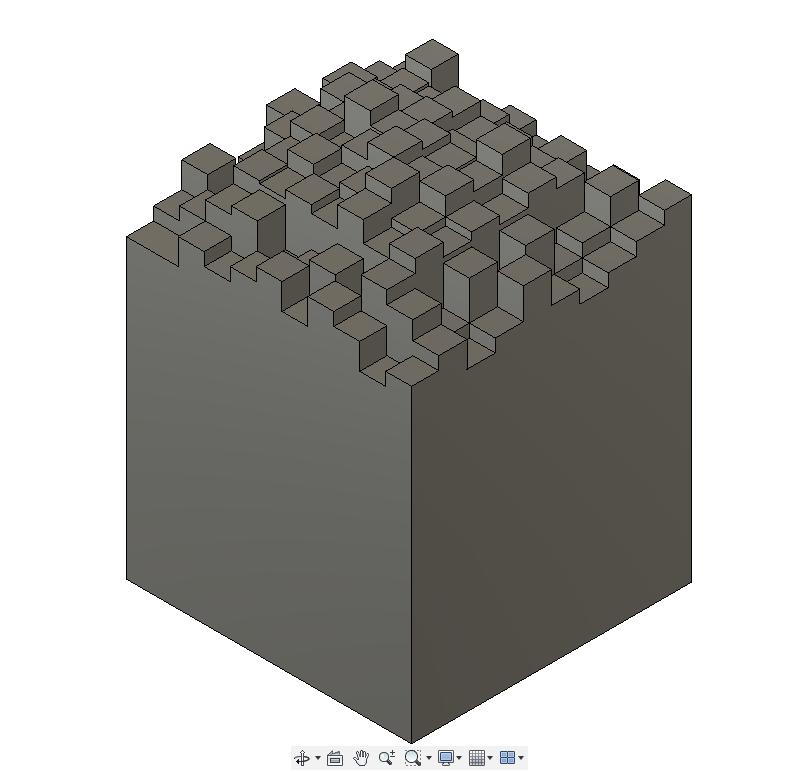

Slide the lamp shade cover into the 4-wall frame and attach the lid wit the M3 by 10 mm screws

Use  supports for the 2 shorter wall pieces. from baseplate only,  to support the wall connector pieces.

The fassung-lamp socket ( e14-28 mm):
     [https://www.amazon.de/dp/B097K4YNL9](https://www.amazon.de/dp/B097K4YNL9)

The electrical cable and switch:
     [https://www.amazon.de/dp/B002DAOX58](https://www.amazon.de/dp/B002DAOX58)

The E14 Bulb used here:
     [https://www.amazon.de/dp/B0B5MPL9MX](https://www.amazon.de/dp/B0B5MPL9MX)

8 M3 by 14 screws

    [https://de.aliexpress.com/item/32443118299.html?](https://de.aliexpress.com/item/32443118299.html?)

8 x M3 Inserts

    [https://www.amazon.de/dp/B08BCRZZS3?](https://www.amazon.de/dp/B08BCRZZS3?)

The slicer settings for the shade base and shade holder,  cage frame and top

.20 mm Standard

(All standard settings and speeds, Aligned seam settings)

Filament:  eSun PLA+ Black

The slicer settings for The Shade:

Supports required. I used auto-tree from build plate only on a P1P.

Filament:  Sunlu PLA+ White

.20 mm Standard  Quality and Generic PLA
Infill %  - 30 , Gyroid
Wall Loops - 6


Seam Position- Aligned
